Professional Cat.6 U UTP Verlegekabel simplex, Dca
The Digitus Professional Cat.6 U/UTP installation cable DK-1614-VH-305 is characterized by a 4x2 AWG 23/1 cable structure and achieves a transmission frequency of up to 250 MHz. Th...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

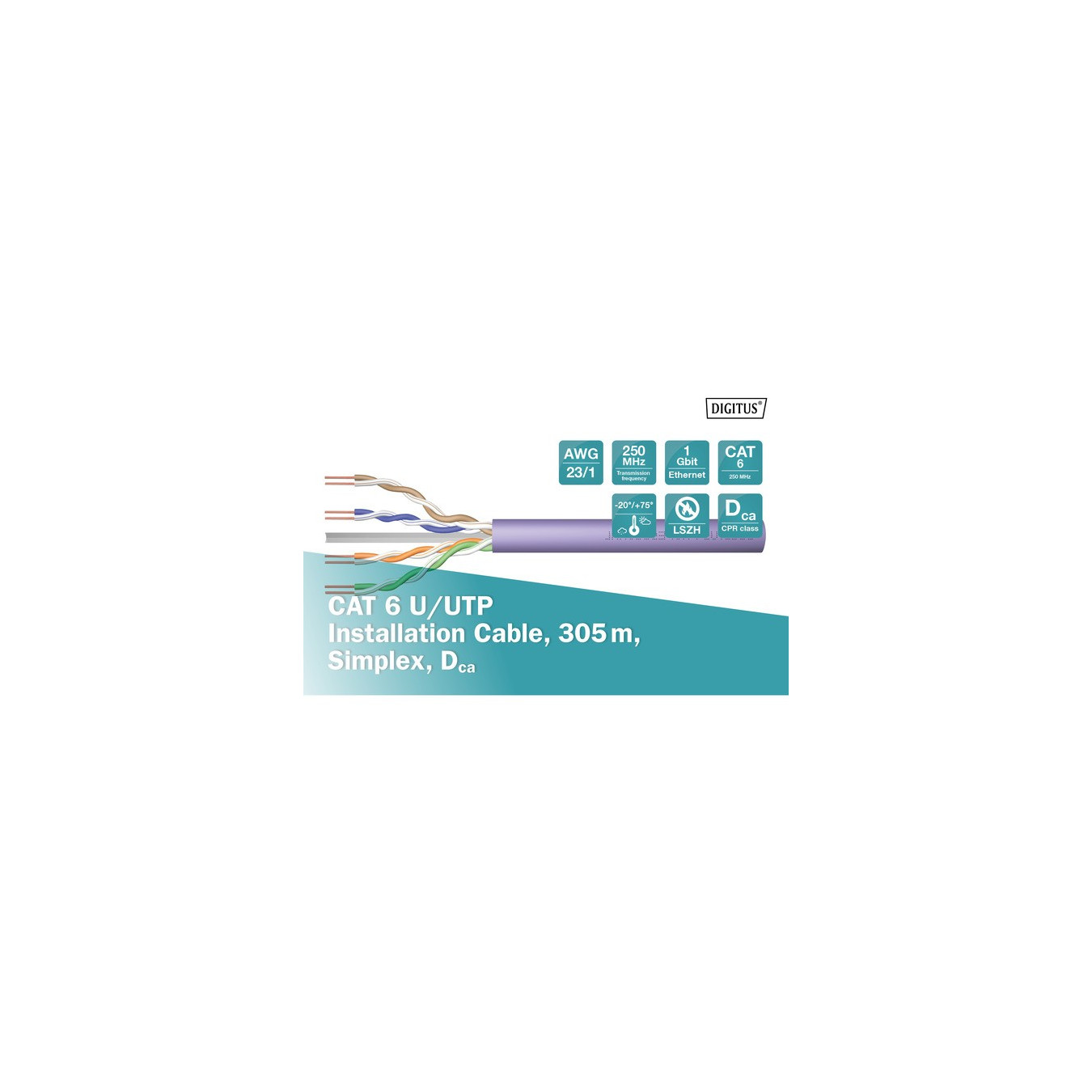

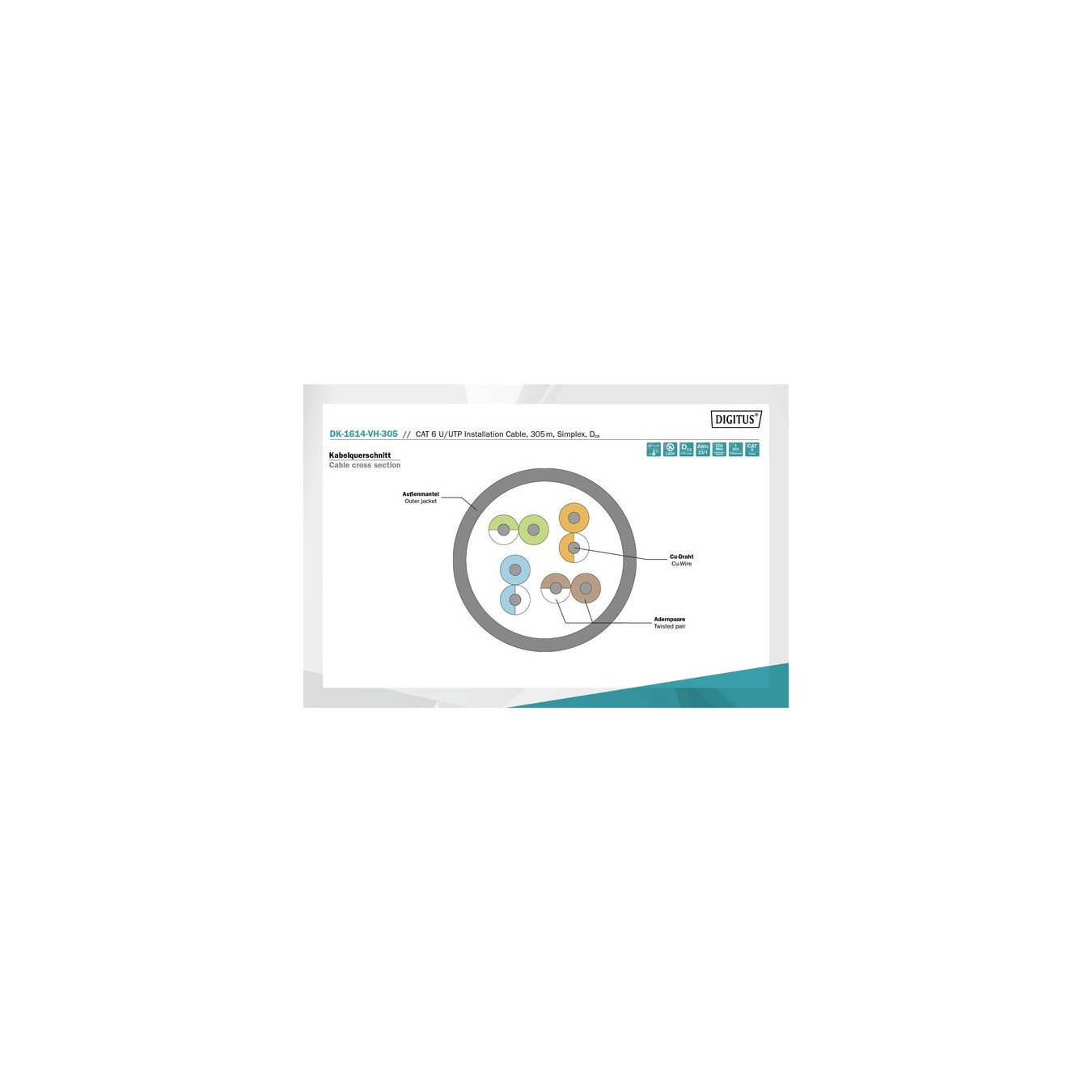

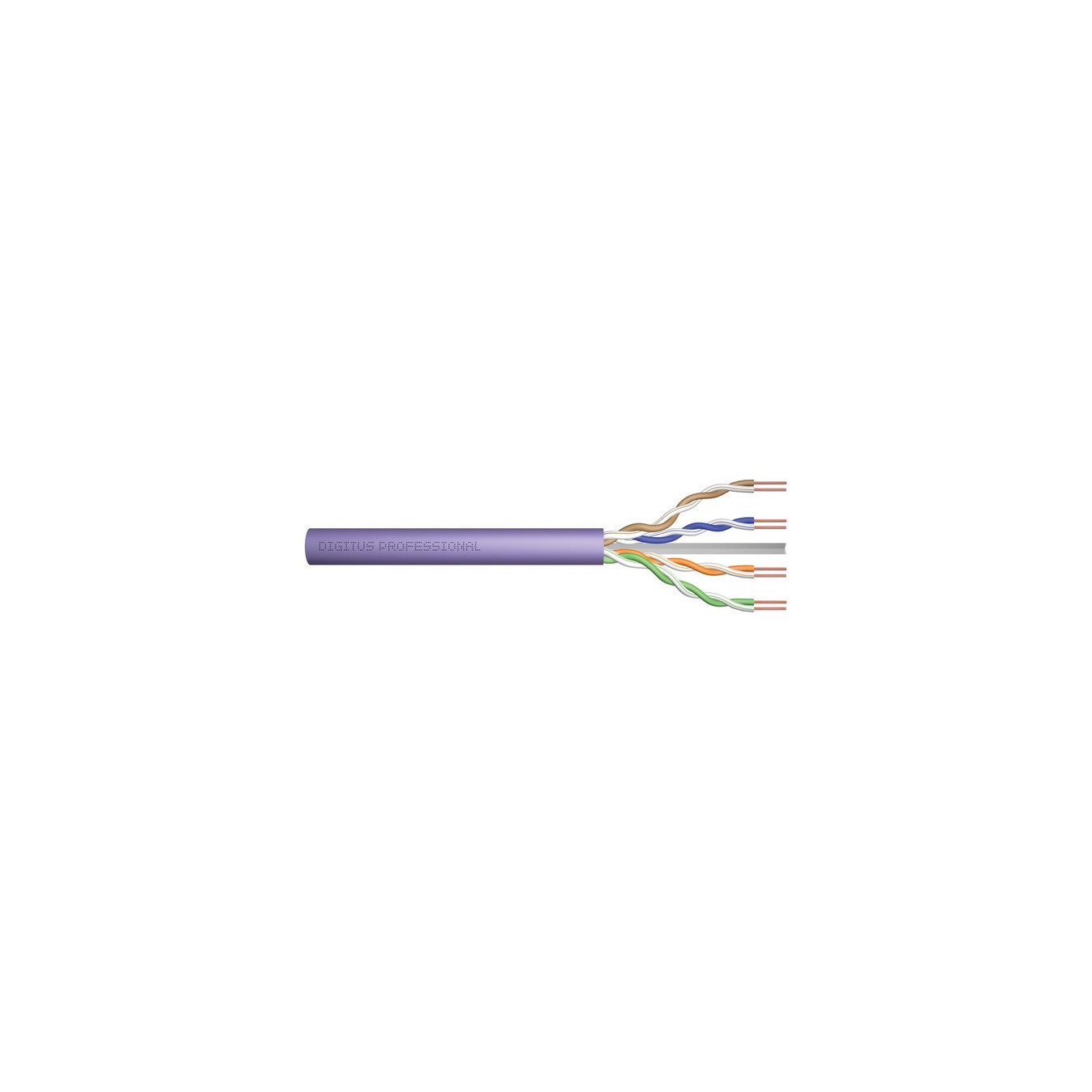

The Digitus Professional Cat.6 U/UTP installation cable DK-1614-VH-305 is characterized by a 4x2 AWG 23/1 cable structure and achieves a transmission frequency of up to 250 MHz. The cable jacket corresponds to BauPVO Euroclass Dca. The unshielded installation cable is designed for use in building cabling, is ideal for the transmission of analog and digital data and supports POE and POE+. It has excellent mechanical properties and offers a tensile load of max. 150N, the dynamic bending radius is at least 8x OD mm, the static bending radius is at least 4x OD mm.
| Typ | Cable |
| Color | violet |
| EAN | 4016032435785 |
| Manufacturer no. | DK-1614-VH-305 |
| Manufactured in | China |

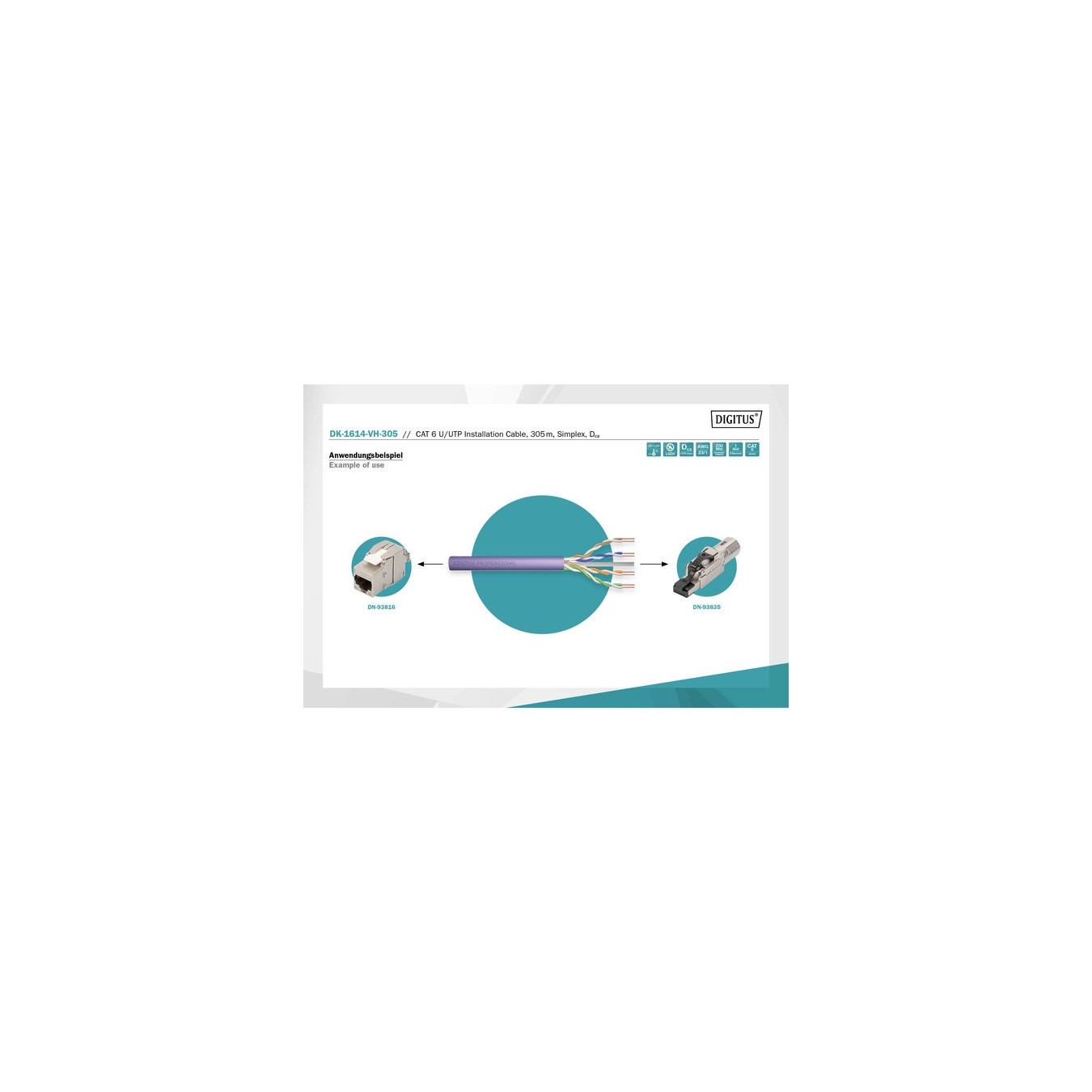

| Application example | Data center and building cabling |
| Area | network |
| Connection - from | 1x cable end without plug |
| Cable cross section | 23 AWG |
| Category - Cable | Cat.6 |
| shielding | U/UTP |
| Characteristics | extern |
| Execution | Premium |
| Feature | 1GBit Ethernet, 250 MHz transmission frequency, PoE and POE+ Power over Ethernet support |

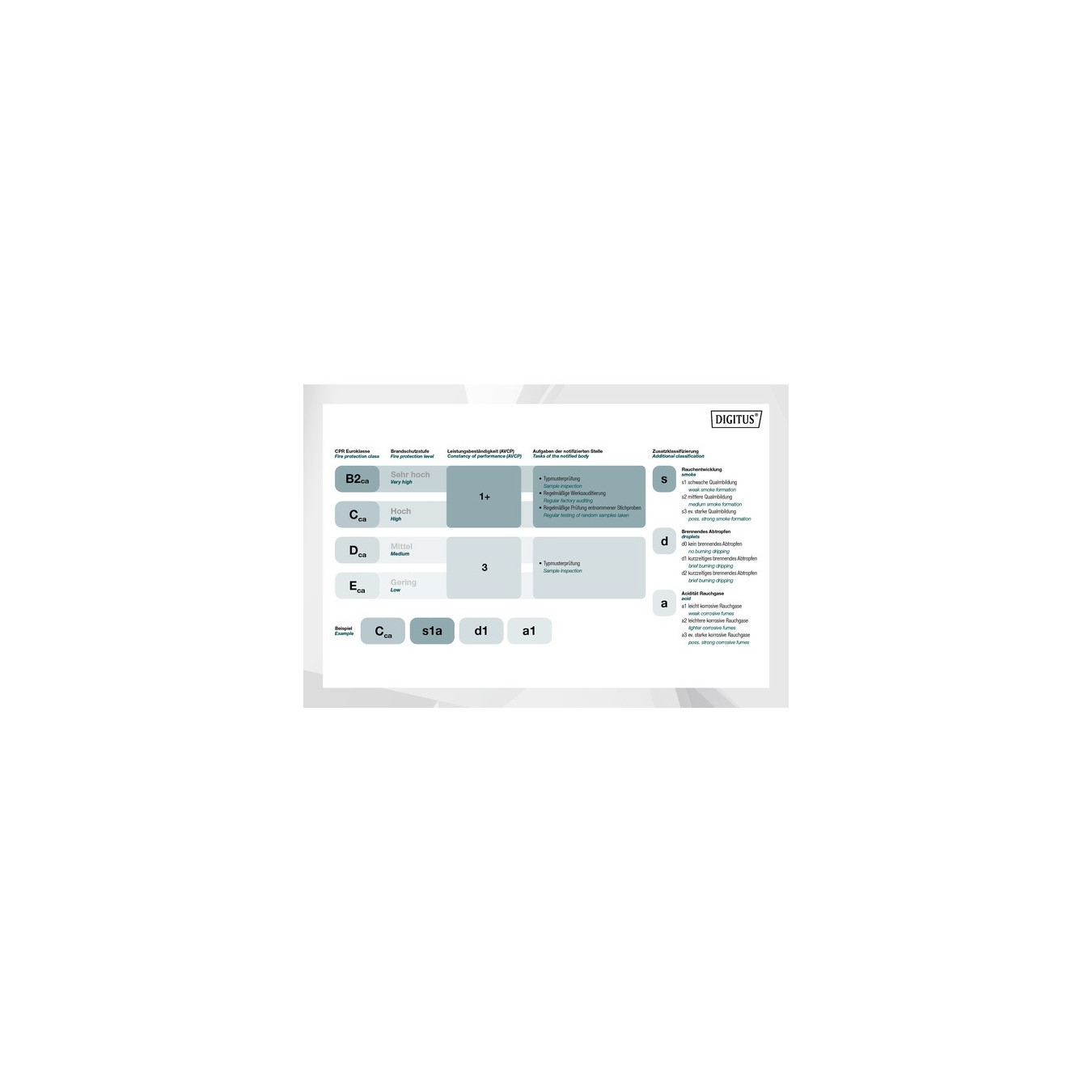

| More information | BauPVO class Dca s2,d1,a1, conductor material: bare copper wire, AWG 23/1, sheath halogen-free |
| Notice | ISO/IEC 11801-1:2017, EN50173-1, IN 50173-1:2011, IN 50173-2014 + A1:2016 ANSI/TIA-568-2.D |
| Cable length | 305 Meter |
| Weight | 12,3 kg |
