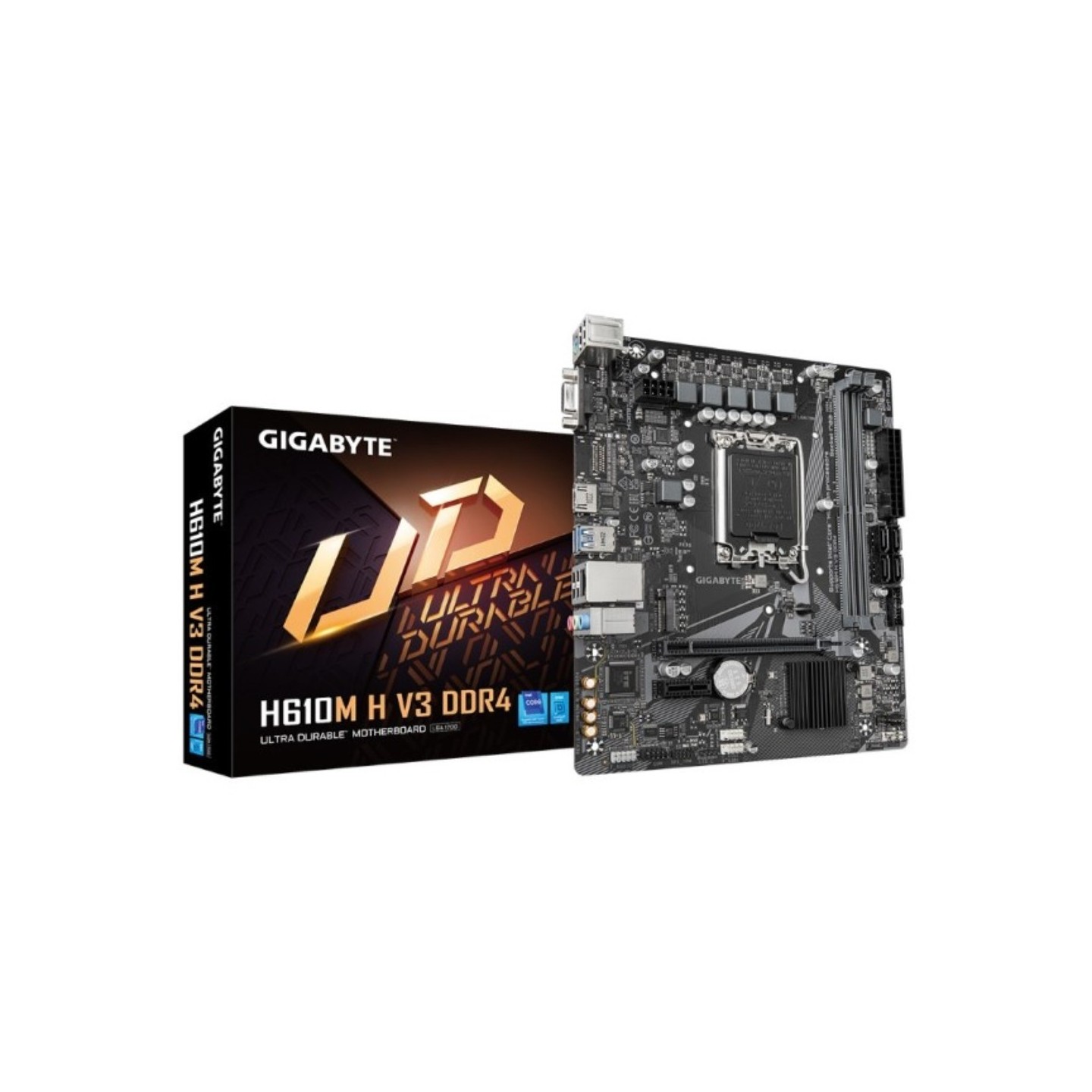

Gigabyte GA-H610M H V3 LGA1700 Micro-ATX DDR4 Motherboard 64GB (Boxed)
Gigabyte GA-H610M H V3: LGA1700 micro-ATX, Intel H610, DDR4 up to 64GB/3200MHz (2 slots), 1x PCIe 3.0 M.2, 4x SATA III, GbE LAN, Realtek 7.1 audio, Smart Fan 6, HDMI/DP/DVI/VGA.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel H610 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - Main Slot PCIe Version | PCIe 3.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |

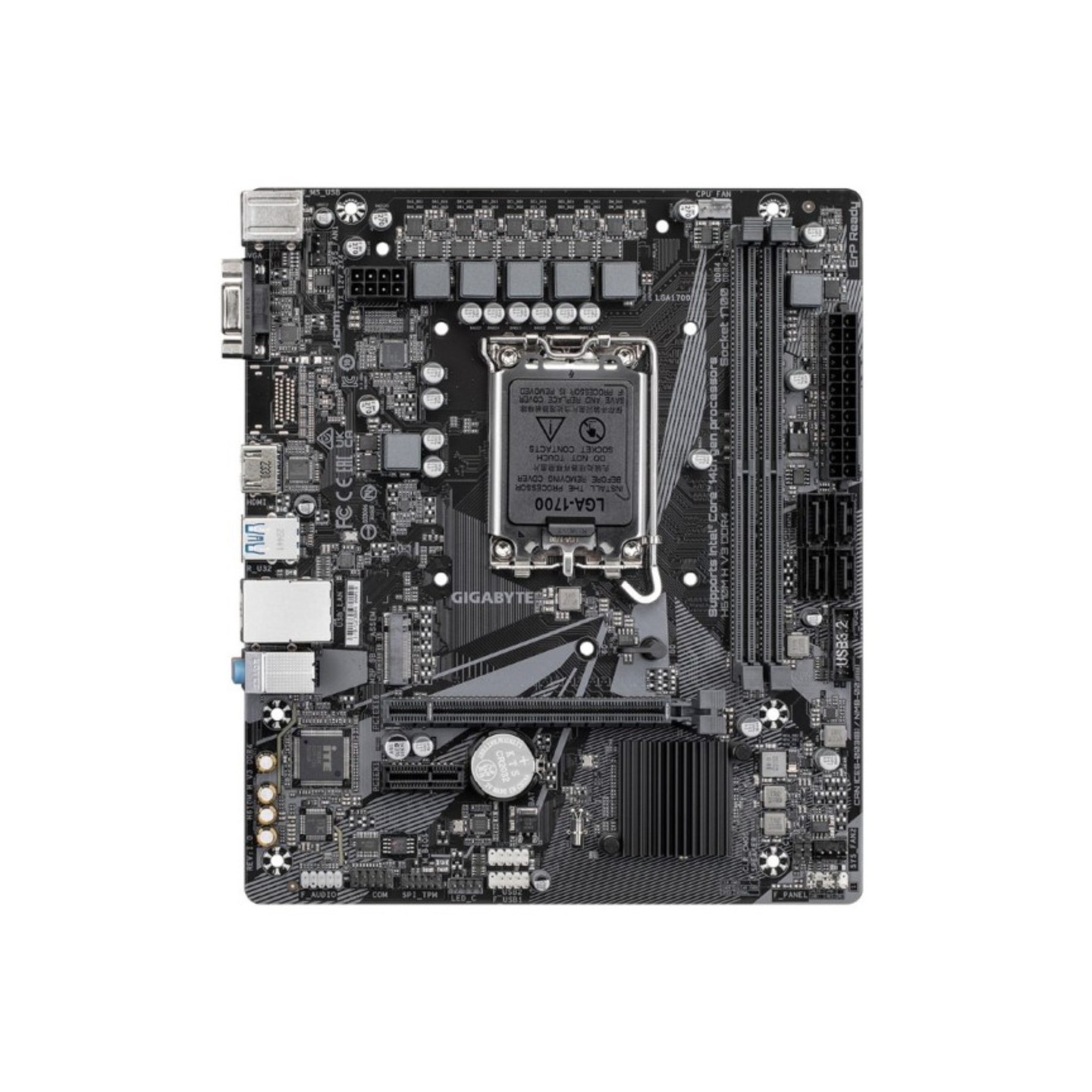

The Gigabyte GA-H610M H V3 DDR4 is a reliable micro-ATX motherboard for Intel 12th/13th/14th gen Core processors (LGA1700 socket) with H610 chipset. It features 4+1+1 hybrid digital VRM for stable power delivery, dual-channel DDR4 support up to 64GB at 3200MHz across 2 DIMM slots, and single 32GB module compatibility.

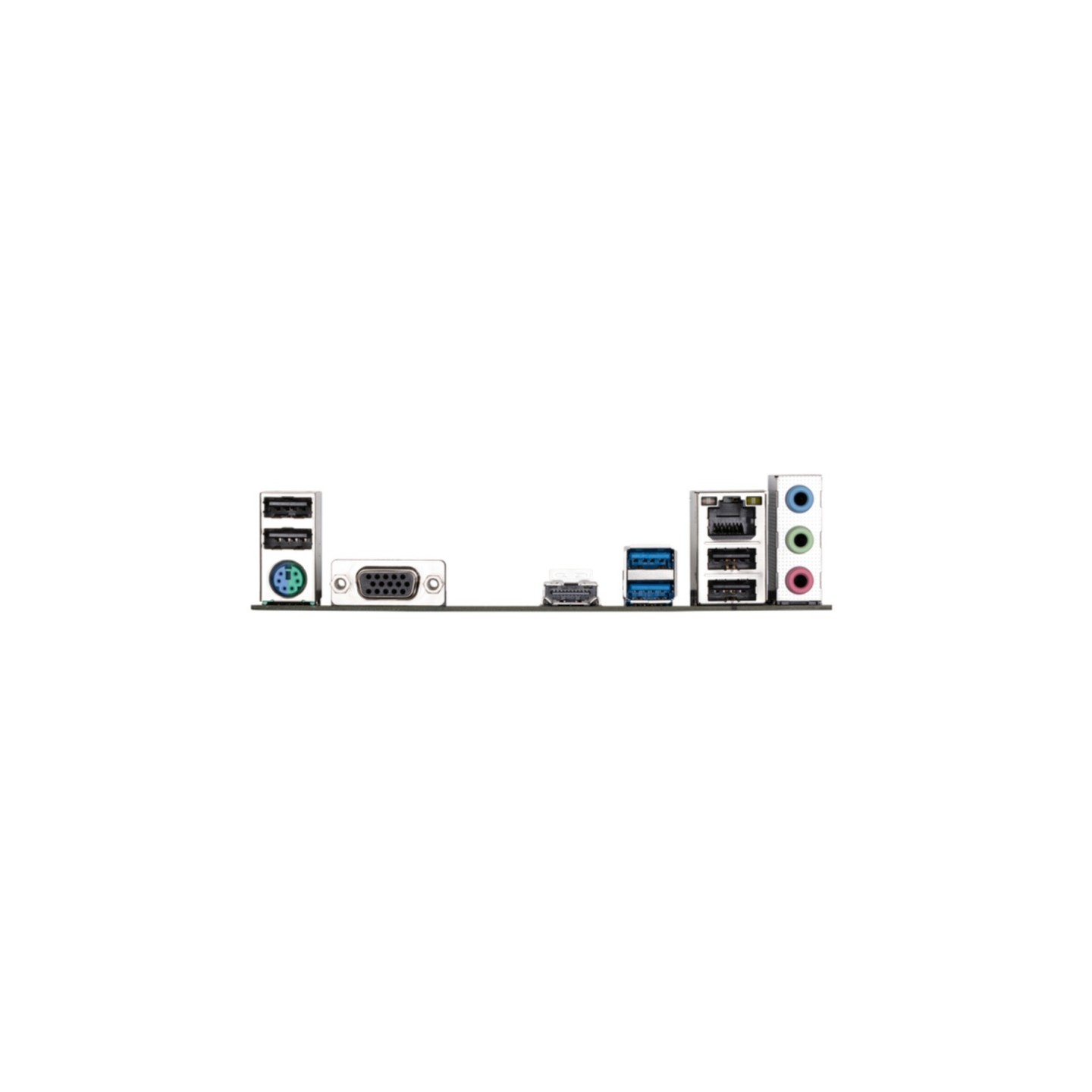

Storage options include 1x PCIe 3.0 x4 M.2 slot for NVMe SSDs and 4x SATA III ports. Connectivity comprises GbE LAN with bandwidth management, USB 3.2 Gen1 ports, multiple display outputs (HDMI, DP, DVI-D, VGA up to 4096x2304), and Realtek ALC897 7.1-channel HD audio with noise guard. Smart Fan 6 ensures optimal cooling with hybrid headers and multiple sensors.
- Key Features: Anti-Sulfur resistors, Hybrid Cores BIOS optimization, GIGABYTE APP Center, UEFI BIOS
- Expansion: 1x PCIe 4.0 x16, 1x PCIe x1
- OS Support: Windows 10/11 x64
- Form Factor: Micro-ATX (23x21.5cm)
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Motherboard chipset | Intel H610 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speed (max) | 3200 MHz |
| Number of M.2 (M) slots | 1 |
| Number of SATA III connectors | 4 |
| PCI Express x16 slots | 1 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Ethernet interface type | Gigabit Ethernet |
| Product colour | Black |
| VRM Design | 4+1+1 Hybrid Phases Digital |
| M.2 Interface | PCIe 3.0 x4 |
| Cooling Features | Smart Fan 6, Multiple Temperature Sensors |
| BIOS Features | Hybrid Cores Optimization |
| Additional Features | Anti-Sulfur Resistors, GbE LAN Bandwidth Management |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Width | 230 mm |
| Depth | 215 mm |
| Package width | 265 mm |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package weight | 684 g |
| Warranty period | 3 year(s) |
