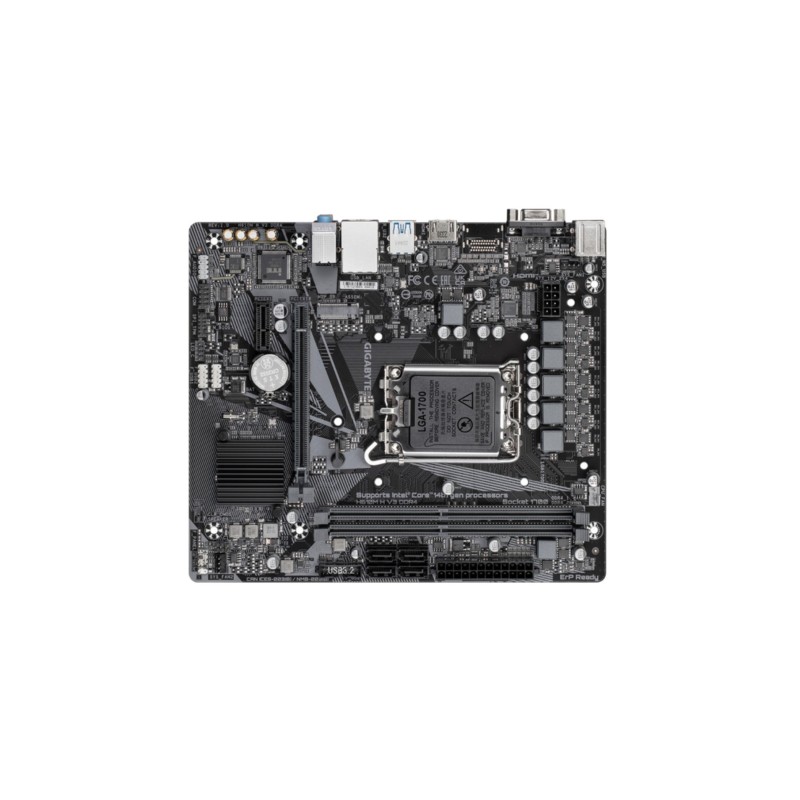

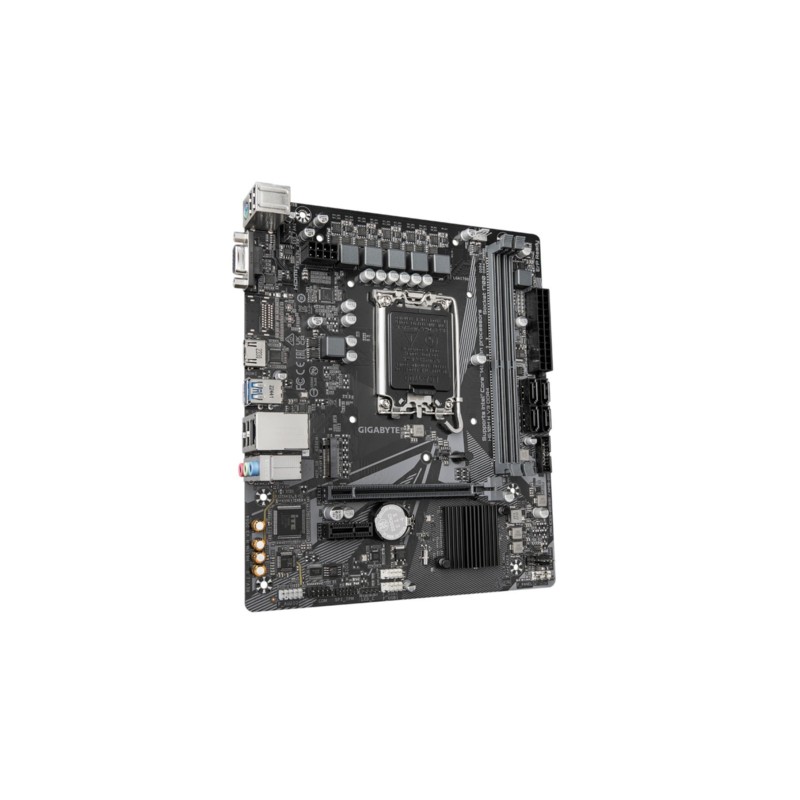

Gigabyte GA-H610M H V3 - LGA1700 Micro-ATX DDR4 Motherboard, 64GB Max, Black
Gigabyte GA-H610M H V3 micro-ATX motherboard — LGA1700, Intel H610 chipset, DDR4 (2 DIMM, up to 64GB), 1x M.2, 4x SATA III, multiple video outputs, Realtek 7.1 audio.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Socket | LGA1700 |
|---|---|
| Motherboards - Chipset | Intel H610 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C | None |
GIGABYTE H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs. 4+1+1 Hybrid Phases Digital VRM. up to 3200MHz DDR4. 1xPCIe 3.0 M.2. GbE LAN. USB 3.2 Gen 1. Processor manufacturer: Intel. Processor socket: LGA 1700. Compatible processor series: Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9..... Supported memory types: DDR4-SDRAM. Maximum internal memory: 64 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA III. Supported storage drive types: HDD & SSD. Graphics card family: Intel. Graphics card: HD Graphics. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 3200. 3000. 2933. 2666. 2400. 2133 MHz |
| Supported memory clock speed (max) | 3200 MHz |
| Maximum internal memory | 64 GB |
| Supported memory module capacities | 1GB. 2GB. 4GB. 8GB. 12GB. 16GB. 32GB |
| Feature | Batteries included |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA III |
| Number of HDDs supported | 1 |
| Number of storage drives supported | 5 |
| Parallel processing technology support | Not supported |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 4096 x 2304 pixels |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Serial port headers | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Headphone outputs | 3 |
| USB connector type | USB Type-A |
| Ethernet interface type | Gigabit Ethernet |
| Motherboard chipset | Intel H610 Express |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan. Temperature. Voltage. Water cooling |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Cooling type | Active |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64. Windows 11 x64 |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 265 mm |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package weight | 684 g |
| Width | 230 mm |
| Depth | 215 mm |
| Height | 35 mm |
| Cables included | SATA |
| Bundled software | Norton Internet Security (OEM version)LAN bandwidth management software |
| Warranty period | 3 year(s) |
