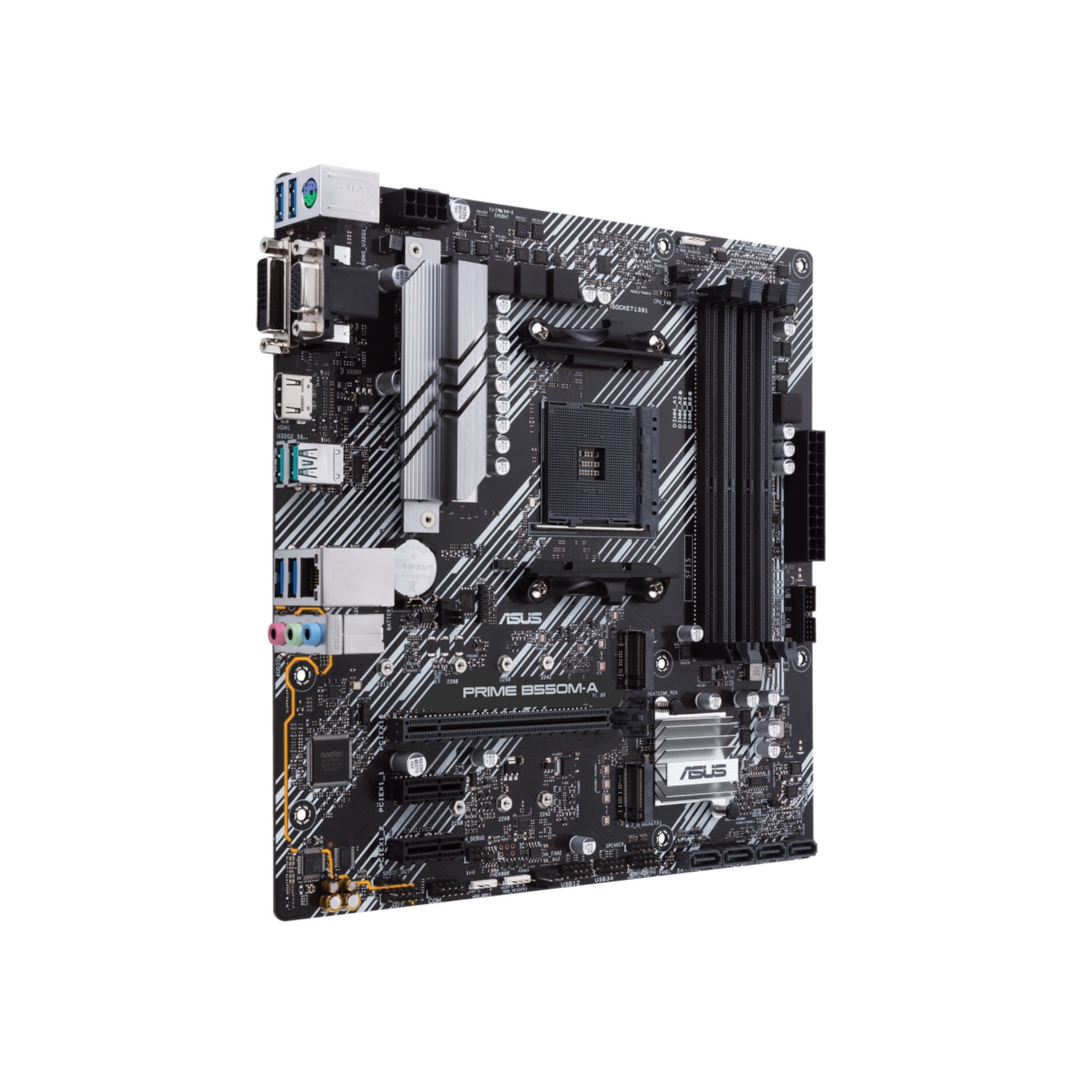

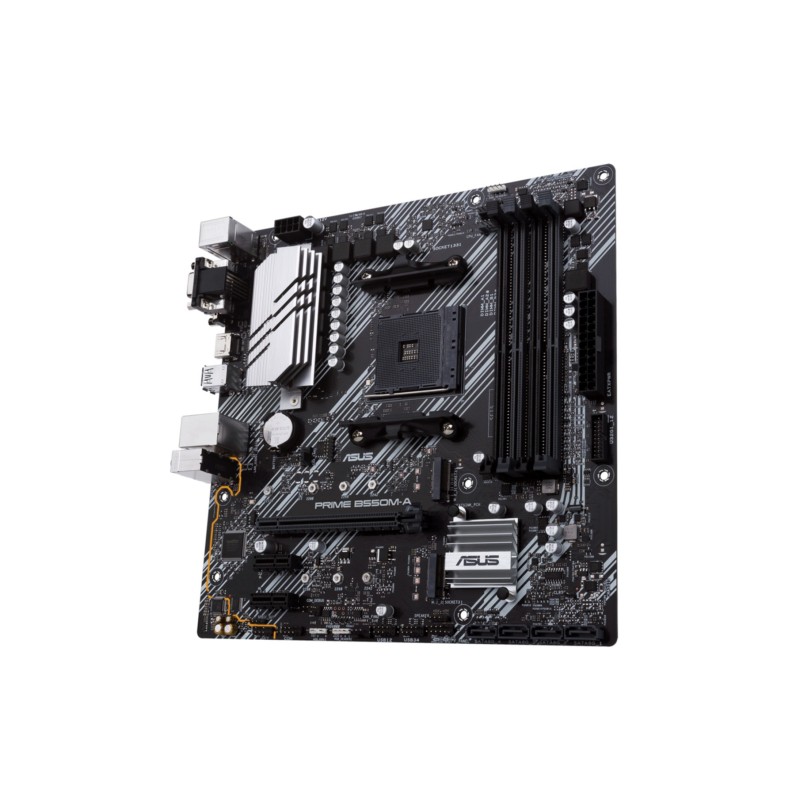

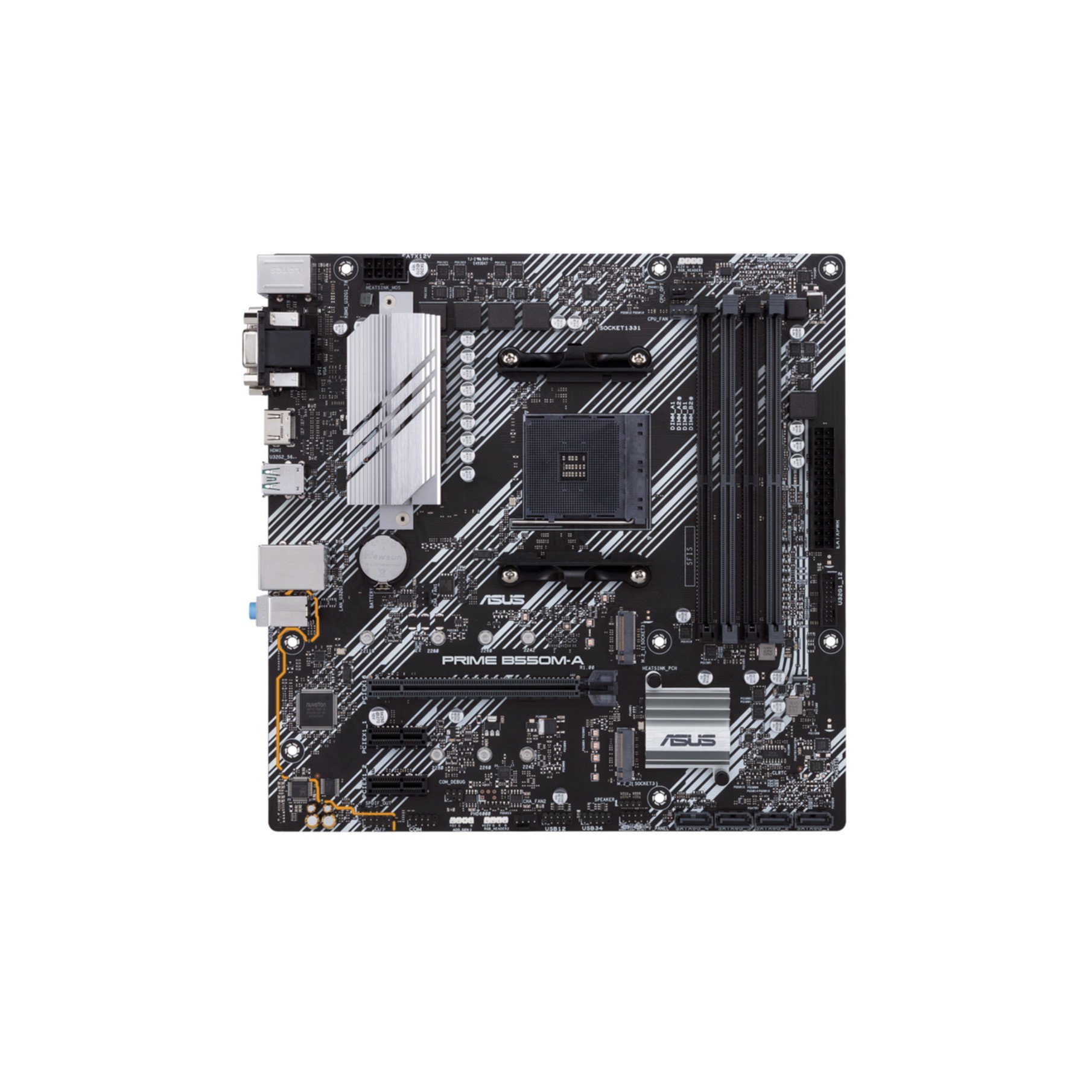

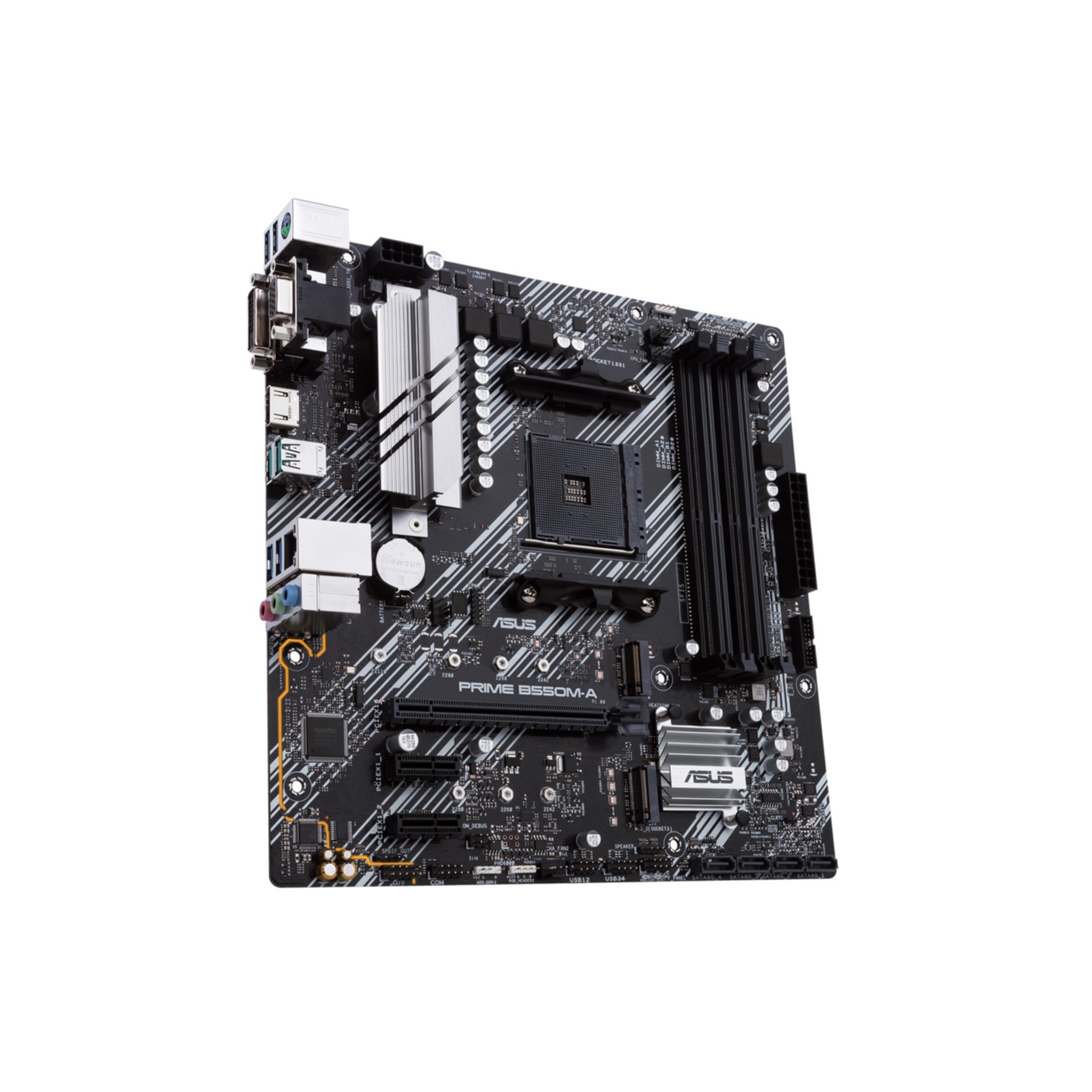

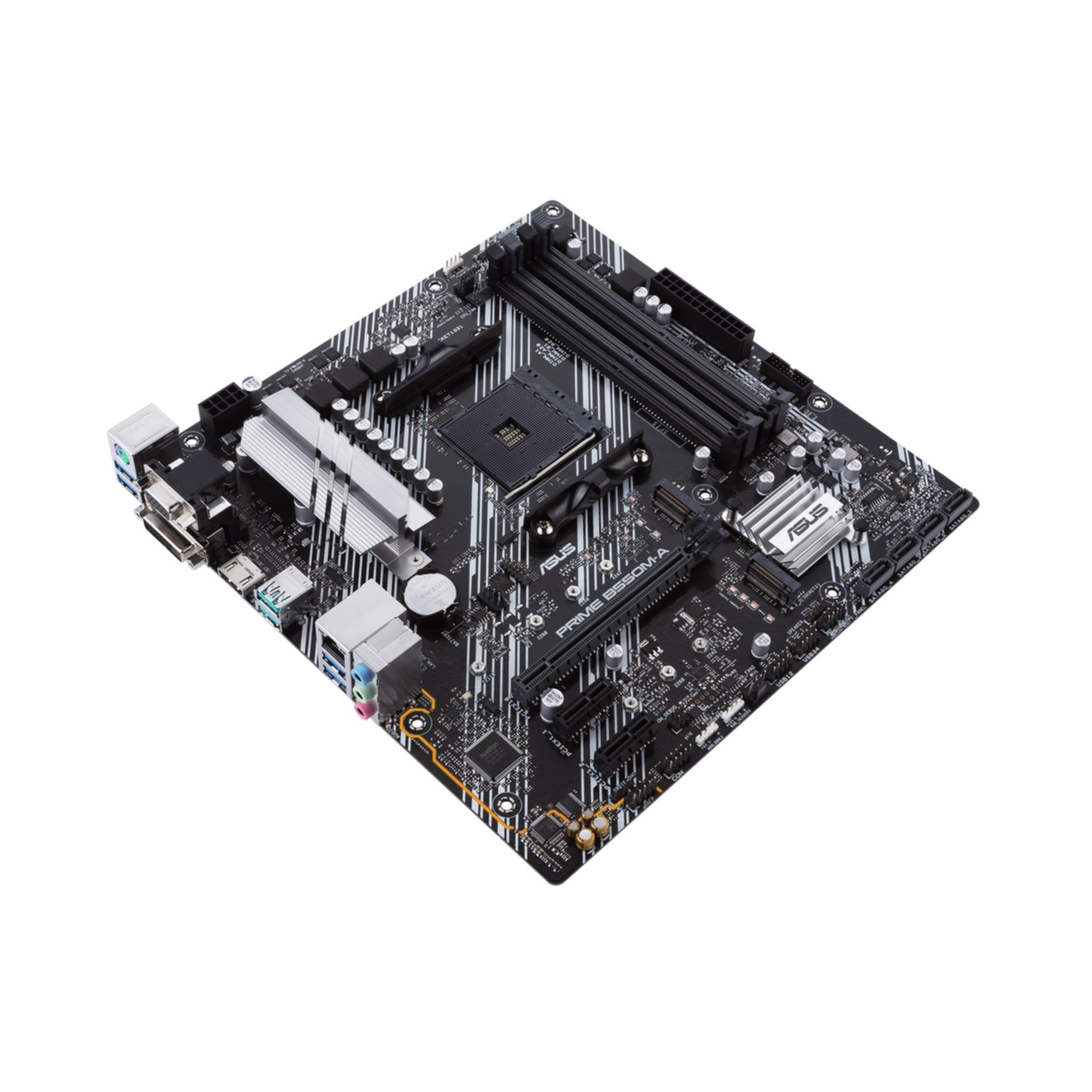

ASUS PRIME B550M-A - AM4 microATX Motherboard | AMD B550, DDR4, 4x DIMM, 128GB Max, M.2 & SATA
AM4 socket ASUS PRIME B550M-A microATX motherboard. AMD B550 chipset, DDR4 up to 128GB (4 DIMMs), M.2 + SATA storage, Realtek LAN, Bluetooth 5.1 — compact Ryzen-ready board.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Socket | AM4 |
|---|---|
| Motherboards - Chipset | AMD B550 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - SATA Ports | 4 |
ASUS PRIME B550M-A. Processor manufacturer: AMD. Processor socket: Socket AM4. Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM. Maximum internal memory: 128 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA. LAN controller: Realtek 8111H. Motherboard form factor: micro ATX. Motherboard chipset family: AMD. Motherboard chipset: AMD B550
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory clock speeds | 2133.2400.2666.2800.3000.3200.3333.3466.3600.3733.3866.4000.4133.4266.4400.4600 MHz |
| Maximum internal memory | 128 GB |
| Supported storage drive interfaces | M.2. SATA |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA connectors | 4 |

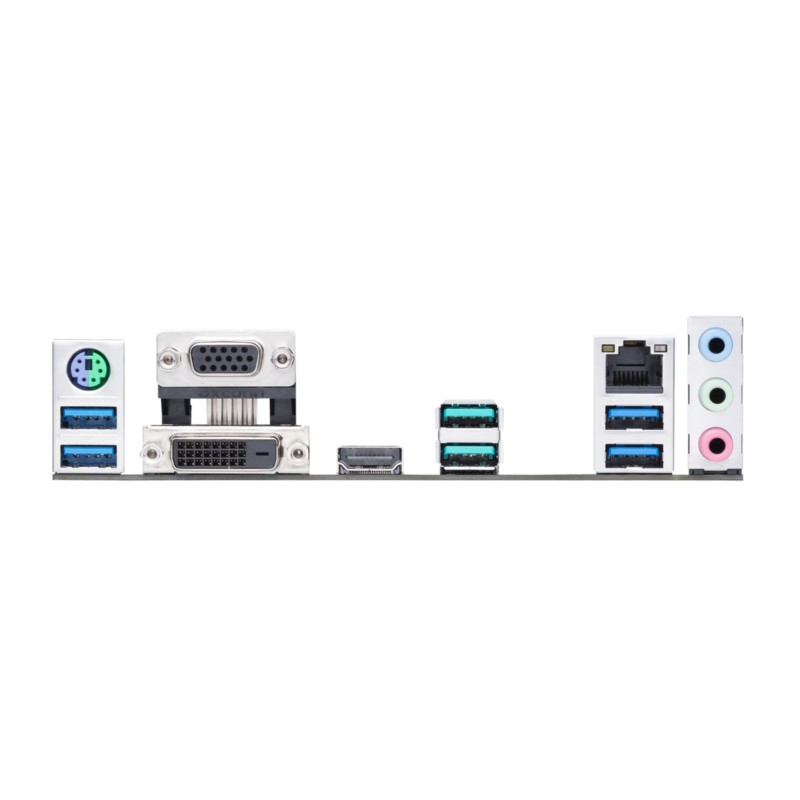

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Feature | Bluetooth |
| LAN controller | Realtek 8111H |
| Bluetooth version | 5.1 |
| Motherboard chipset | AMD B550 |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Harmonized System (HS) code | 84733020 |
