Cat.6a Keystone-Modul, geschirmt
The shielded CAT 6A Keystone module set DN-93617-12 from Digitus impresses with its future-oriented standards and high-end quality for networks. The modules have a 360° shield cont...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

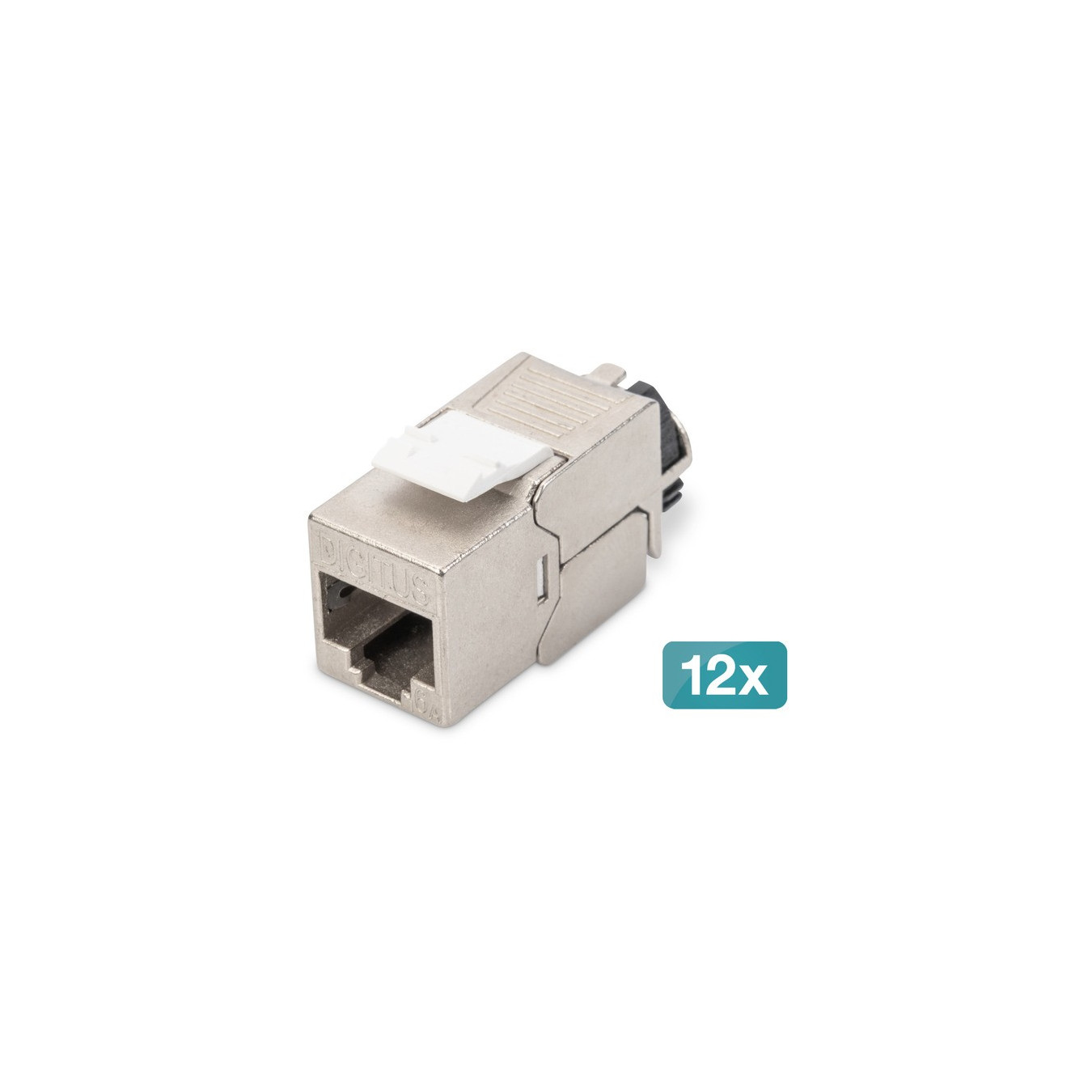

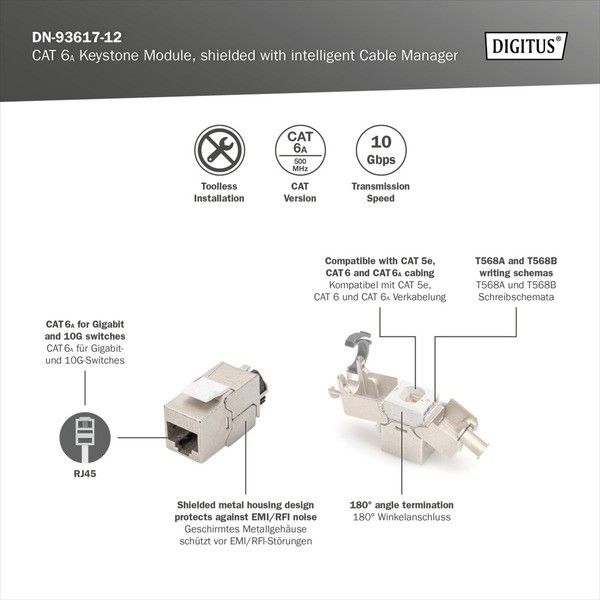

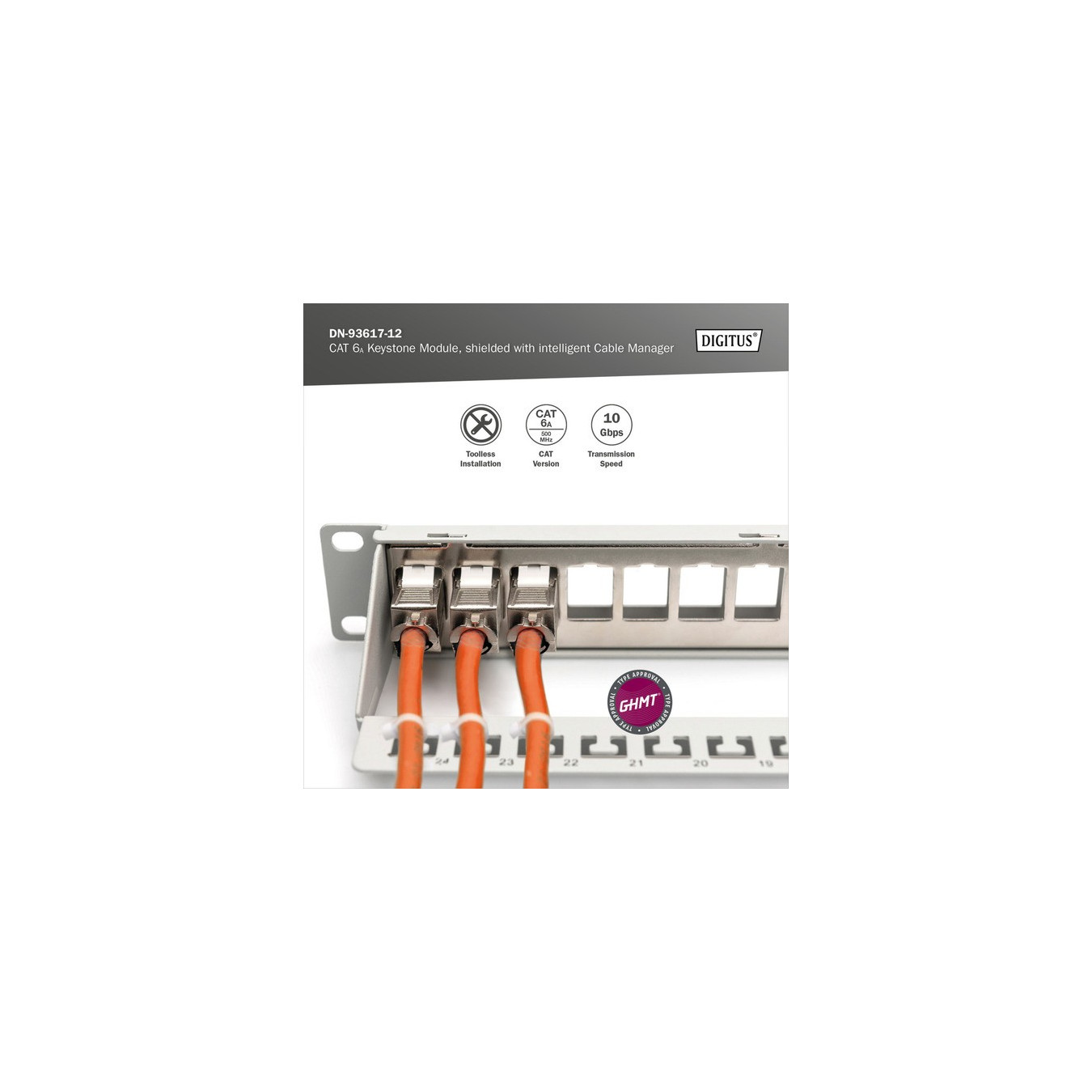

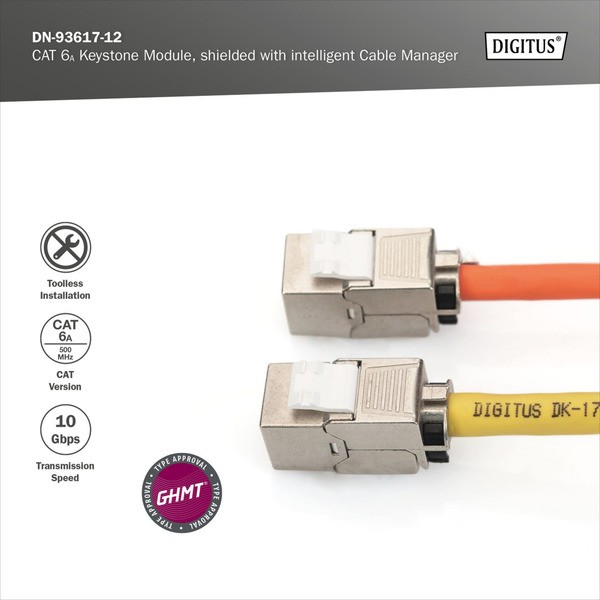

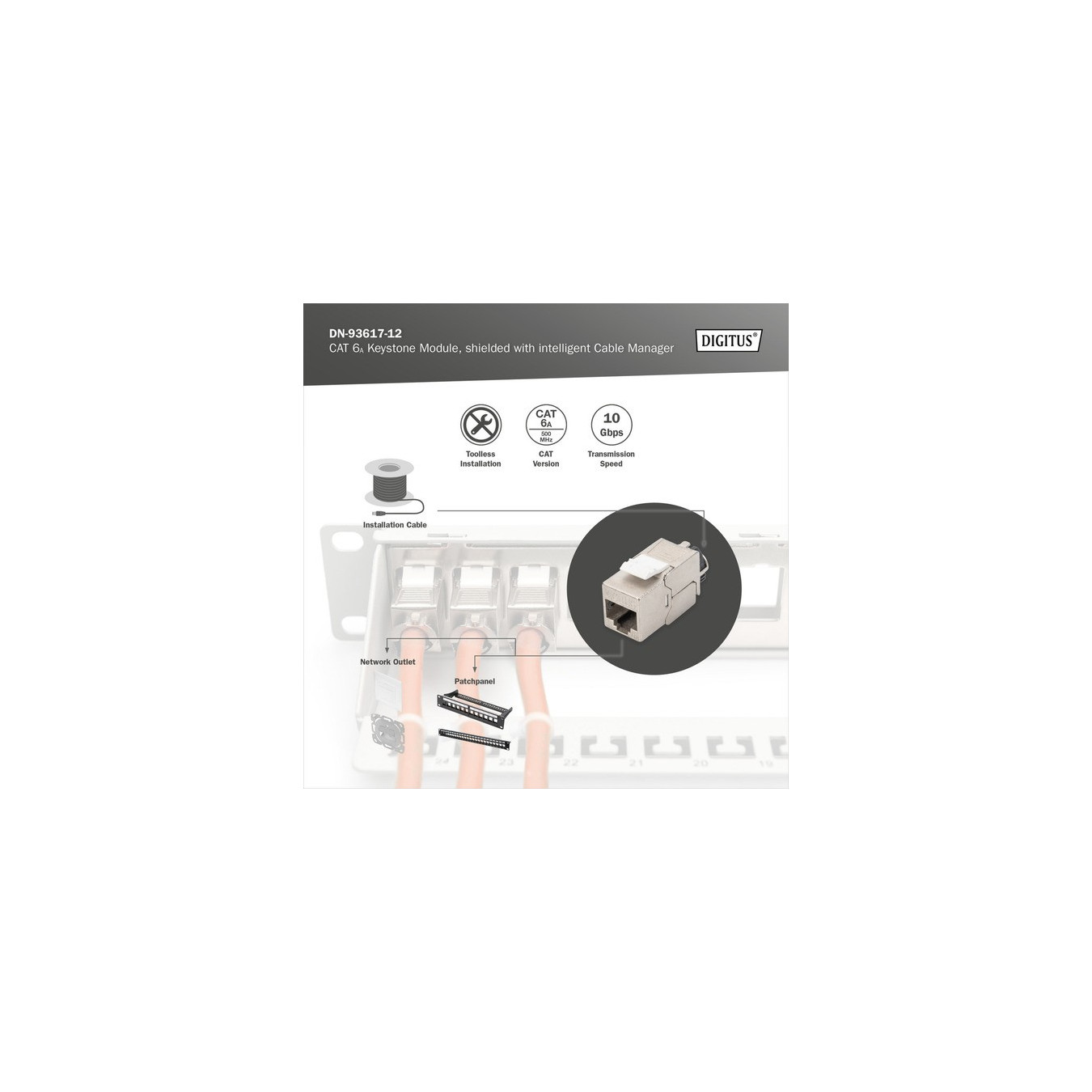

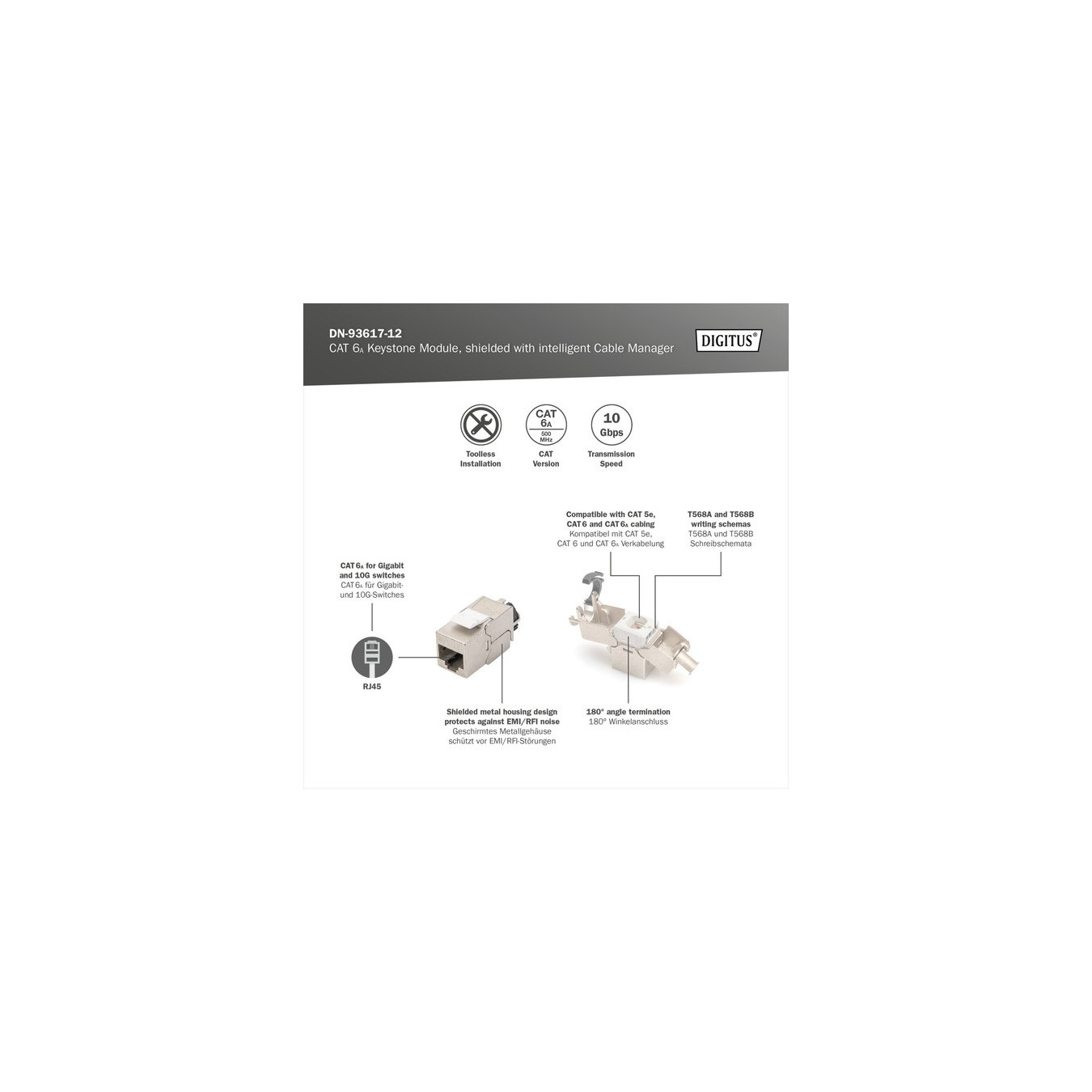

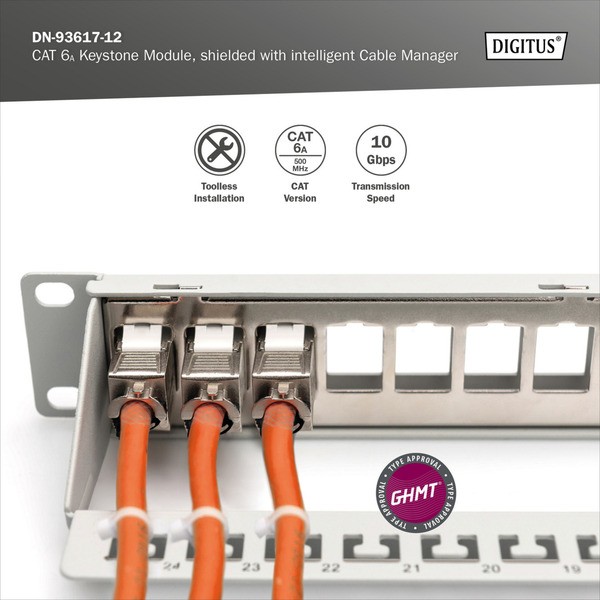

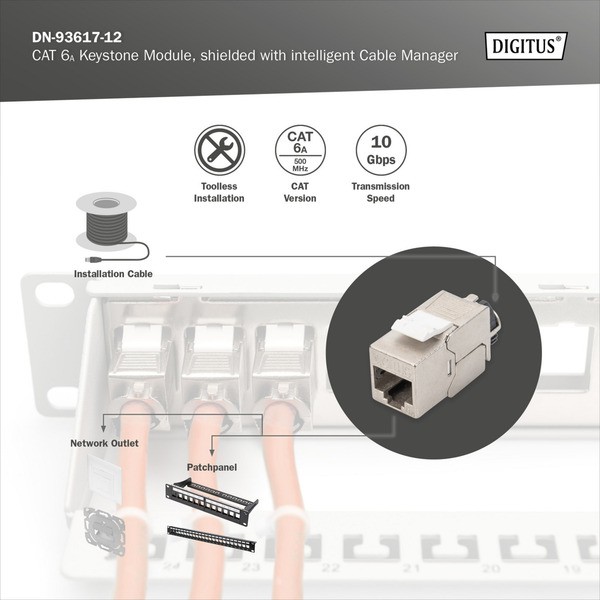

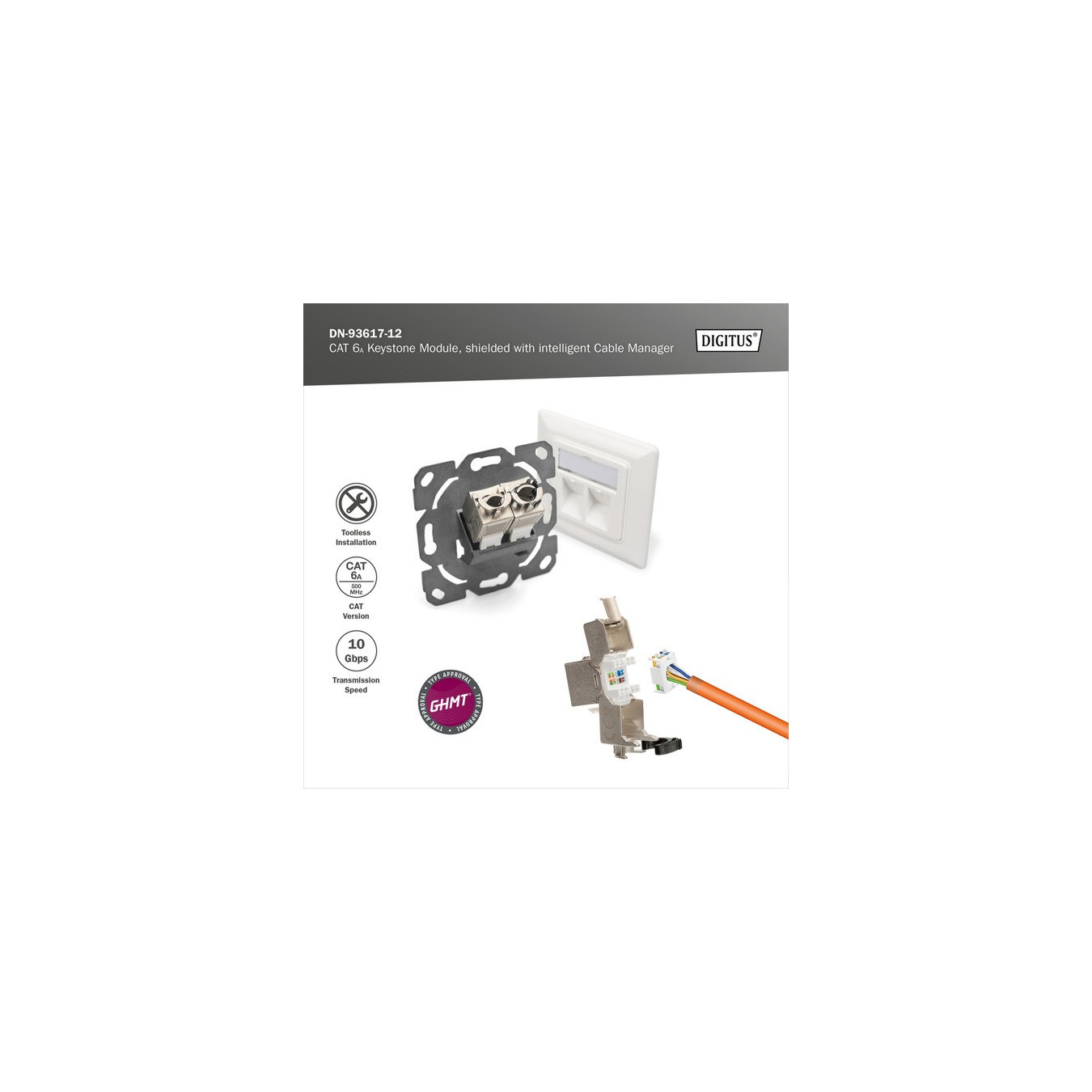

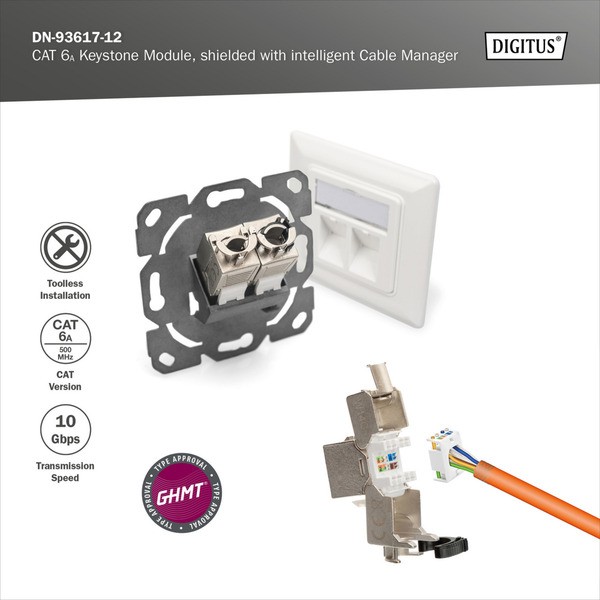

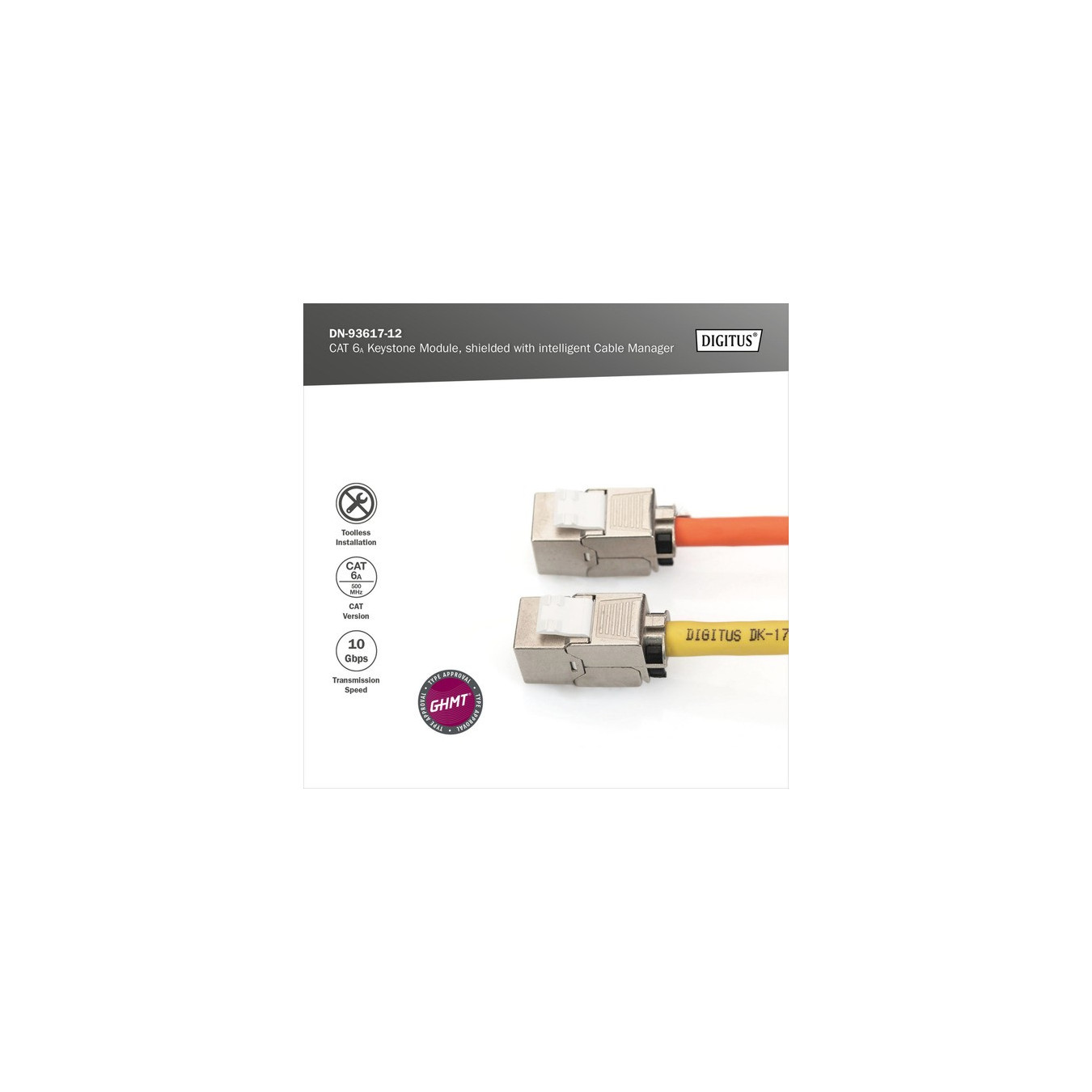

The shielded CAT 6A Keystone module set DN-93617-12 from Digitus impresses with its future-oriented standards and high-end quality for networks. The modules have a 360° shield contact, a locking lever and a resealable, intelligent cable manager for strain relief and cable fixation. The compact design allows a series installation in a 483 mm (19") 1U panel. The tool-free installation is carried out via LSA strips, color-coded according to EIA/TIA 568 A&B. Thanks to its compact design, the module also fits into design-compatible modular junction boxes. The Cat-6A Keystone module with 360° shielding supports transmission speeds of up to 10 Gbit/s & 500 MHz Connection with network installation cables of category Cat 6A or higher (suitable for PoE/PoE+/4PPoE). The cable fixation using re-closable quick catches allows the keystone module to be opened subsequently and thus used multiple times, e.g. in field applications. In conjunction with a modular patch panel and modular network connection boxes, the Cat.6A keystone modules are ideal for contemporary, structured building cabling The mounting connection of the Category 6A / Class EA keystone module enables tool-free installation of network cables with wire cross sections between AWG 26/7 and 22/1.
| Typ | Keystone-Modul |
| Color | silber |
| EAN | 4016032491057 |
| Manufacturer no. | DN-93617-12 |
| Manufactured in | China |
| Form | Keystone-Modul |

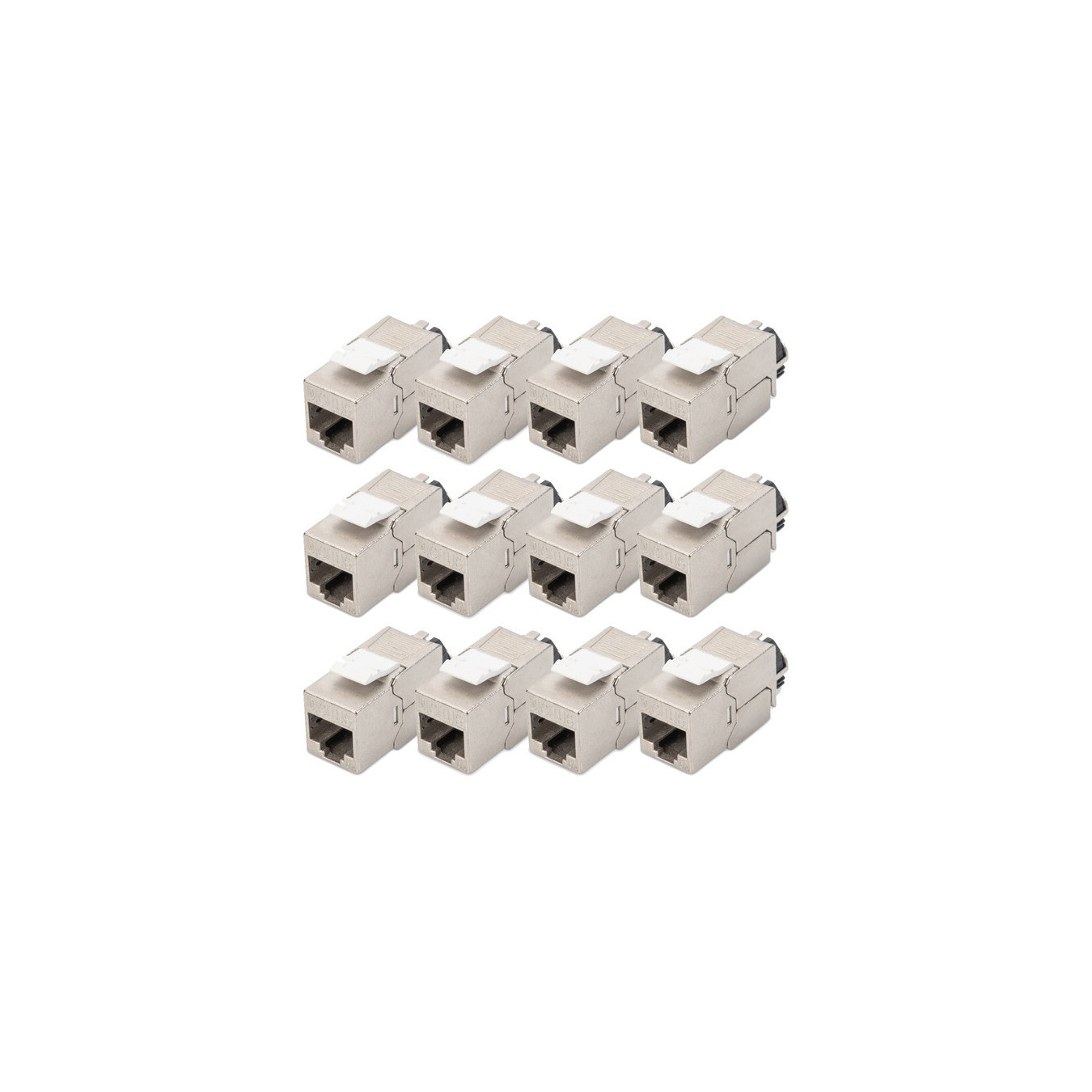

| Number | 12 pieces |
| Area | network |
| Connection - from | 1x cable end without plug |
| taps | 2 |
| Category - Plugs | Cat.6a |
| Characteristics | Adapter, Set |

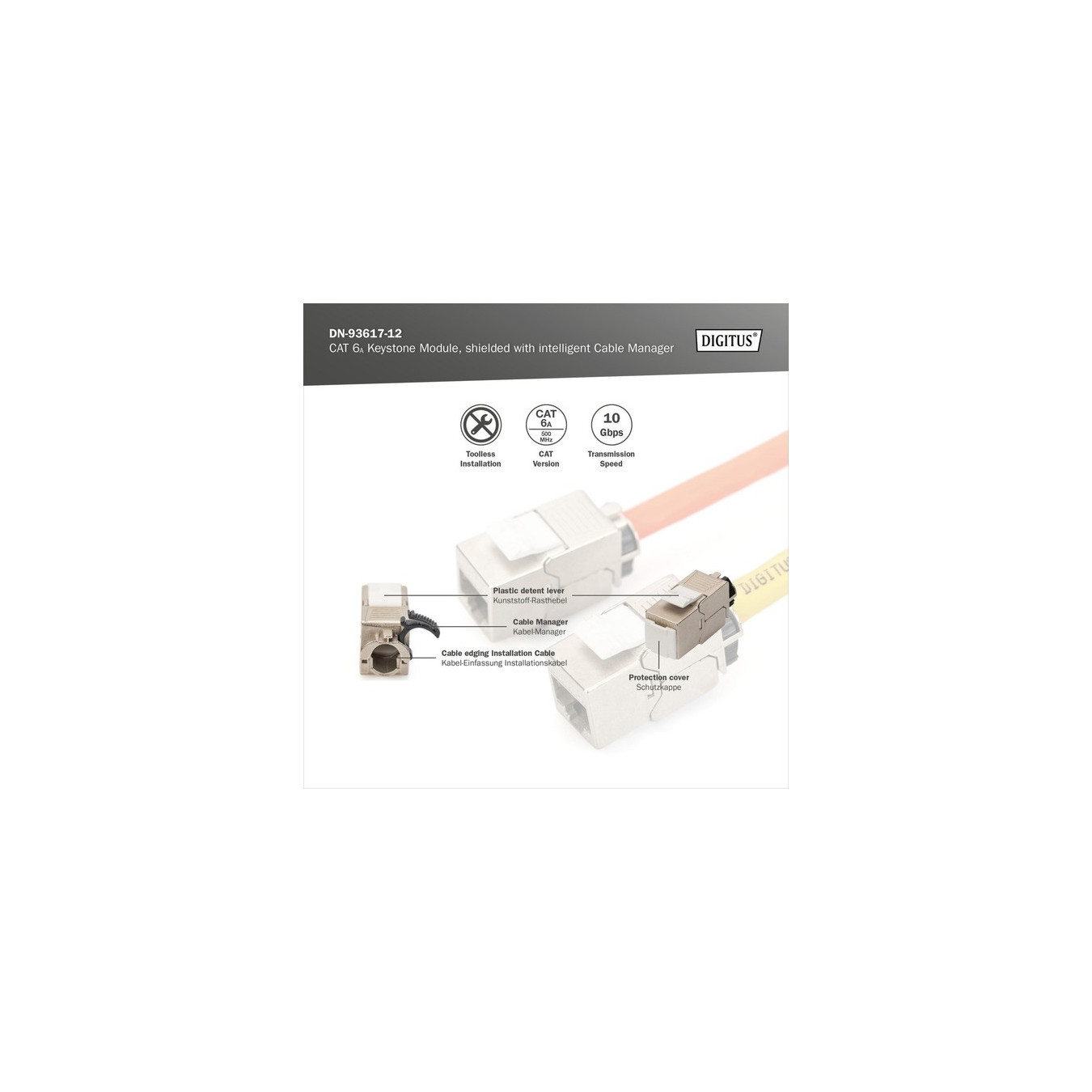

| Feature | Strain relief and cable fixation using an intelligent cable manager, tool-free assembly connection |
| More information | Category 6a 10GBase-T, 500 MHz, suitable for PoE/PoE+/4PPoE (IEEE 802.3af, 802.3at, 802.3bt), suitable for distribution panel and junction box mounting, cable installation via insulation displacement terminals, color coded according to EIA/TIA 568 A & B |

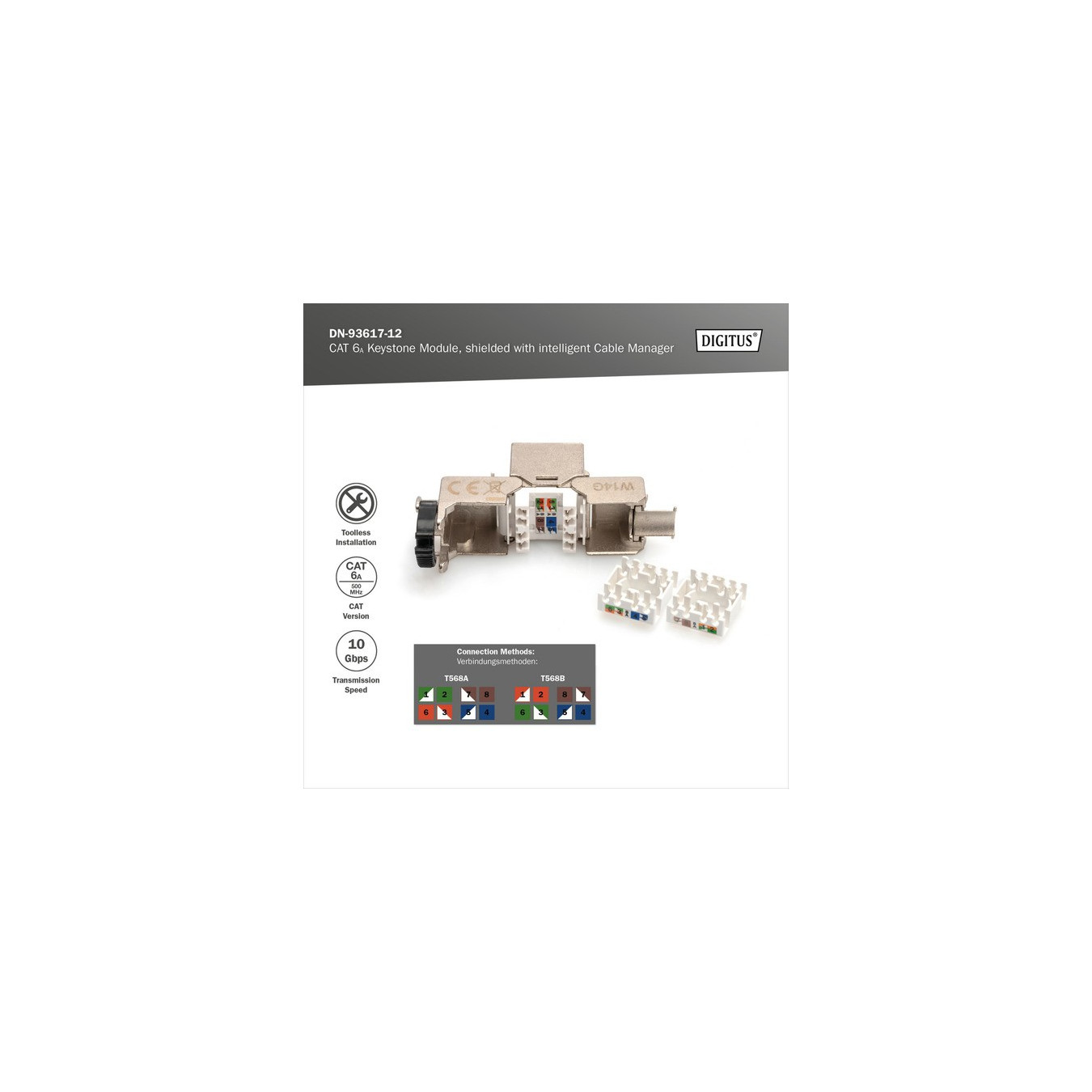

| Notice | Tool-free installation using LSA insulation displacement terminals, color coded according to EIA/TIA 568 A & B |
| Dimensions | Width: 14.5mm x Height: 21mm x Depth/Length: 34.5mm |
| Weight | 20 Gramm |
