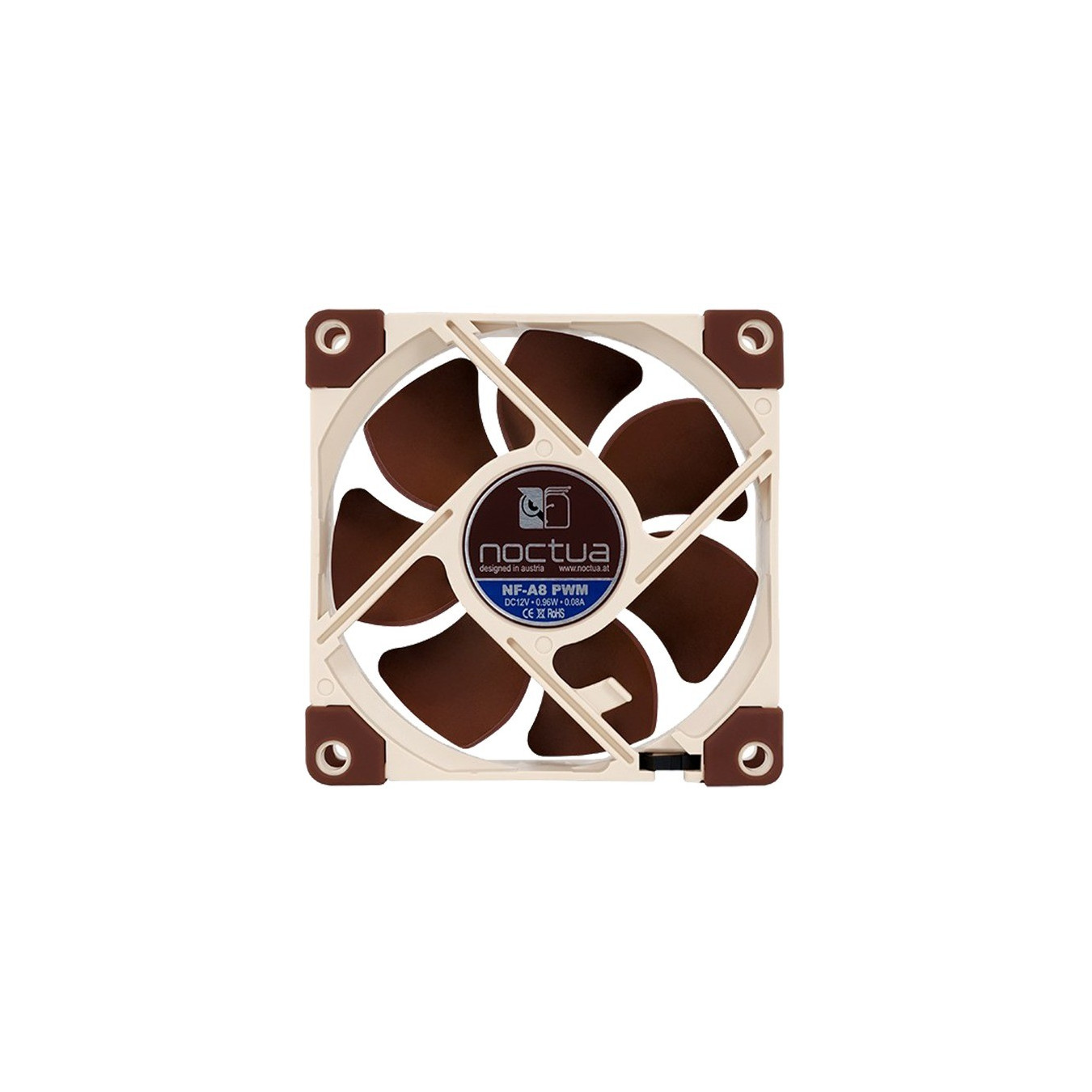

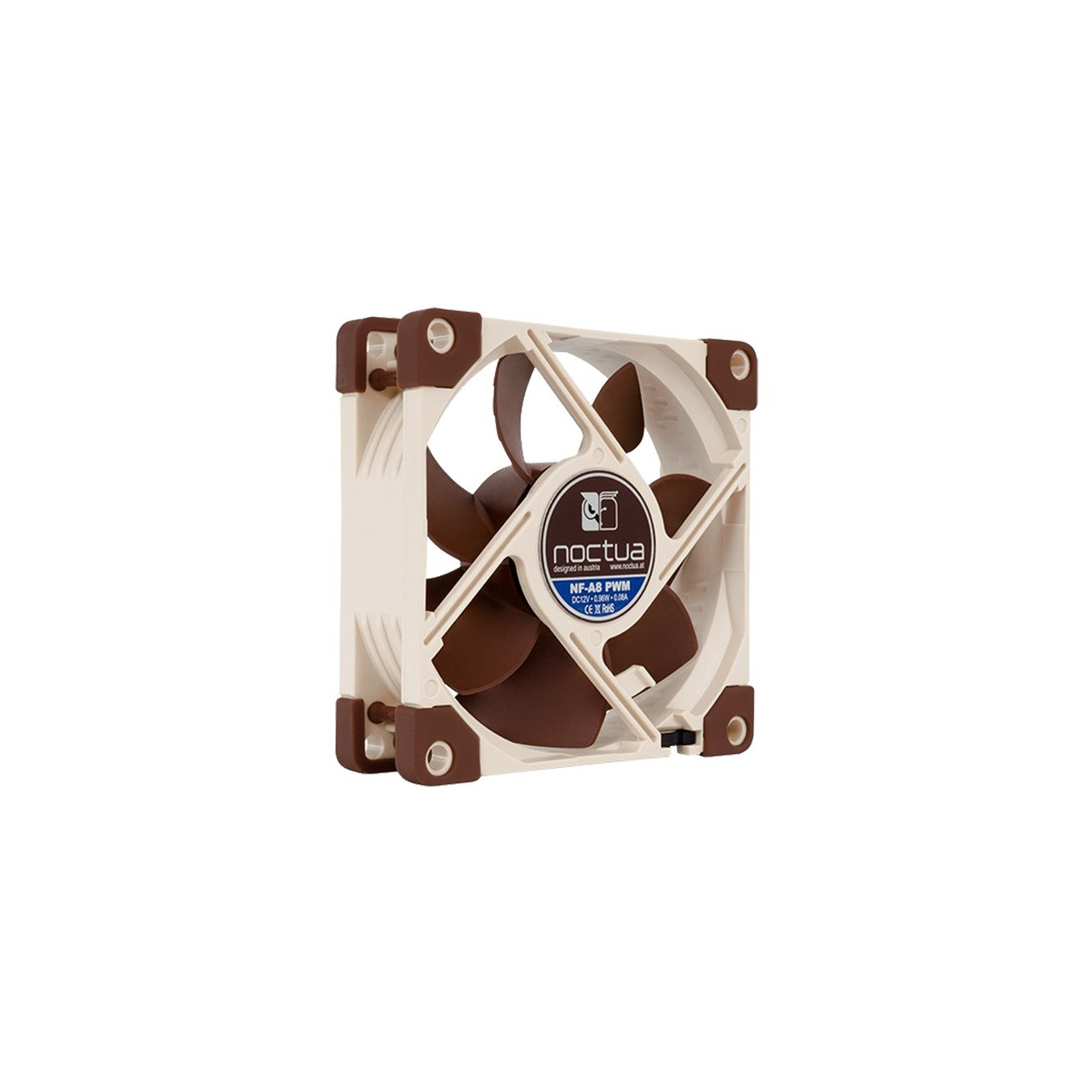

NF-A8 PWM, case fan
The Noctua NF-A8 is a highly optimized, quiet 80mm fan in premium quality. Thanks to Noctua's AAO (Advanced Acoustic Optimization) frame system and advanced aerodynamic design meas...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The Noctua NF-A8 is a highly optimized, quiet 80mm fan in premium quality. Thanks to Noctua's AAO (Advanced Acoustic Optimization) frame system and advanced aerodynamic design measures such as Flow Acceleration Channels, the NF-A8 offers further improved silent cooling performance compared to the award-winning NF-R8. The PWM version is equipped with Noctua's specially designed NE-FD1 IC for fully automatic speed control and comes with a low-noise adapter that allows the maximum speed to be reduced from 2200 to 1750 rpm. Its super smooth running, the SSO2 reference class bearing and Noctua's proven premium quality make the NF-A8 PWM a top solution for the highest demands.
| Typ | Case fan |
| EAN | 4716123315476 |
| Manufacturer no. | NF-A8 PWM |
| Art | Case fan |
| Fastening | screwed |
| volume | 13.8dB to 17.7dB |
| speed | 450 bis 2,200 U/min |
| Fan storage | SSO |
| Volume flow | 43,9 m³/h - 55,5 m³/h (32,7 cfm) |
| Air pressure | From 1.54 mm/H2O to 2.37 mm/H2O |
| Power connection | 4-Pin-PWM |
| Voltage range | 12 Volt |
| Power consumption | 0,96 Watt |
| More information | Flow acceleration channels, AAO frame system, stepped inlet design, integrated anti-vibration pads, PWM IC with SCD, low-noise adapter, SSO2 bearings |
| Dimensions - Fan1 | Quantity: 1 piece, width: 80 mm, height: 80 mm, depth: 25 mm |
| Weight - Total | 239 Gramm |
