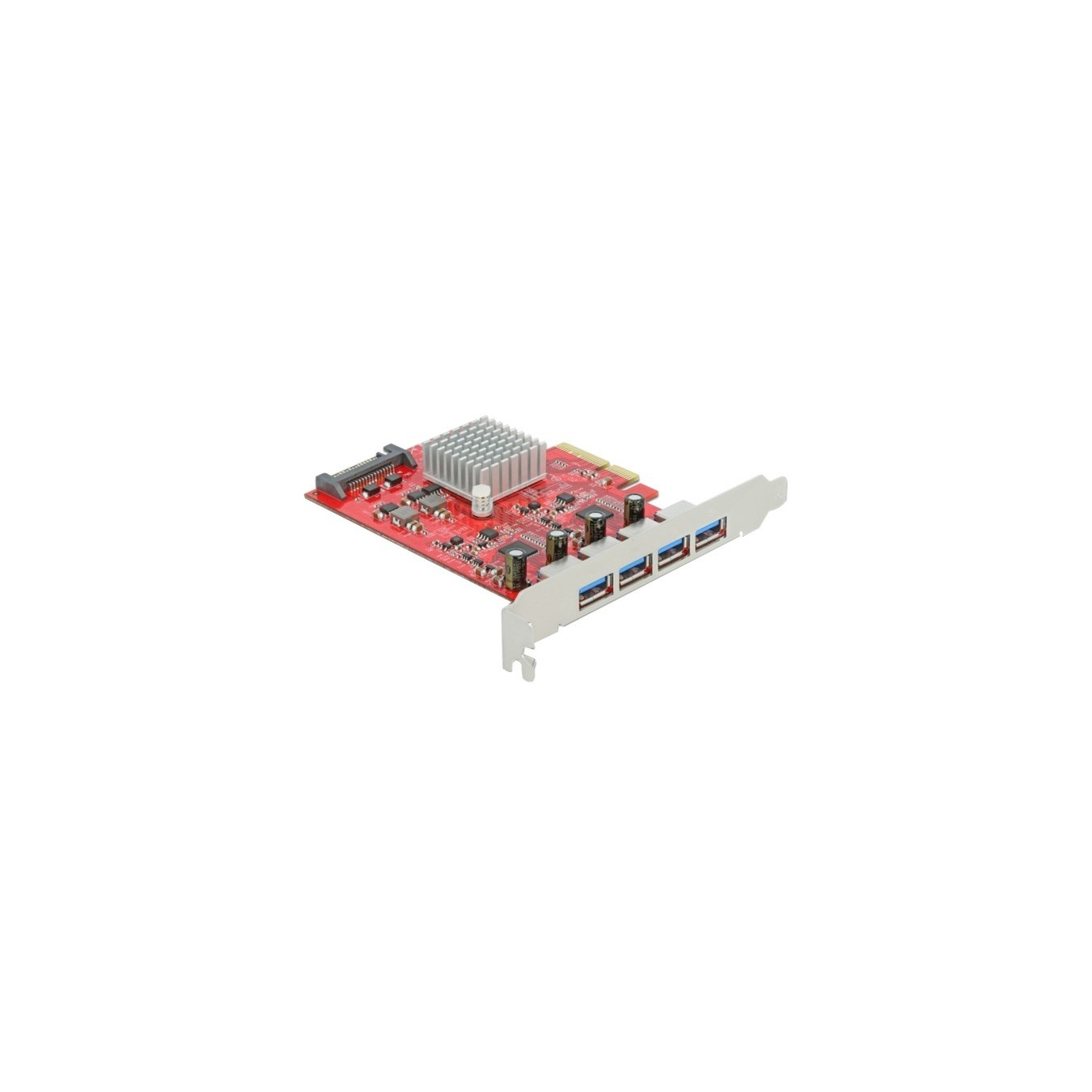

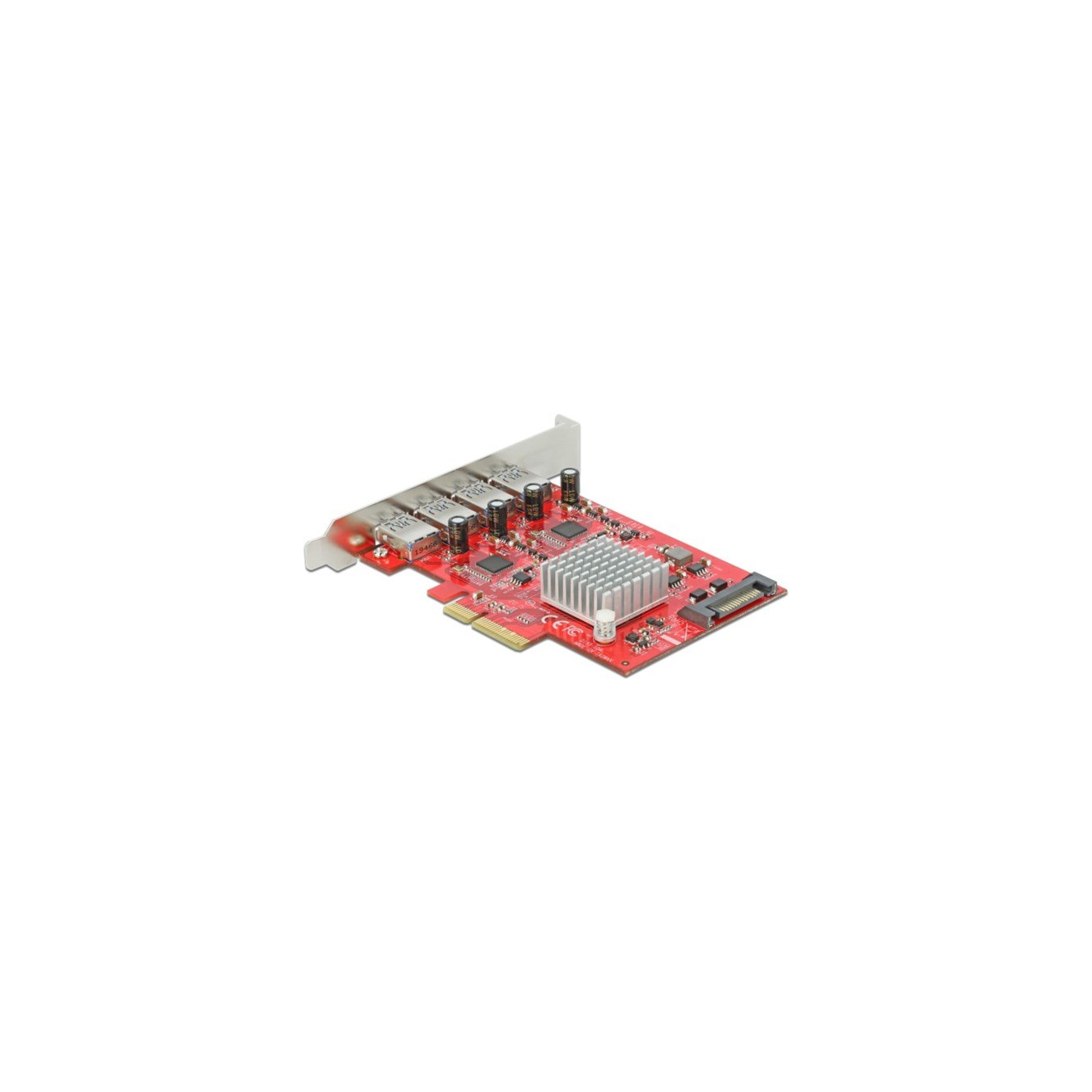

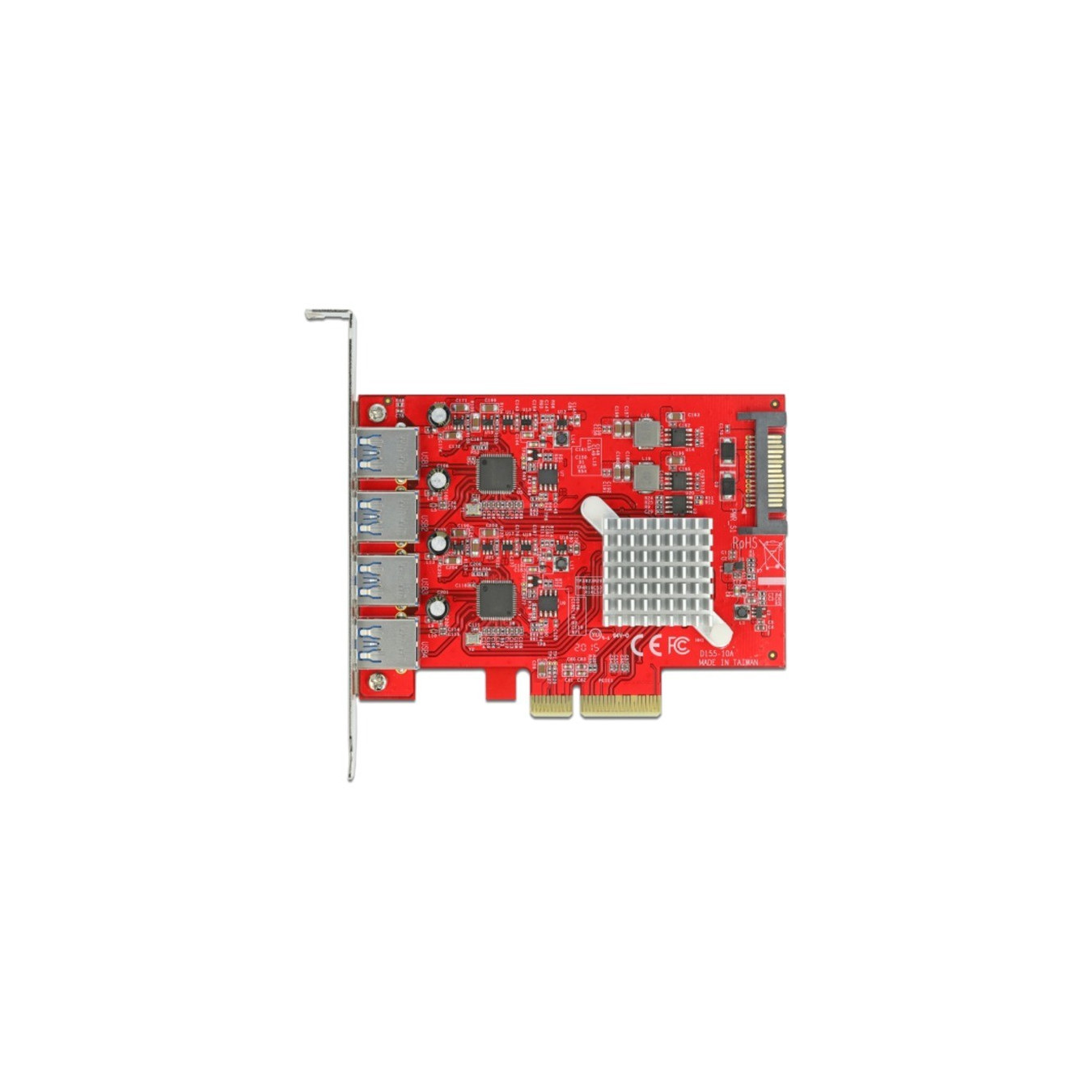

PCIe x4 to 4x extern USB-A 3.2 Gen 2, USB-Controller
The PCI Express card from Delock expands the PC with four external USB-A 3.2 Gen 2 ports. Various USB devices can be connected to the card, such as: B. docking stations, card reade...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The PCI Express card from Delock expands the PC with four external USB-A 3.2 Gen 2 ports. Various USB devices can be connected to the card, such as: B. docking stations, card readers, external housings, etc., can be connected. The card enables a data transfer rate of 10 Gbit/s on all ports when used simultaneously.
| Typ | USB-Controller |
| EAN | 4043619904815 |
| Manufacturer no. | 90481 |
| Controller Art | USB 3.2 (10 Gbit/s) |
| slot | PCIe x4 Version 3.0 |
| Chip | Asmedia ASM3142, ASM2806 |
| Protocol | USB 3.2 Gen 2 (10 Gbit/s) |
| Data throughput | 10 GBit/s |
| Connections - external | 4x USB A |
| directly usable devices | 4 |
| Operating System - Supported | Linux, Windows 8, Windows 10 |
| Feature | Electrical power per port: max. 10 watts (5 V / 2 A) |
| More information | 1 x SATA 15 pin power connector, backwards compatible with USB 3.2 Gen 1, USB 2.0, USB 1.1 |
| Accessories - available | Instruction manual |
