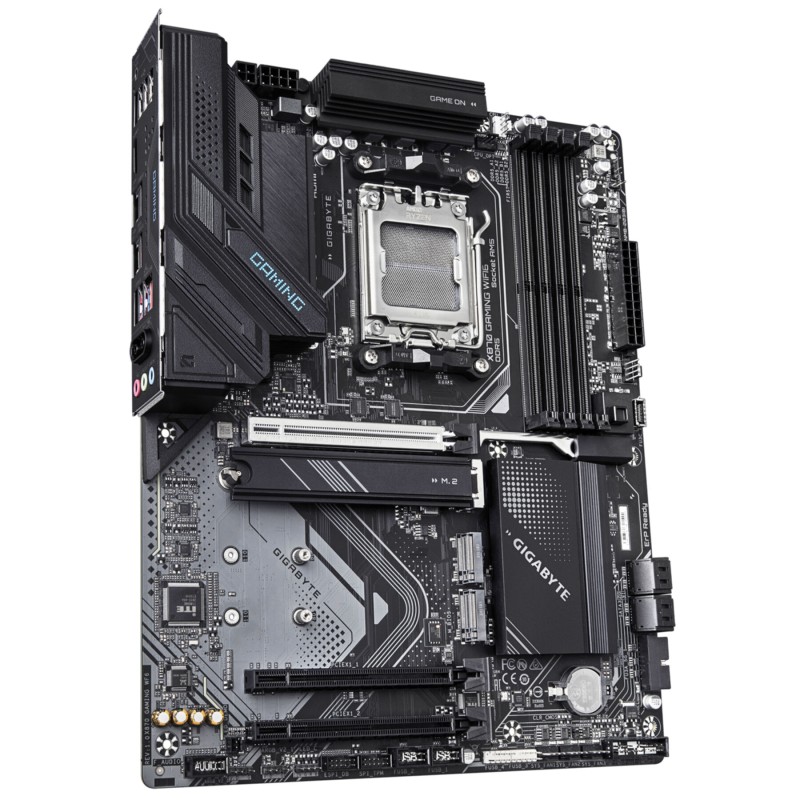

Gigabyte GA-X870 GAMING WF6 - AM5 ATX Motherboard - DDR5 4x DIMM up to 256GB, PCIe 5.0, Wi‑Fi 6/7, 2.5Gb LAN (Black)
AM5 ATX gaming motherboard (AMD X870) with DDR5 up to 256GB (4 DIMMs), PCIe 5.0 x16, 3x M.2, 4x SATA III, Wi‑Fi 6/7, Bluetooth 5.3, USB4 rear ports, 2.5Gb Ethernet.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Socket | AM5 |
|---|---|
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 5.0 |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C | Rear Type-C |
GIGABYTE X870 GAMING WIFI6 Motherboard - Supports AMD Ryzen 9000 CPUs. 8+2+2 phases VRM. up to 8000MHz DDR5 (OC). 1xPCIe 5.0 + 2xPCIe 4.0. Wi-Fi 6. 2.5GbE LAN. USB 4. Processor manufacturer: AMD. Processor socket: Socket AM5. Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM. Maximum internal memory: 256 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA III. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 10. Ethernet interface type: 2.5 Gigabit Ethernet. Top Wi-Fi standard: Wi-Fi 6 (802.11ax). Wi-Fi standards: 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax). Wi-Fi 7 (802.11be). Component for: PC. Motherboard form factor: ATX. Motherboard chipset family: AMD
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen™ 7 |
| Supported processor sockets | Socket AM5 |
| Maximum internal memory supported by processor | 256 GB |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4400.4800.5200.5600.6000.6200.6400.6600.6666.6800.7000.7200.7600.7800.8000 MHz |
| Supported memory clock speed (max) | 8000 MHz |
| Maximum internal memory | 256 GB |
| Supported memory module capacities | 1GB. 2GB. 4GB. 8GB. 12GB. 16GB. 24GB. 32GB. 40GB. 48GB. 64GB |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA III |
| Number of HDDs supported | 7 |
| Number of storage drives supported | 4 |
| Feature | Batteries included |
| RAID levels | 0. 1. 10 |
| DirectX version | 12.0 |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax). Wi-Fi 7 (802.11be) |
| WLAN controller model | Realtek RTL8851BE |
| Bluetooth version | 5.3 |
| Motherboard chipset | AMD X870 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan. Temperature. Voltage |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64. Windows 11 x64 |
| PCI Express x4 slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.53 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 35 mm |
| Bundled software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Weight | 2.23 kg |
| Warranty period | 3 year(s) |
