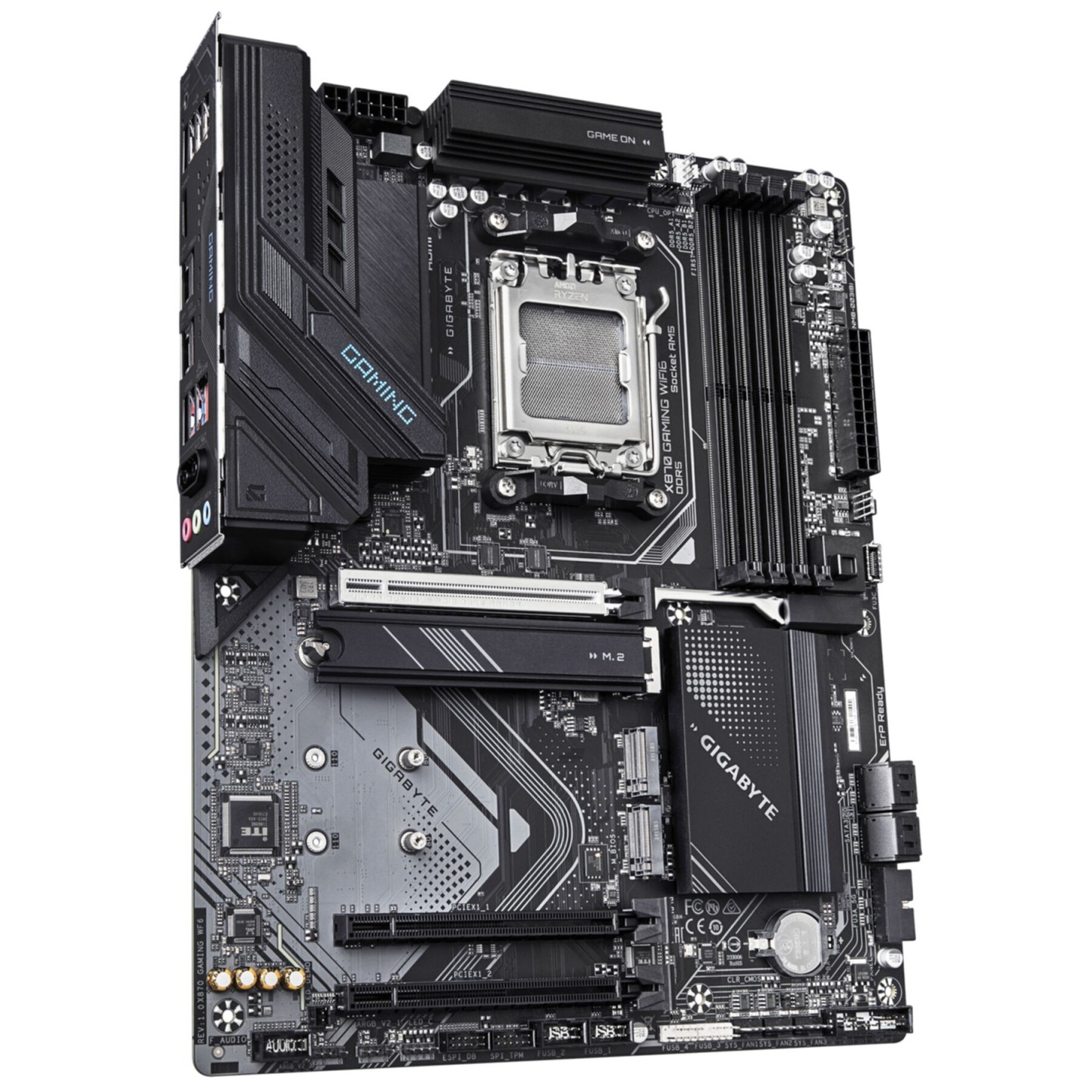

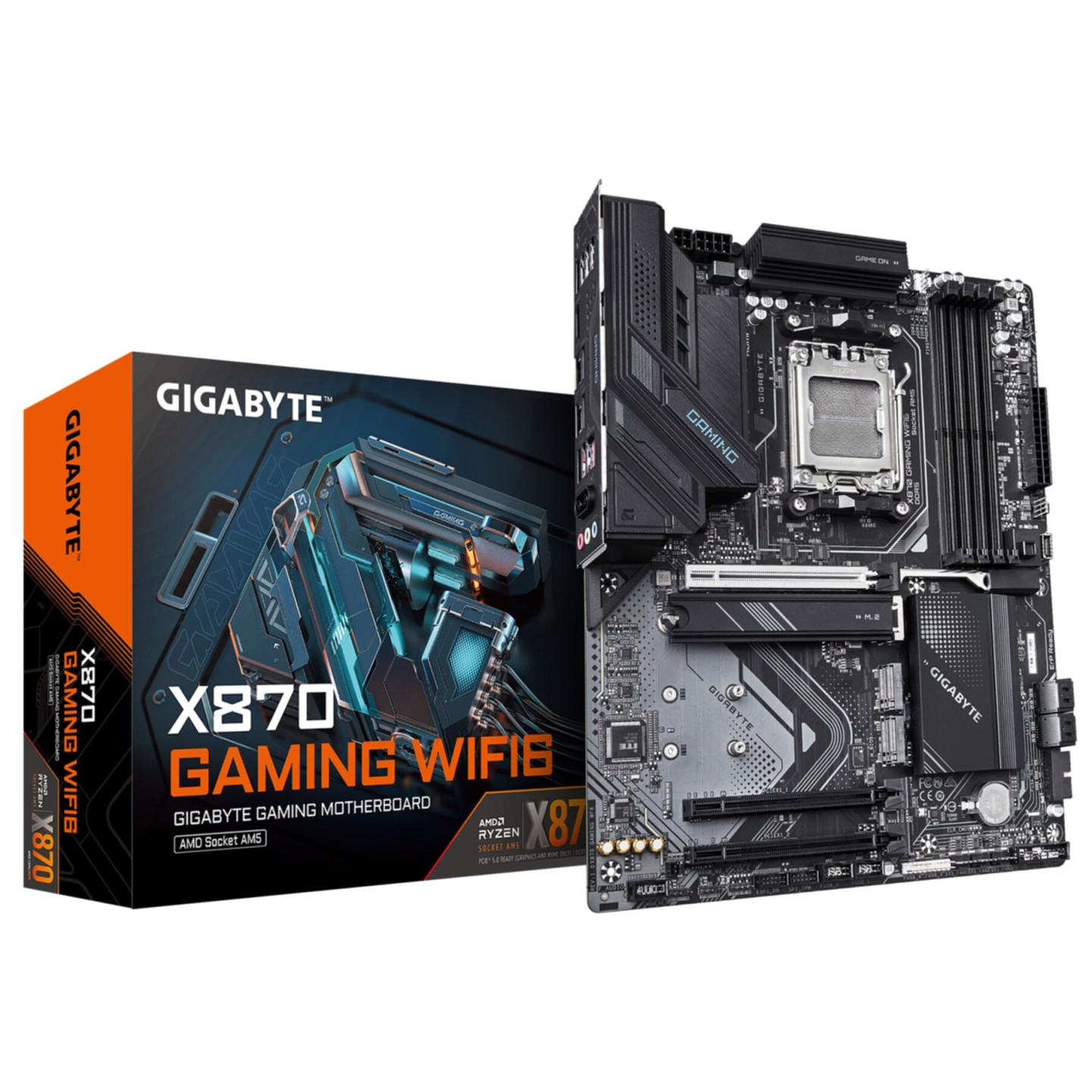

Gigabyte GA-X870 GAMING WIFI6 AM5 ATX MB DDR5 PCIe5 WiFi6 (Boxed)
AM5 ATX gaming MB (AMD X870) w/ DDR5 to 256GB (4xDIMM, EXPO), PCIe5.0 x16 GPU + M.2, 3xM.2, 4xSATA, WiFi6 BT5.3, 2 USB4, 2.5GbE. 8+2+2 VRM.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD X870 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
The Gigabyte GA-X870 GAMING WIFI6 is a high-performance ATX motherboard for AMD Socket AM5, supporting Ryzen 9000, 8000, and 7000 series processors. It features a robust 8+2+2 twin digital VRM design with 6-layer PCB for stable power delivery during overclocking and gaming. Dual-channel DDR5 memory support up to 256GB across 4 DIMMs, with AMD EXPO for easy overclocking to 8000MHz+(OC).
Storage options include 3x M.2 slots (1x PCIe 5.0 UD Slot, 2x PCIe 4.0) and 4x SATA III ports with RAID 0/1/10. Connectivity shines with dual USB4 Type-C ports (rear), 2.5GbE LAN, Wi-Fi 6 (802.11ax) with Bluetooth 5.3 and innovative WIFI EZ-Plug for easy antenna install. Expansion via PCIe 5.0 x16 (GPU), plus EZ-Latch features for DIY-friendly builds. Audio is 7.1-channel with Realtek ALC897.
- CPU: AMD Ryzen 9000/8000/7000 Series (AM5)
- Memory: 4x DDR5 DIMM, up to 256GB, EXPO OC to 8000MHz
- Storage: 3x M.2 (PCIe5/4), 4x SATA III, RAID 0/1/10
- Networking: WiFi6, BT5.3, 2.5GbE

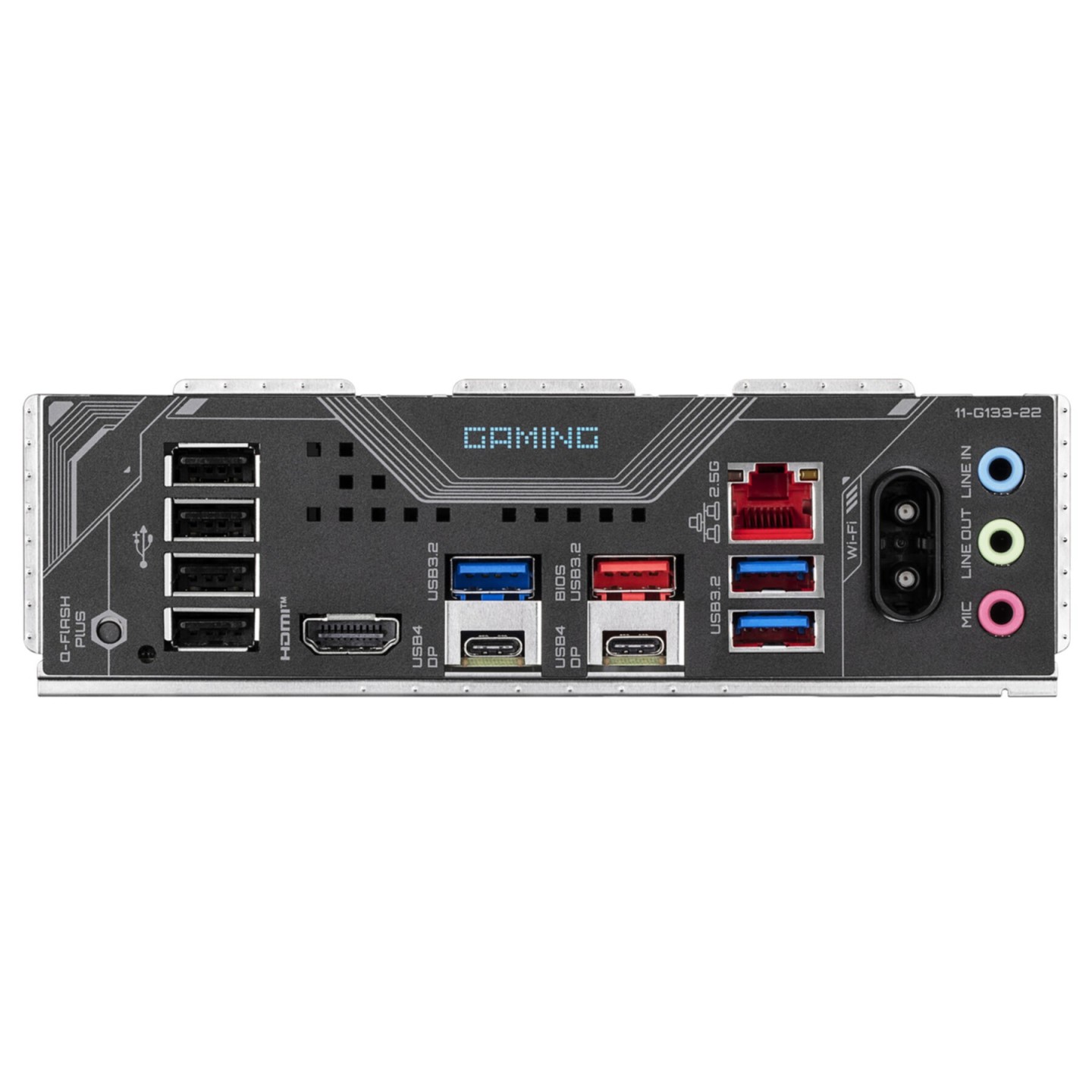

- Ports: 2x USB4, HDMI, 2x DP, multiple USB 3.2
- DIY Features: PCIe EZ-Latch Plus, M.2 EZ-Latch, WIFI EZ-Plug
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 9000 / 8000 / 7000 |
| Motherboard chipset | AMD X870 |
| Motherboard form factor | ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 256 GB |
| Supported memory clock speed (max) | 8000 MHz (OC) |
| Number of M.2 (M) slots | 3 |
| Number of SATA III connectors | 4 |
| RAID levels | 0, 1, 10 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Bluetooth version | 5.3 |
| USB4 Gen 2x2 ports quantity | 2 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| VRM Phases | 8+2+2 Twin Digital |
| Memory Profile Support | AMD EXPO |
| Warranty period | 5 year(s) |
| Package weight | 2.53 kg |
| Width | 305 mm |
| Depth | 244 mm |
