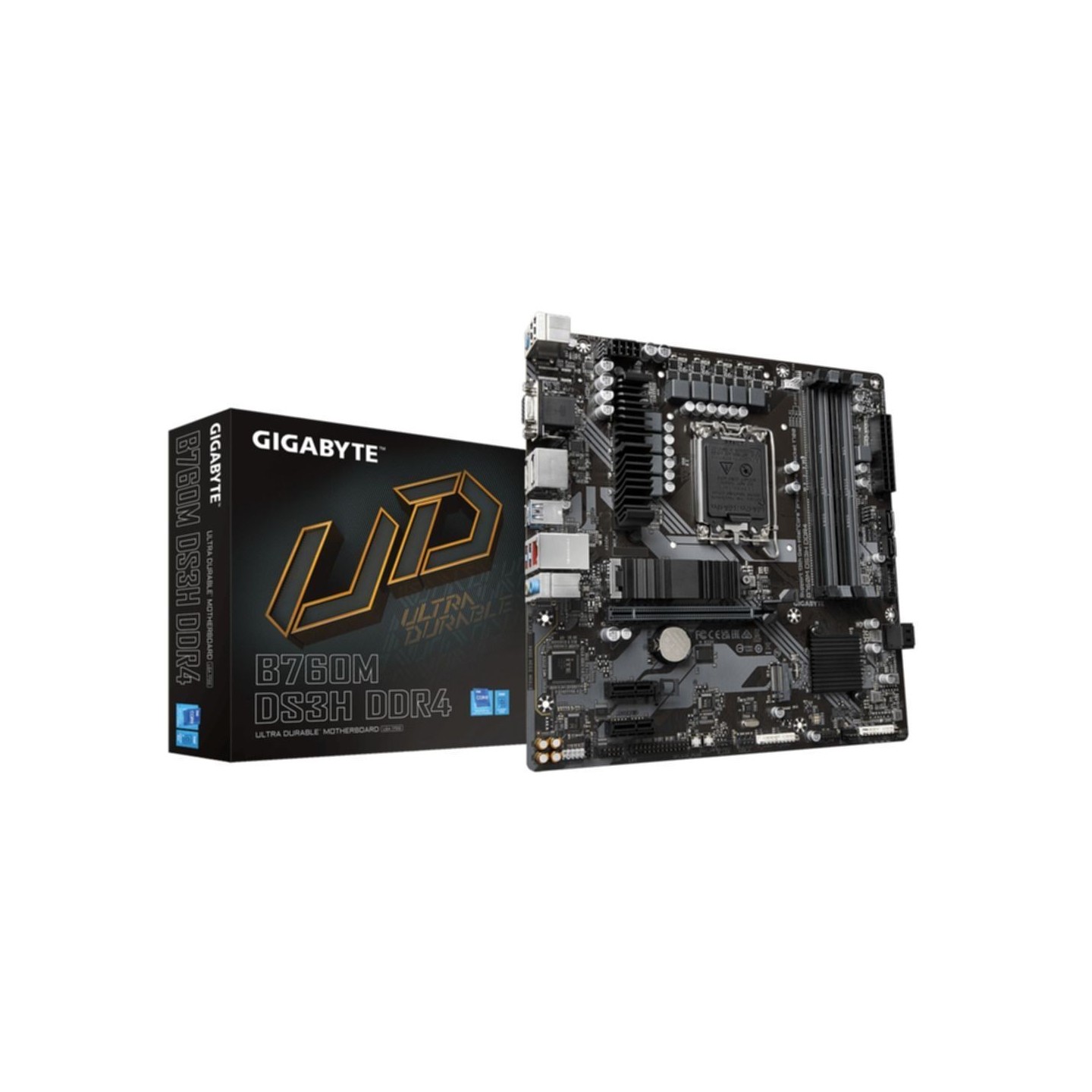

Gigabyte B760M DS3H DDR4 LGA1700 mATX MB Intel B760 128GB DDR4 2xM.2 2.5GbE (Boxed)
LGA1700 Micro-ATX motherboard with Intel B760 chipset. Supports Intel Core 14th/13th/12th Gen CPUs, DDR4 up to 128GB (5333MHz OC), 2x PCIe 4.0 M.2, 4x SATA III, 2.5GbE LAN, rear USB-C, 7.1 audio, PCIe 4.0 x16.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |

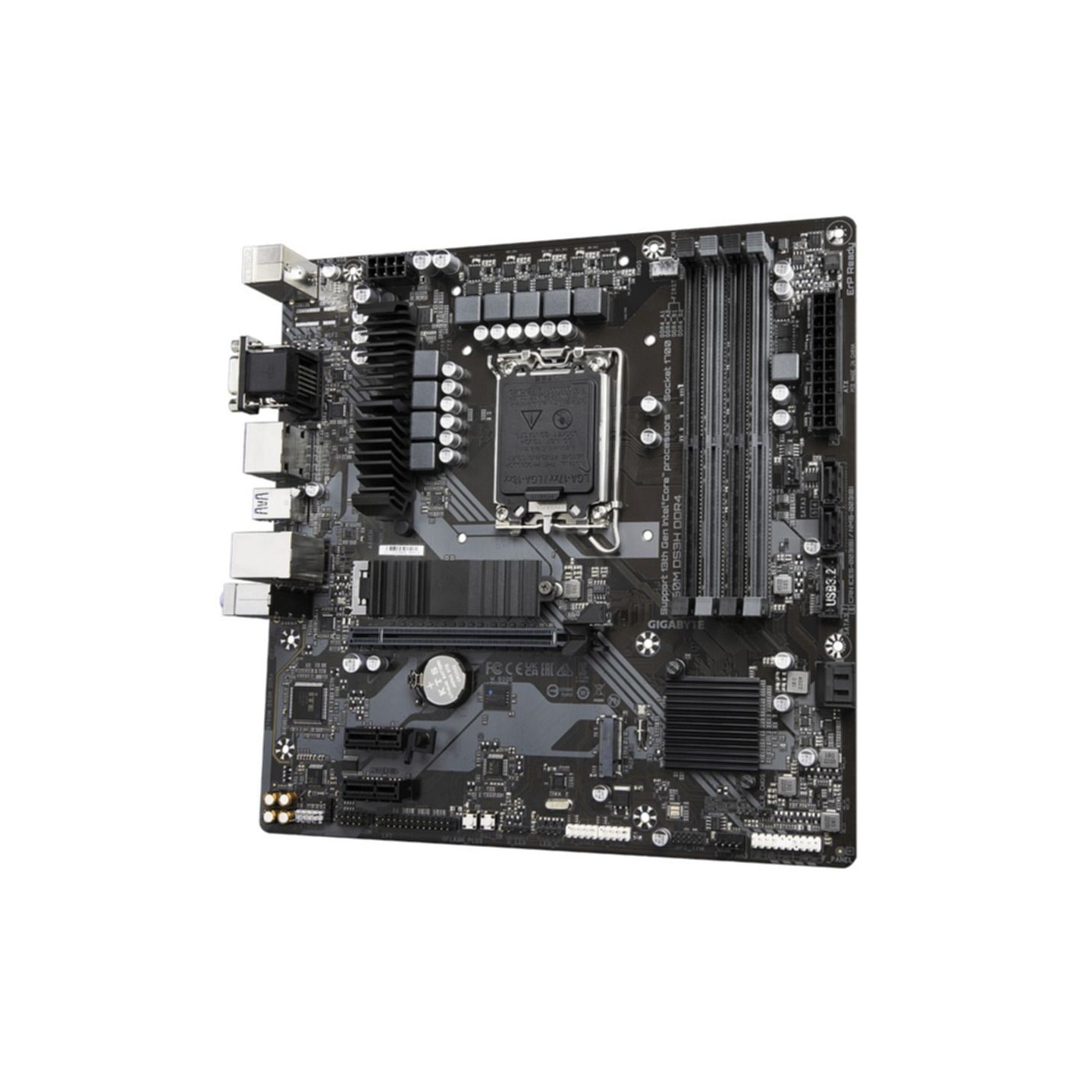

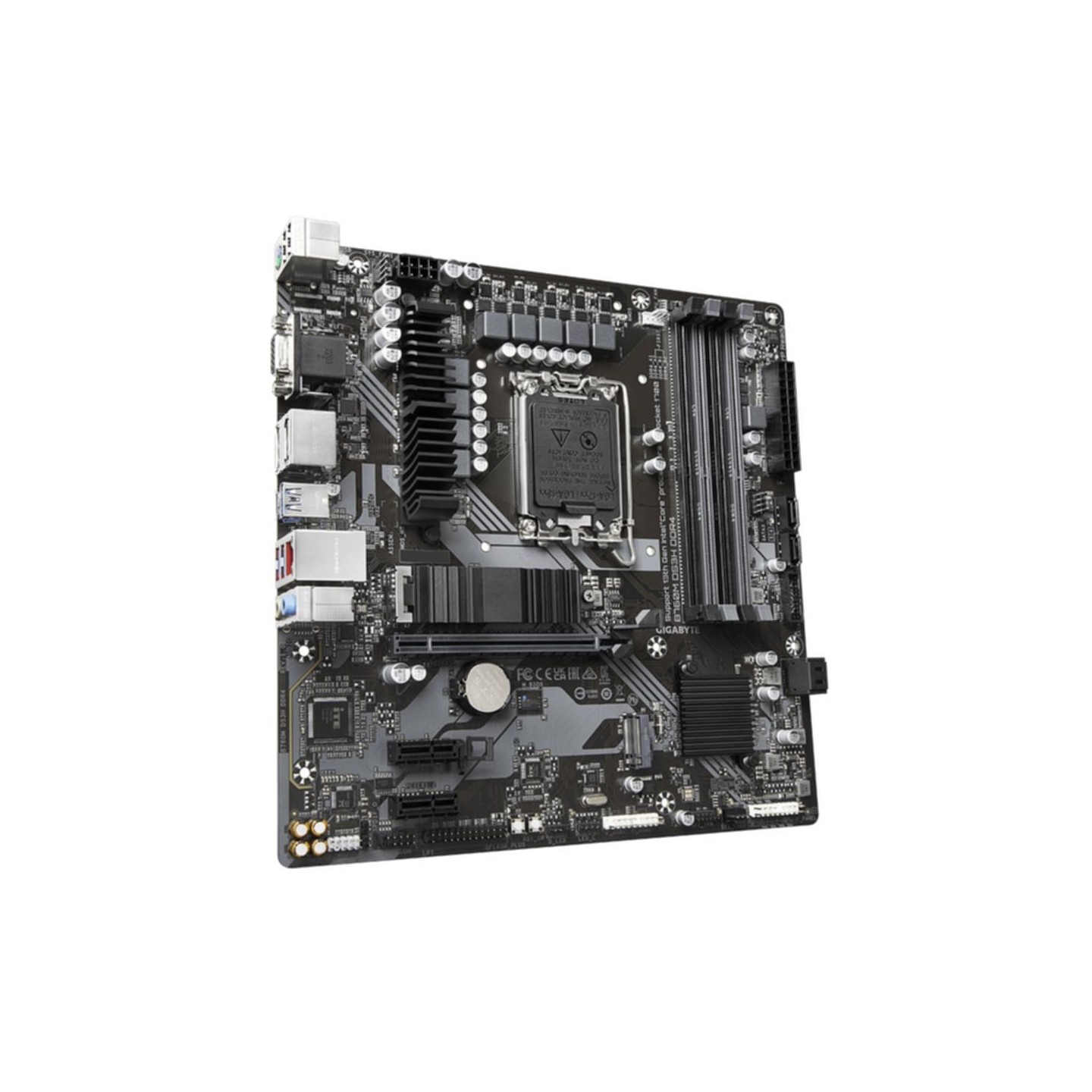

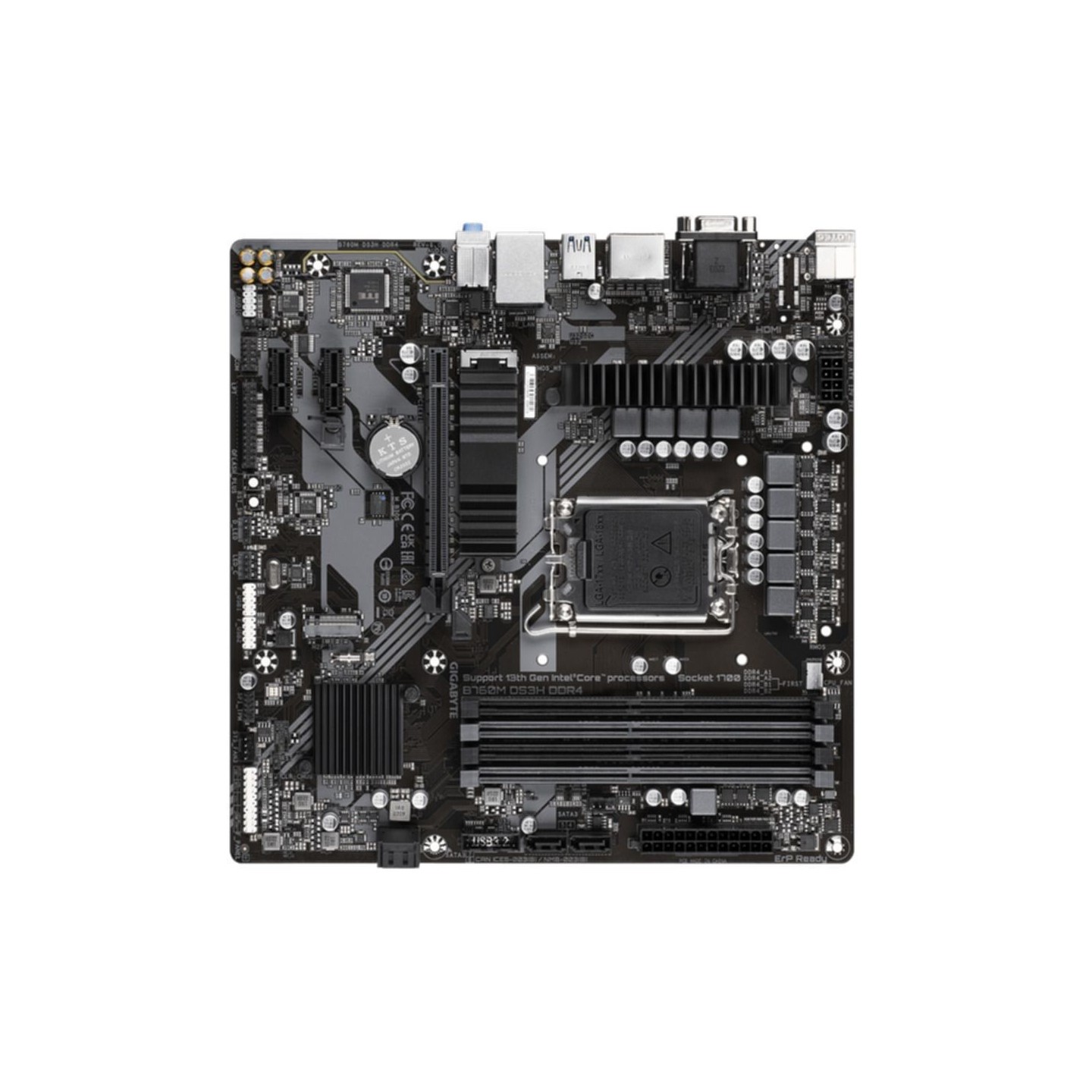

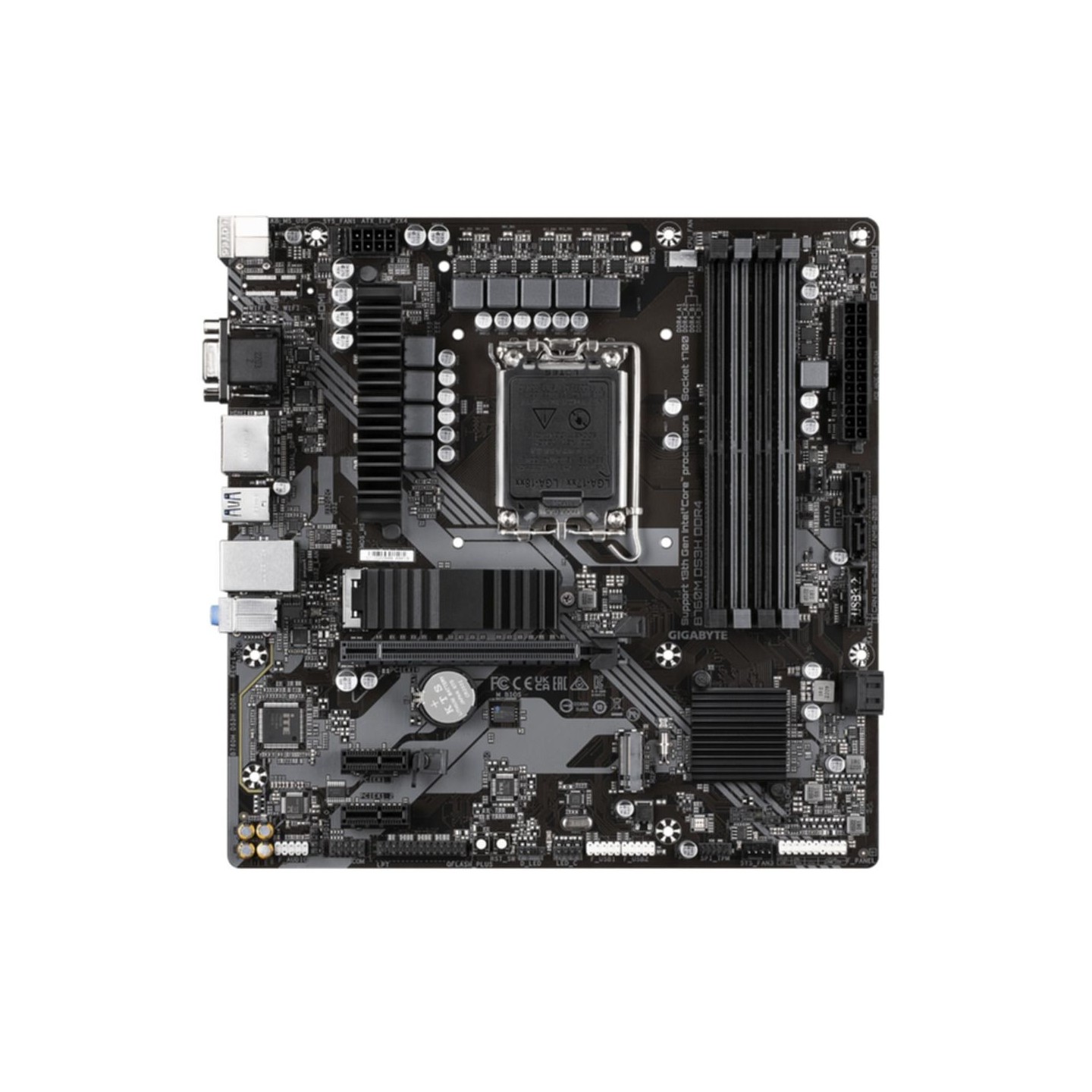

The Gigabyte B760M DS3H DDR4 is a reliable Micro-ATX motherboard designed for Intel LGA1700 socket processors, including 14th, 13th, and 12th Gen Core CPUs, Pentium Gold, and Celeron. Featuring the Intel B760 chipset, it delivers solid performance for gaming, productivity, and business PCs with a hybrid 6+2+1 phases digital VRM for stable power delivery.

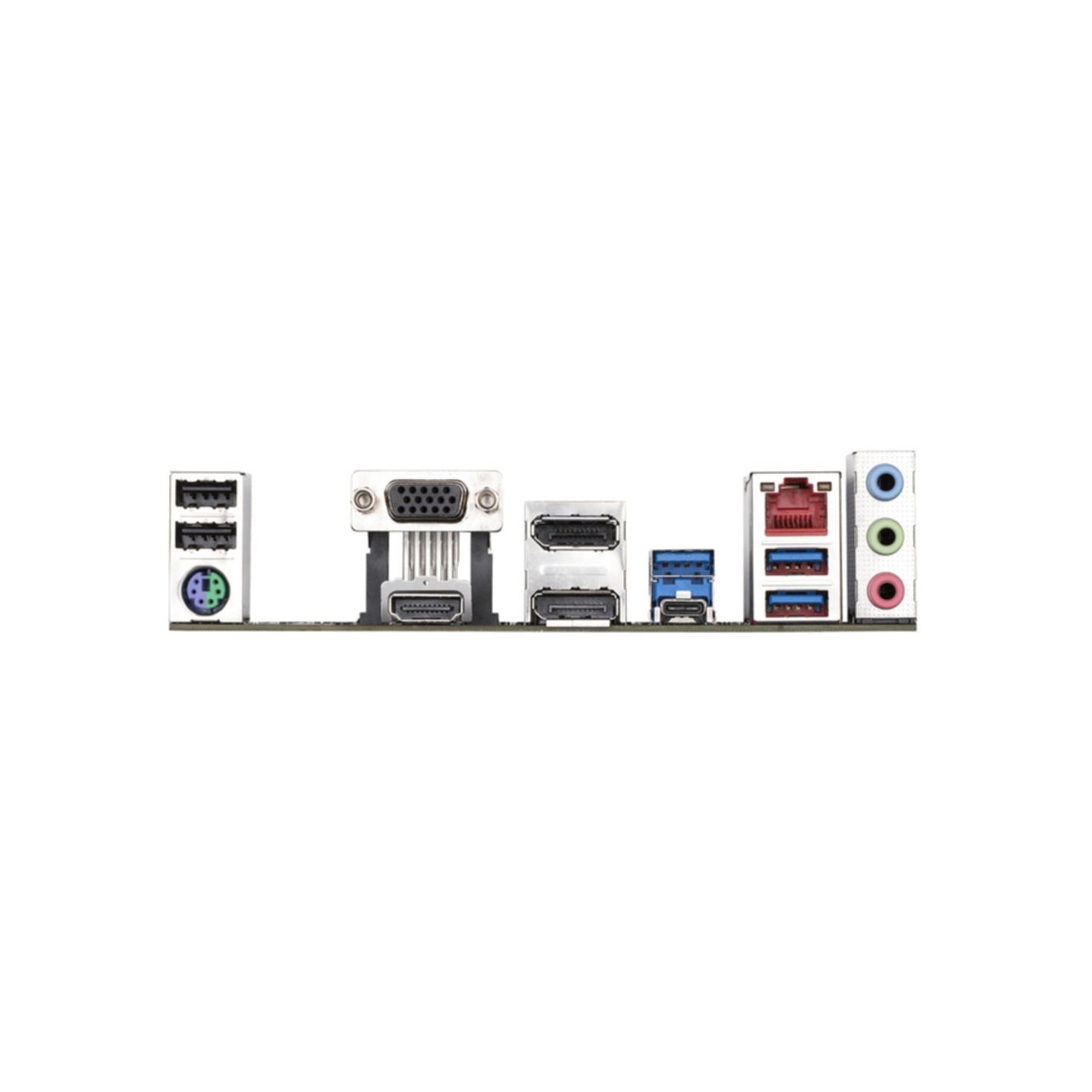

It supports dual-channel DDR4 memory up to 128GB across 4 DIMM slots with XMP profiles up to 5333MHz (OC). Storage options include 2x PCIe 4.0 x4 M.2 slots (NVMe only) with Thermal Guard, 4x SATA III ports, and RAID 0/1/5/10. Connectivity features 2.5 Gigabit Ethernet, rear USB 3.2 Gen2 Type-C, multiple USB ports, HDMI, 2x DisplayPort, VGA, and 7.1-channel audio. The PCIe 4.0 x16 slot with EZ-Latch ensures easy GPU installation.
- Key Features:
- Supports Intel 14th/13th/12th Gen CPUs
- 4x DDR4 slots, max 128GB, 5333MHz OC (XMP)
- 2x M.2 PCIe 4.0, 4x SATA III
- 2.5GbE LAN, rear USB-C 3.2 Gen2
- PCIe 4.0 x16 + 2x PCIe 3.0 x1 slots
- Smart Fan 6, Q-Flash Plus
- No WiFi, Bluetooth, or RGB headers
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Intel® Pentium® Gold. Intel Core 14th/13th/12th Gen |
| Motherboard chipset | Intel B760 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Supported memory clock speed (max) | 5333 MHz (OC) |
| Number of M.2 (M) slots | 2 (PCIe 4.0 x4) |
| Number of SATA III connectors | 4 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 (rear) |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Audio output channels | 7.1 channels |
| VRM Phases | 6+2+1 Digital |
| Memory Profile | XMP |
| Product colour | Black |
| Windows operating systems supported | Windows 10, Windows 11 |
| Warranty period | 3 year(s) |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 990 g |
