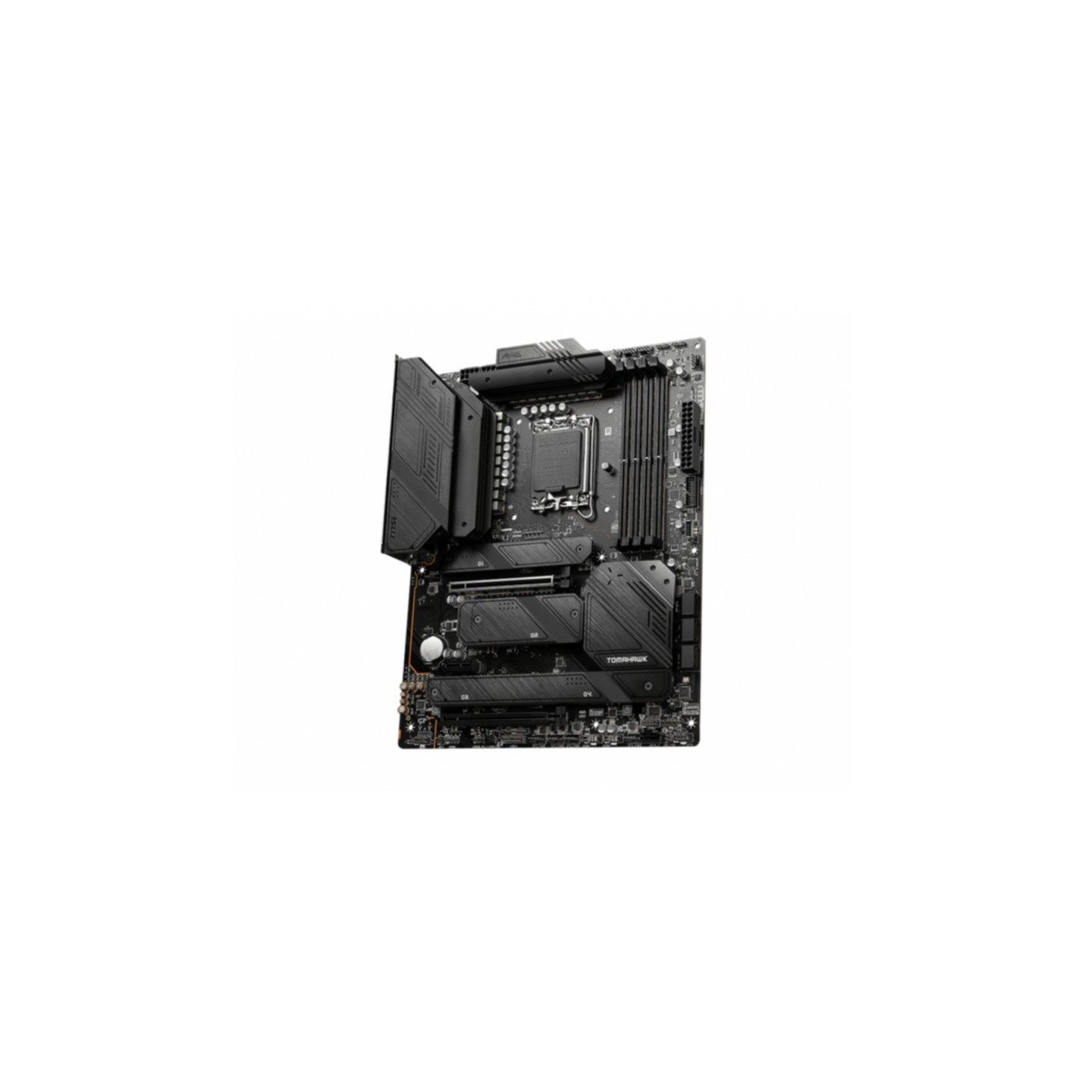

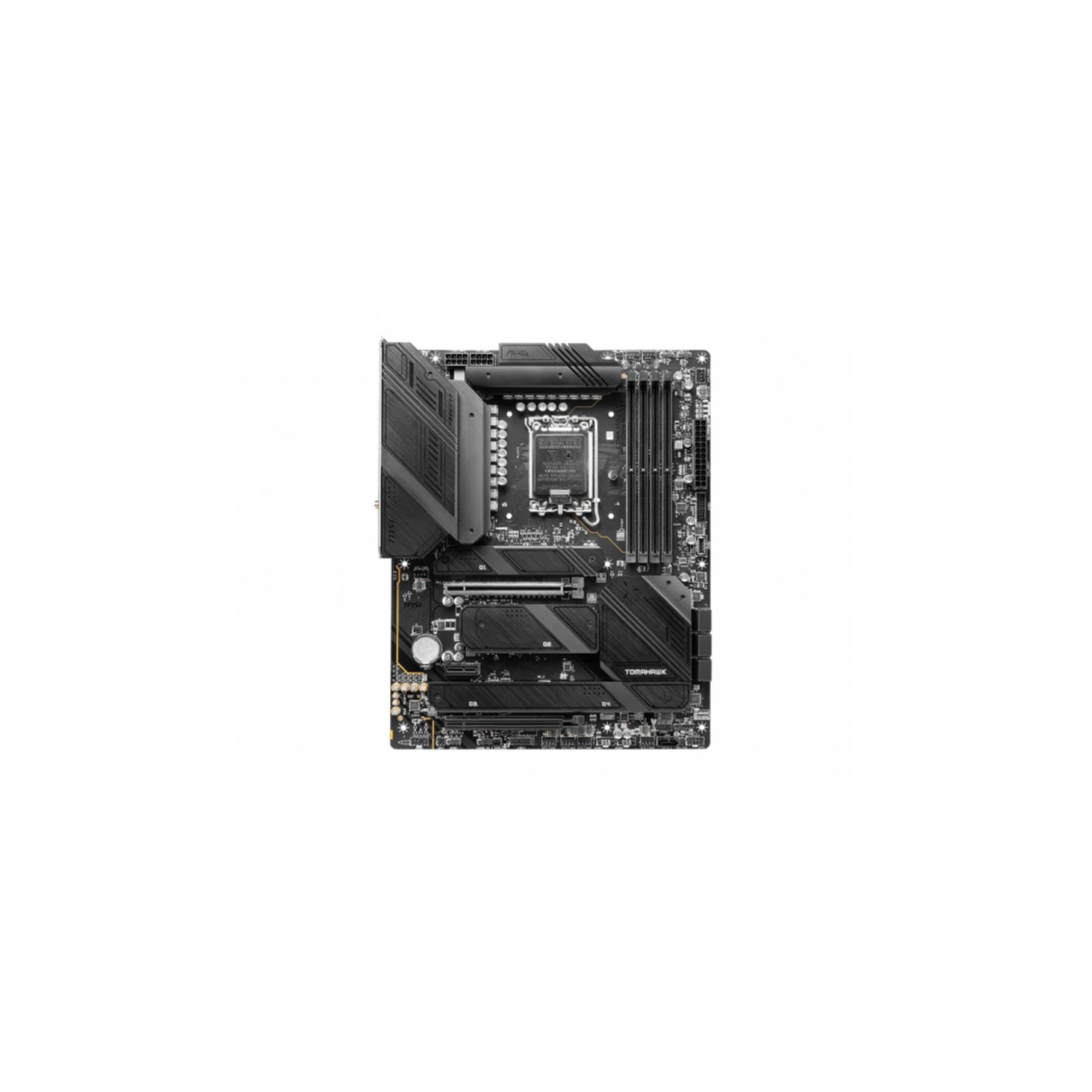

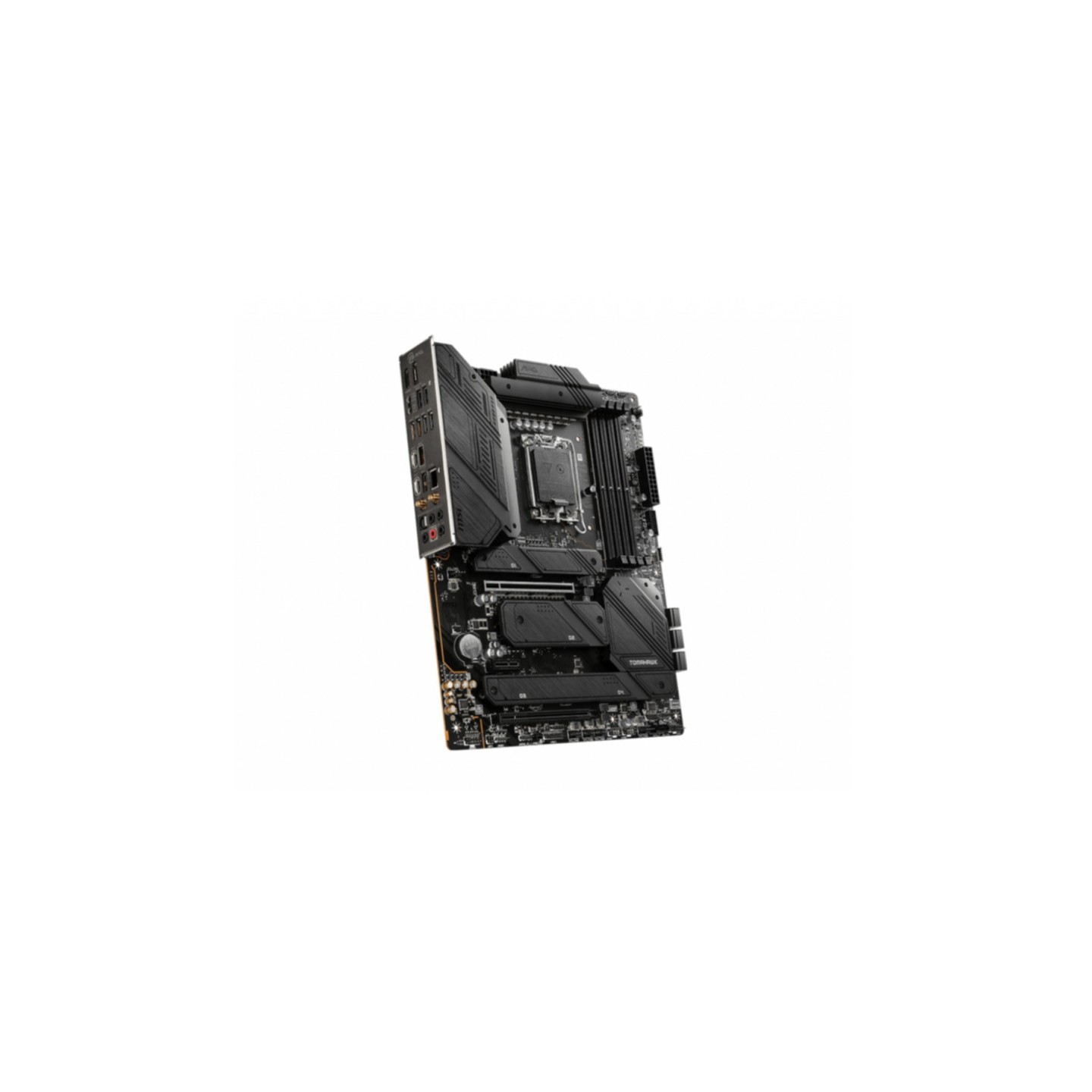

MSI MAG Z790 TOMAHAWK WIFI LGA1700 ATX Z790 DDR5-192GB PCIe5 WiFi6E BT5.3 (Boxed)
ATX LGA1700 Intel Z790 motherboard. DDR5 up to 192GB (4x7200+MHz OC), 2x PCIe 5.0 x16, 4x M.2, 7x SATA, Wi-Fi 6E, BT 5.3, 2.5GbE, USB 3.2 Gen2x2-C, HDMI2.1. Robust VRM for i9.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel Z790 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 192 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 4 |
| Motherboards - SATA Ports | 8 |
| Motherboards - USB-C Support | Front Panel Type-C header Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
The MSI MAG Z790 TOMAHAWK WIFI is a feature-packed ATX motherboard for Intel 12th/13th/14th Gen Core processors on LGA1700 socket with Z790 chipset. It supports up to 192GB DDR5 RAM across 4 slots (up to 7200MHz+ OC with XMP), dual-channel, Non-ECC.
Storage options include 4x M.2 slots (1x PCIe5-ready), 7x SATA III with RAID 0/5/10, and expansion via 2x PCIe 5.0 x16, 1x PCIe x1 Gen4. Connectivity shines with Wi-Fi 6E, Bluetooth 5.3, 2.5GbE LAN, extensive USB (1x Gen2x2-C, 4x Gen2, etc.), HDMI 2.1, DP 1.4. Premium 7.1 audio via Realtek ALC4080, robust VRM for overclocking.

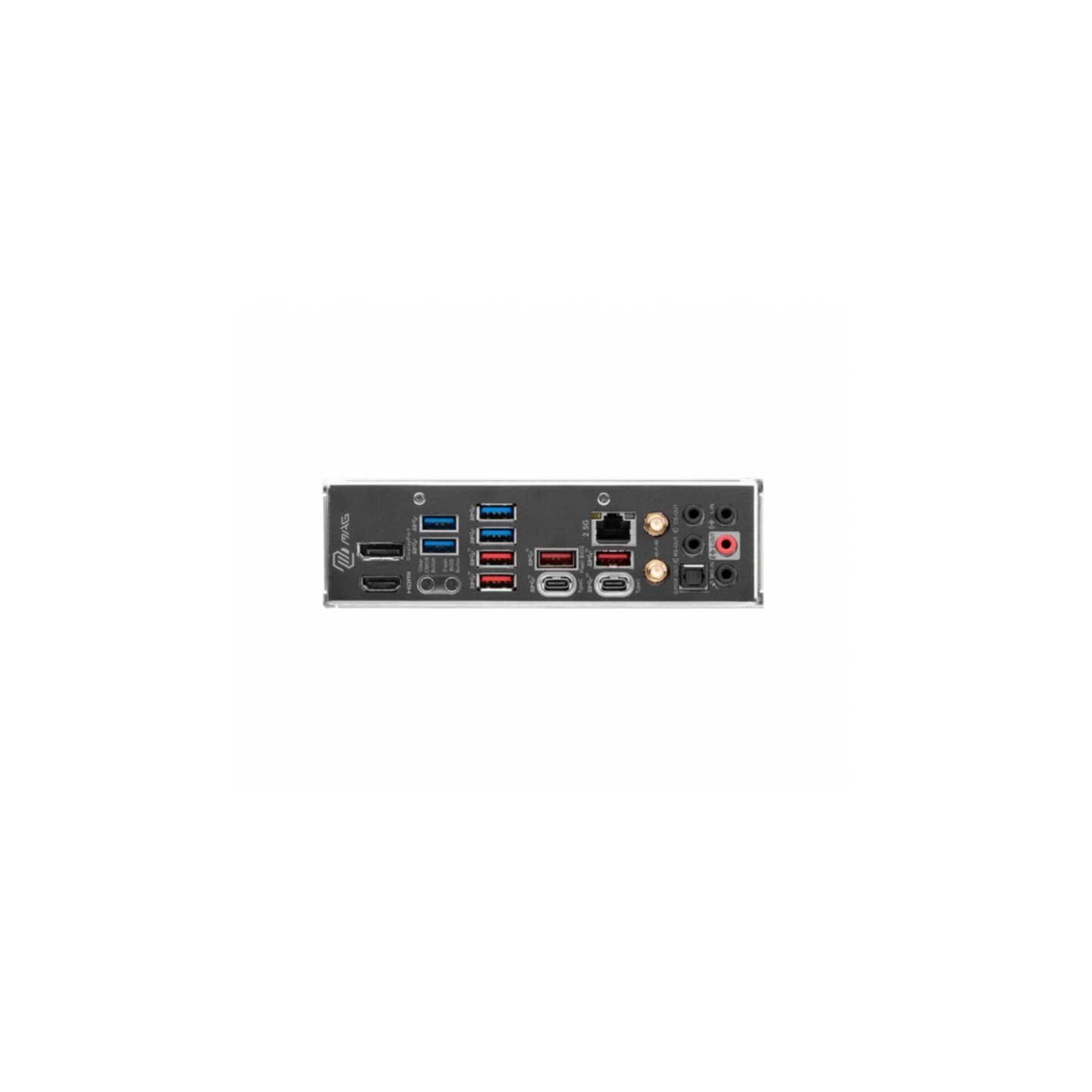

- Key Features: Excellent rear I/O with 10+ USB ports, EZ M.2 clips, BIOS Flashback, multiple fan headers.
- Build Quality: Black PCB, discrete heatsinks, supports Windows 10/11 x64.

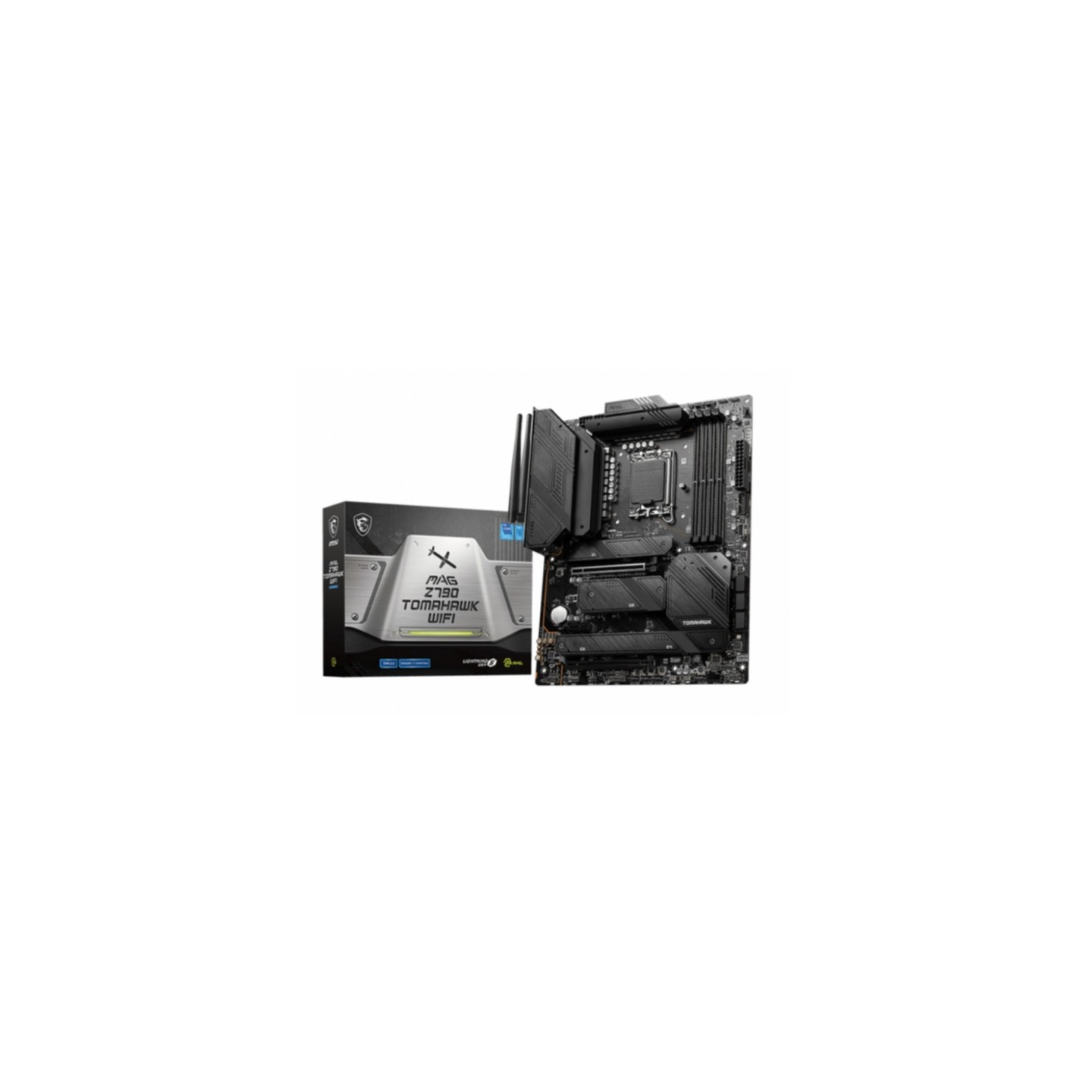

- Included: SATA cables, Wi-Fi antenna, driver USB.
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Core™ i9, i7, i5, i3, Pentium® Gold, Celeron® |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 192 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4800-7200+(OC) MHz |
| Motherboard chipset | Intel Z790 |
| Motherboard form factor | ATX |
| Number of SATA III connectors | 7 |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Width | 243.8 mm |
| Depth | 304.8 mm |
| RAID levels | 0, 1, 5, 10 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
