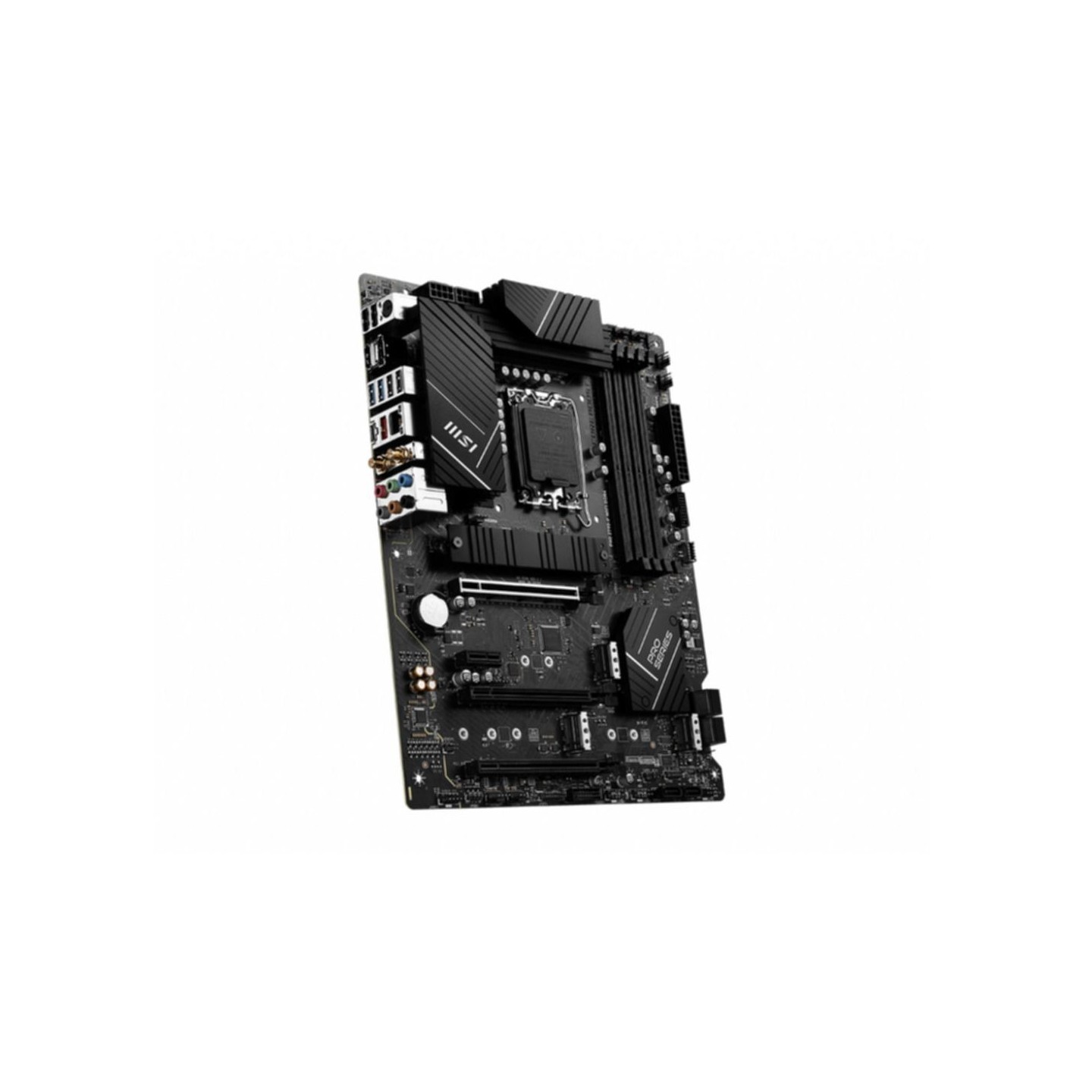

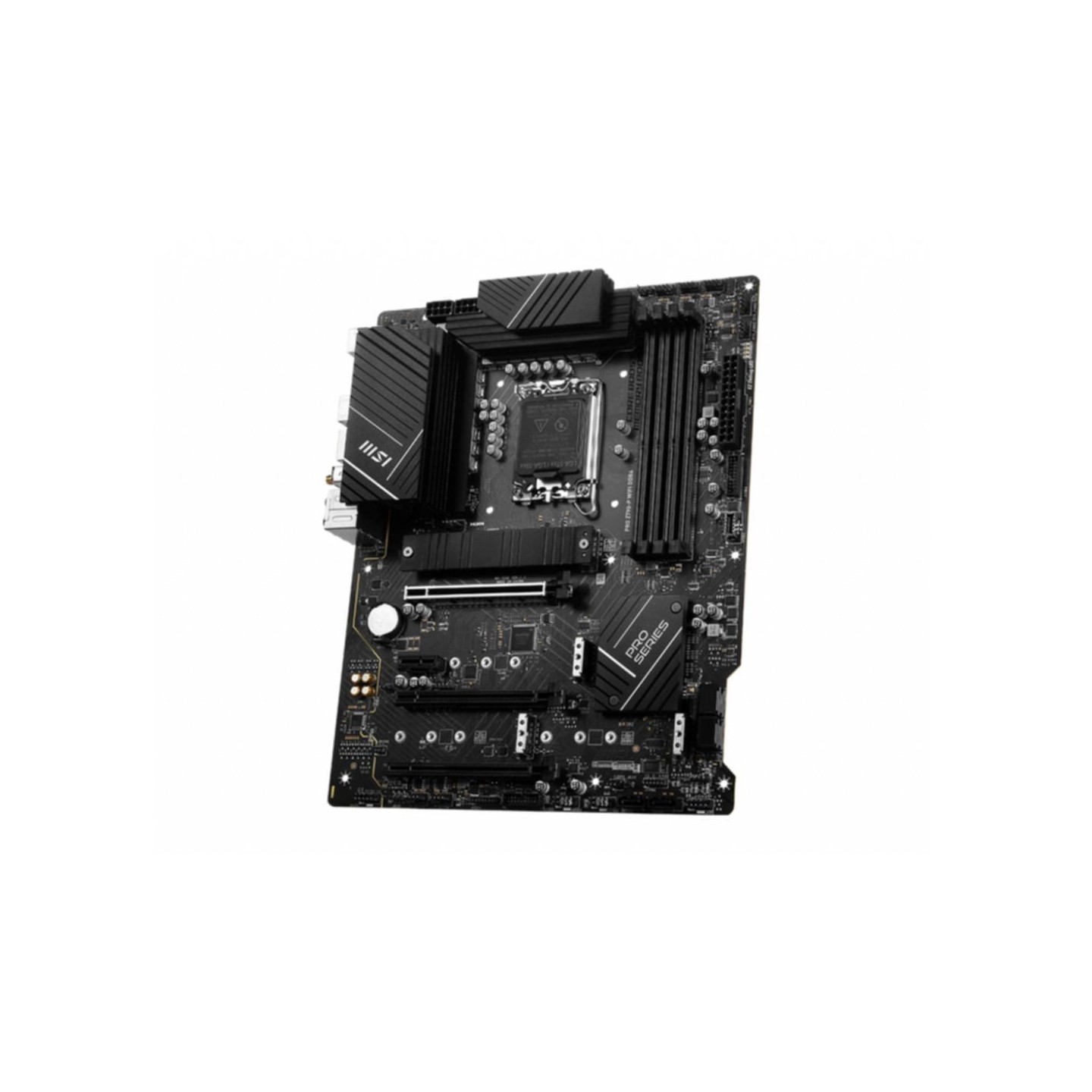

MSI PRO Z790-P WIFI - LGA1700 ATX DDR5 Motherboard - 192GB, Wi-Fi 6E, 2.5Gb LAN, Bluetooth 5.3, HDMI 2.1 (Black)
Intel Z790 ATX motherboard (LGA1700) with DDR5 boost to 192GB/7200+MHz OC, 4x M.2 PCIe 4.0, 6x SATA, Wi-Fi 6E, 2.5GbE, BT 5.3, PCIe 5.0 & HDMI 2.1.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel Z790 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 4 |
| Motherboards - SATA Ports | 6 |
| Motherboards - USB-C Support | Front Panel Type-C header Rear Type-C |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
The MSI PRO Z790-P WIFI is a professional-grade ATX motherboard built on the Intel Z790 chipset, supporting LGA1700 processors including 12th/13th/14th Gen Intel Core, Pentium Gold and Celeron. It delivers robust performance with 4x DDR5 slots supporting up to 192GB at overclocked speeds exceeding 7000MHz via XMP 3.0 profiles.
Featuring premium thermal solutions like extended heatsinks, 7W/mK MOSFET pads, and M.2 Shield Frozr, plus a 14+1+1 Duet Rail Power System with 55A DrMOS and dual 8-pin CPU connectors for stable overclocking. Connectivity includes Wi-Fi 6E, Bluetooth 5.3, 2.5G LAN, USB 3.2 Gen 2x2 Type-C, HDMI 2.1, and DisplayPort 1.4.
- ✅ 4x DDR5 DIMM slots, max 192GB (7000+MHz OC)
- ✅ 4x M.2 slots (1x PCIe 5.0 x16 ready, Lightning Gen4 x4)
- ✅ 6x SATA III, RAID 0/1/5/10
- ✅ PCIe 5.0 x16 slot with Steel Armor
- ✅ Realtek ALC897 7.1-channel audio
- ✅ 6-layer 2oz copper PCB
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Core™ 12th/13th/14th Gen, Intel® Pentium® Gold, Intel® Celeron® |
| Motherboard chipset | Intel Z790 |
| Motherboard form factor | ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 192 GB |
| Supported memory clock speeds | 4800-7200+ MHz (OC) |
| Memory Profile Support | XMP 3.0 |
| Number of M.2 (M) slots | 4 |
| Number of SATA III connectors | 6 |
| RAID levels | 0, 1, 5, 10 |
| Main Slot PCIe Version | PCIe 5.0 x16 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Power Phases | 14+1+1 Duet Rail (55A DrMOS) |
| PCB Layers | 6-layer with 2oz thickened copper |
| Width | 304.8 mm |
| Depth | 243.8 mm |
