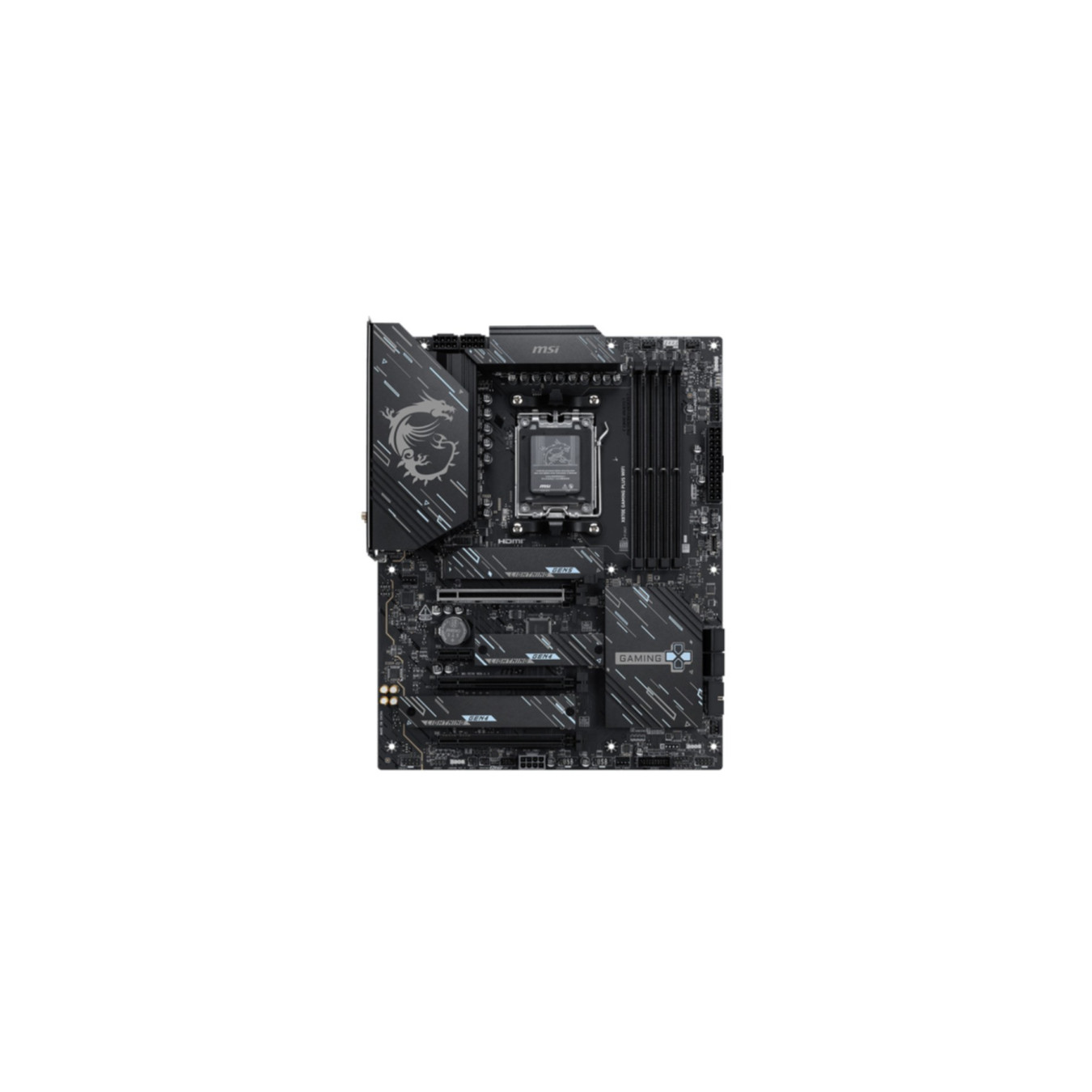

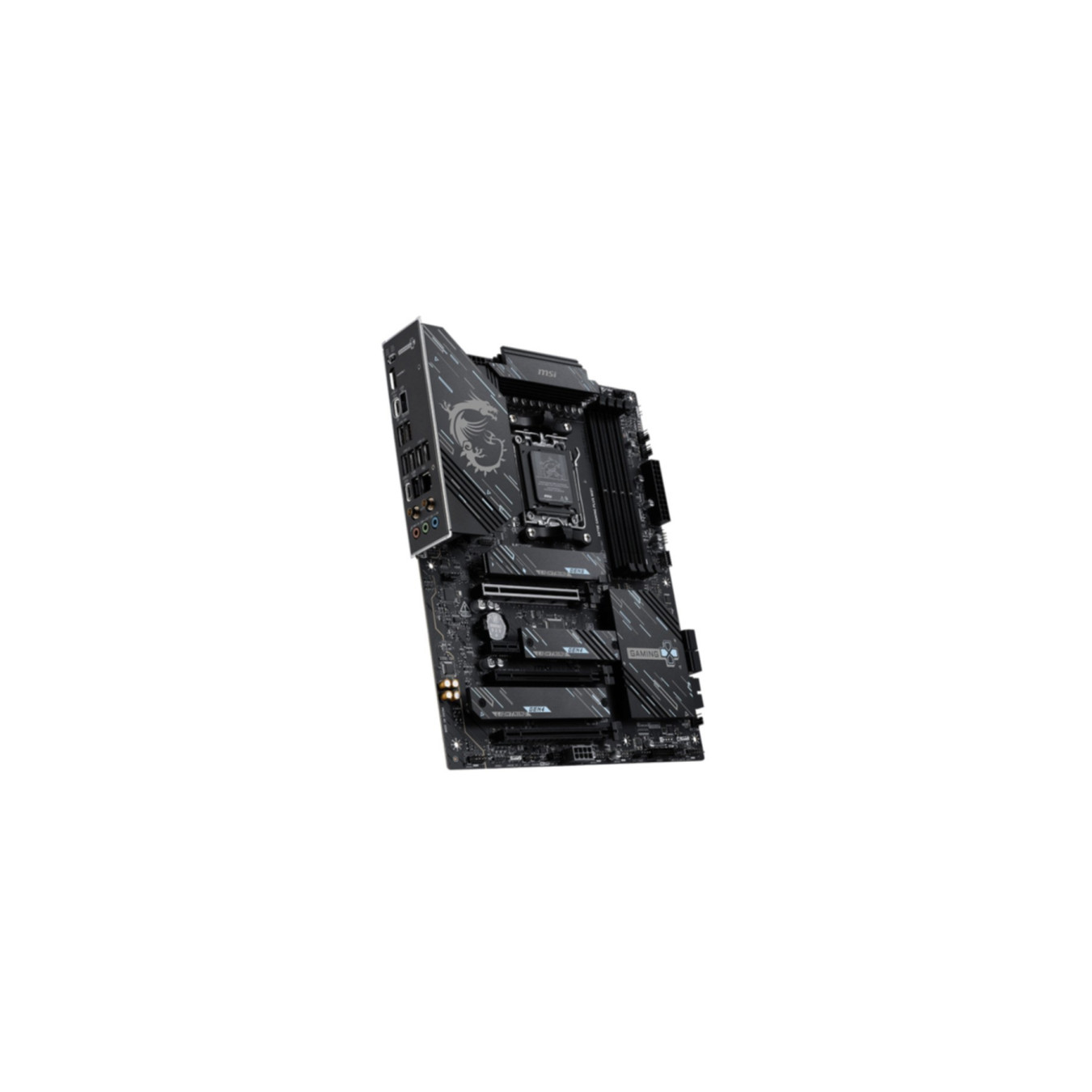

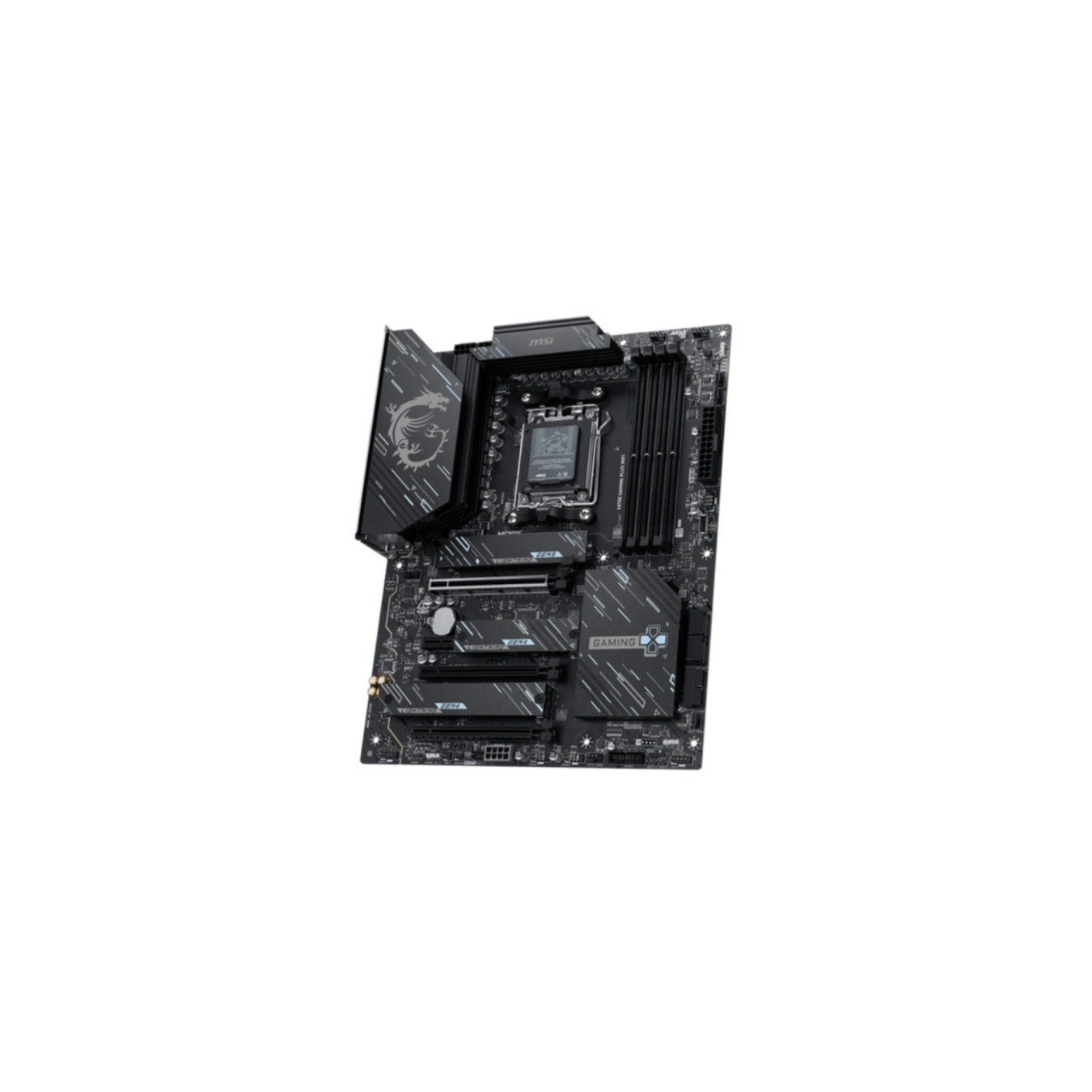

MSI MPG X870E Gaming Plus WIFI - AM5 ATX DDR5 Motherboard, 256GB Max, 4 DIMM, Wi-Fi, RGB, Black
AM5 ATX motherboard (AMD X870E) for Ryzen 7000/8000/9000; DDR5 up to 256GB (4 DIMMs); Wi-Fi, HDMI, DisplayPort, multiple USB, M.2 support, Realtek LAN, RGB.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Socket | AM5 |
|---|---|
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C | Both |
| unterstützte Prozessormodelle | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Sockel | Sockel AM5 |
| Chipsatz | AMD X870E |
| BIOS | UEFI AMI, 256 Mbit |
| Formfaktor | ATX |
| geeignet für freien Multiplikator | ja |
| Speicher max. | 256 GB |
| Memory slots | 4 |
| Speicher je Speicherplatz | 64GB |
| Storage type | DDR5-SDRAM |
| RAM Takt | 4800,5600,8400 MHz |
| Speicher Kanäle | Zweikanalig |
| Speichertyp | non-ECC;un-buffered |
| Controller in CPU | ja |
| LAN (RJ45) | 5 Gigabit Ethernet |
| PS/2 (Tastatur/Maus) | 1 |
| USB 3.1 | 5 |
| USB 3.0 | 0 |
| USB 2.0 | 4 |
| USB C | 1 |
| VGA | 0 |
| HDMI | 1 |
| DisplayPort | 2 |
| Mikrofon | 1 |
| Line-Out 3,5 mm Klinke | 4 |
| S/PDIF-Out (optisch) | 1 |
| PCIe 4.0 | 3 |
| PCIe 3.0 | 1x PCIe x16; 2xPCIe x1 |
| Mainbord Strom | 24pin |
| CPU Strom | 8pin |
| SATA 3 | 4 |
| M.2 | 4 |
| M.2 Länge max. | 110mm |
| M.2 Konnektor | M |
| USB-Header USB 2.0 | 10 |
| USB-Header USB 3.0 | 4 |
| USB-Header USB C | 1 |
| Lüfter 4-polig PWM | 6 |
| Sound-Chip | 7.1 Kanäle |
| LAN | Realtek RTL8126 |
| Multi-GPU | ja |
| Multi-GPU Modus | Nicht unterstützt |
| RAID SATA | 0, 1, 5, 10 |
| RAID M.2 | 0;1 |
| Beleuchtungsfarbe | RGB |
| Farbe | schwarz |
| Gewicht (g) | 1950 |
| Breite (cm) | 30.50 |
| Tiefe (cm) | 24.40 |
| Internal graphic | yes |
| verfügbare Slots | 6 |
