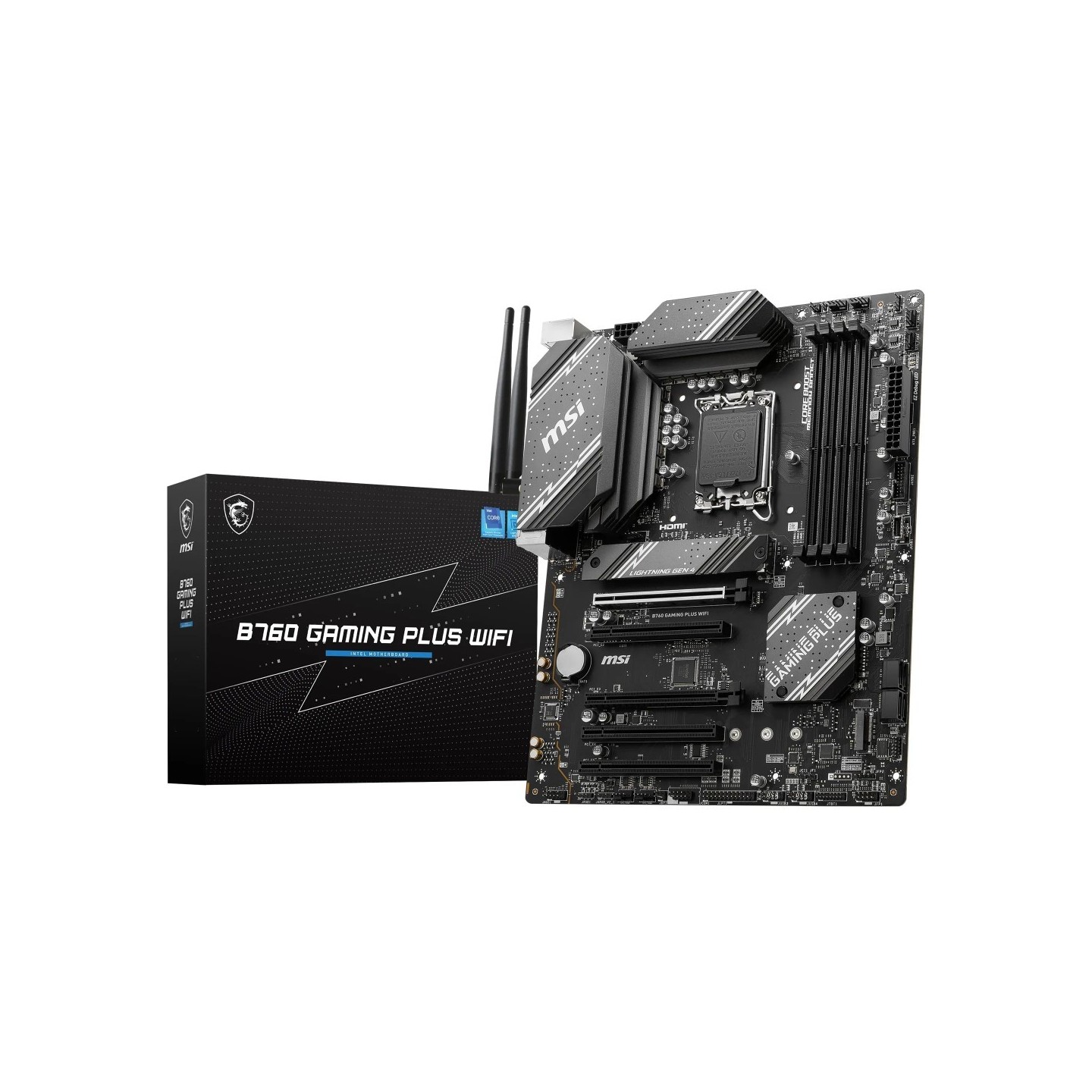

MSI B760 Gaming Plus WiFi LGA1700 ATX MB DDR5 192GB PCIe4.0 2.5G LAN WiFi (Boxed)
ATX Intel B760 LGA1700 motherboard: DDR5 up to 192GB (4xDIMM, XMP), PCIe 4.0 x16 GPU + 2x M.2, 4x SATA RAID 0/1/5/10, 2.5Gb LAN, Wi-Fi 6E BT5.3, USB-C, RGB headers, black.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 192 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Front Panel Type-C header Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |

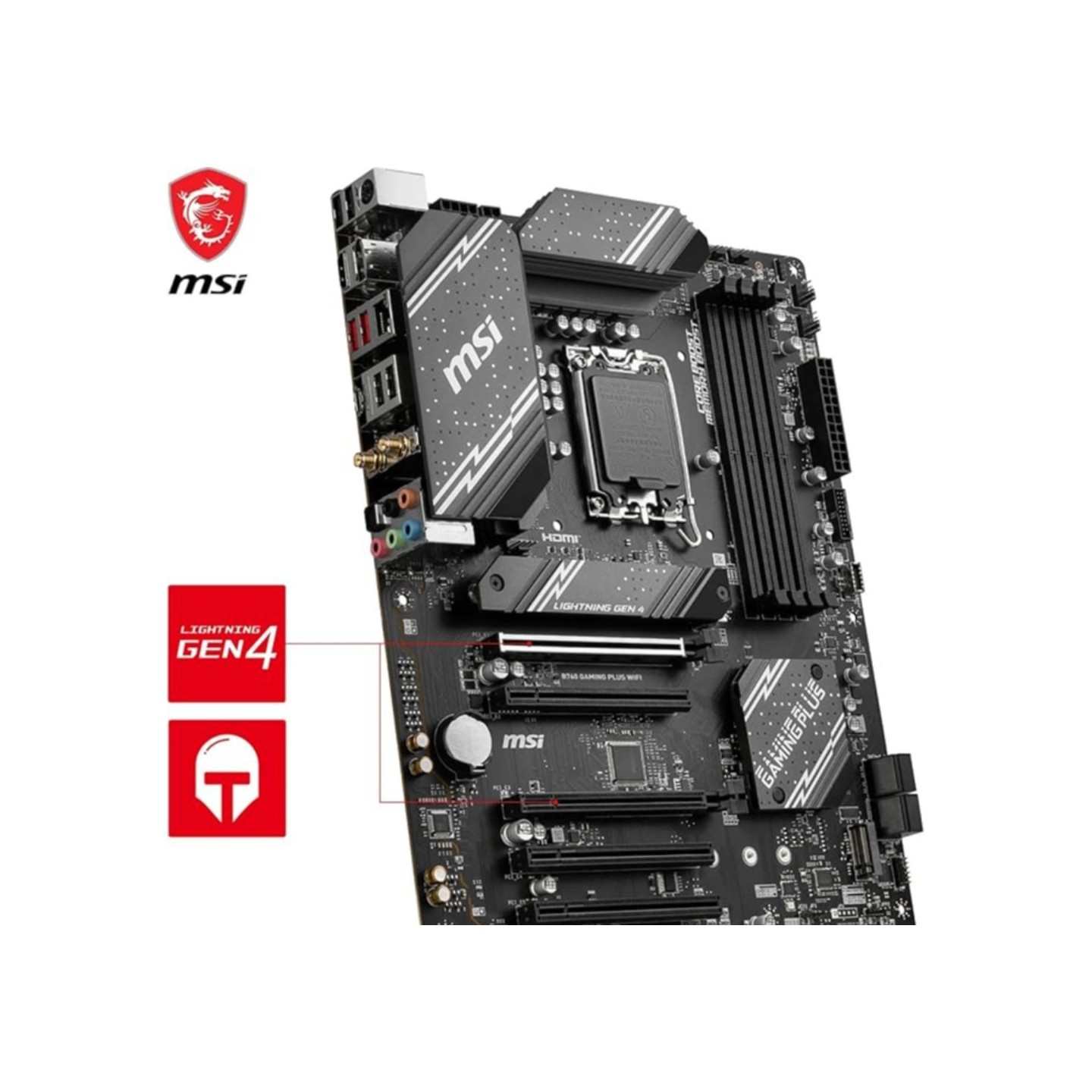

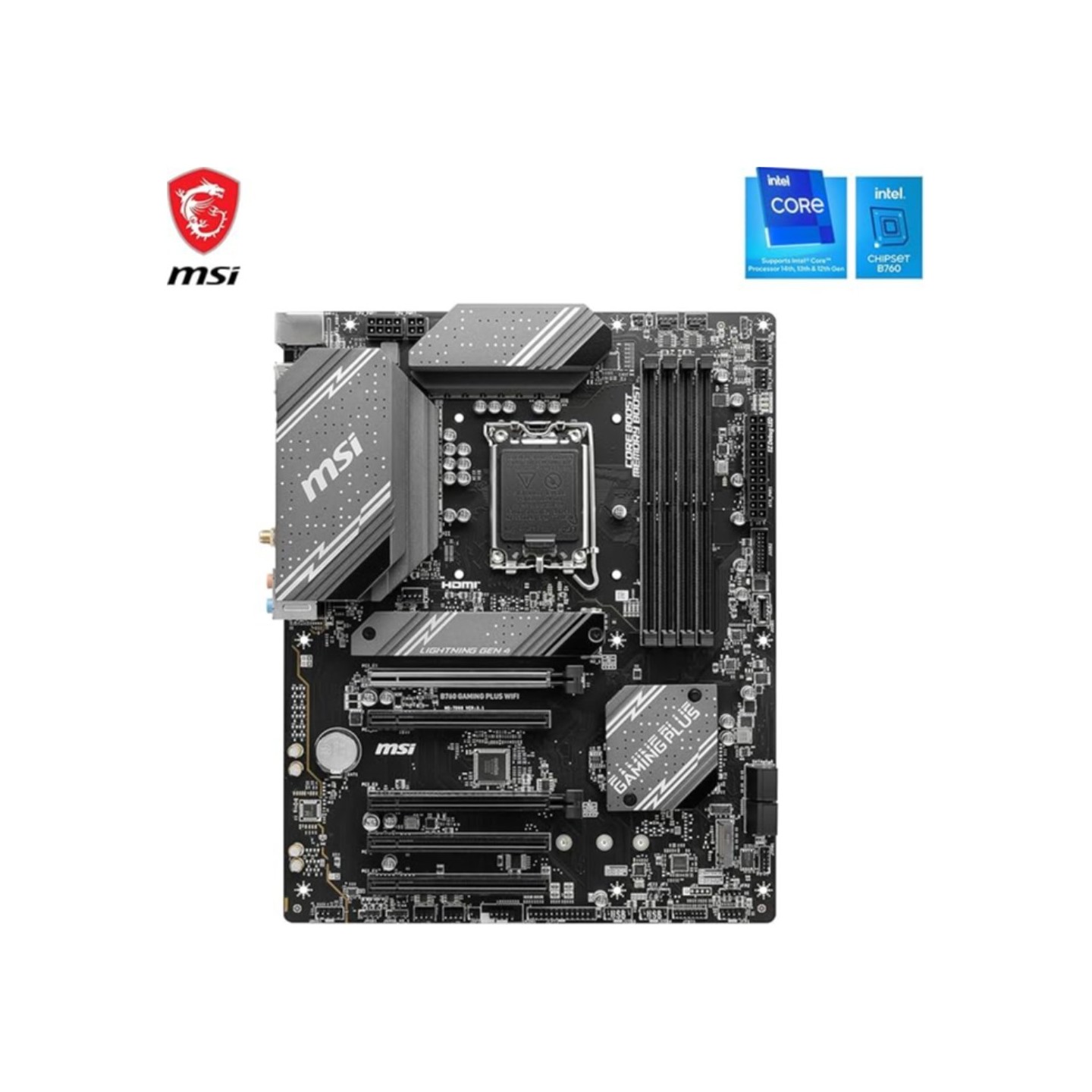

The MSI B760 Gaming Plus WiFi is a feature-packed ATX motherboard designed for Intel 12th/13th/14th Gen Core processors on LGA1700 socket. It supports DDR5 memory up to 192GB across 4 DIMM slots with XMP overclocking for high-performance gaming and productivity builds. Extended heatsinks, 12+1 Duet Rail VRM with 7W/mK pads, and M.2 Shield Frozr ensure stability under load.
Connectivity shines with PCIe 4.0 x16 slot for GPUs, 2x PCIe 4.0 M.2 slots (up to 22110), 4x SATA6Gb/s with RAID support, rear USB 3.2 Gen2 Type-C, front USB-C header, 2.5G Realtek LAN, Wi-Fi 6E, and Bluetooth 5.3. Audio is handled by Realtek ALC897 7.1-channel codec. Multiple RGB headers (ARGB/RGB) allow extensive lighting customization.
- Socket: LGA1700 (Intel Core i9/i7/i5/i3, Pentium, Celeron)
- Chipset: Intel B760
- Memory: 4x DDR5, max 192GB, Dual Channel
- Expansion: 1x PCIe 4.0 x16, 1x PCIe 4.0 x16 (x4), 3x PCIe 3.0 x1
- Storage: 2x M.2 PCIe4.0 x4, 4x SATA RAID
- Network: 2.5GbE, Wi-Fi 6E, BT 5.3
- Video: 1x HDMI 2.1, 1x DP 1.4
- Form Factor: ATX (30.5x24.4 cm)
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, Celeron® |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Maximum internal memory | 192 GB |
| Memory Profile Support | XMP |
| Supported storage drive interfaces | M.2, SATA |
| Number of M.2 (M) slots | 2 |
| Number of SATA III connectors | 4 |
| RAID levels | 0, 1, 5, 10 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Dragon RTL8125BG |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Motherboard chipset | Intel B760 |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| PCI Express x16 slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 (primary) |
| PCI Express x1 slots | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Width | 243.8 mm |
| Depth | 304.8 mm |
| VRM Design | 12+1 Duet Rail Power System |
| RGB Headers | Yes (5V ARGB, 12V RGB) |
