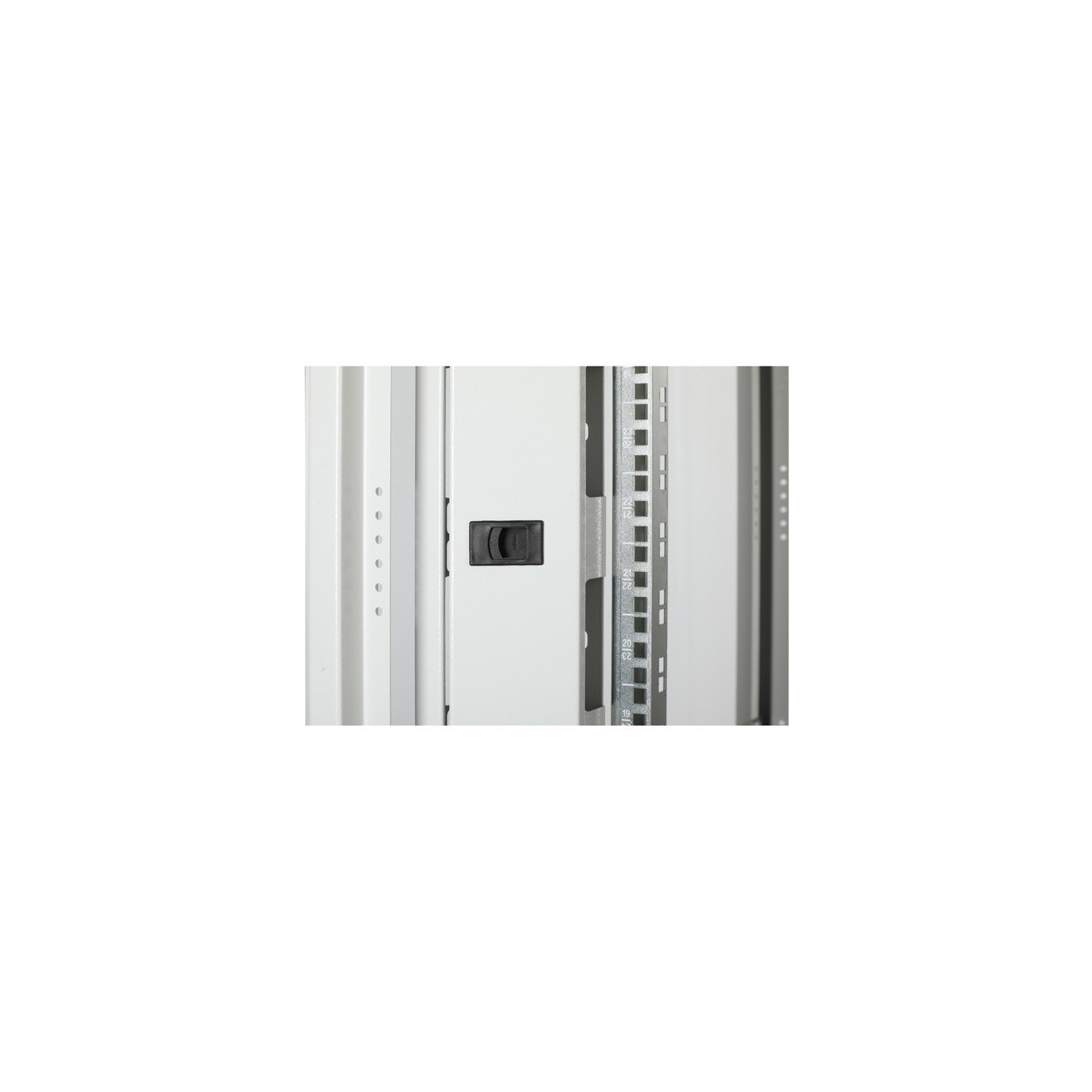

Network cabinet Unique series - 800x800 mm (WxD), IT cabinet
The Unique series network cabinets were designed and produced for particularly convenient and flexible network cabling. Well-thought-out optimizations offer market-compliant stabil...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

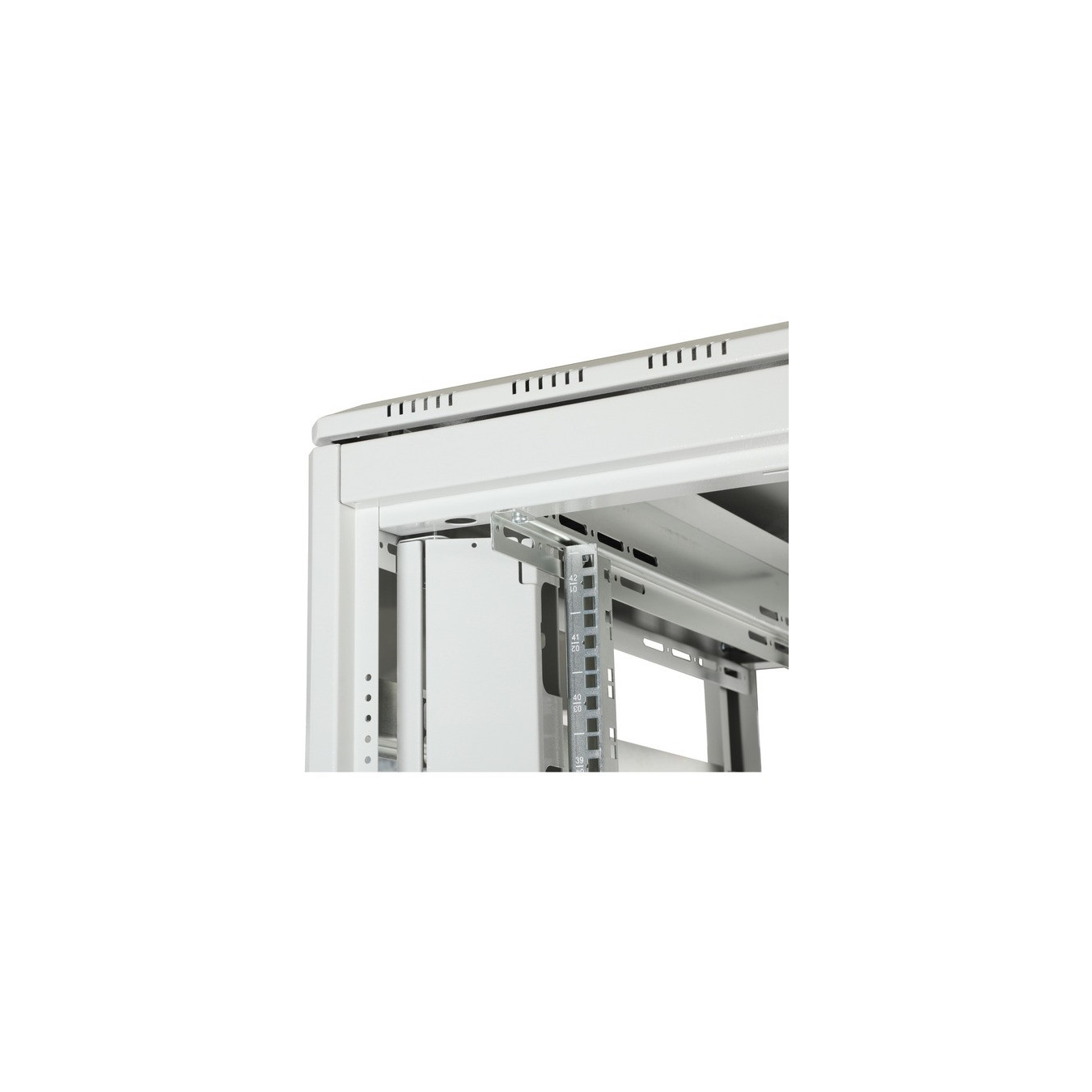

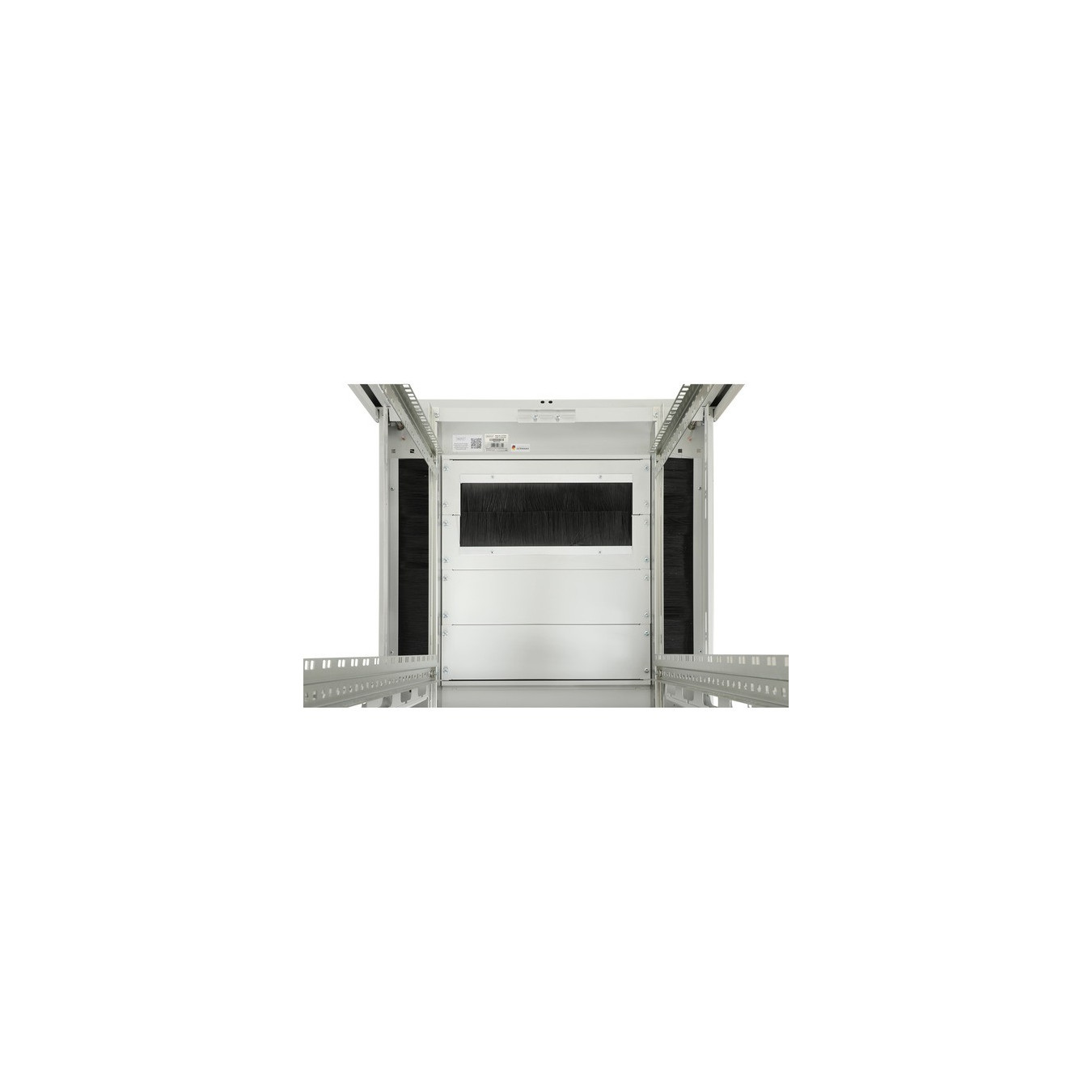

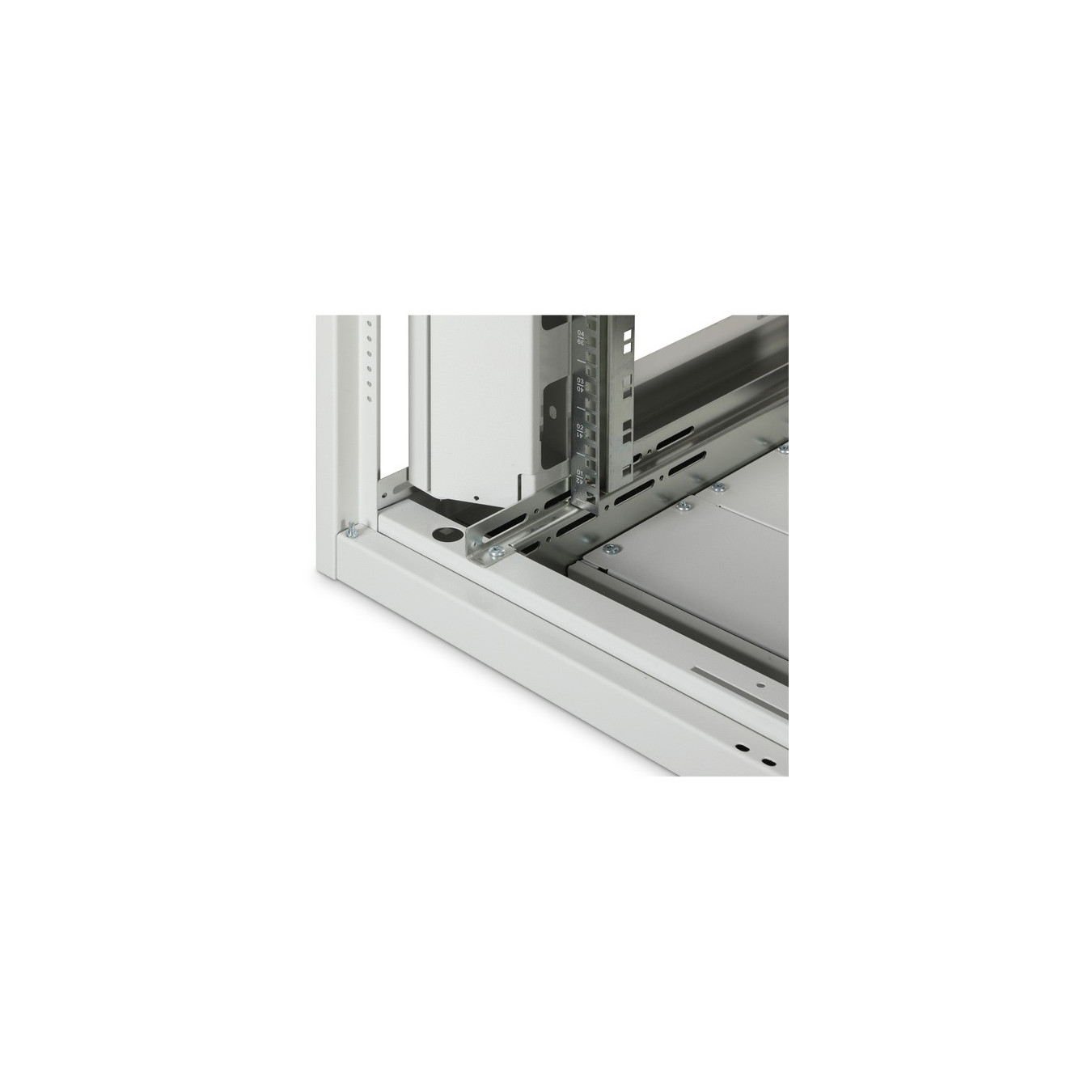

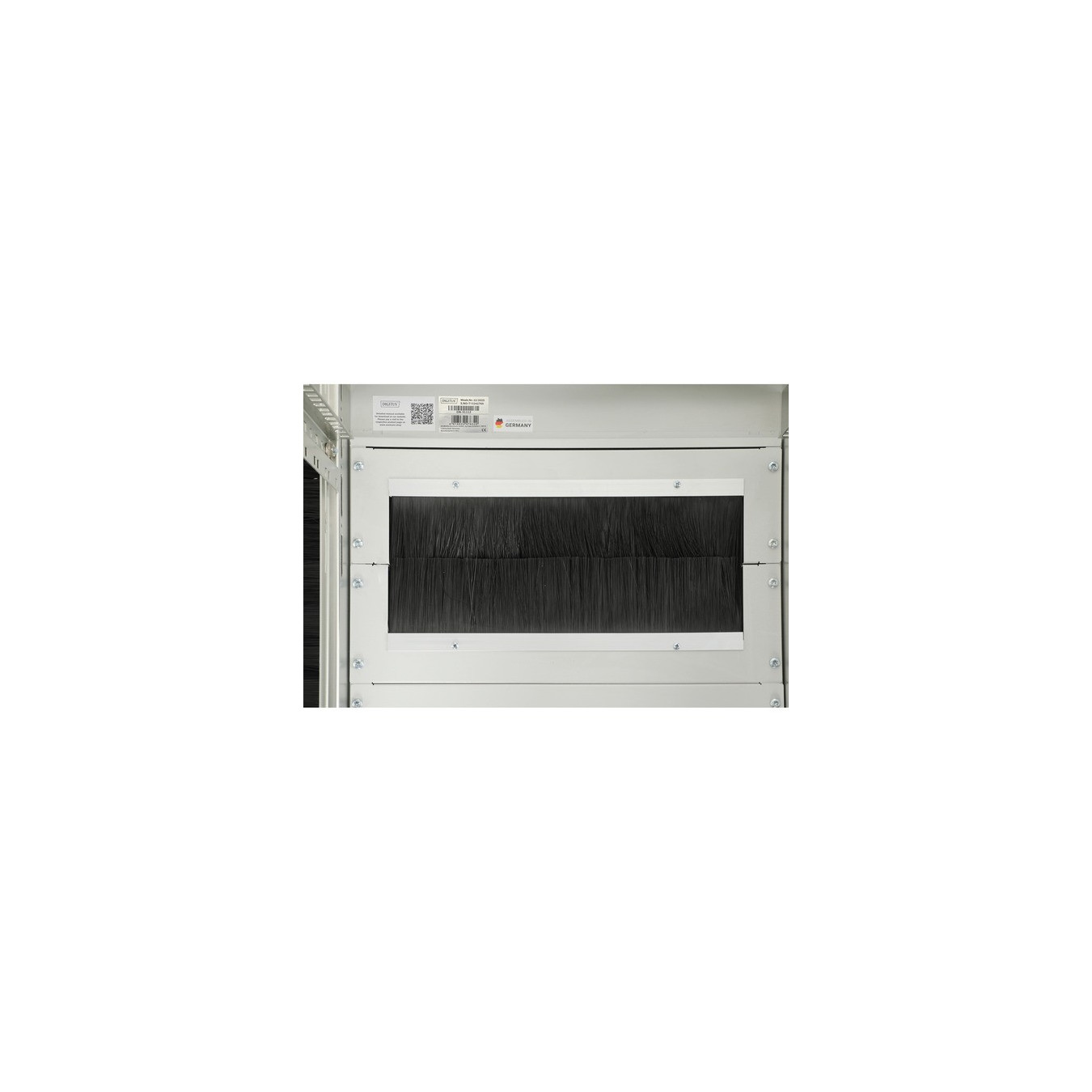

The Unique series network cabinets were designed and produced for particularly convenient and flexible network cabling. Well-thought-out optimizations offer market-compliant stability with maximum customization. A modular floor chassis that can be opened using screwed 483 mm (19") blind plates offers sufficient space for all types of cables. There are also side cable inlets with brushes at the top and bottom of the cabinet, as well as another in the rear area of the floor chassis. Rear brush strips above and below the rear door (from 26U) enable use in a wide range of application scenarios. Generous vertical cable channels with Cable management aids and a cover, installed in the front (from 800 mm cabinet width), perfectly round off the diverse features of the network cabinet. Two pairs of offset and galvanized 483 mm (19") profile rails, labeled with height units that can be read in opposite directions, are installed inside. They can be infinitely adjusted and are connected to additional depth struts in the cupboard. Each cabinet is a robust steel construction made of up to 1.5 mm thick sheet steel. Modular lockable and removable side walls and doors improve accessibility. A door hinge change can be made. Furthermore, due to the dismountable design, the cabinets can be completely dismantled if necessary.
| Typ | IT cabinet |
| Color | light gray |
| EAN | 4016032476320 |
| Manufacturer no. | DN-31112 |
| Manufactured in | China |
| use | Network cabinet |
| Server size | 19 inches |

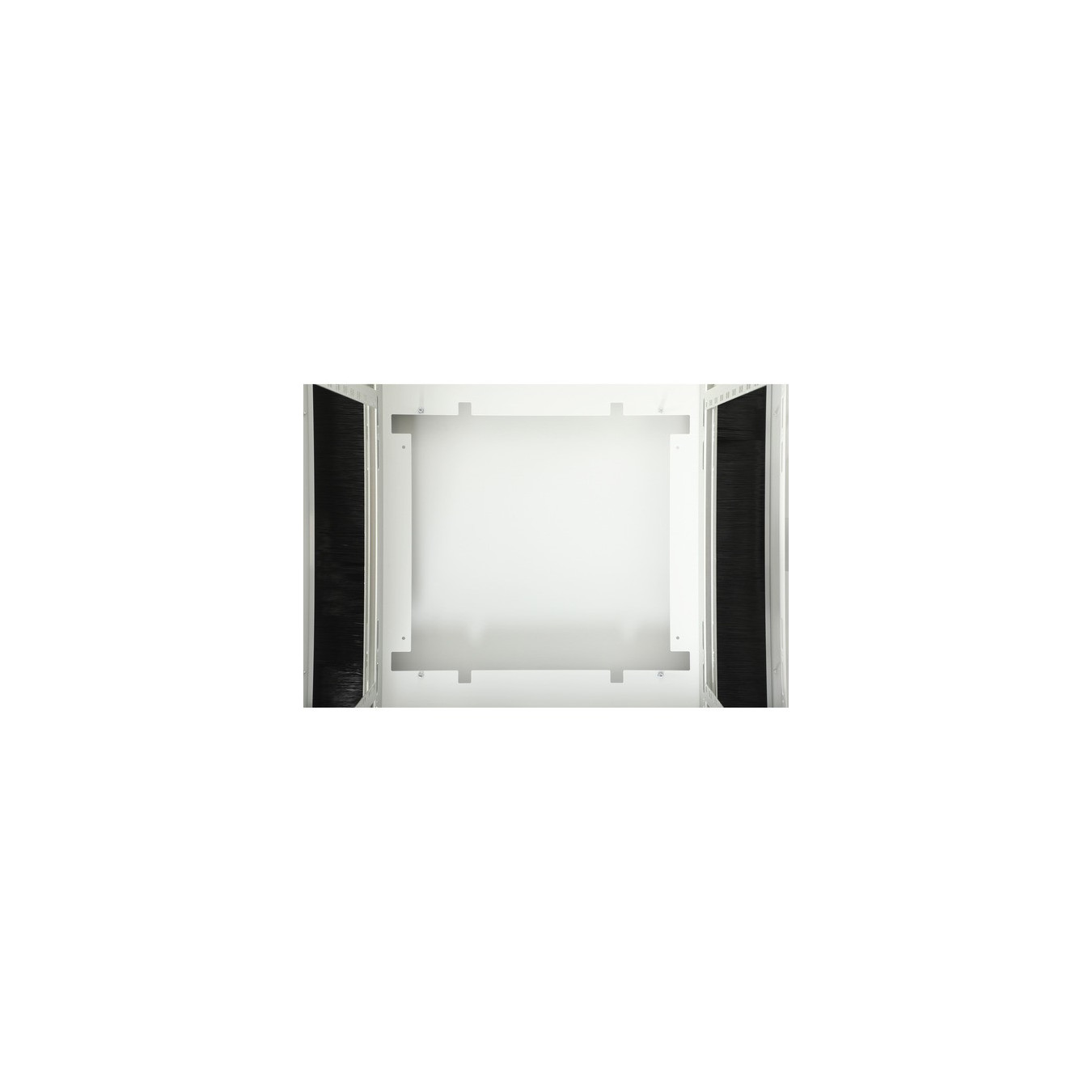

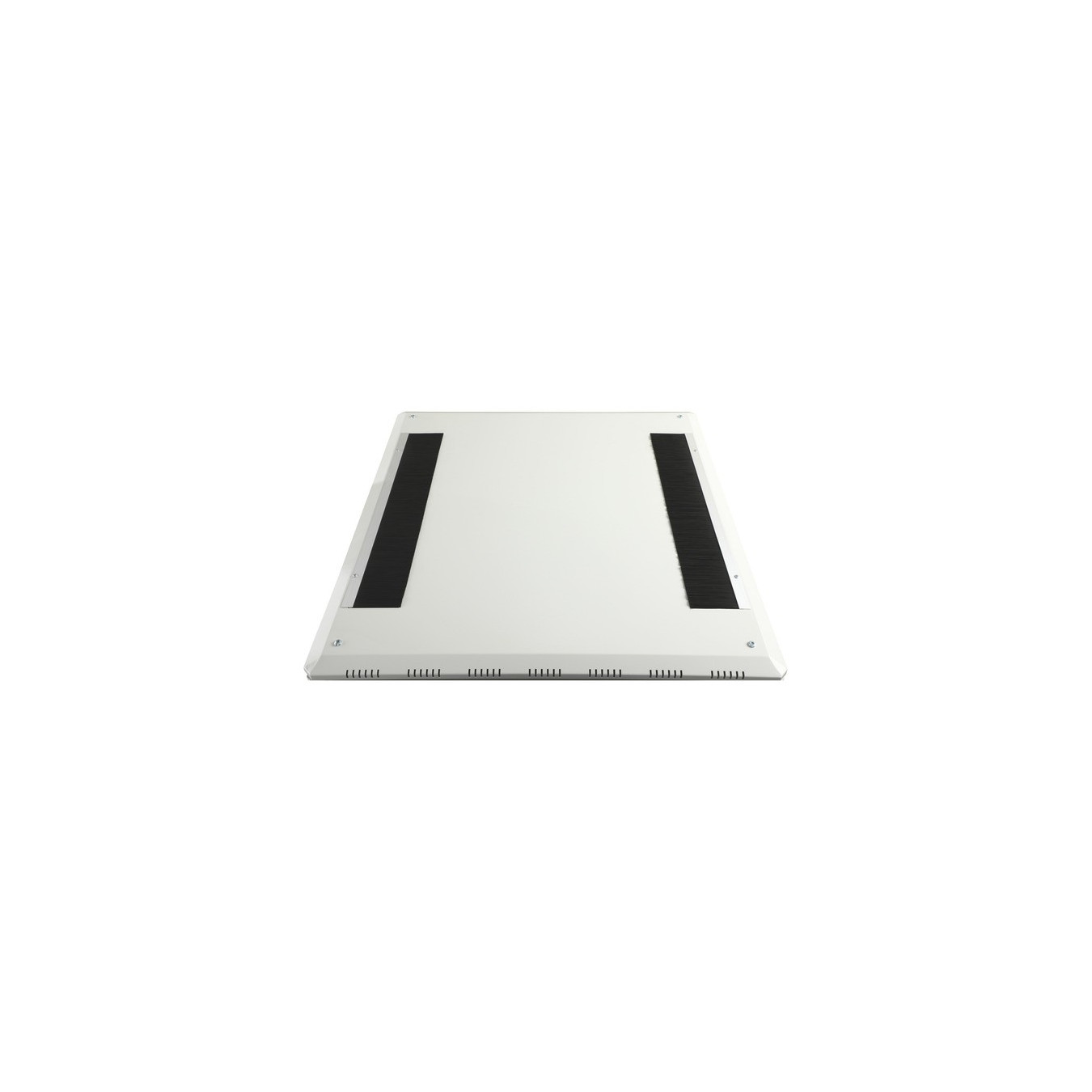

| Cable routing | Vertical cable channels with cable management aids and cover installed in the front, modular, openable floor chassis with removable 19" blind panels (450 x 537 mm), cable inlets in the floor: 400 x 170 mm (back), 90 x 550 mm (side), cable inlets in the roof: 90 x 550 mm (side) |
| Material | Sheet steel (powder-coated) |
| Montage | Delivered fully assembled |
| cooling | Active, roof module for ventilation unit |
| Installation - width | maximal 483 mm |

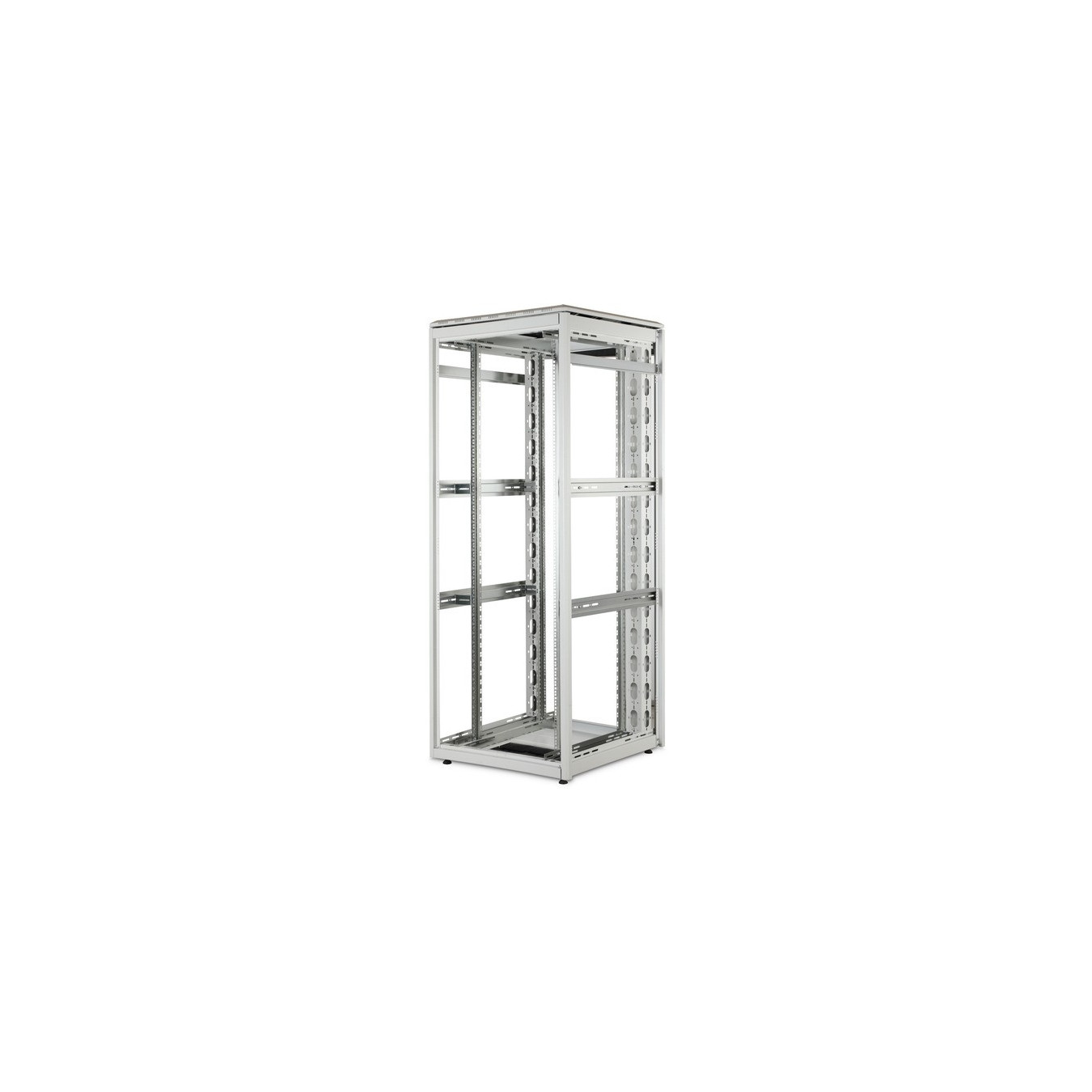

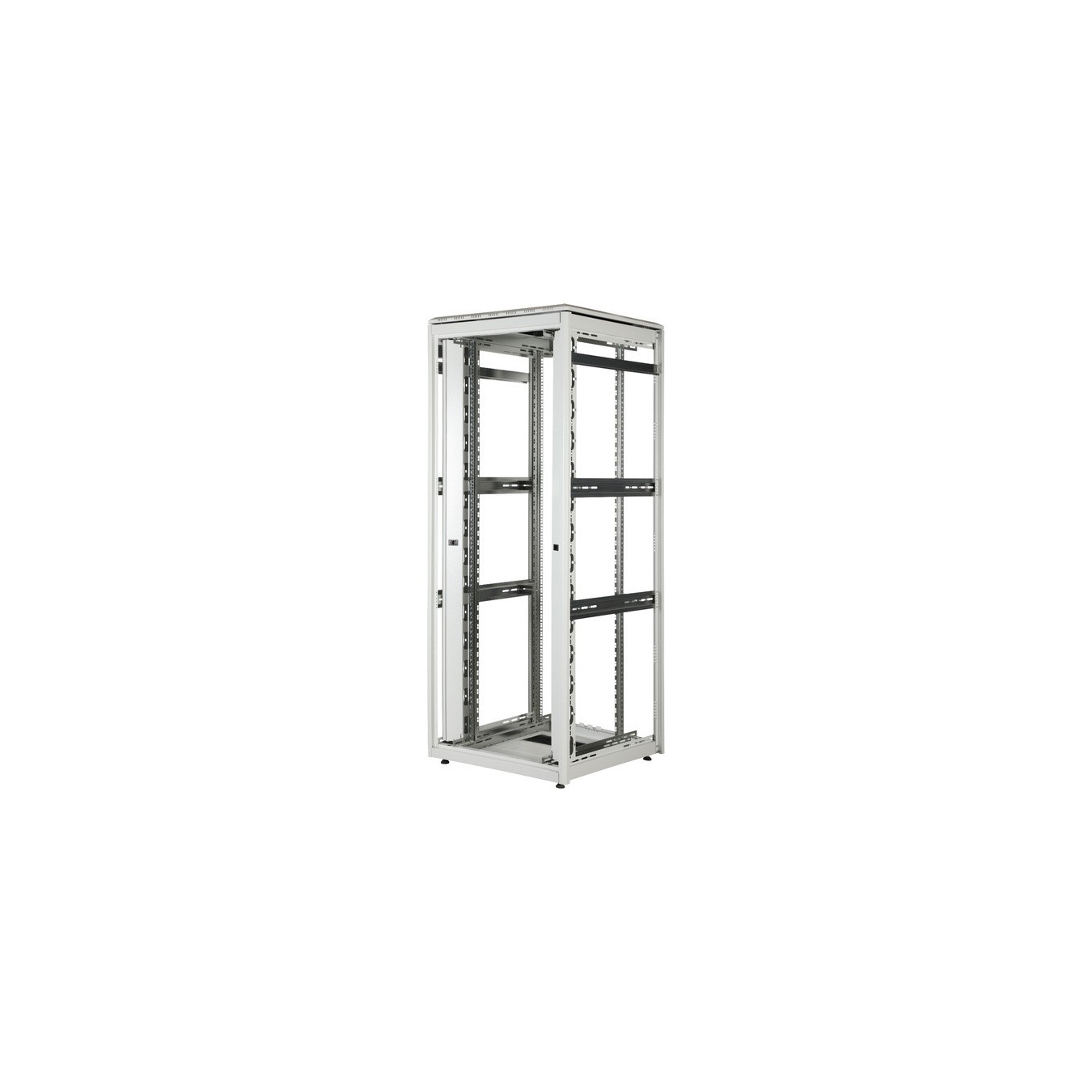

| Feature | Open frame without doors or side walls for easy access and individual expansion |
| More information | Light gray, RAL 7035 |
| Accessories - available | Ground Cable Kit, Installation Kit (Screws, Cage Nuts, Washers), 4 x Leveling Base, M10 |
| Dimensions | Width: 80cm x Height: 205.3cm x Depth/Length: 80cm |
| Weight | 95 kg |
