Inter-Tech Mini-ITX PSU 160W DC/DC Adapter - 24-pin ATX (Retail)
Compact Mini-ITX DC/DC power adapter with 160W external 12V input support. Features 24-pin ATX mainboard connector, 4+4-pin EPS, Molex, and dual SATA connectors for tight-space PC builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | Under 400 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | Not Certified |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | None |
| PSU (Power Supplies) - Length | 161-180 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |

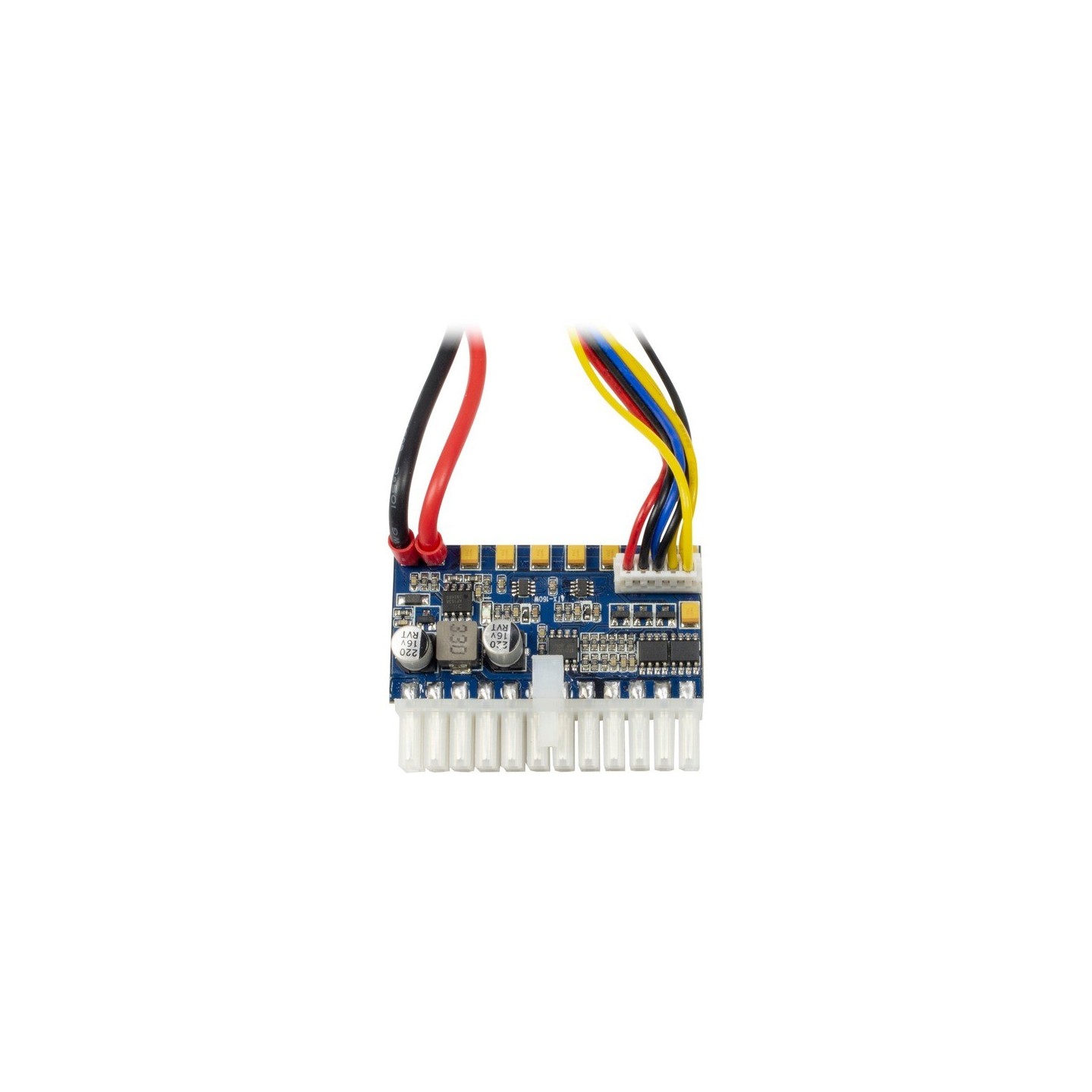

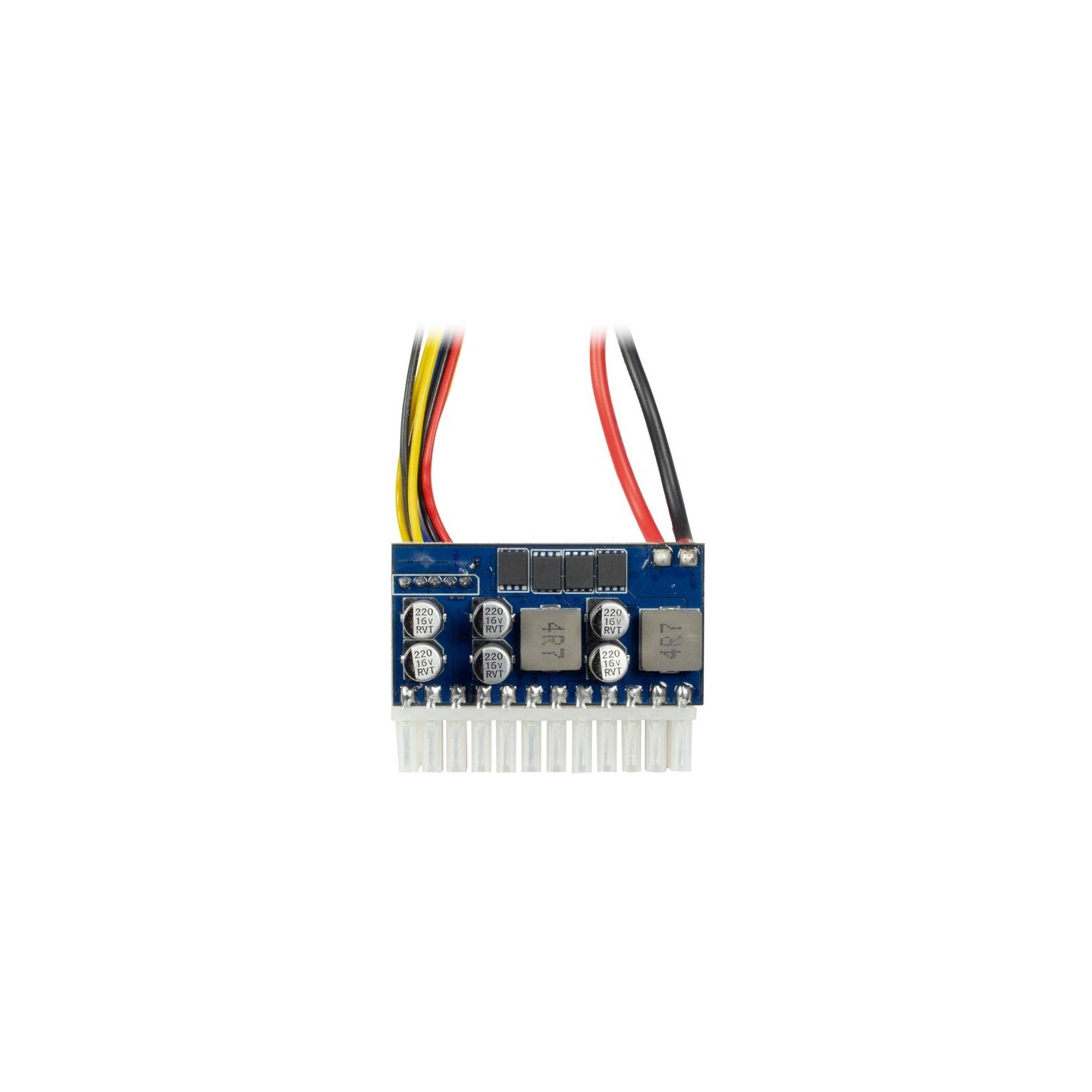

The Inter-Tech Mini-ITX PSU 160W DC/DC is a specialized power adapter designed for ultra-compact PC builds and Mini-ITX enclosures where space is severely limited. This adapter board connects to an external 12V power supply (up to 160W, not included) via a cable with socket and union nut, allowing you to power all components even in the tightest cases. The compact form factor measures just 40x53x18mm, making it ideal for SFF (Small Form Factor) builds.

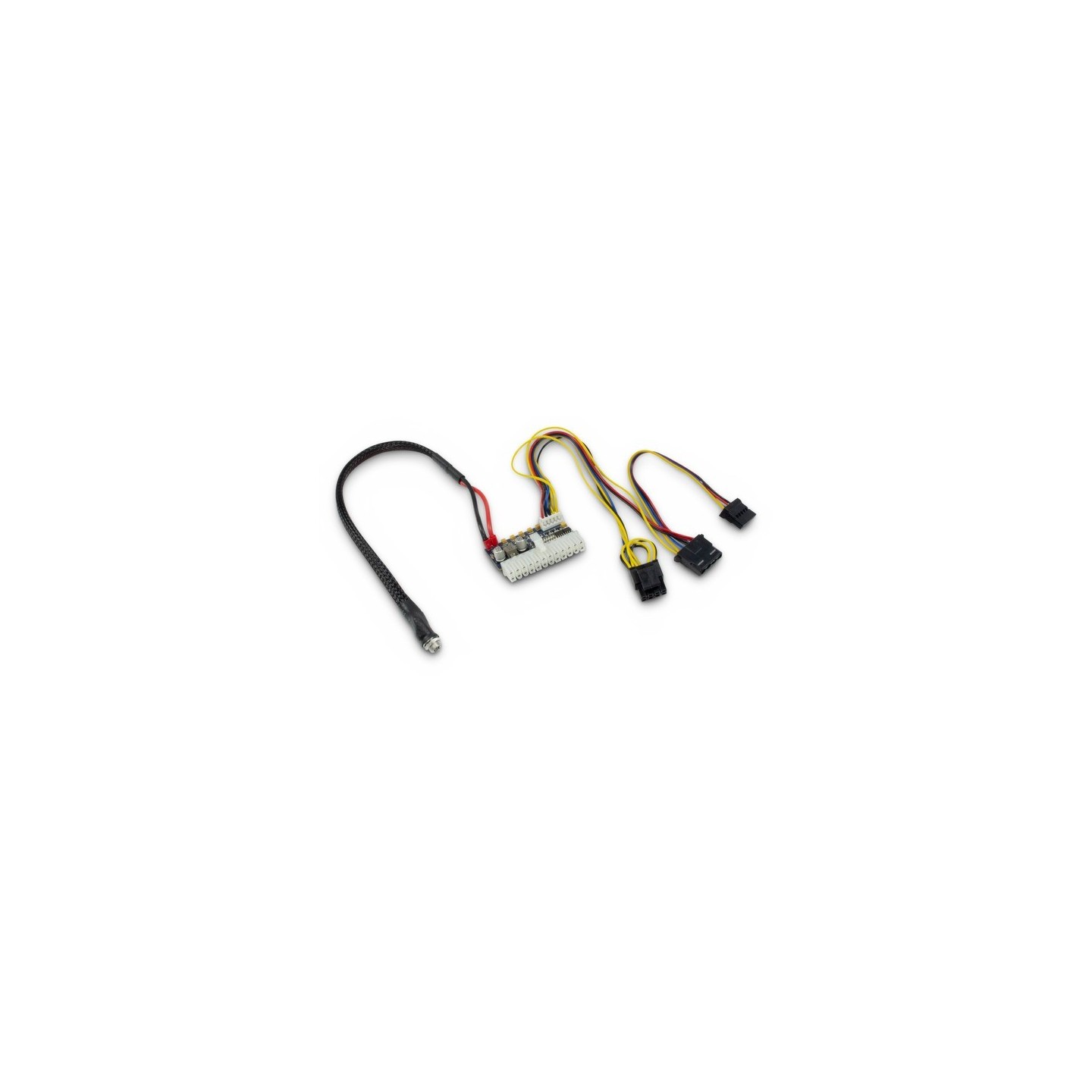

The board is equipped with a 24-pin ATX mainboard connector, one 4+4-pin EPS/12V connector for CPU power, one Molex (IDE 4-pin) connector for legacy devices, and two SATA connectors for storage drives. The adapter includes comprehensive protection circuitry with overvoltage protection (OVP), undervoltage protection (UVP), and overload protection (OPP). Output specifications support +3.3V at 6A, +5V at 6A, +5VSB at 2A, +12V at 8A, and -12V at 0.15A maximum.
Key Features:
- Extremely compact dimensions: 40 x 53 x 18mm
- Supports external 12V power supplies up to 160W
- 24-pin ATX + 4+4-pin EPS connectors for modern motherboards
- Legacy Molex and dual SATA support
- Multiple protection circuits (OVP, UVP, OPP)
- 24-month manufacturer warranty
- Ideal for Mini-ITX and SFF PC builds
| Type | DC/DC Power Adapter |
| Form Factor | Mini-ITX |
| Maximum Power | 160W |
| Input | 12V DC (external power supply required) |
| Mainboard Connector | 1x 24-pin ATX |
| CPU Power Connector | 1x 4+4-pin EPS/ATX12V |
| Molex Connector | 1x 4-pin IDE |
| SATA Connectors | 2x SATA |
| PCIe GPU Connectors | None |
| Output Voltage +3.3V | 6A maximum |
| Output Voltage +5V | 6A maximum |
| Output Voltage +5VSB | 2A maximum |
| Output Voltage +12V | 8A maximum |
| Output Voltage -12V | 0.15A maximum |
| Protection Features | OVP (Overvoltage Protection), UVP (Undervoltage Protection), OPP (Overload Protection) |
| Dimensions (Unboxed) | 40 x 53 x 18 mm (W x H x D) |
| Weight (Unboxed) | 60g |
| Weight (Boxed) | 65g |
| Color | Black |
| Manufacturer | Inter-Tech Elektronik Handels GmbH |
| Manufacturer Part Number | 88882188 |
| EAN-13 | 4260455645454 |
| Warranty | 24 months |
| Country of Origin | China |
| DC Socket | 5.5 x 2.5 mm |
| Packaging | Retail Box |
