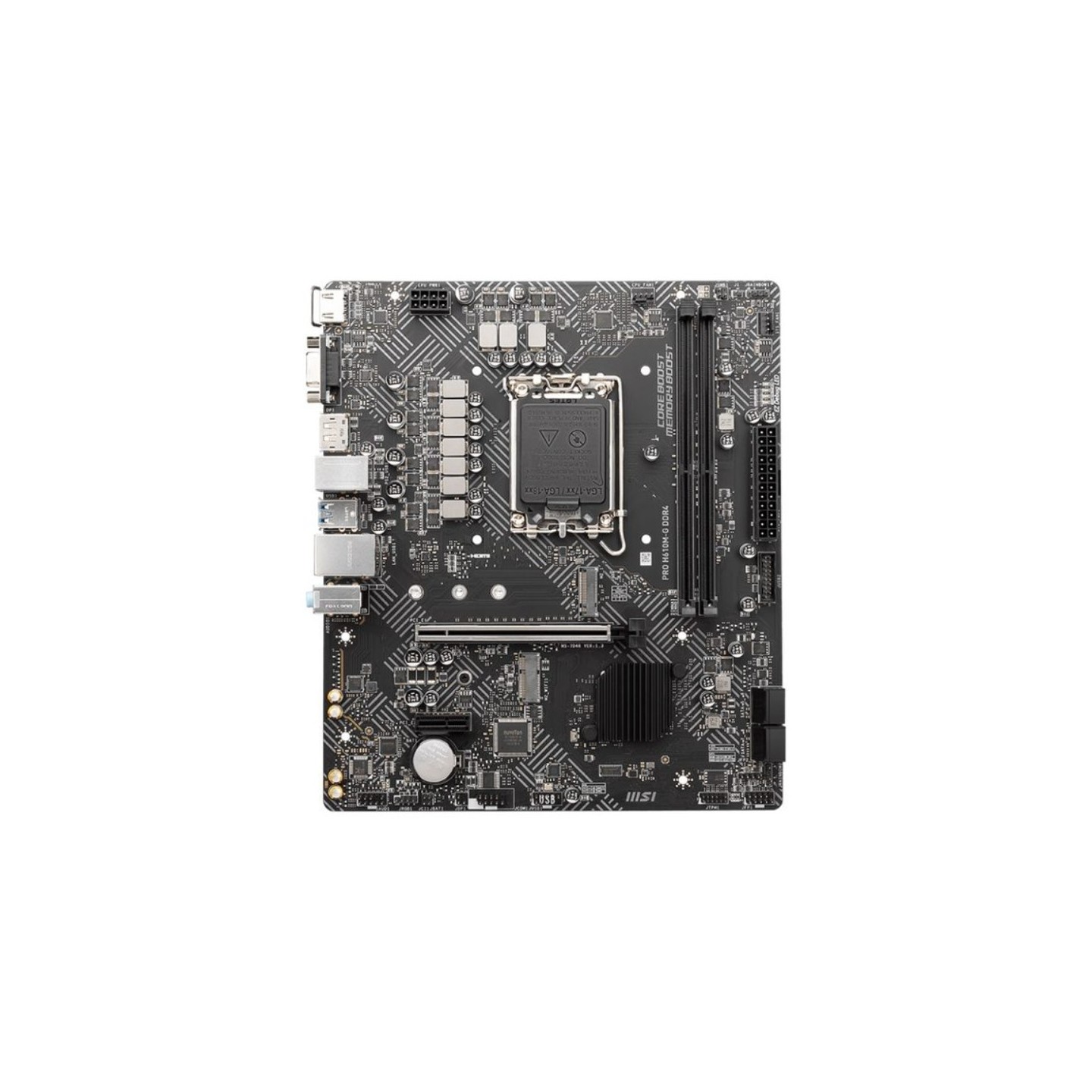

MSI PRO H610M-G DDR4 LGA1700 Micro-ATX Motherboard - H610, DDR4 64GB, PCIe4.0 (Boxed)
MSI PRO H610M-G DDR4 is a Micro-ATX motherboard with LGA1700 socket for Intel 12th-14th Gen CPUs, H610 chipset, 2x DDR4 up to 64GB, PCIe 4.0 x16, 1x M.2 PCIe3.0, 4x SATA6Gb/s, HDMI/DP/VGA.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel H610 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |
The MSI PRO H610M-G DDR4 is a reliable Micro-ATX motherboard designed for business and productivity builds. It features the Intel H610 chipset and LGA1700 socket, supporting Intel Core 12th, 13th, and 14th Gen processors, Pentium Gold, and Celeron CPUs. With Core Boost power design and Memory Boost technology, it ensures stable performance for demanding workloads.

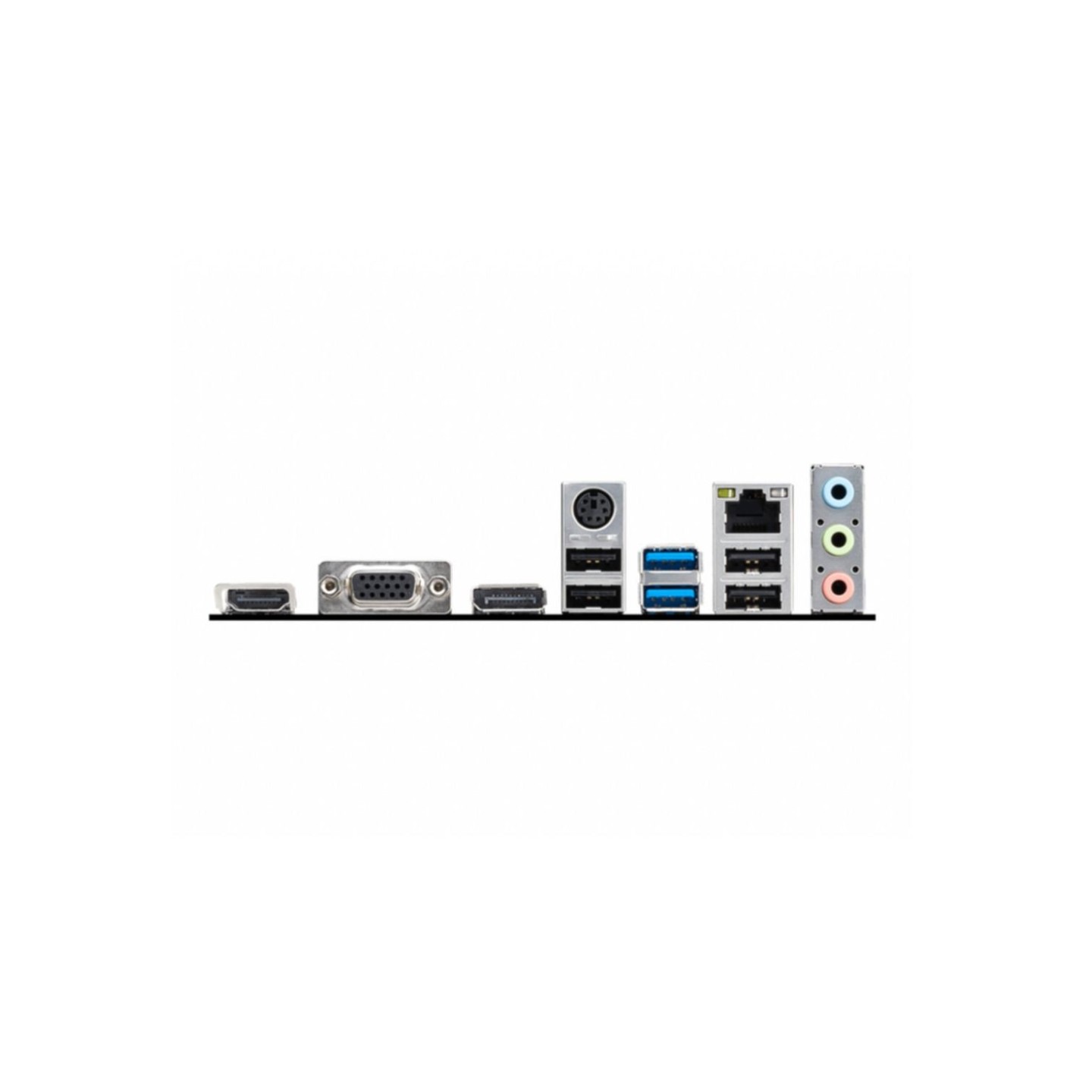

Key connectivity includes 2x DDR4 DIMM slots (dual-channel, up to 64GB at 3200MHz), 1x PCIe 4.0 x16 slot with Steel Armor for heavy GPUs, 1x PCIe 3.0 x1, 1x M.2 Gen3 x4 (2280/2260/2242, PCIe/SATA), and 4x SATA 6Gb/s ports. Rear I/O offers HDMI 2.1, DisplayPort 1.4, VGA for 4K support, 1Gbps LAN, USB 3.2 Gen1 (5Gbps), USB 2.0, and 7.1-channel HD Audio with Audio Boost.
- CPU Socket: LGA1700 (12th-14th Gen Intel)
- Memory: 2x DDR4, max 64GB, 3200MHz+
- Expansion: PCIe 4.0 x16, M.2 Gen3
- Storage: 1x M.2 + 4x SATA6Gb/s
- Video Outputs: HDMI, DP, VGA
- LAN: 1Gbps Realtek
- Form Factor: Micro-ATX
- Wireless: None
| Chipset | Intel H610 |
| CPU Socket | LGA 1700 |
| Supported CPUs | Intel Core 12th/13th/14th Gen, Pentium Gold, Celeron |
| Form Factor | Micro-ATX |
| Memory Slots | 2x DDR4 DIMM |
| Max Memory | 64GB |
| Memory Speed | Up to 3200 MHz (JEDEC) |
| PCIe Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 |
| M.2 Slots | 1x M.2 Gen3 x4 (PCIe/SATA, 2280/2260/2242) |
| SATA Ports | 4x SATA 6Gb/s |
| LAN | 1x Gigabit Ethernet |
| Audio | Realtek ALC897 7.1-Channel HD Audio |
| Video Outputs | HDMI 2.1, DisplayPort 1.4, VGA |
| USB Rear | 2x USB 3.2 Gen1 5Gbps Type-A, 4x USB 2.0 |
| USB Front | 2x USB 3.2 Gen1 5Gbps Type-A, 2x USB 2.0 |
| Power Design | 8+1+1 Phase with Core Boost |
