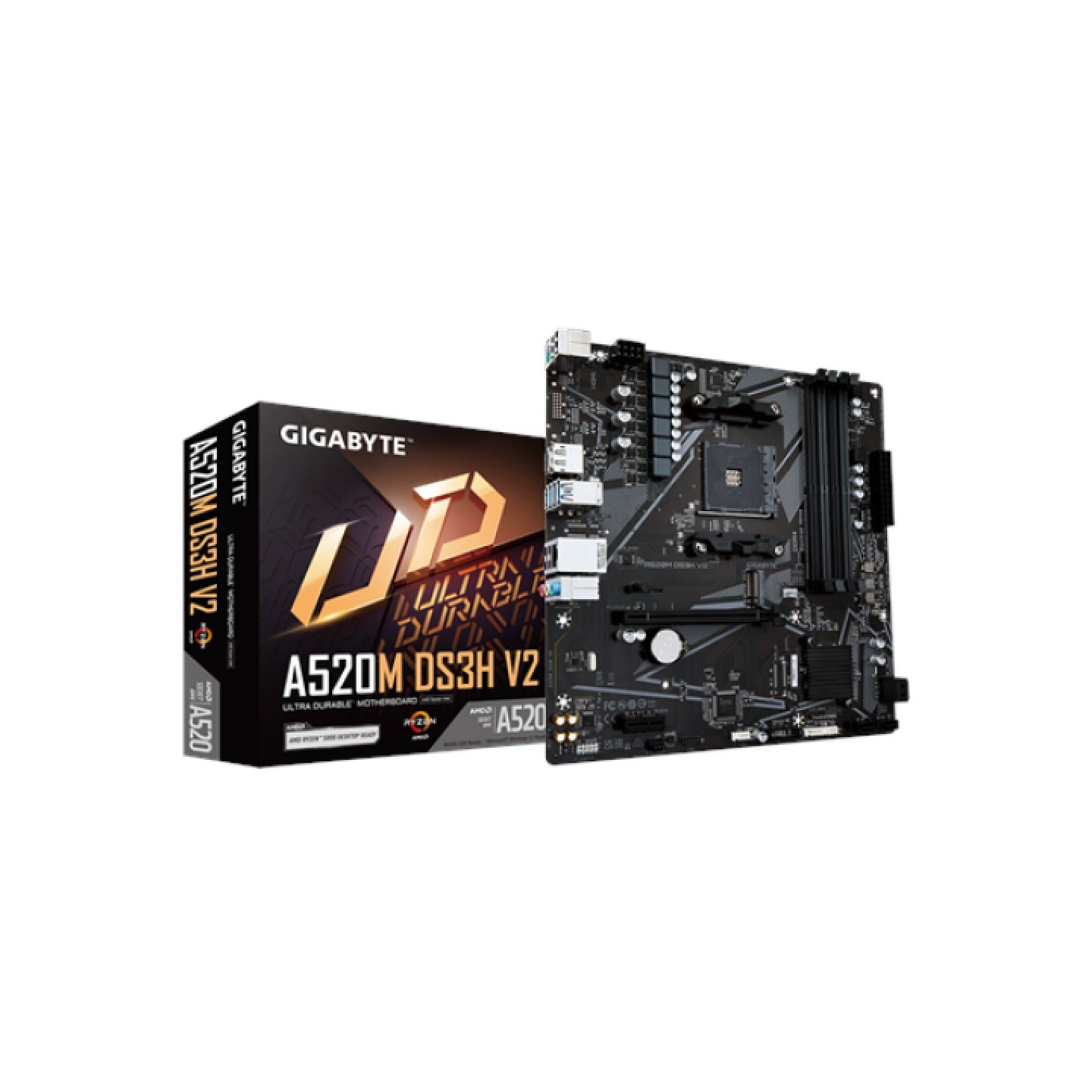

GIGABYTE A520M-DS3H V2 Micro-ATX AM4 A520 DDR4 Motherboard (Boxed)
Micro-ATX AM4 motherboard with AMD A520 chipset. Supports Ryzen 3000-5000 Series CPUs, dual-channel DDR4 up to 128GB (4 DIMMs), PCIe 3.0 x16, 1x M.2 NVMe, 4x SATA6Gb/s, GbE LAN.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM4 |
|---|---|
| Motherboards - Chipset | AMD A520 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 3.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |

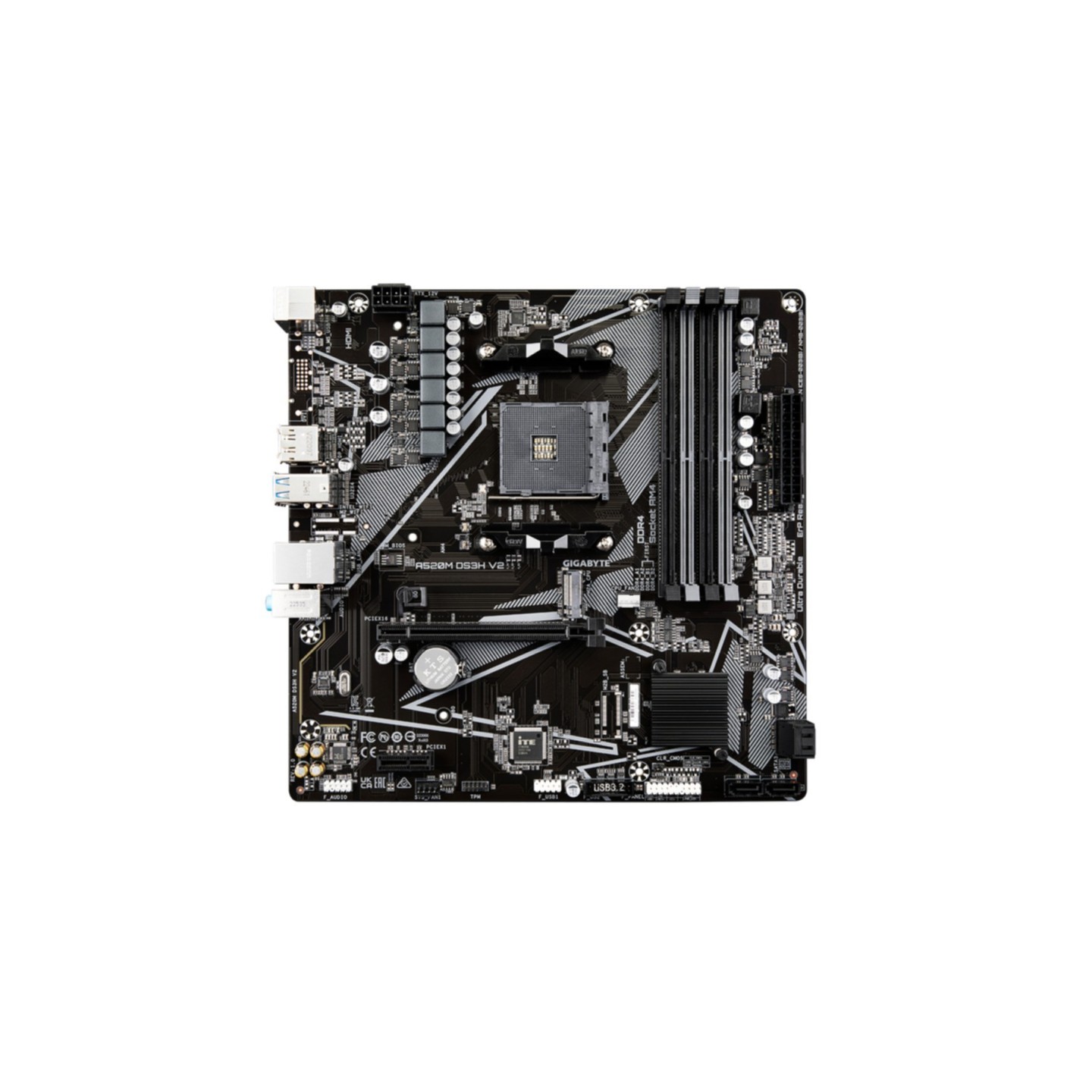

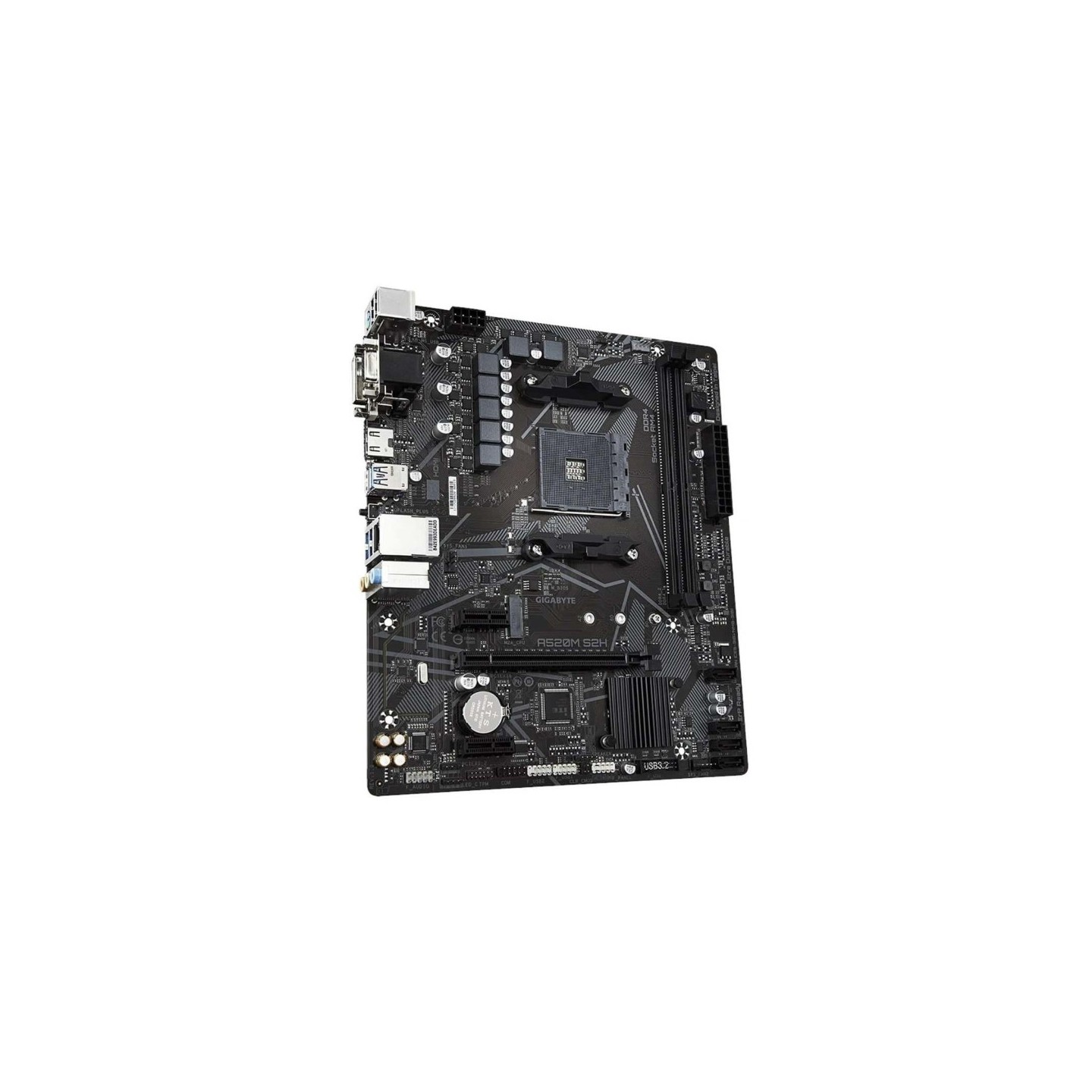

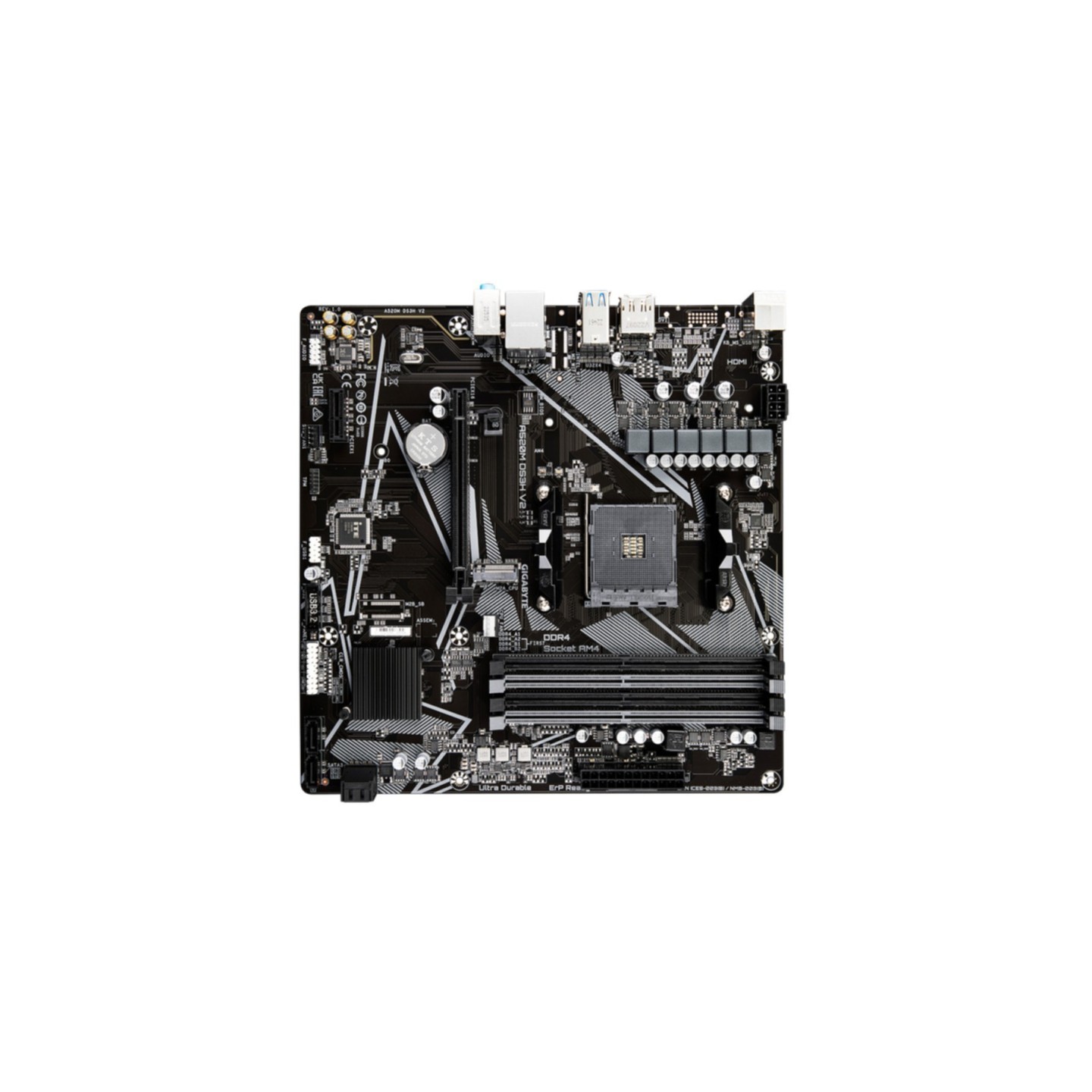

The GIGABYTE A520M-DS3H V2 is a reliable Micro-ATX motherboard designed for AMD Ryzen processors on the AM4 socket. It supports Ryzen 5000/4000 G-Series and 3000 Series CPUs, delivering solid performance for budget gaming and productivity builds. Featuring the AMD A520 chipset, it provides essential connectivity without overkill features.

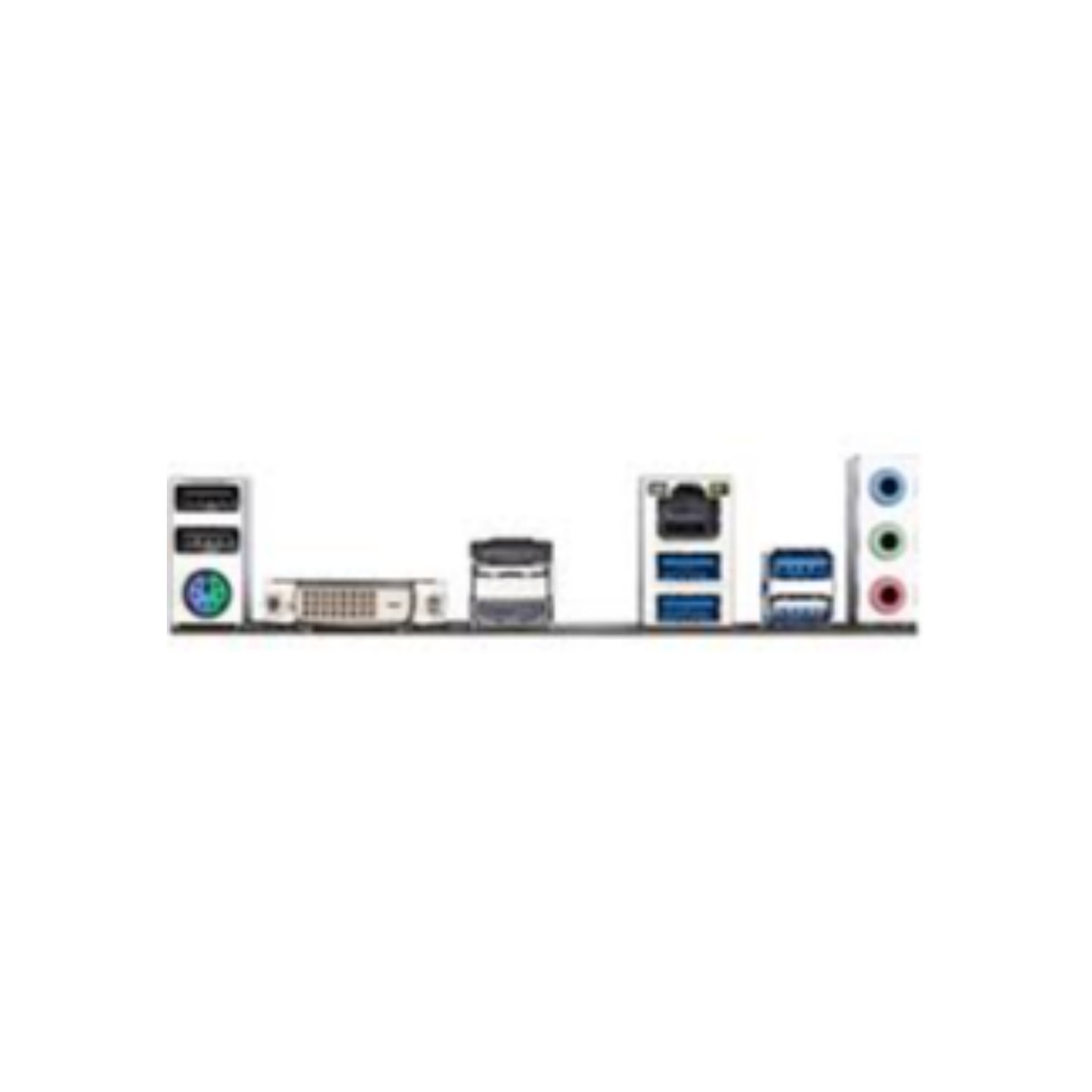

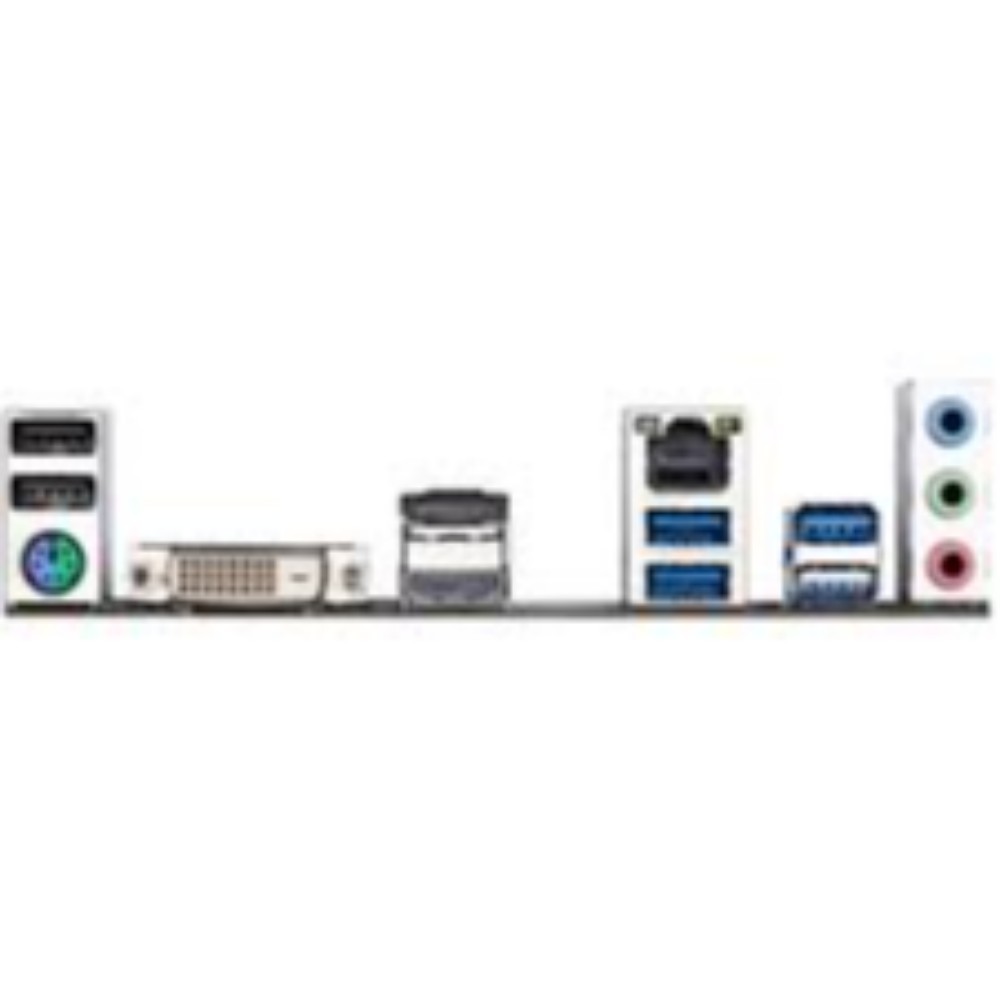

Memory configuration includes 4x DDR4 DIMM slots supporting up to 128GB (32GB per slot) with dual-channel architecture and XMP profiles for overclocking up to DDR4-4733(OC). Storage options feature 1x M.2 PCIe 3.0 x4 slot for NVMe SSDs and 4x SATA 6Gb/s ports with RAID 0/1/10 support. Expansion includes 1x PCIe 3.0 x16 for GPUs and 1x PCIe 3.0 x1. Rear I/O offers DisplayPort, HDMI, 4x USB 3.2 Gen1, 4x USB 2.0, and Realtek GbE LAN.
- AMD AM4 socket for Ryzen 3000-5000 Series
- Dual-channel DDR4, 4 slots, max 128GB, XMP support
- 1x M.2 PCIe 3.0 x4, 4x SATA 6Gb/s
- 1x PCIe 3.0 x16, 1x PCIe 3.0 x1
- Realtek GbE LAN, HD audio with Noise Guard
- Smart Fan 5 with multiple headers
| CPU Socket | AMD AM4 |
| Chipset | AMD A520 |
| Form Factor | Micro-ATX |
| Memory Type | DDR4, Dual Channel, 4x DIMM, up to 128GB (32GB per slot) |
| Memory Support | DDR4 2133/2400/2666/2933/3200+ MT/s, XMP |
| PCIe Slots | 1x PCIe 3.0 x16, 1x PCIe 3.0 x1 |
| M.2 Slots | 1x M.2 PCIe 3.0 x4 / SATA (2280) |
| SATA Ports | 4x SATA 6Gb/s (RAID 0/1/10) |
| USB Rear | 4x USB 3.2 Gen1, 4x USB 2.0 |
| USB Headers | 1x USB 3.2 Gen1, 1x USB 2.0 |
| LAN | Realtek GbE (1Gbps) |
| Audio | Realtek ALC887, 7.1-channel HD Audio |
| Video Outputs | 1x DisplayPort, 1x HDMI |
| Fan Headers | 1x CPU fan, 1x System fan (Smart Fan 5) |
| Supported CPUs | Ryzen 5000/5000G/4000G/3000/3000G Series |
| ECC Support | Un-buffered ECC/non-ECC |
| Wireless | None |
| RGB Headers | None |
