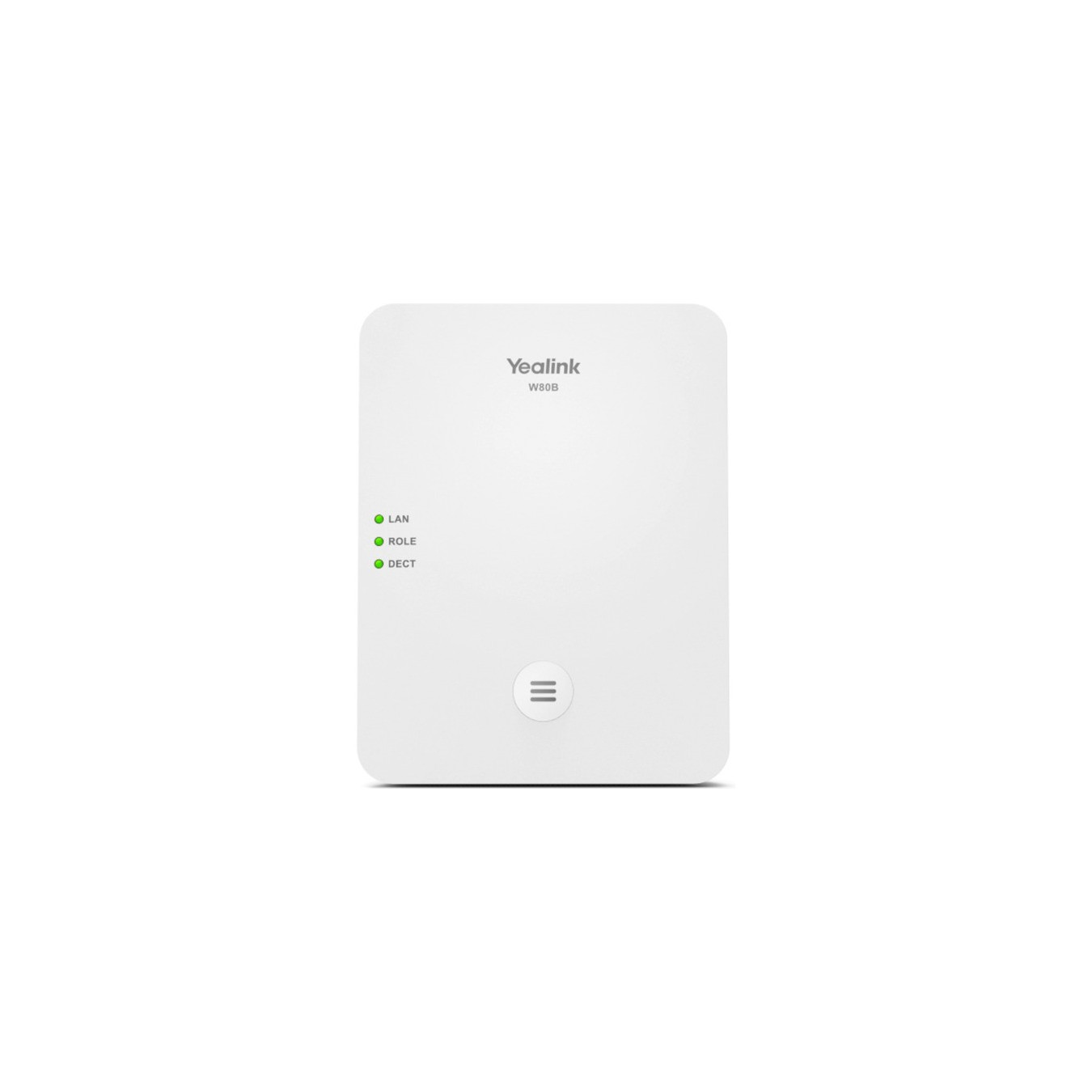

Yealink W80B, telephone system
The Yealink W80 DECT-IP multi-cell system consists of two elements - a base station W80B and a DECT manager
W80DM. It is designed to provide easy deployment for businesses that re...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The Yealink W80 DECT-IP multi-cell system consists of two elements - a base station W80B and a DECT manager
W80DM. It is designed to provide easy deployment for businesses that require wireless device coverage
to enable. This DECT multi-cell system provides a highly scalable and reliable solution for businesses and
Organizations of all types and sizes. The system supports up to 100 handsets and up to 100 simultaneous calls,
ensuring a call in every handset and eliminating the hassle of limited wireless signal coverage
only have to annoy one base station. Meanwhile, the system can work with Yealink W53H, W56H, W57R, W59R, W73H, W78H, WH62,
WH63, CP930W, CP935W and DD phone work with seamless roaming and call transfer, enabling free mobile communication within and between individual zones. Both the W80B and the W80DM combine the modern, compact
Designed with Yealink HD voice quality that features full duplex technology, setting new standards for freedom of conversation and giving you a thoughtful sound experience.
| Typ | Telephone system |
| EAN | 6938818303492 |
| Manufacturer no. | W80B |
| Design | Desktop |
| Area of application | Business |
| Connections - Network | RJ-45 1x (of which: 1x 10/100) |
| Power supply | Power supply connection |
| Feature | Management: Automatic provisioning via TFTP/FTP/HTTP/HTTPS/RPS | Automatic provisioning with PnP | Handset Upgrade: OTA (Over-The-Air) | Configuration: browser/phone/auto provisioning | Track package and system log export || Full duplex hands-free phone | Compatible with hearing aids (HAC) | DTMF | Wideband codec: AMR-WB (optional), G.722 | Narrowband codec: AMR-NB (optional), PCMU(G.711µ), PCMA(G.711A), G.726, G.729, G.729A, iLBC | VAD, CNG, AGC, PLC, AJB || Network: SIP v1 (RFC2543), v2 (RFC3261) | SNTP/NTP | VLAN (802.1Q and 802.1P) | 802.1x, LLDP | STUN Client (NAT Traversal) | UDP/TCP/TLS | IP assignment: static/DHCP | Support backup for outgoing proxy server || Open VPN | Transport Layer Security (TLS1.0/TLS1.2) | HTTPS (Server/Client), SRTP | Digest authentication | Secure configuration file via AES encryption | Support SHA256/SHA512/SHA384 |
| More information | Synchronization over the air interface (uninterrupted handover and roaming) | Up to 100 calls simultaneously | Up to 30 base stations | Up to 8 WB calls (4 active handsets) per base station | Up to 8 NB calls per base station | Up to 100 handsets | Up to 100 VoIP accounts | Up to 2 calls simultaneously per handset | Call hold, call forwarding, 3-way conference | Switching between calls | Call Waiting, Mute, Silence, Do Not Disturb | Caller ID with name and number | Anonymous call, anonymous call rejection | Forwarding (always/busy/no response) | Speed Dial, Voicemail, Redial | Call and Message Display (MWI) | Music on hold (server based) | Local phone book for up to 100 entries per handset | Central phone book / LDAP / XML phone book | Phonebook search/import/export | Call log (all/missed/outgoing/incoming) | Factory reset, reboot | Key lock, emergency call | BroadSoft Phone Book, BroadSoft Call History | Synchronization of Broadworks function keys | Shared Call Appearance (SCA) | XML Browser | IPUI Registration | User Access Level |
| Notice | DECT - Frequenzbänder: 1880–1900 MHz (Europa), 1920–1930 MHz (US), 1902 – 1906 MHz (TH), 1910 – 1920 MH |
