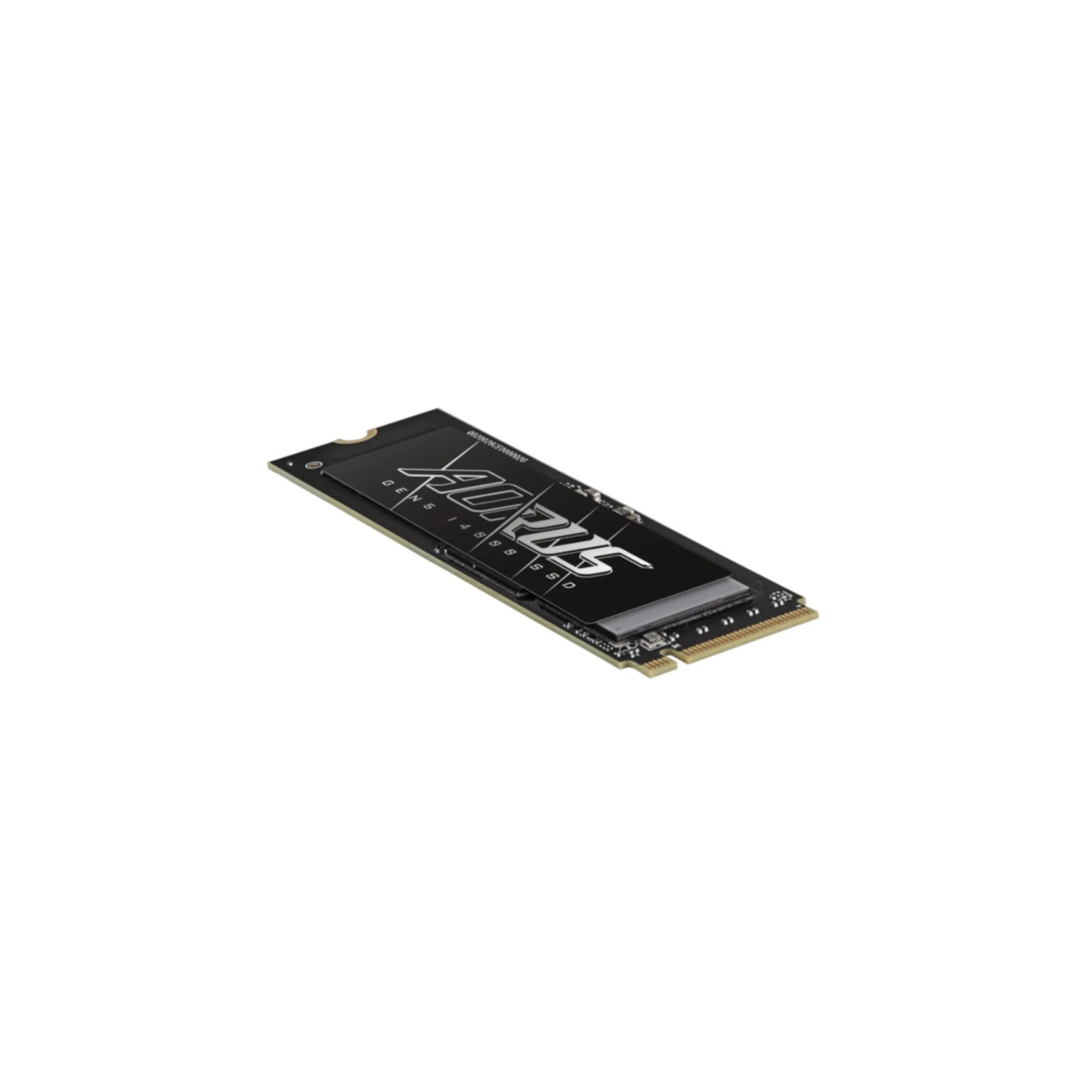

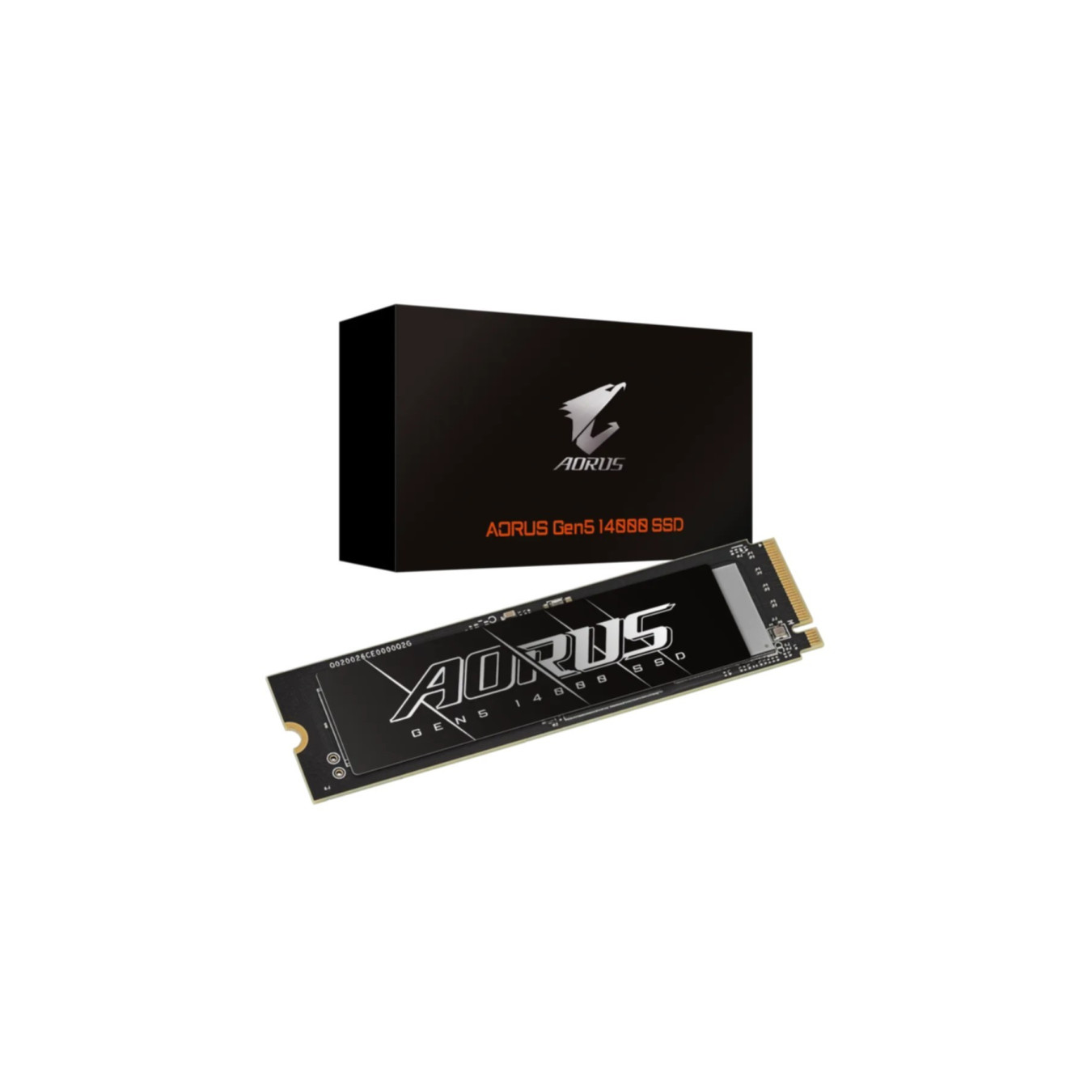

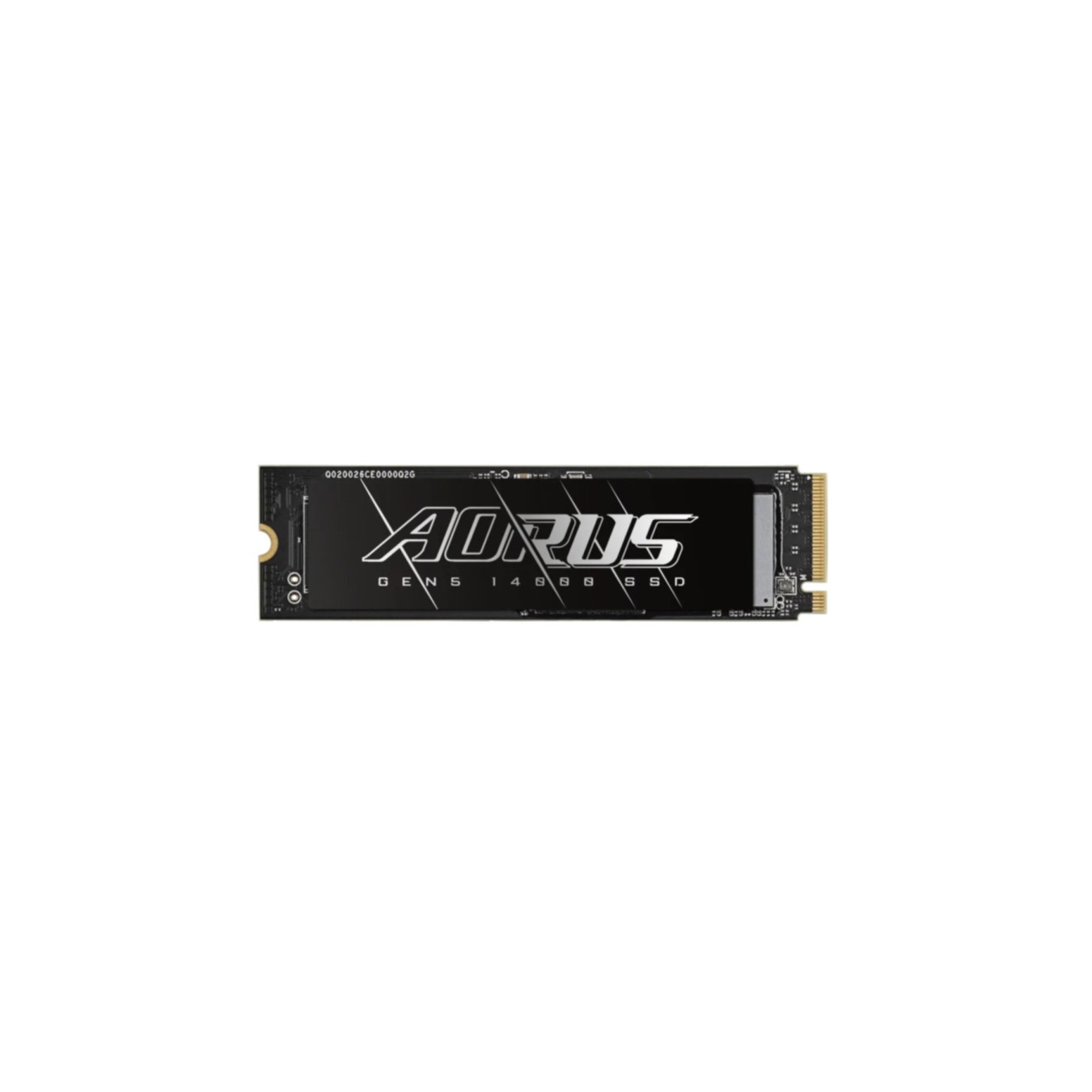

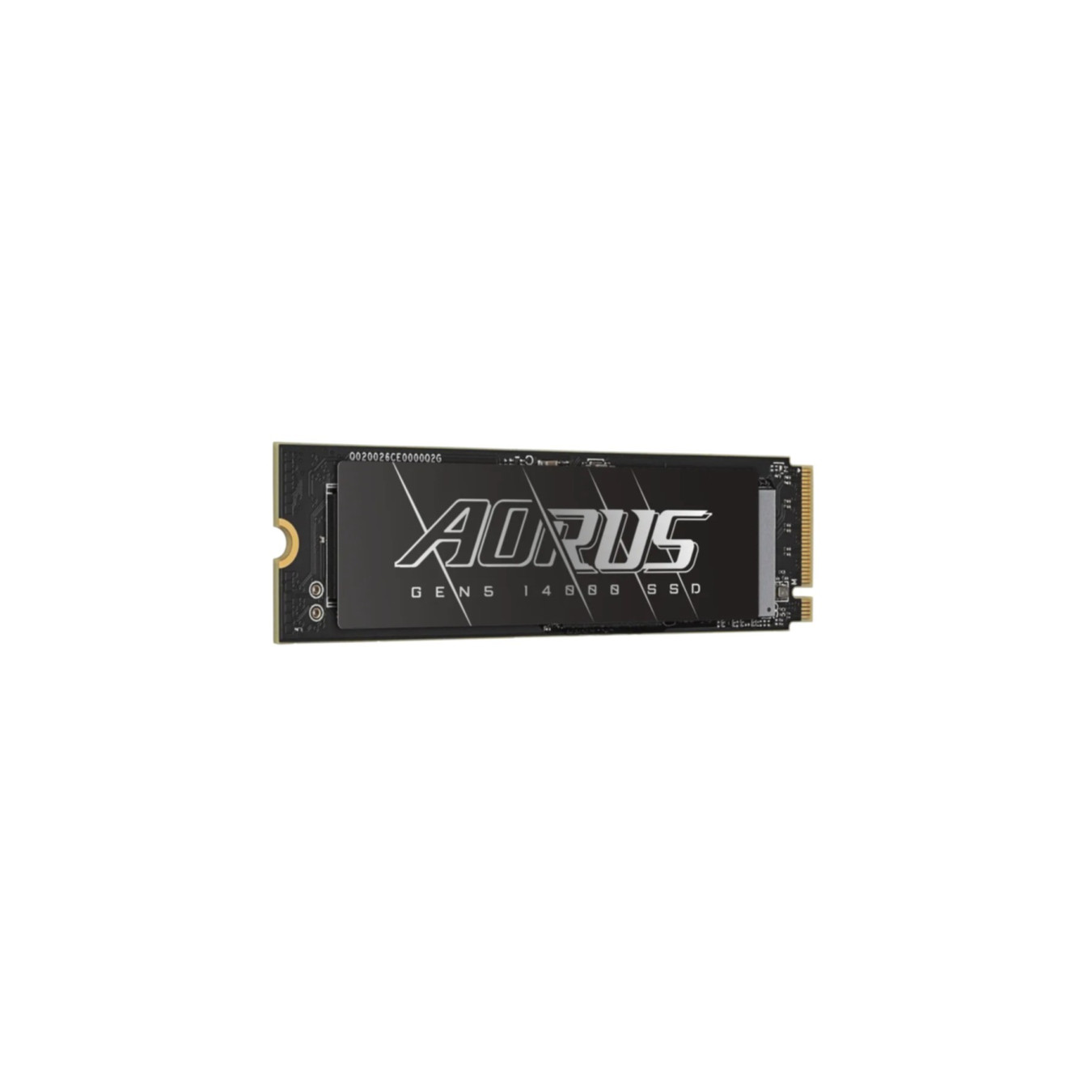

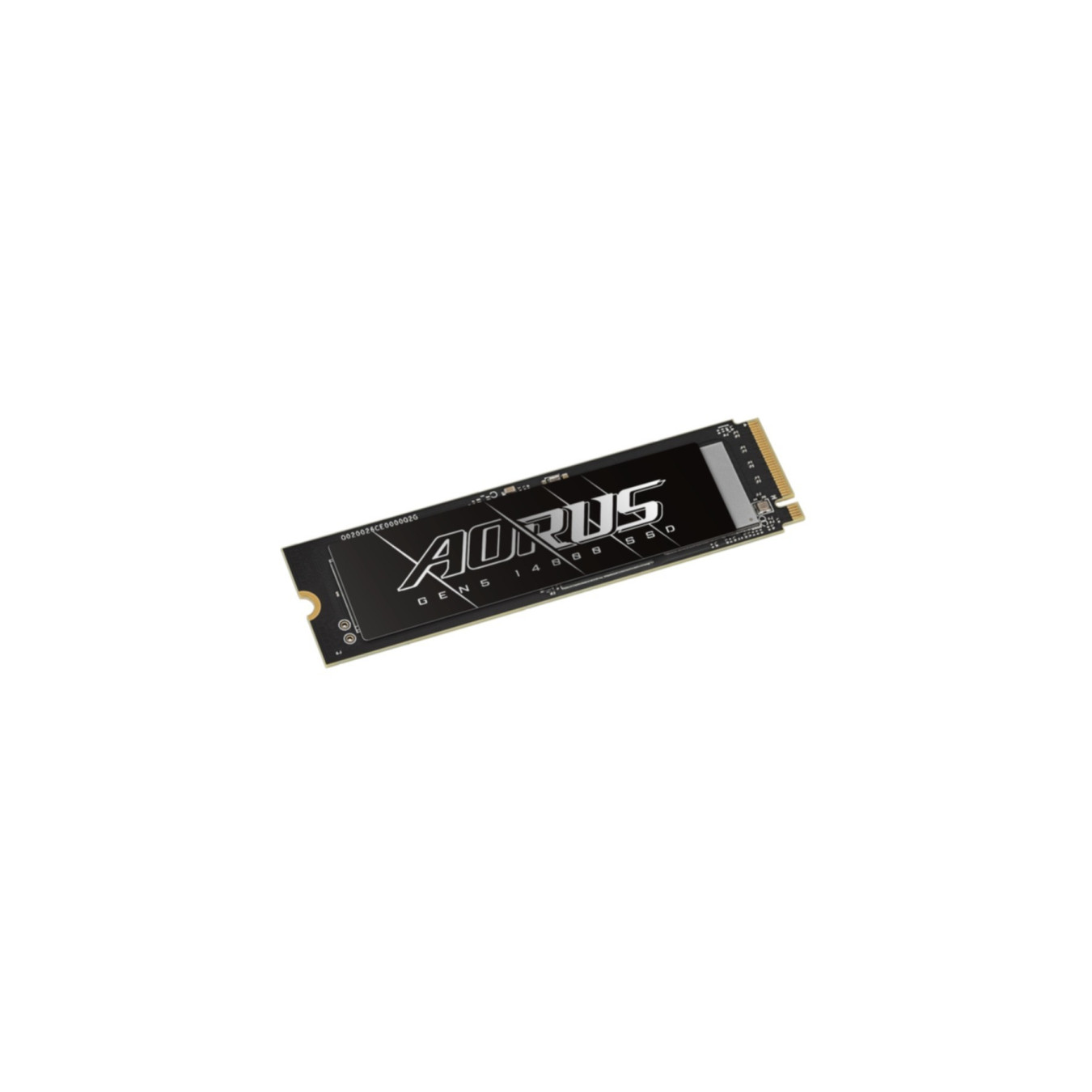

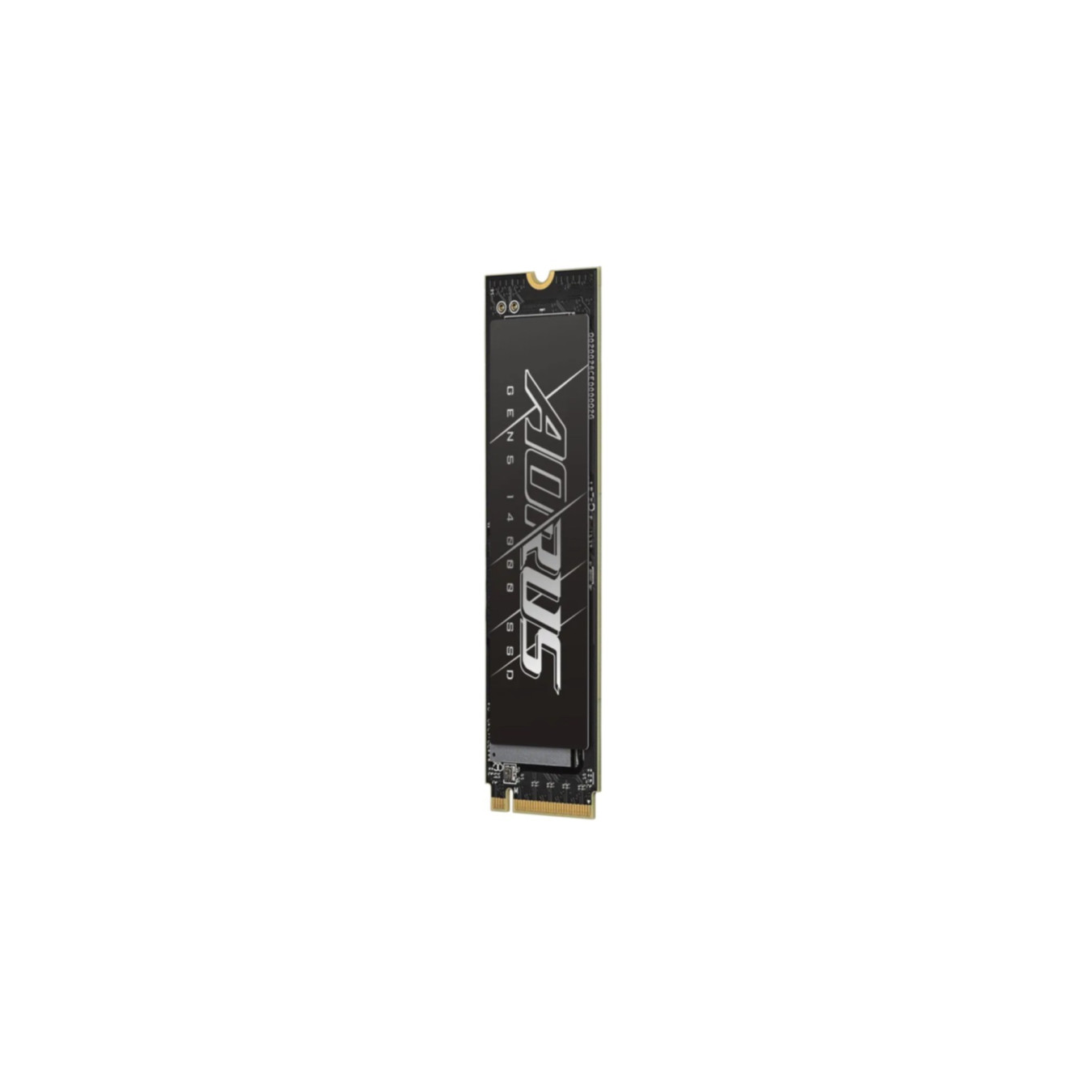

GIGABYTE AORUS Gen5 14000 1TB - AG514K1TB - M.2 2280 PCIe Gen5 x4 NVMe, Black
1TB M.2 2280 NVMe SSD (AG514K1TB) PCIe Gen5 x4, NVMe 2.0, Phison E26, 3D TLC NAND, 2GB DRAM cache, up to 13,600 MB/s read & 10,200 MB/s write.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |
|---|
Unleash unparalleled speed with
AORUS Gen5 14000 SSD
Redefining Speed, Efficiency, and AI Application Performance
Powered by the PCIe Gen5.0 x4 controller Phison PS5026-E26 and boasting brand-new 232-layer 3D TLC NAND Flash, the AORUS Gen5 14000 SSD redefines the pinnacle of speed and efficiency. With blazing sequential read/write speeds of up to 13,600 / 10,200 MB/s, this SSD is engineered to meet the demands of PC enthusiasts, gamers, and rendering professionals. Experience lightning-fast data transfers and enjoy a smoother, lower-latency gaming experience with the AORUS Gen5 14000 SSD. Unlock the true potential of your system and elevate your gaming prowess to unprecedented levels.
Unleash the Power of PCIe 5.0 x4, NVMe 2.0
With PCIe 5.0 x4, The PS5026-E26 controller is manufactured with the advanced 12nm process, which ensures sufficient computing power. It also supports up to 8 NAND flash channels with 32CEs, DDR4 caching and complies with the NVMe 2.0 standard. The speed of the AORUS Gen5 14000 SSD is doubled compared to PCIe 4.0 x4, so that data can be transported at a significantly higher speed.
NAND Flash Selected for High Quality and Performance
Leveraging the superior throughput and high-quality combination that 3D TLC NAND provides, AORUS Gen5 14000 SSD brings a better experience in work.
Pairing with Motherboard-Integrated Heatsinks
When utilizing AORUS Gen5 14000 SSD, it is crucial to pair it with a motherboard equipped with a built-in heatsink. The high-speed data transfer capabilities of PCIe5.0 x4 SSD demand efficient heat dissipation to maintain optimal performance and prevent thermal throttling.
GIGABYTE CONTROL CENTER (GCC)
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products
| NVMe version | 2.0 |
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 5.0 |
| NVMe | Yes |
| Memory type | 3D TLC NAND |
| Component for | PC/Laptop |
| Hardware encryption | No |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 13600 MB/s |
| Write speed | 10200 MB/s |
| Controller type | Phison PS5026-E26 |
| Lithography | 12 nm |
| PCI Express interface data lanes | x4 |
| External DDR cache | Yes |
| External DDR cache quantity | 2000 MB |
| Mean time between failures (MTBF) | 1600000 h |
| TBW rating | 700 |
| Power consumption (read) | 11.5 W |
| Power consumption (write) | 11.5 W |
| Power consumption DevSlp (device sleep) | 144 mW |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.3 mm |
| Package type | Box |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Product colour | Black |
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), UKCA |
