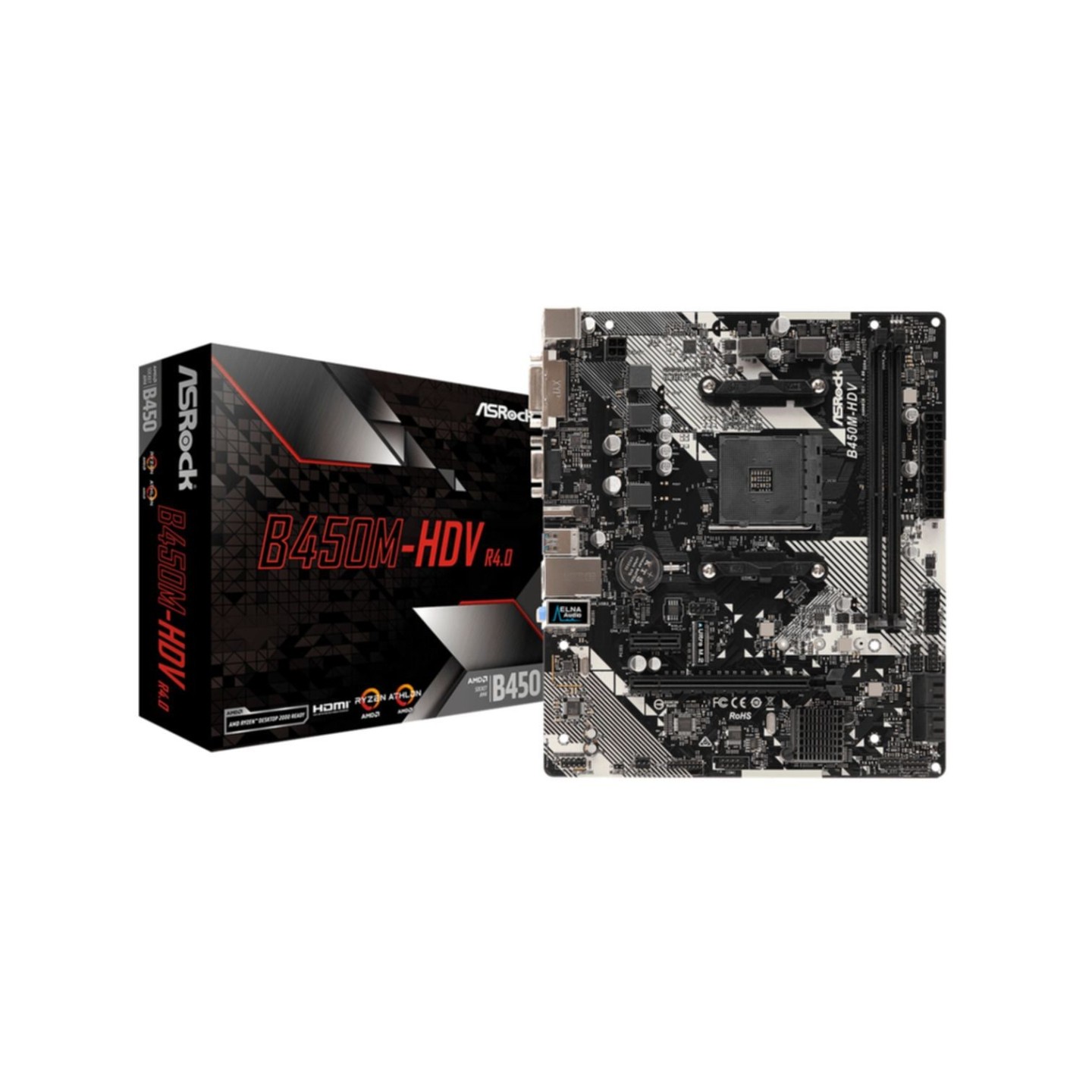

ASRock B450M-HDV R4.0 AM4 Micro-ATX Motherboard AMD B450 DDR4 M.2 (Boxed)
Budget AM4 Micro-ATX motherboard with AMD B450 chipset. Supports Ryzen 2000-5000 series, DDR4 up to 32GB (2x DIMM, 3200+ OC), 1x PCIe 3.0 x16, Ultra M.2 (PCIe Gen3 x4), 4x SATA3, HDMI/DVI/VGA.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM4 |
|---|---|
| Motherboards - Chipset | AMD B450 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 2 |
| Motherboards - Main Slot PCIe Version | PCIe 3.0 |
| Motherboards - Color | Black Silver |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |

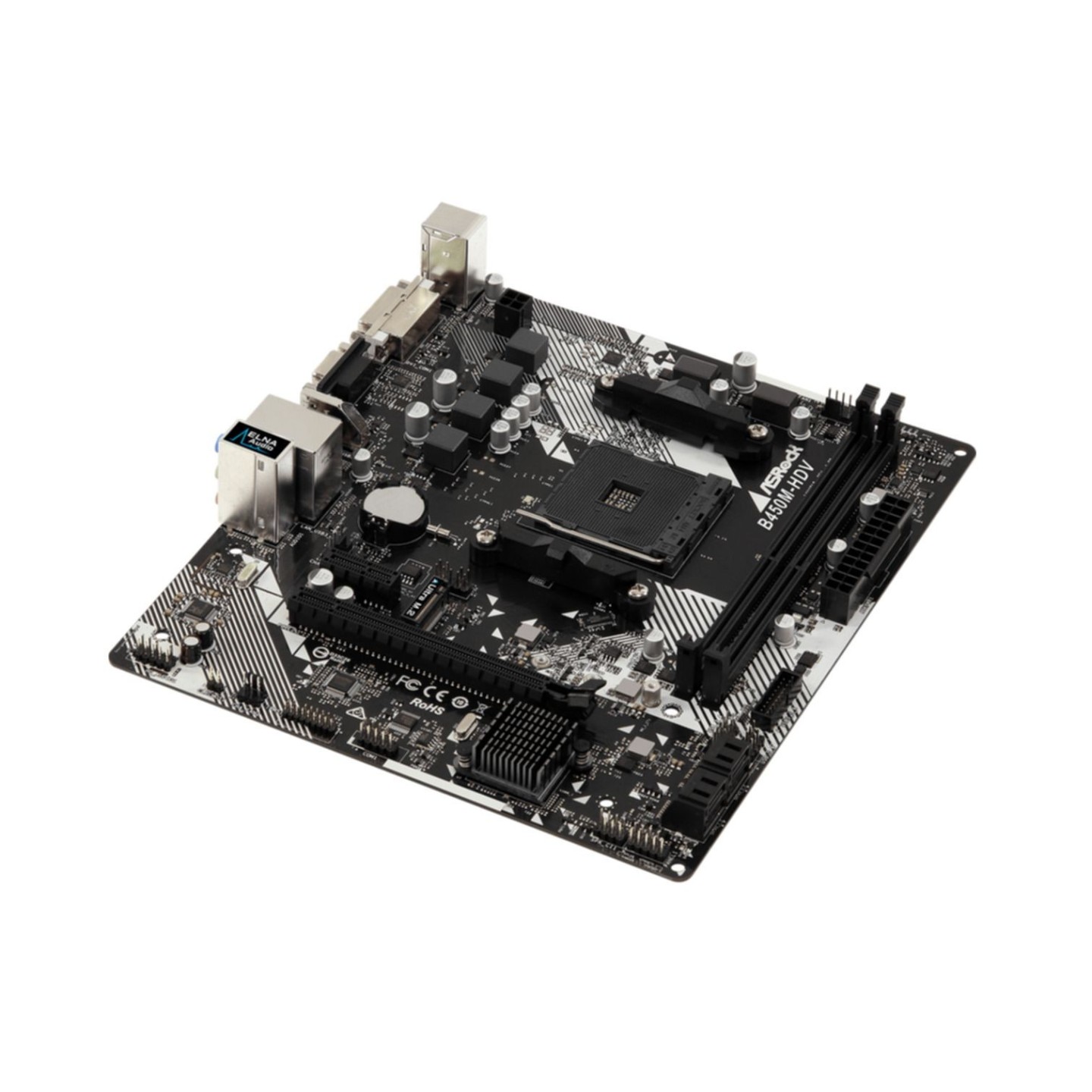

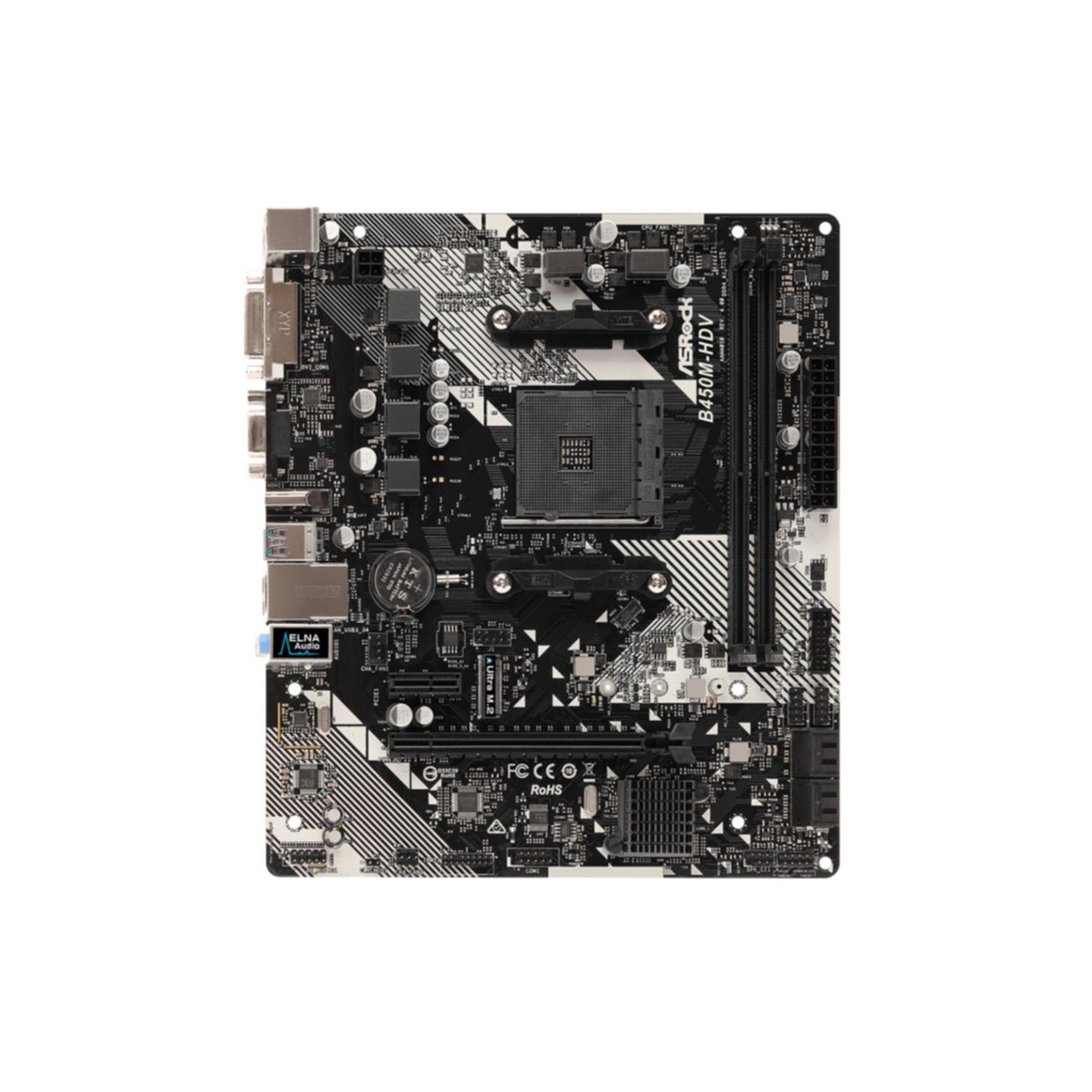

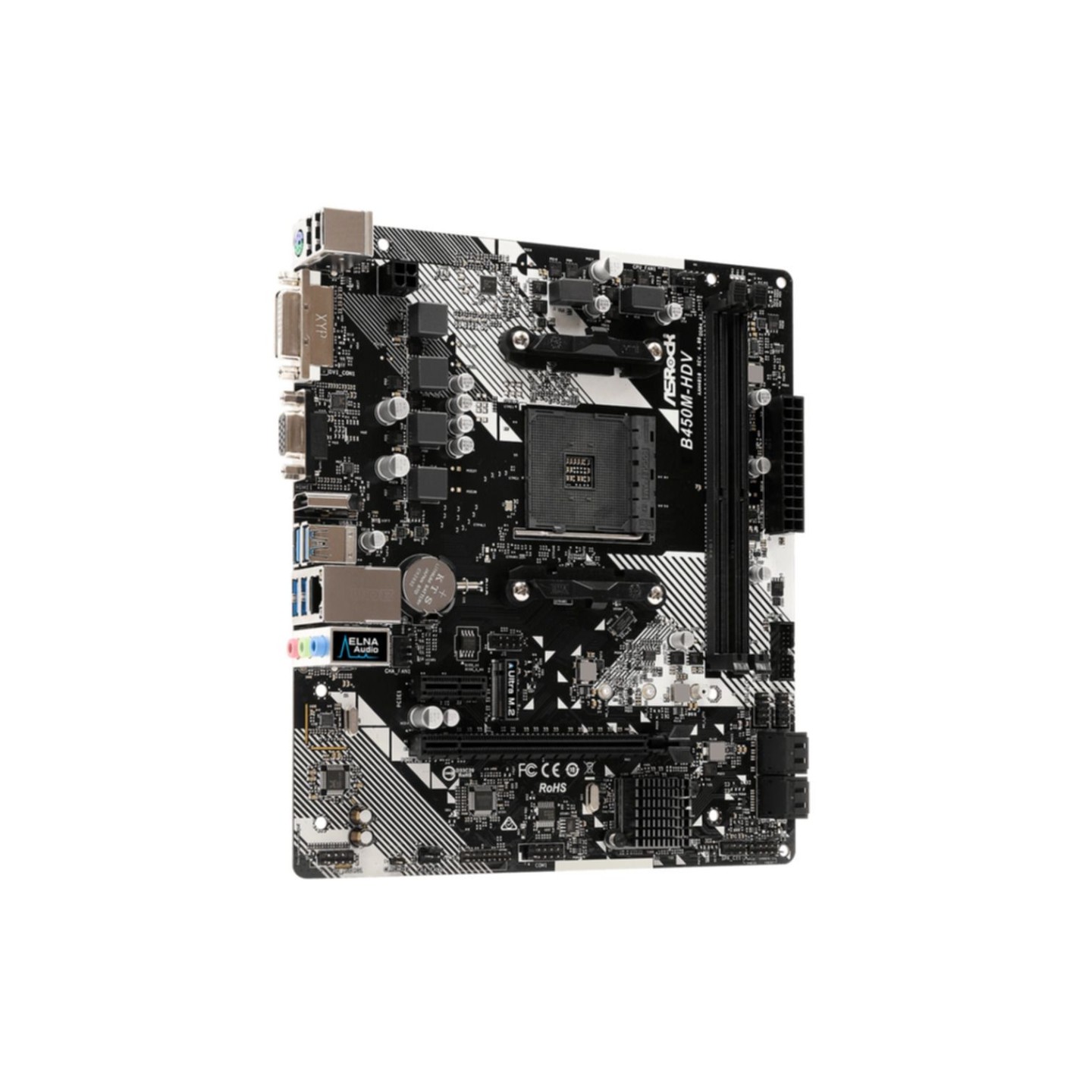

The ASRock B450M-HDV R4.0 is a compact Micro-ATX motherboard designed for budget AMD Ryzen builds. Featuring the reliable AMD B450 chipset and AM4 socket, it supports Ryzen 2000, 3000, 4000 G-Series, 5000, and 5000 G-Series processors (BIOS update may be required for newer CPUs). It offers essential connectivity with 2 DDR4 DIMM slots supporting up to 32GB at 3200MHz+ (OC), making it ideal for entry-level gaming or productivity PCs.

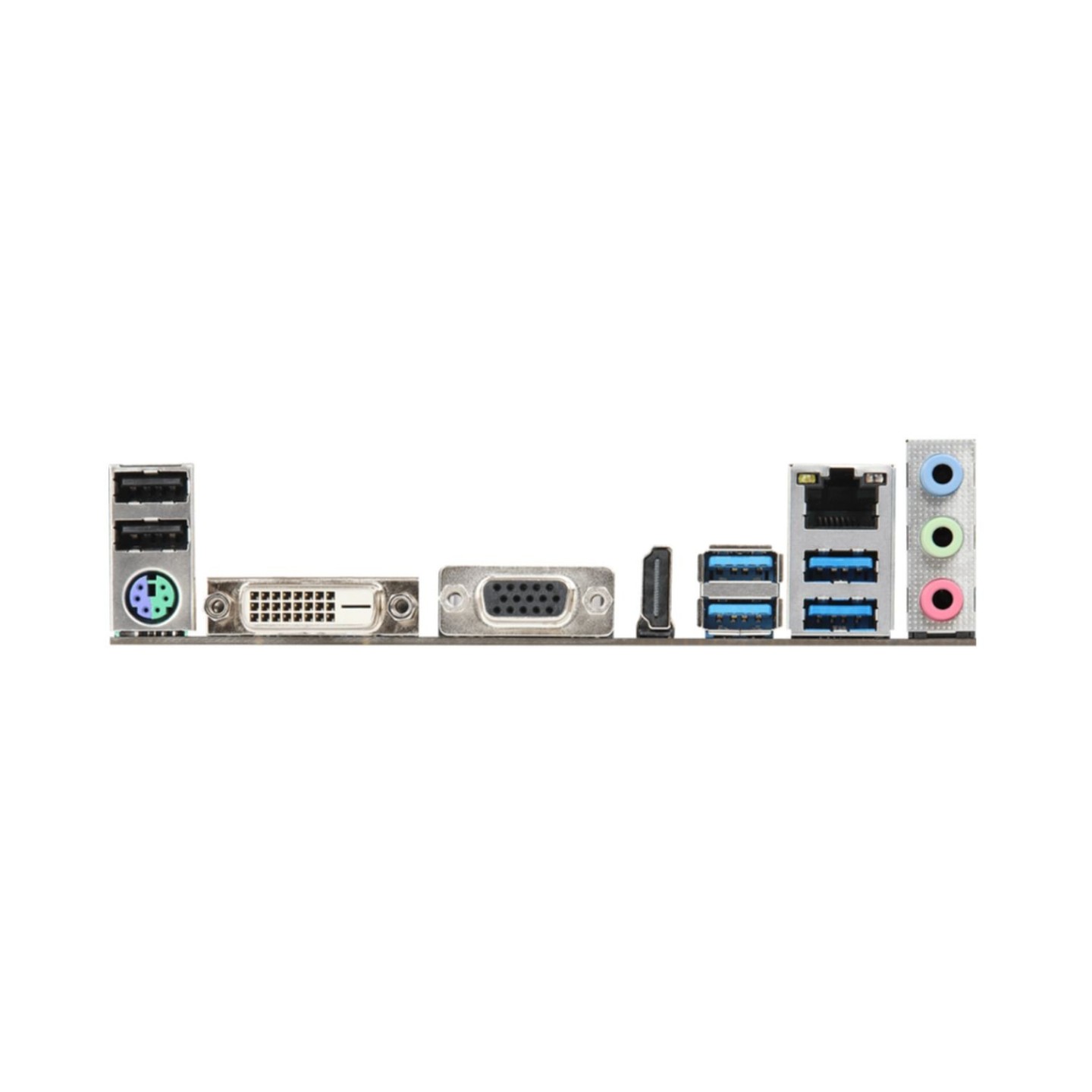

Storage options include 4x SATA3 ports and 1x Ultra M.2 slot (PCIe Gen3 x4 & SATA3) for fast NVMe SSDs up to 32Gb/s. Expansion is handled by 1x PCIe 3.0 x16 slot for GPUs and 1x PCIe 2.0 x1. Rear I/O provides HDMI, DVI-D, VGA for triple monitor support (with APU), Realtek 1GbE LAN, 7.1 CH HD Audio (ALC887), and 6x USB 3.2 Gen1 ports. Quality features like solid capacitors, Digi Power design, and full spike protection ensure stability.
- CPU: AMD Ryzen AM4 socket (2000-5000 series)
- Memory: 2x DDR4, max 32GB, 3200+MHz (OC)
- Storage: 1x M.2 PCIe3 x4, 4x SATA3
- Expansion: 1x PCIe 3.0 x16, 1x PCIe 2.0 x1
- Audio/Network: Realtek ALC887 7.1, RTL8111H 1GbE
- Form Factor: Micro-ATX (24.4 x 20.3 cm)
| CPU Socket | AMD AM4 (Ryzen 2000/3000/4000G/5000/5000G) |
| Chipset | AMD B450 |
| Form Factor | Micro-ATX (244 x 203 mm) |
| Memory Type | DDR4 |
| Memory Slots | 2x DIMM |
| Max Memory | 32GB (2x16GB) |
| Memory Speed | Up to 3200MHz (JEDEC) / 4000MHz+ (OC) |
| PCIe Slots | 1x PCIe 3.0 x16, 1x PCIe 2.0 x1 |
| M.2 Slots | 1x Ultra M.2 (PCIe Gen3 x4 & SATA3) |
| SATA Ports | 4x SATA 6Gb/s |
| USB Ports | 6x USB 3.2 Gen1 (2 Front, 4 Rear) |
| Video Outputs | HDMI 1.4, DVI-D, VGA |
| LAN | Realtek RTL8111H 1GbE |
| Audio | Realtek ALC887 7.1 CH HD |
| Fan Headers | 1x CPU Fan, 2x Chassis Fan |
| Color | Black PCB with white accents |
