PCIe x1 to 2x FireWire 800 + 1x FireWire 400, Schnittstellenkarte
The Delock PCI Express card expands the PC with two external FireWire 800 ports and one external FireWire 400 port. Various FireWire devices such as: B. external housings, digital ...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

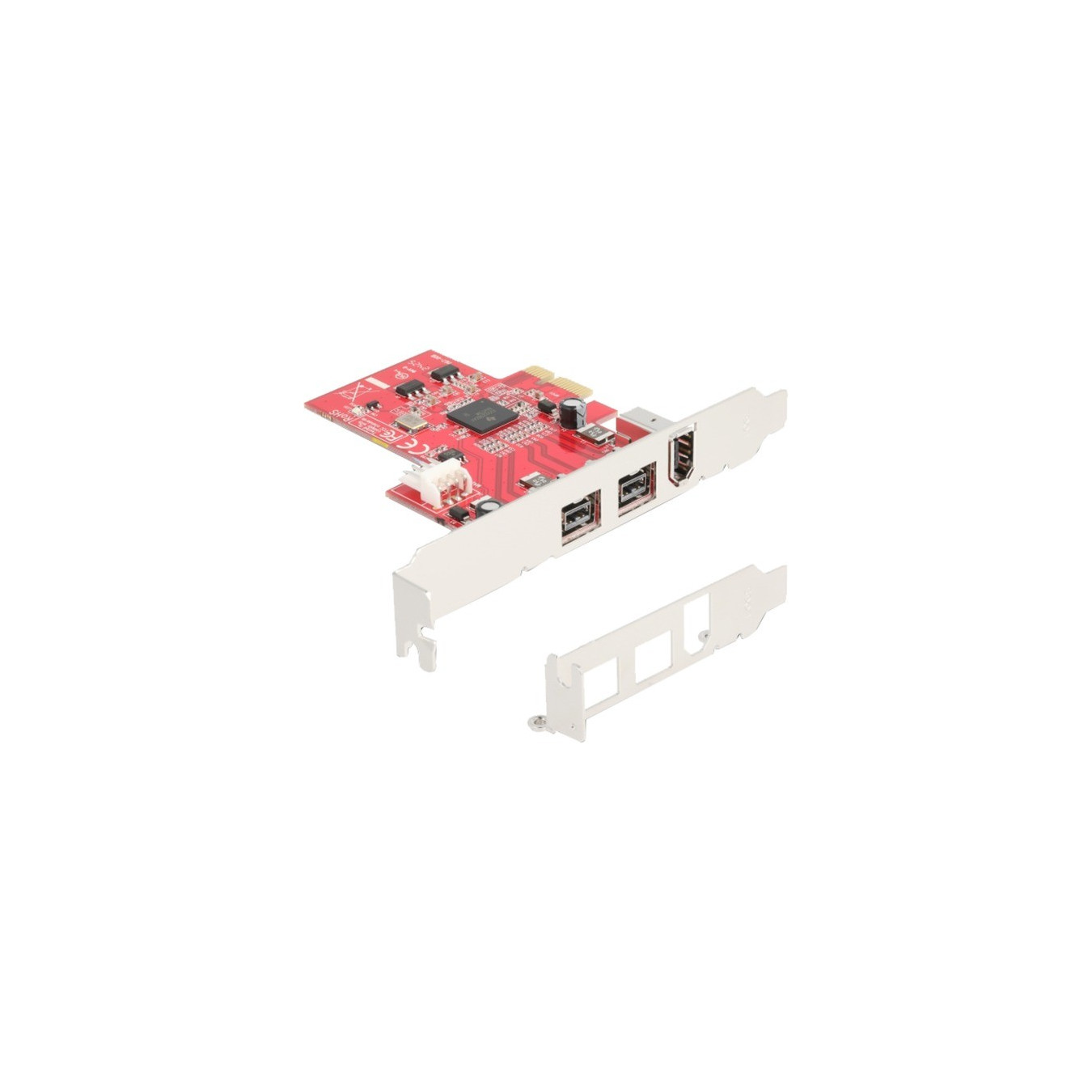

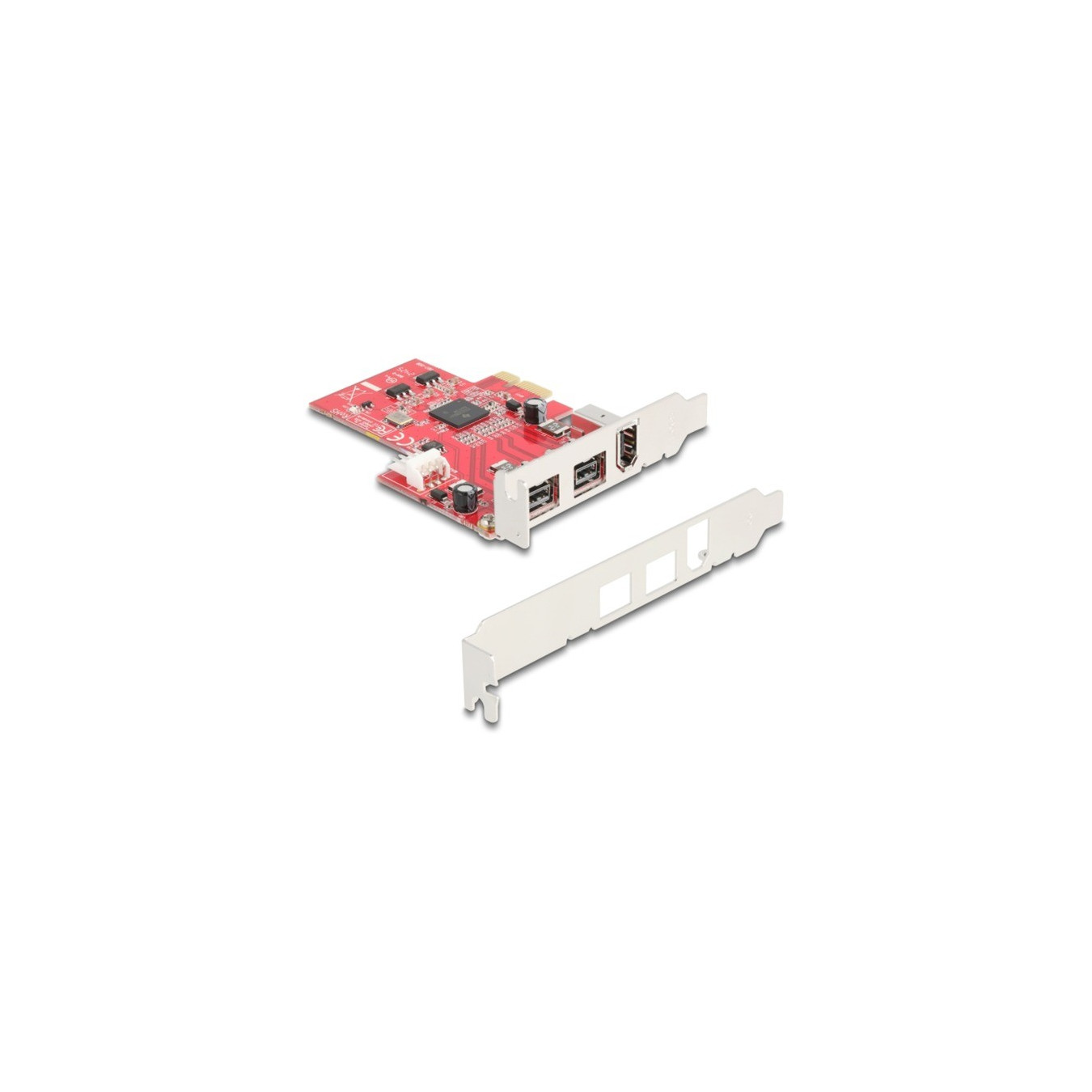

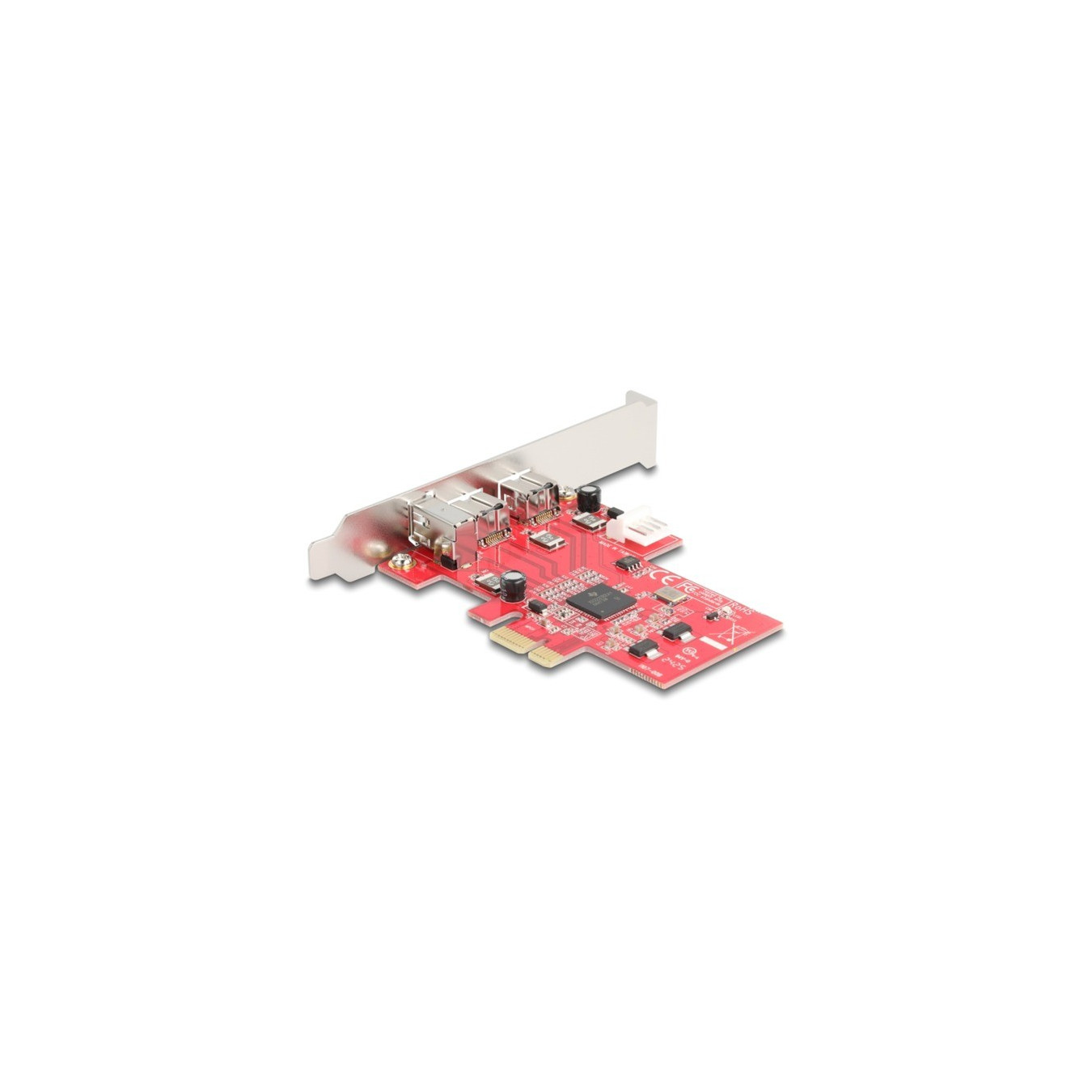

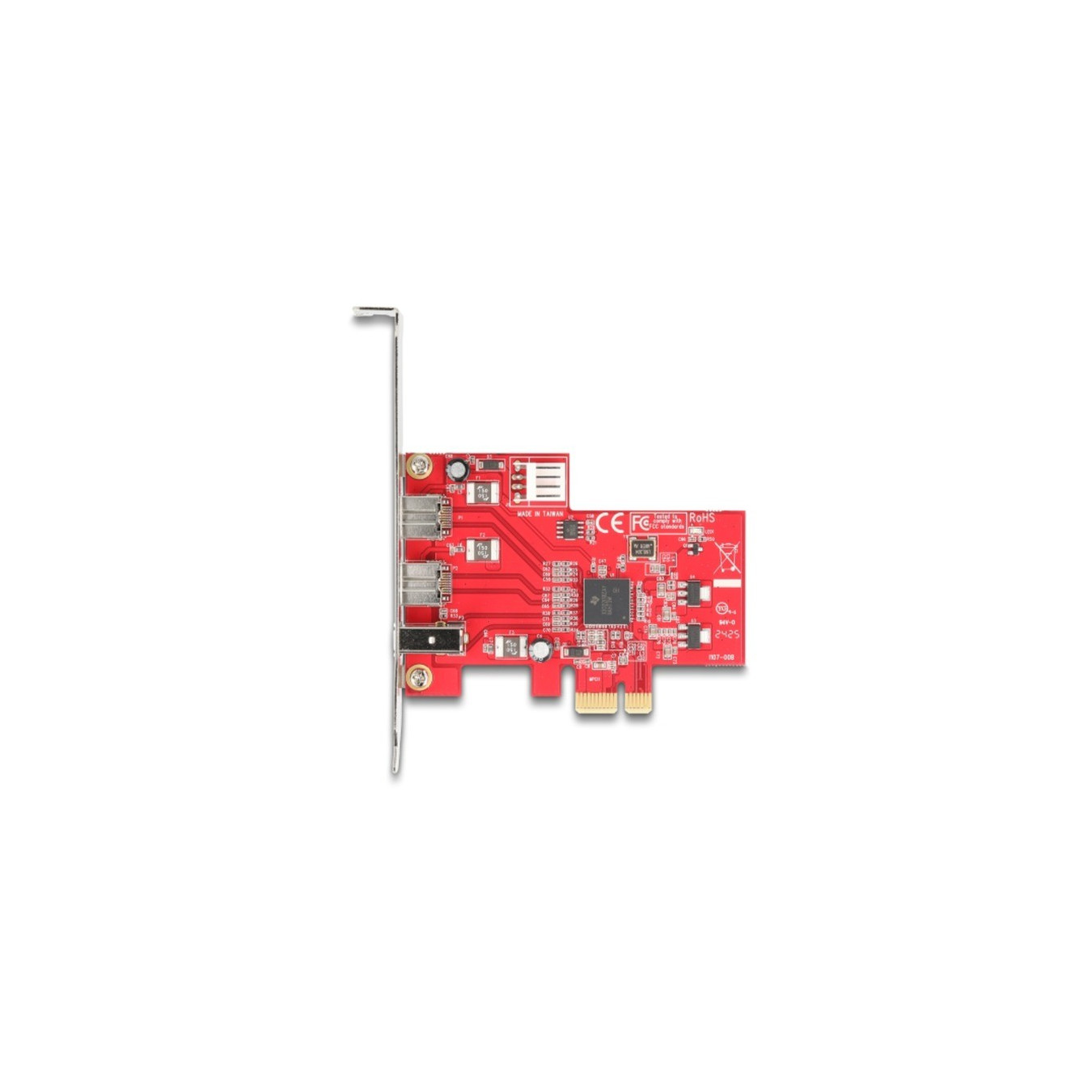

The Delock PCI Express card expands the PC with two external FireWire 800 ports and one external FireWire 400 port. Various FireWire devices such as: B. external housings, digital cameras, camcorders, adapters etc. can be connected. The PCIe card has a built-in native PCI Express chipset, not a bridge chipset.
| Typ | Interface card |
| EAN | 4043619907380 |
| Manufacturer no. | 90738 |
| slot | PCIe x1 Version 1.1 |
| Chip | Texas Instruments XIO2213B |
| Protocol | FireWire, FireWire 800, PCIe x1 |
| Connections - external | 1x 6-Pin-FireWire, 2x 9-Pin-FireWire |
| Operating System - Supported | Linux, Windows 10, Windows 11, Windows Server 2019 |
| Low Profile | optional |
| Feature | Supports OHCI specification V1.0 and 1.1, hot swap, plug & play |

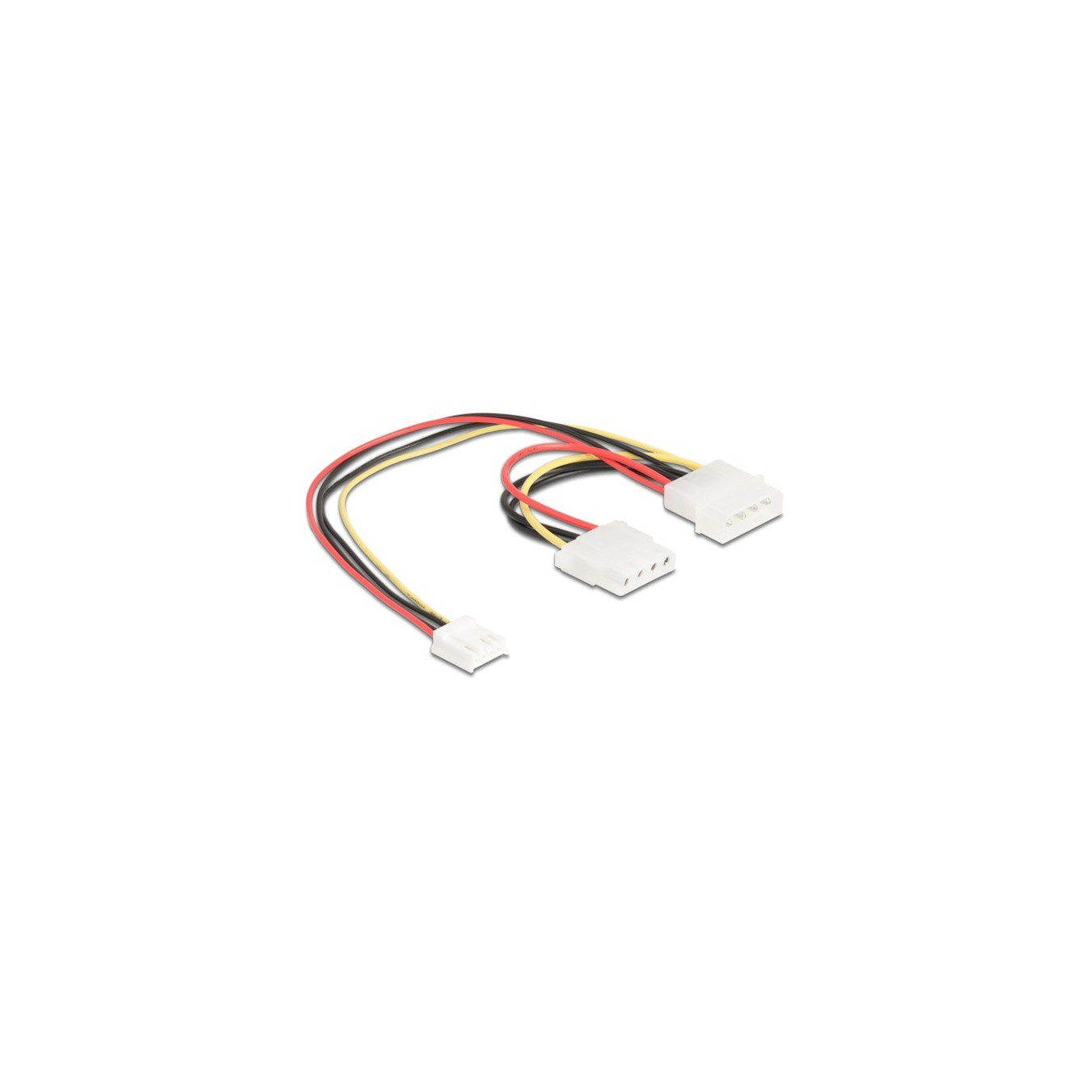

| More information | The 4-pin power connector on the card can be used when FireWire devices have increased power requirements. The package contents include a suitable adapter that can be connected to various power supplies. |
| Accessories - available | Standard slot bracket, power cable, operating instructions |
