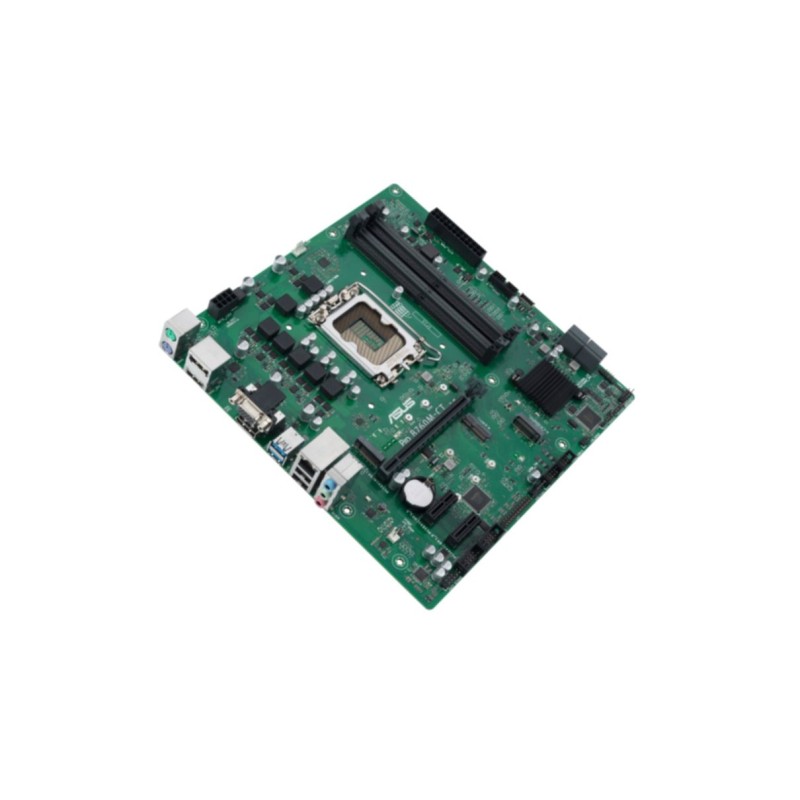

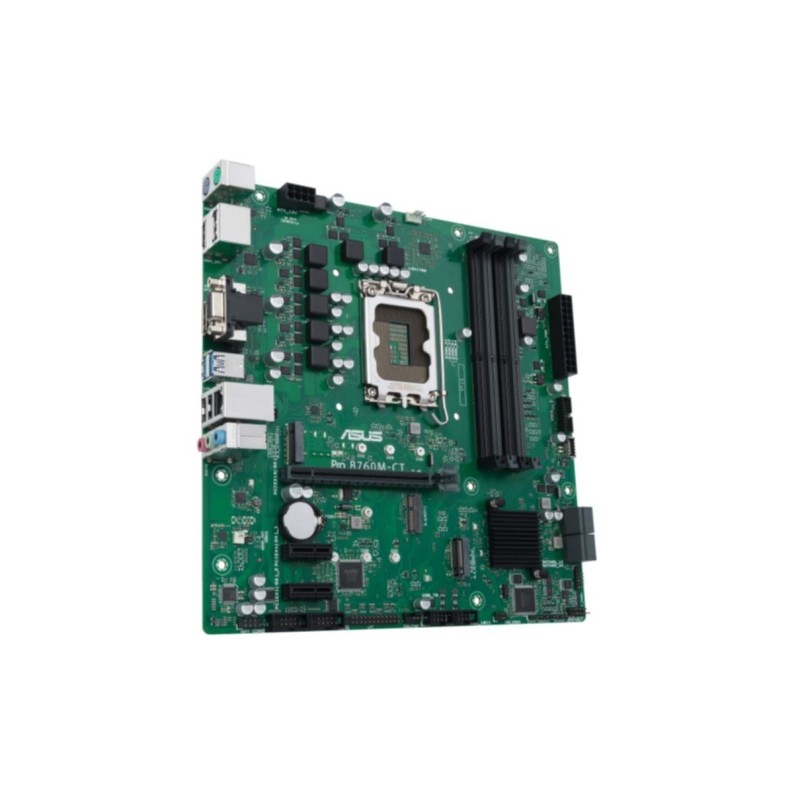

ASUS PRO B760M-CT-CSM - LGA1700 Micro-ATX Motherboard, Intel B760, DDR5 up to 128GB, RGB, Black
Micro-ATX LGA1700 motherboard with Intel B760 chipset. Supports DDR5 up to 128GB (4x32GB), 2x M.2, 4x SATA3, PCIe 4.0 x16, Intel Gigabit LAN, RGB, black.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Socket | LGA1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 4.0 |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
ASUS PRO B760M-CT-CSM. Processor manufacturer: Intel. Processor socket: LGA 1700. Compatible processor series: Intel® Celeron®. Intel® Pentium® Gold. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™.... Supported memory types: DDR5-SDRAM. Maximum internal memory: 128 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA III. Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet. Component for: PC. Motherboard form factor: micro ATX. Motherboard chipset family: Intel
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®. Intel® Pentium® Gold. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9 |
| Supported processor sockets | LGA 1700 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800.5000.5400.5600.5800.6000.6200 MHz |
| Supported memory clock speed (max) | 6200 MHz |
| Maximum internal memory | 128 GB |
| Feature | Clear CMOS button |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA III |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 3 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Product colour | Green |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64. Windows 11 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS memory size | 128 Mbit |
| Width | 244 mm |
| Depth | 244 mm |
| Cables included | SATA |
