Gigabyte B850 AORUS ELITE WIFI7 ICE AMD AM5 ATX Motherboard - DDR5, PCIe 5.0, Wi-Fi 7 (B850AELWF7ICE)
AMD B850 ATX motherboard with Socket AM5, DDR5 up to 8200MT/s (256GB max), PCIe 5.0 M.2 slot, Wi-Fi 7, 2.5GbE LAN, USB-C, supports Ryzen 7000/8000/9000 series.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD B850 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 PCIe 5.0 |
| Motherboards - Color | White |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - RGB Headers | 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |

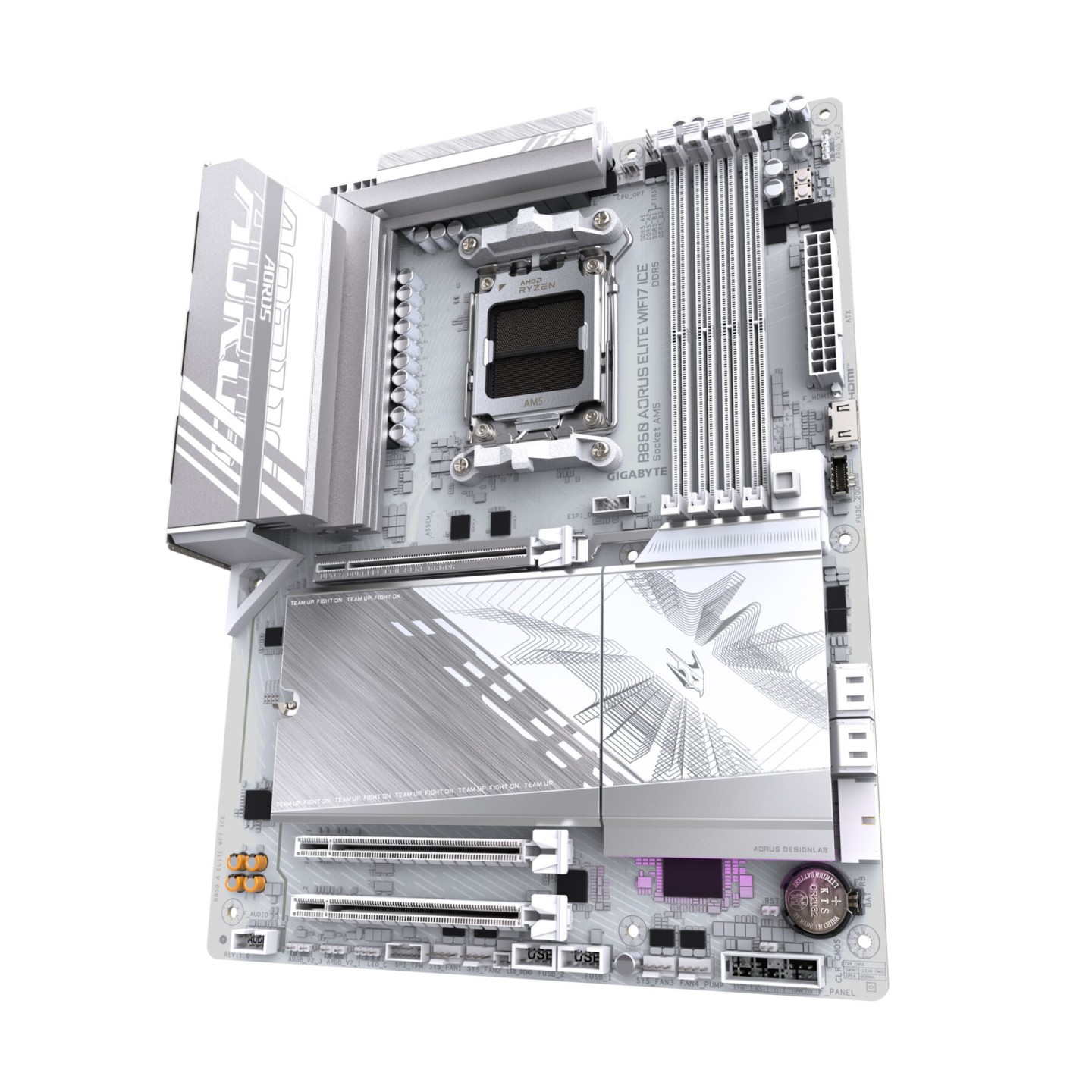

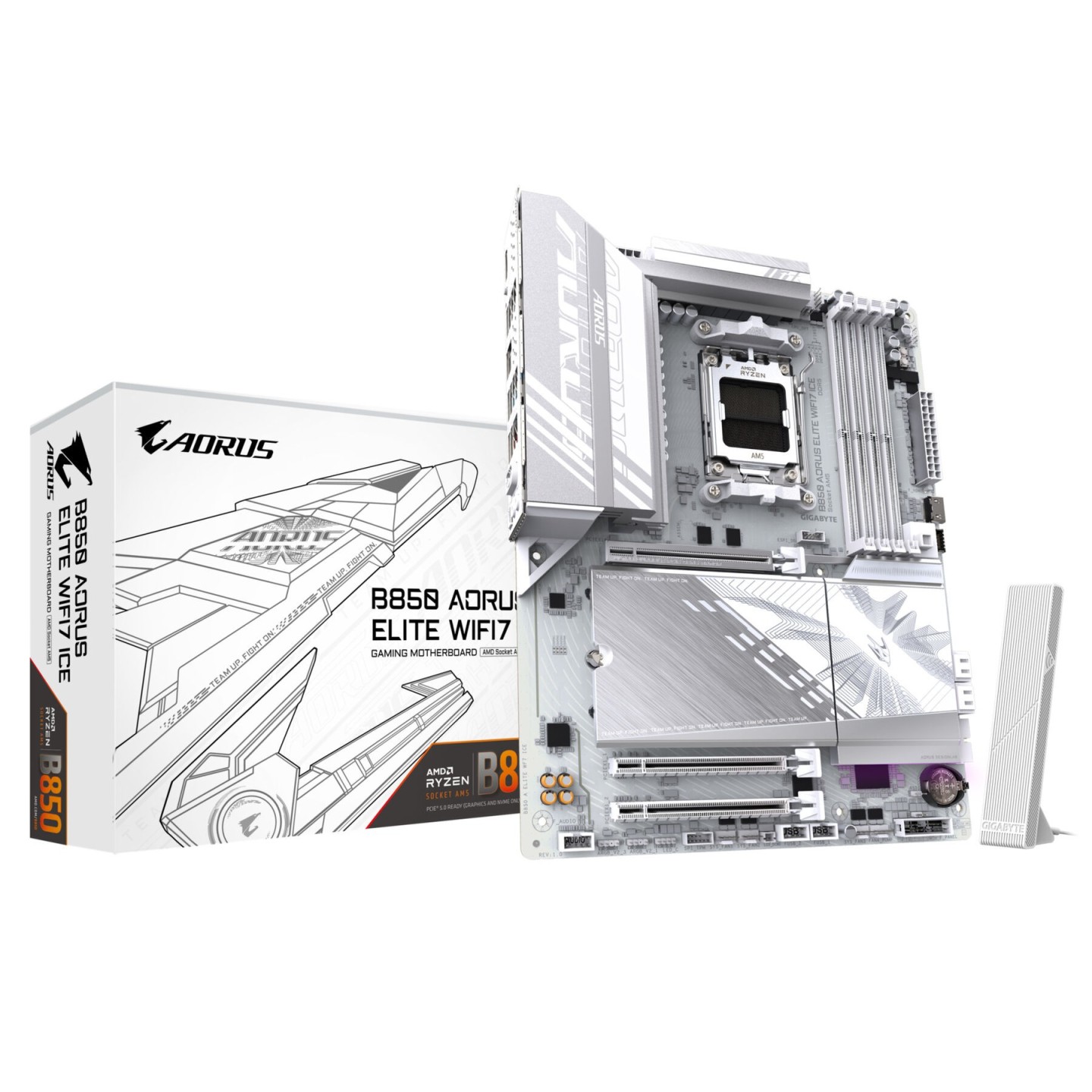

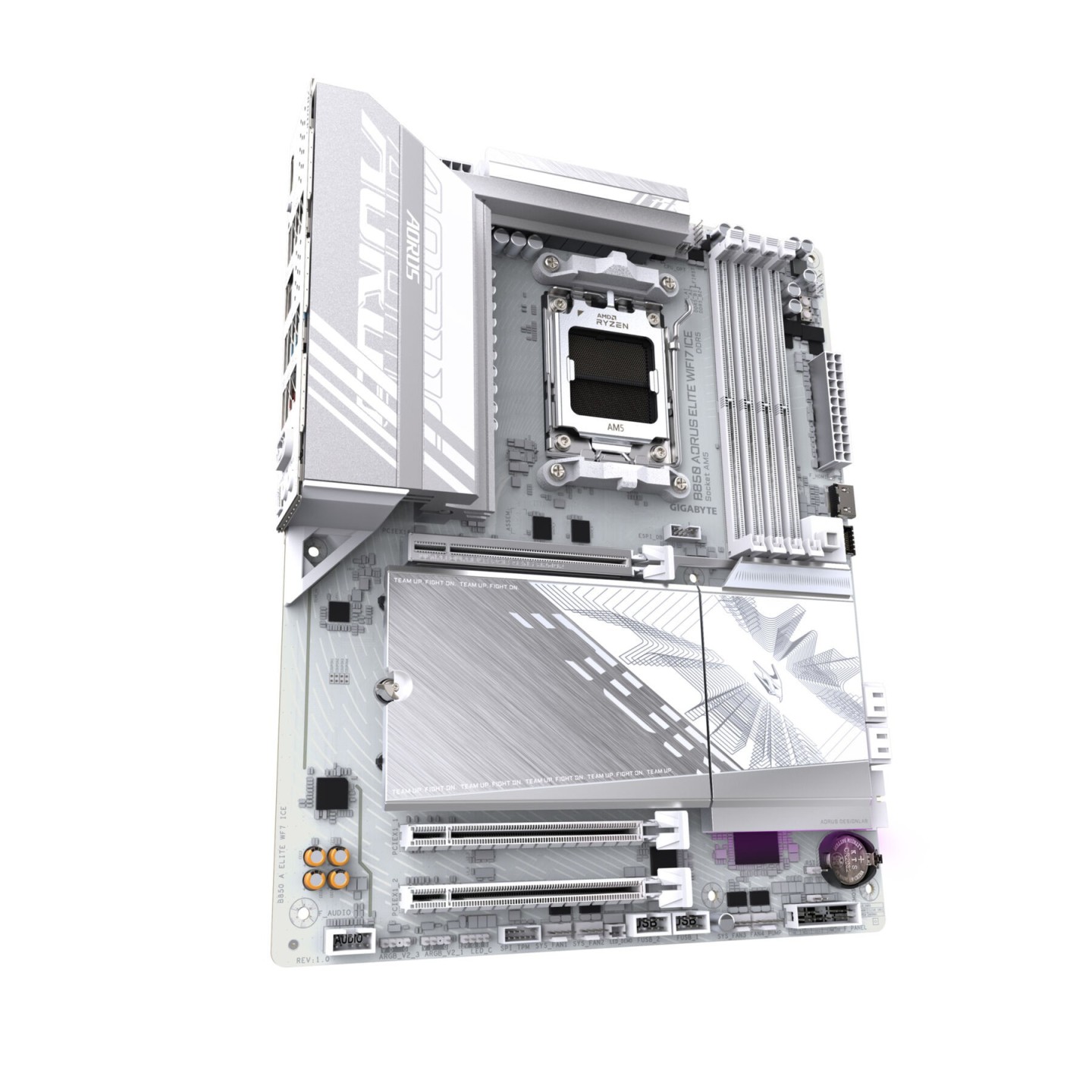

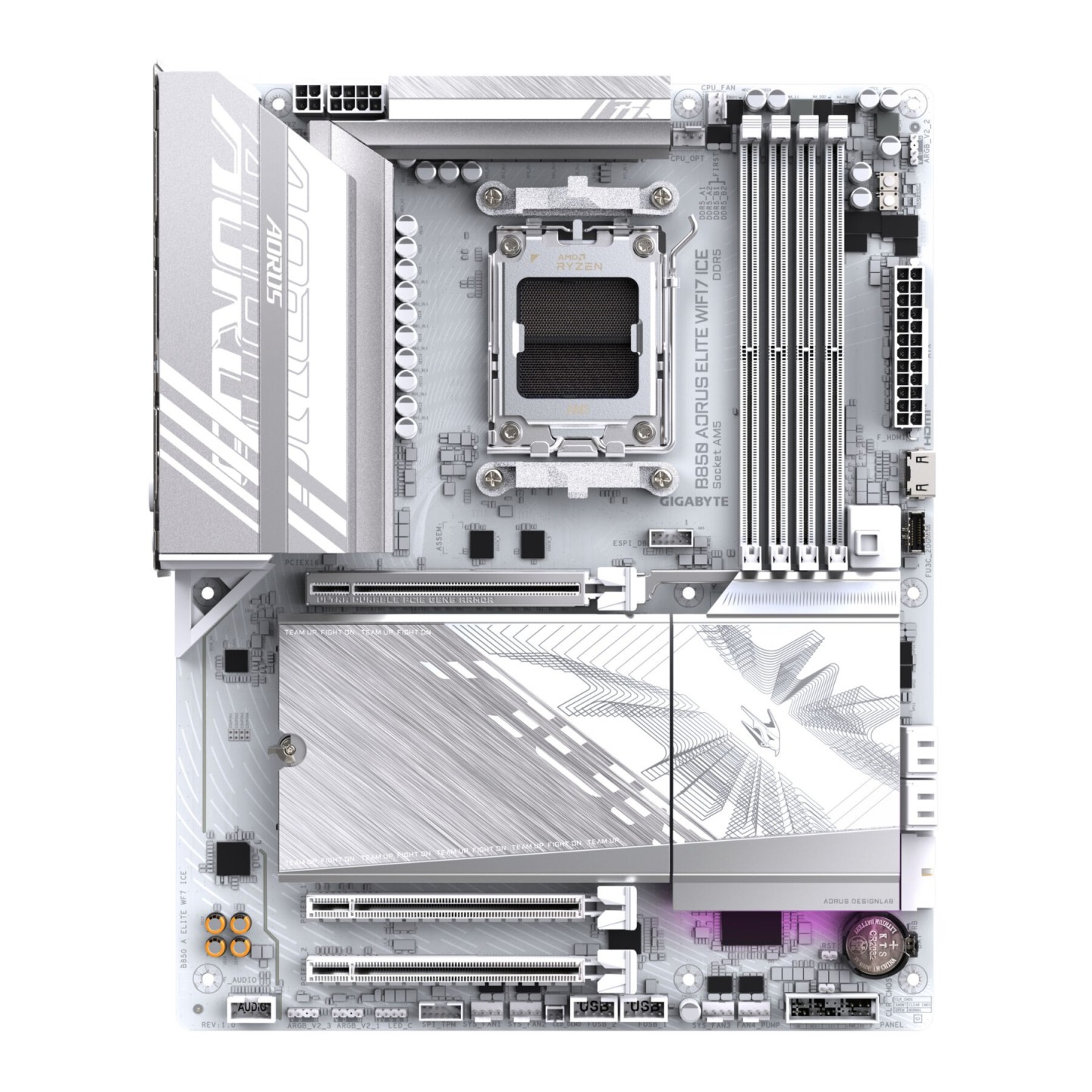

The Gigabyte B850 AORUS ELITE WIFI7 ICE is a high-performance ATX motherboard designed for AMD Ryzen 7000, 8000, and 9000 series processors. Built on the AMD B850 chipset with Socket AM5, this motherboard delivers exceptional gaming and productivity performance with advanced power delivery and thermal management. The board features a robust 14+2+2 phase digital VRM with DrMOS 60A power stages, ensuring stable power delivery for demanding workloads and overclocking.
Memory support includes 4 DIMM slots for DDR5 with speeds up to 8200MT/s (OC), supporting up to 256GB total capacity. Storage connectivity is comprehensive with 3 M.2 slots (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) and 4 SATA III ports. The motherboard includes Wi-Fi 7 (802.11be) with directional ultra-high gain antenna, 2.5GbE Ethernet, and extensive USB connectivity including USB 3.2 Gen 2x2 Type-C. Advanced cooling features include premium VRM Thermal Armor with 4x larger heatsink surface area and M.2 thermal guards. The board supports X3D Turbo Mode for enhanced gaming performance on non-X3D processors.
Key features include:
- PCIe Configuration: 1x PCIe 5.0 x16 (UD Slot), 2x PCIe 3.0 x1
- Memory: 4x DDR5 DIMM, dual-channel, up to 256GB at 8200MT/s
- Storage: 3x M.2 slots (PCIe 5.0 + 2x PCIe 4.0), 4x SATA III
- Connectivity: Wi-Fi 7, Bluetooth 5.4, 2.5GbE LAN, HDMI 1.4, DisplayPort 1.4
- USB Ports: 5x USB 3.2 Gen 1 Type-A, 2x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2x2 Type-C
- Power Delivery: 24-pin ATX + 4+8 pin CPU with UD Solid Pin connectors
- BIOS: UEFI AMI with Q-Flash Auto Scan and multi-theme UI
- Warranty: 5-year manufacturer warranty
| Processor Socket | Socket AM5 |
| Chipset | AMD B850 |
| Form Factor | ATX |
| Memory Type | DDR5-SDRAM |
| Memory Slots | 4 x DIMM |
| Memory Channels | Dual-channel |
| Maximum Memory | 256 GB |
| Memory Speed Support | DDR5-4400, DDR5-4800, DDR5-5200, DDR5-5600, DDR5-5800, DDR5-6000, DDR5-6200, DDR5-6600, DDR5-6800, DDR5-7000, DDR5-7200, DDR5-7400, DDR5-7600, DDR5-7900, DDR5-7950, DDR5-8000, DDR5-8200 MHz |
| Maximum Memory Speed (OC) | 8200 MT/s |
| Memory Profile Support | AMD EXPO |
| ECC Support | Non-ECC |
| PCIe Slots | 1x PCIe 5.0 x16 (UD Slot), 2x PCIe 3.0 x1 |
| M.2 Slots | 3 slots (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) |
| M.2 Key Sizes | 2280, 2260, 2242, 22110, 25110 |
| SATA Ports | 4 x SATA III |
| RAID Support | RAID 0, RAID 1, RAID 10 |
| VRM Phases | 14+2+2 Digital Twin (14 VCORE DrMOS 60A, 2 SOC DrMOS 60A, 2 MISC Ppak) |
| Power Connectors | 24-pin ATX, 4+8 pin CPU (UD Solid Pin) |
| CPU Fan Headers | 2 |
| Chassis Fan Headers | 3 |
| Water Pump Headers | 2 |
| RGB Headers | 4 (4-pin 12V RGB) |
| USB 2.0 Headers | 2 |
| USB 3.2 Gen 1 Headers | 1 (2 ports) |
| USB 3.2 Gen 2x2 Type-C Header | 1 (1 port) |

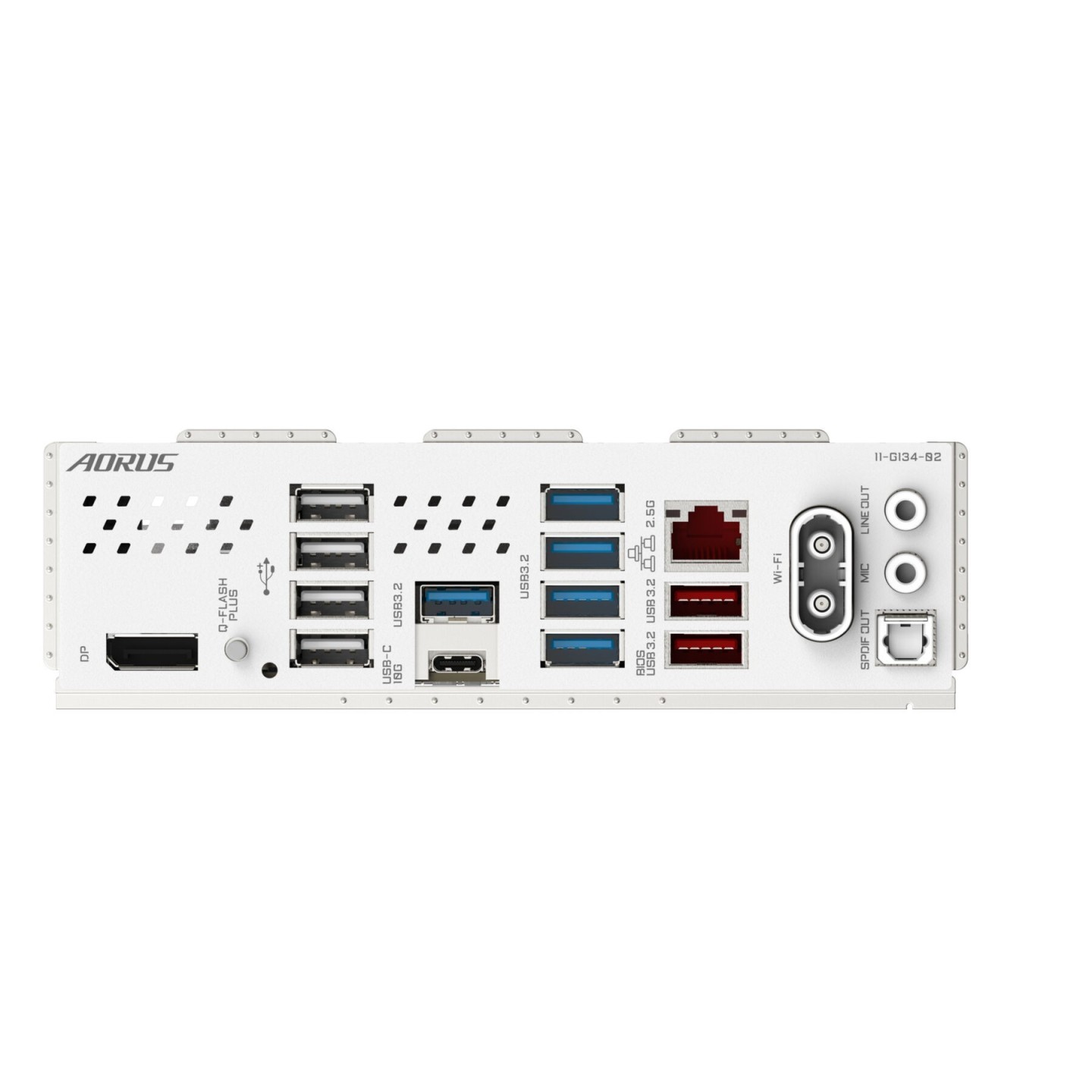

| Rear USB Ports | 5x USB 3.2 Gen 1 Type-A, 2x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2x2 Type-C |
| USB 2.0 Ports | 4 |
| Ethernet | 1x 2.5 Gigabit Ethernet (Realtek RTL8125BG) |
| Wi-Fi | Wi-Fi 7 (802.11be) with Realtek RTL8922AE controller |
| Wi-Fi Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Bluetooth | Bluetooth 5.4 |
| Wi-Fi Antenna | 2x directional ultra-high gain antenna |
| Audio Codec | Realtek ALC897 |
| Audio Channels | 7.1 channels |
| Audio Output | 1x 3.5mm Line-Out |
| Video Outputs | 1x HDMI 1.4, 1x DisplayPort 1.4 |
| Maximum Resolution | 4096 x 2160 pixels |
| BIOS Type | UEFI AMI |
| BIOS Memory | 256 Mbit |
| ACPI Version | 5.0 |
| DMI Version | 2.7 |
| SMBIOS Version | 2.7 |
| Supported Operating Systems | Windows 10 64-bit, Windows 11 64-bit |
| CMOS Battery | CR2032 Lithium-Manganese Dioxide (3g, 0.07g lithium) |
| Thermal Design | Premium VRM Thermal Armor with 4x larger heatsink surface area, M.2 Thermal Guard Extended, 5 W/mK thermal pad |
| Special Features | X3D Turbo Mode, EZ-Latch Plus (PCIe/M.2 quick release), EZ-Latch Click (M.2 screwless heatsinks), Sensor Panel Link, PCIe UD Slot (10X strength), WIFI EZ-Plug antenna design |
| Processor Compatibility | AMD Ryzen 9000 series, AMD Ryzen 8000 series, AMD Ryzen 7000 series |
| Motherboard Dimensions | 305 x 244 x 35 mm |
| Motherboard Weight | 2.16 kg |
| Package Dimensions | 335 x 270 x 80 mm |
| Package Weight | 2.46 kg |
| Warranty | 5 years |
| Manufacturer Part Number | B850AELWF7ICE |
| Color | White/Silver |
