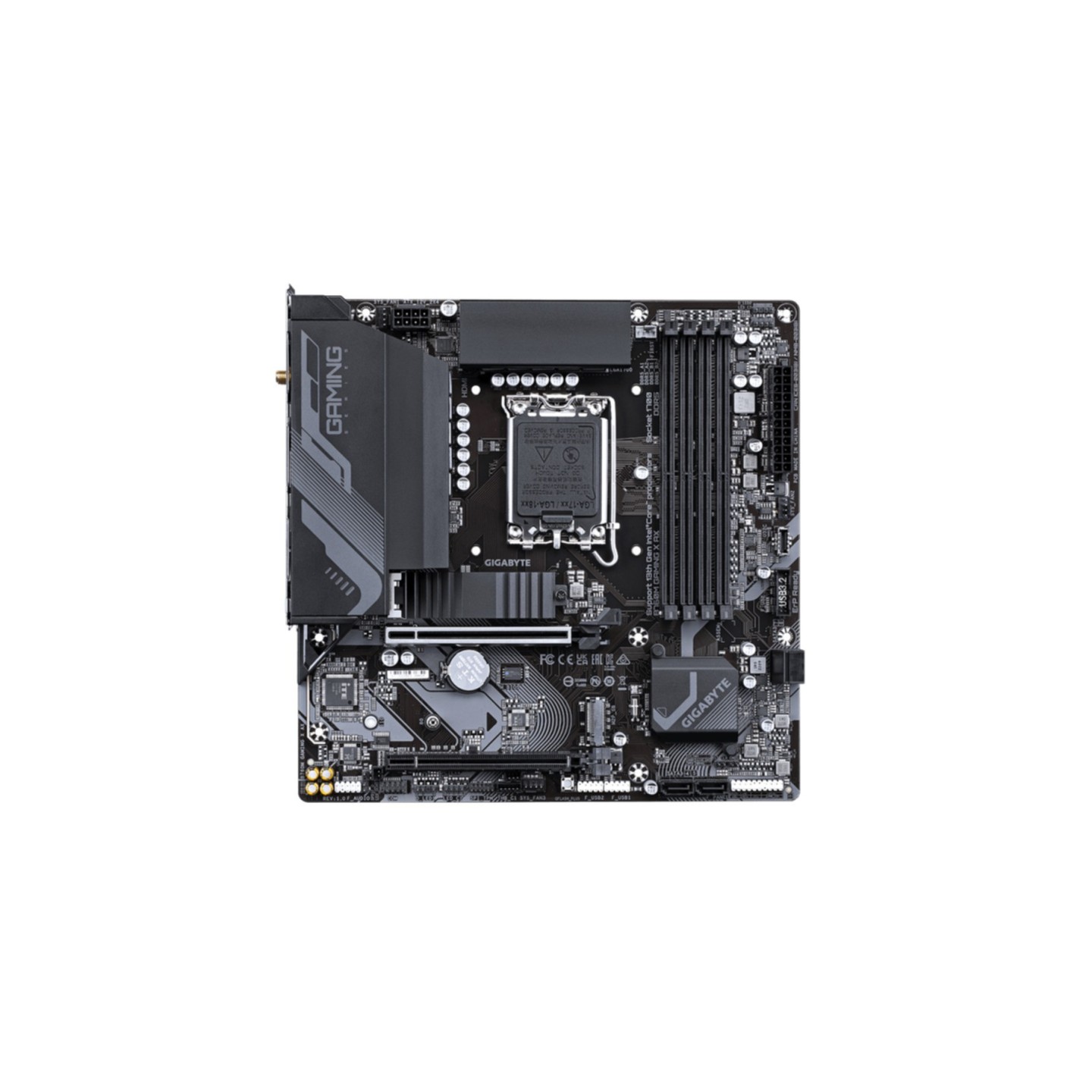

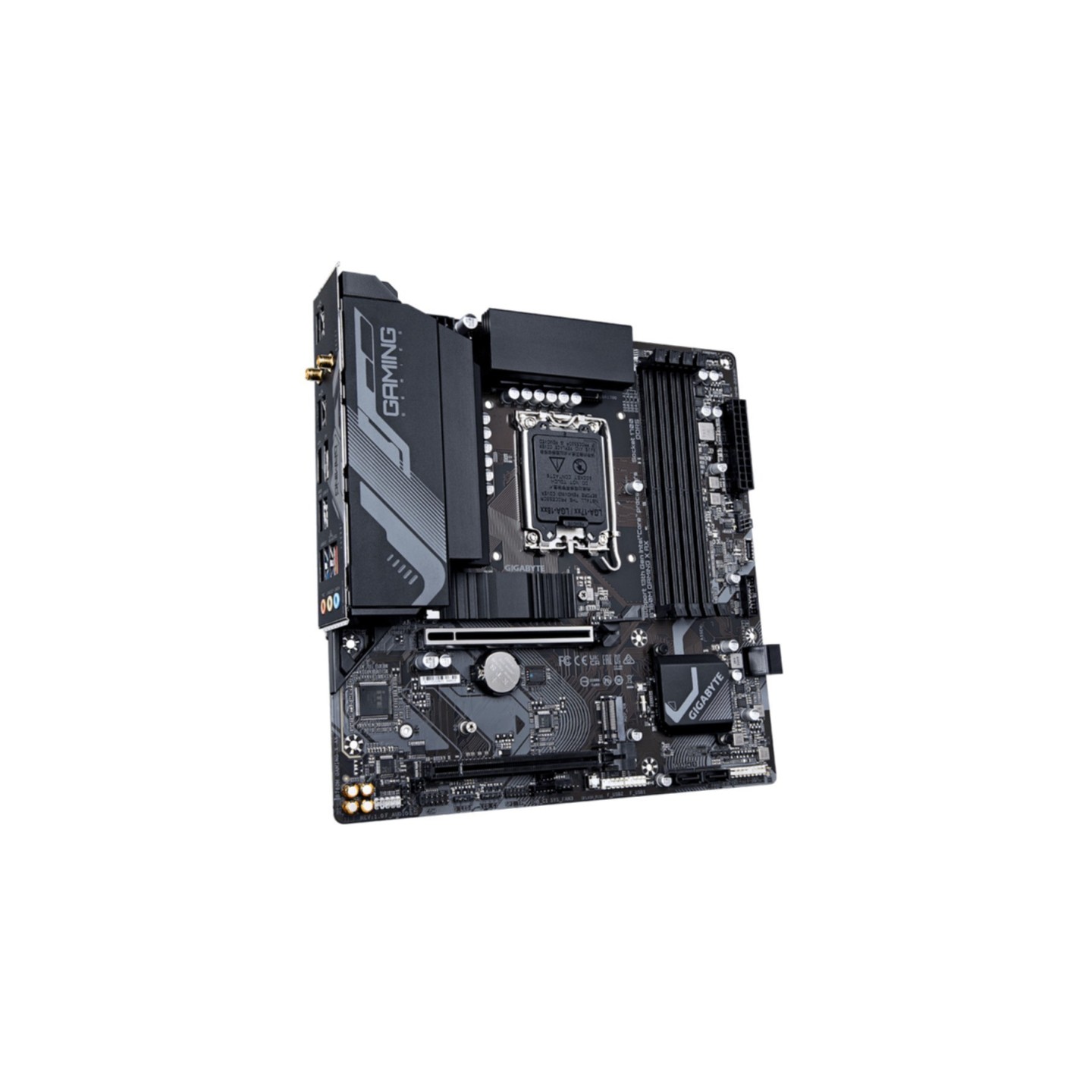

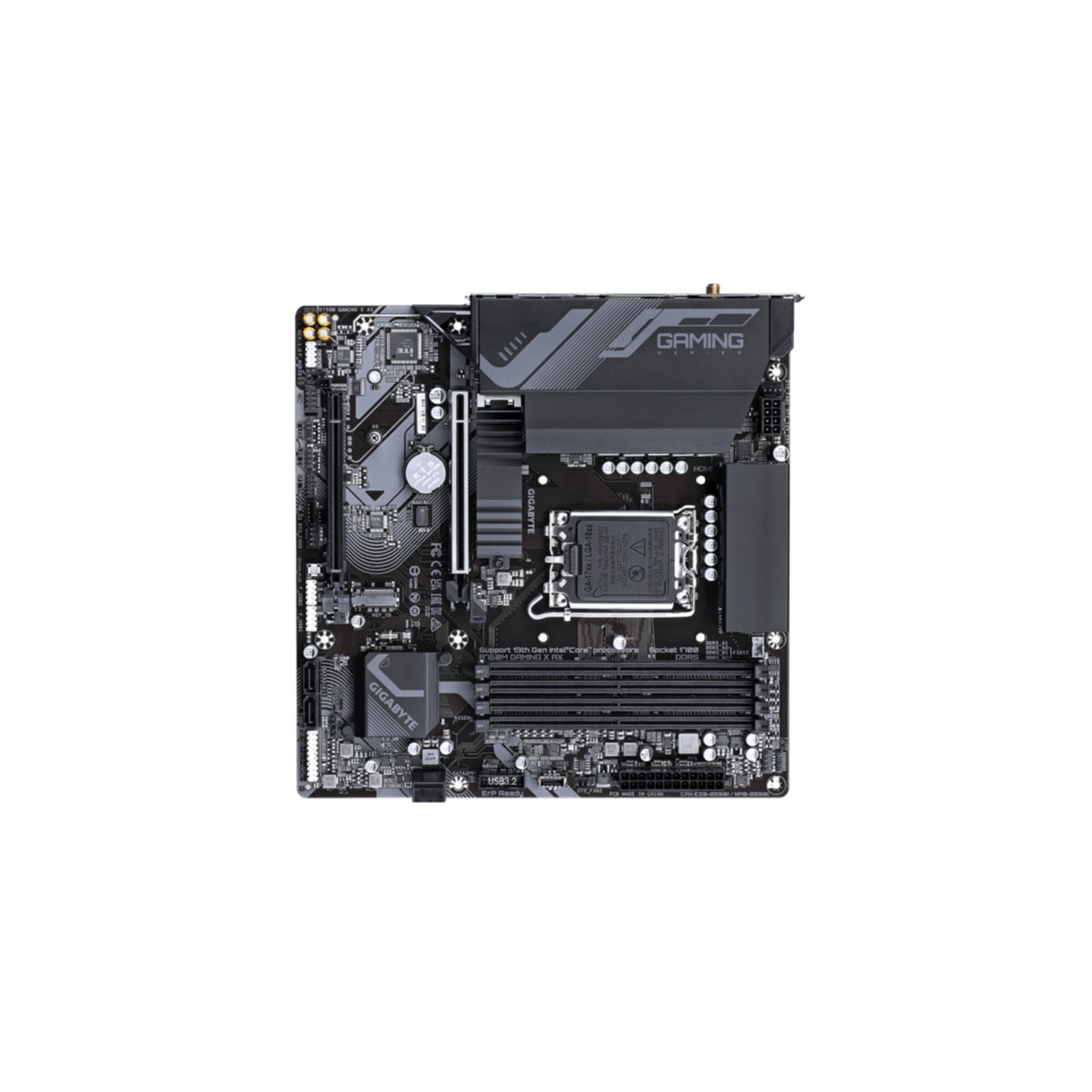

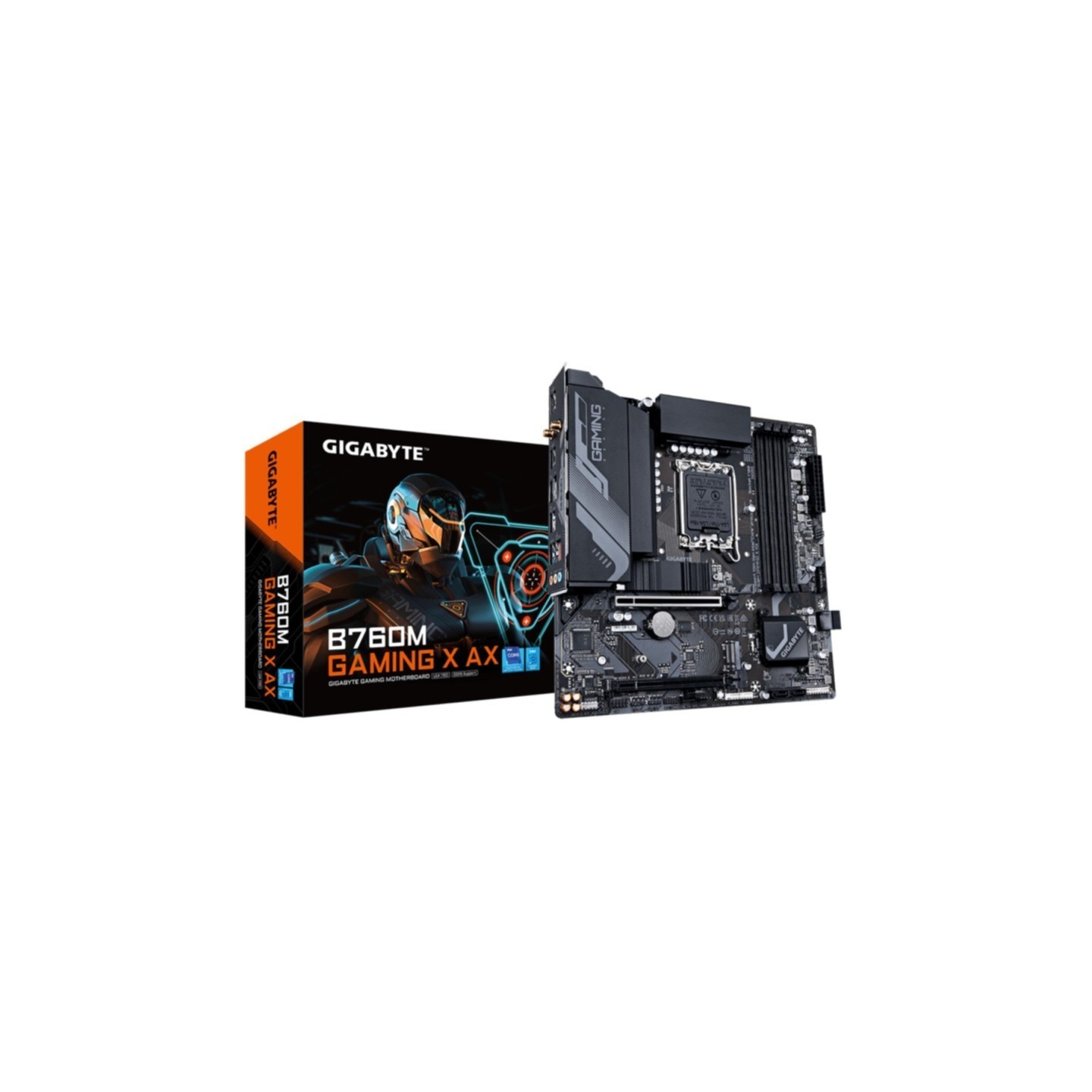

Gigabyte GA-B760M GAMING X AX LGA1700 Micro-ATX B760 DDR5 WiFi 6E (Boxed)
Micro-ATX LGA1700 Intel B760 motherboard. Supports 14th/13th/12th Gen Intel CPUs, DDR5 up to 256GB (7600MHz), Wi-Fi 6E, 2.5GbE, 2x PCIe 4.0 M.2, 4x SATA III, Realtek 7.1 audio.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
The Gigabyte GA-B760M GAMING X AX is a premium Micro-ATX motherboard built for Intel 12th, 13th, and 14th Gen Core processors on the LGA1700 socket. Featuring the Intel B760 chipset, it delivers excellent performance for gaming, content creation, and productivity workloads with support for the latest DDR5 memory technology up to 256GB at 7600MHz (OC).

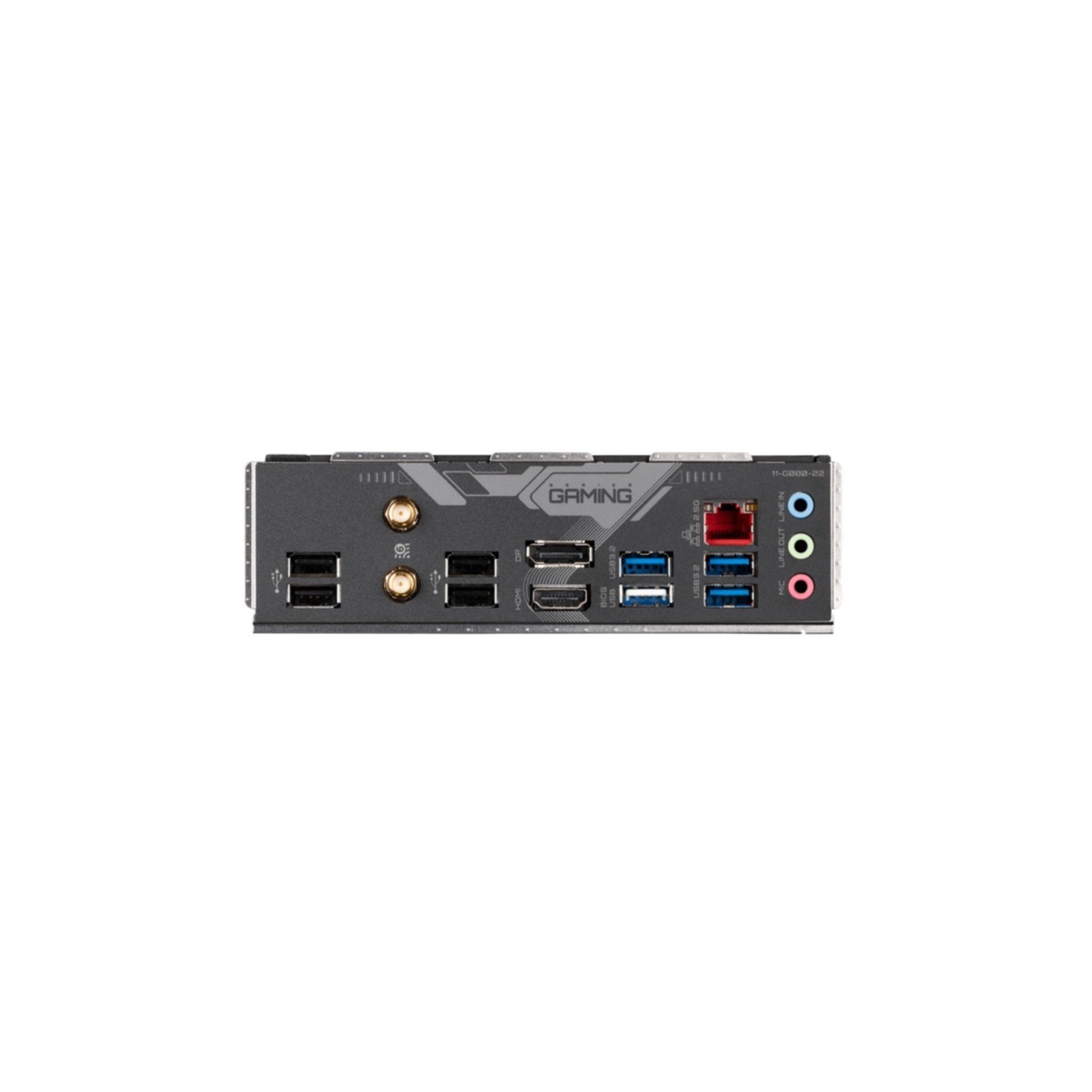

Advanced connectivity includes Wi-Fi 6E (Realtek RTL8852CE) with Bluetooth 5.3, 2.5GbE LAN (Realtek RTL8125), and comprehensive rear I/O with HDMI 2.0, DisplayPort 1.2, multiple USB 3.2 ports, and dual antenna connectors. Storage options feature 2x PCIe 4.0 M.2 slots (2280+22110) and 4x SATA III ports with RAID 0/1/5/10 support. The board also offers 7.1-channel HD audio (Realtek ALC897) and multiple RGB headers for customization.
- ✅ Intel B760 chipset, LGA1700 socket (12th-14th Gen Core)
- ✅ 4x DDR5 DIMM slots, max 256GB (7600MHz+ OC)
- ✅ Wi-Fi 6E + Bluetooth 5.3 + 2.5GbE LAN
- ✅ 2x PCIe 4.0 M.2 + 4x SATA III + RAID support
- ✅ PCIe 5.0 x16 + PCIe 4.0 x16 slots
- ✅ Realtek 7.1 audio + multiple RGB headers
- ✅ UEFI BIOS with Q-Flash Plus
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Motherboard chipset | Intel B760 Express |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 256 GB |
| Supported memory clock speed (max) | 7600 MHz |
| Number of M.2 (M) slots | 2 |
| Number of SATA III connectors | 4 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Audio output channels | 7.1 channels |
| Product colour | Brown |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.64 kg |
| Warranty period | 3 year(s) |
