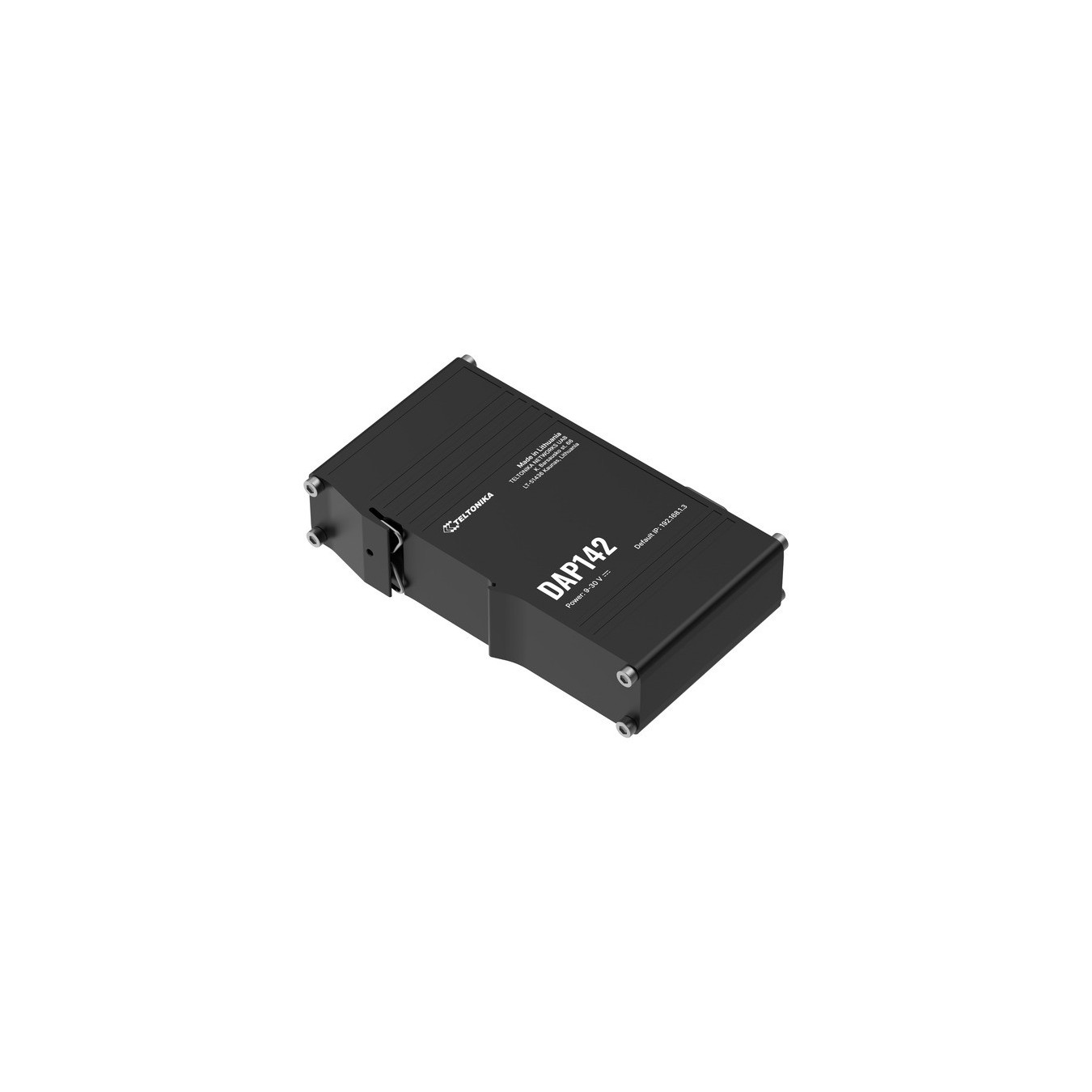

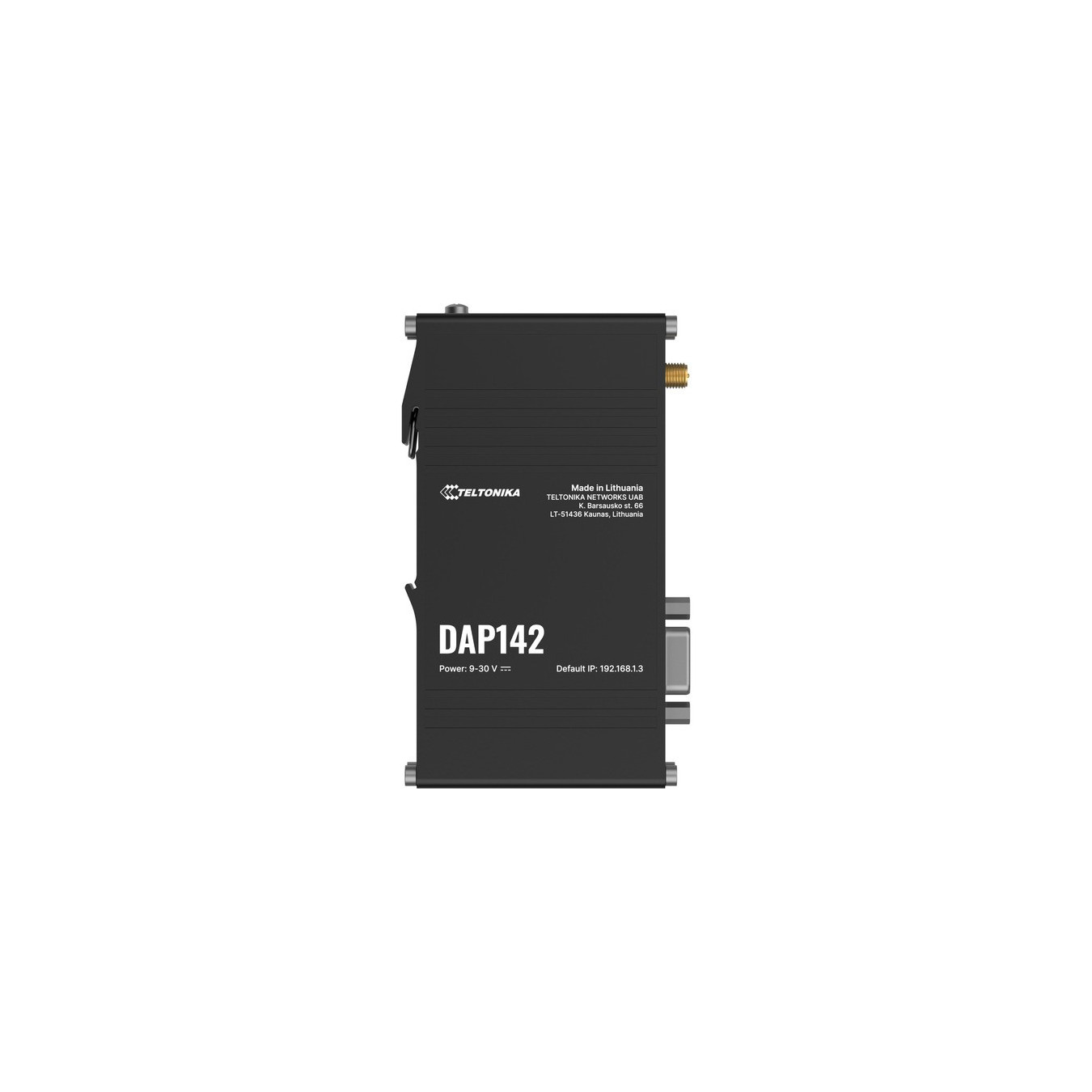

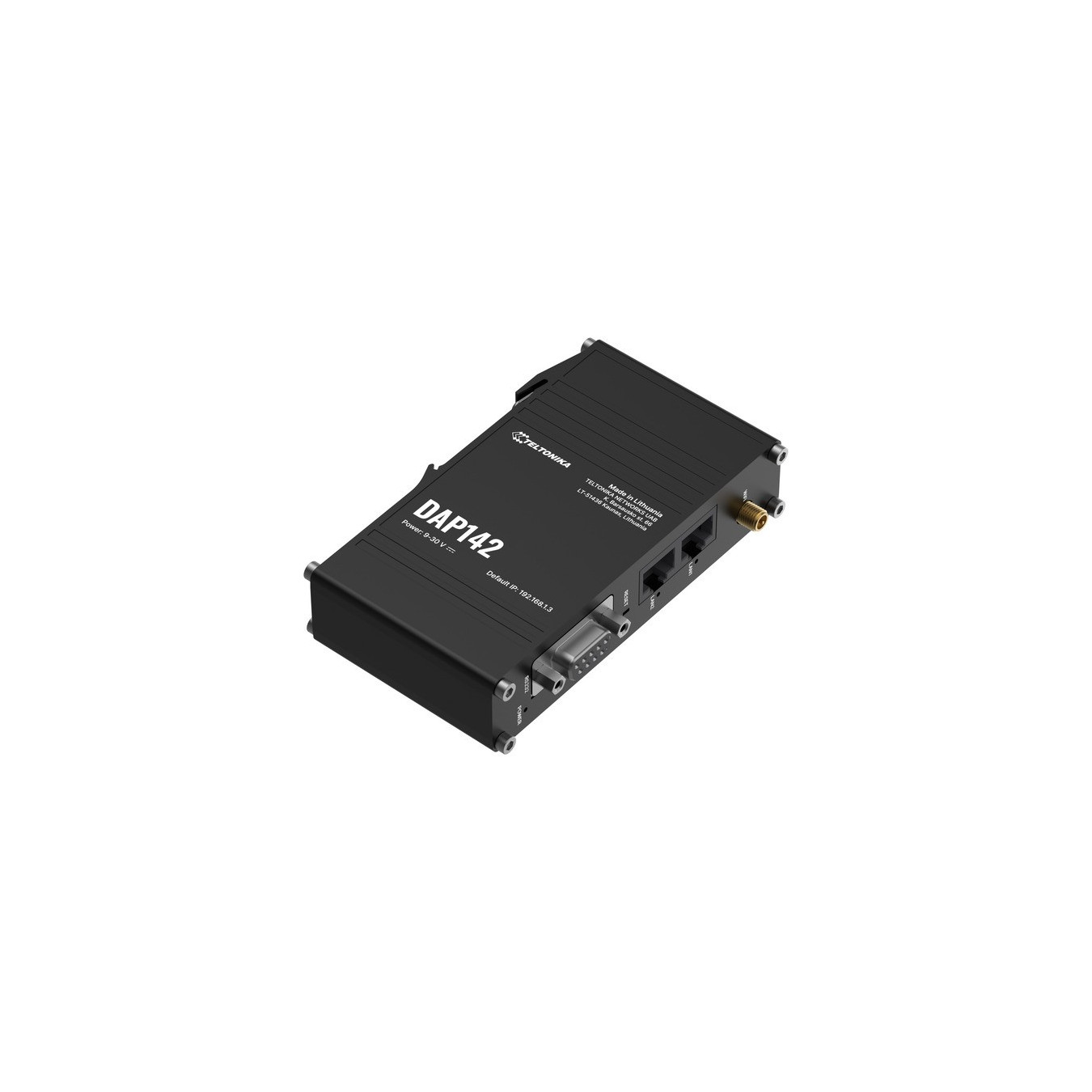

DAP142, Access Point

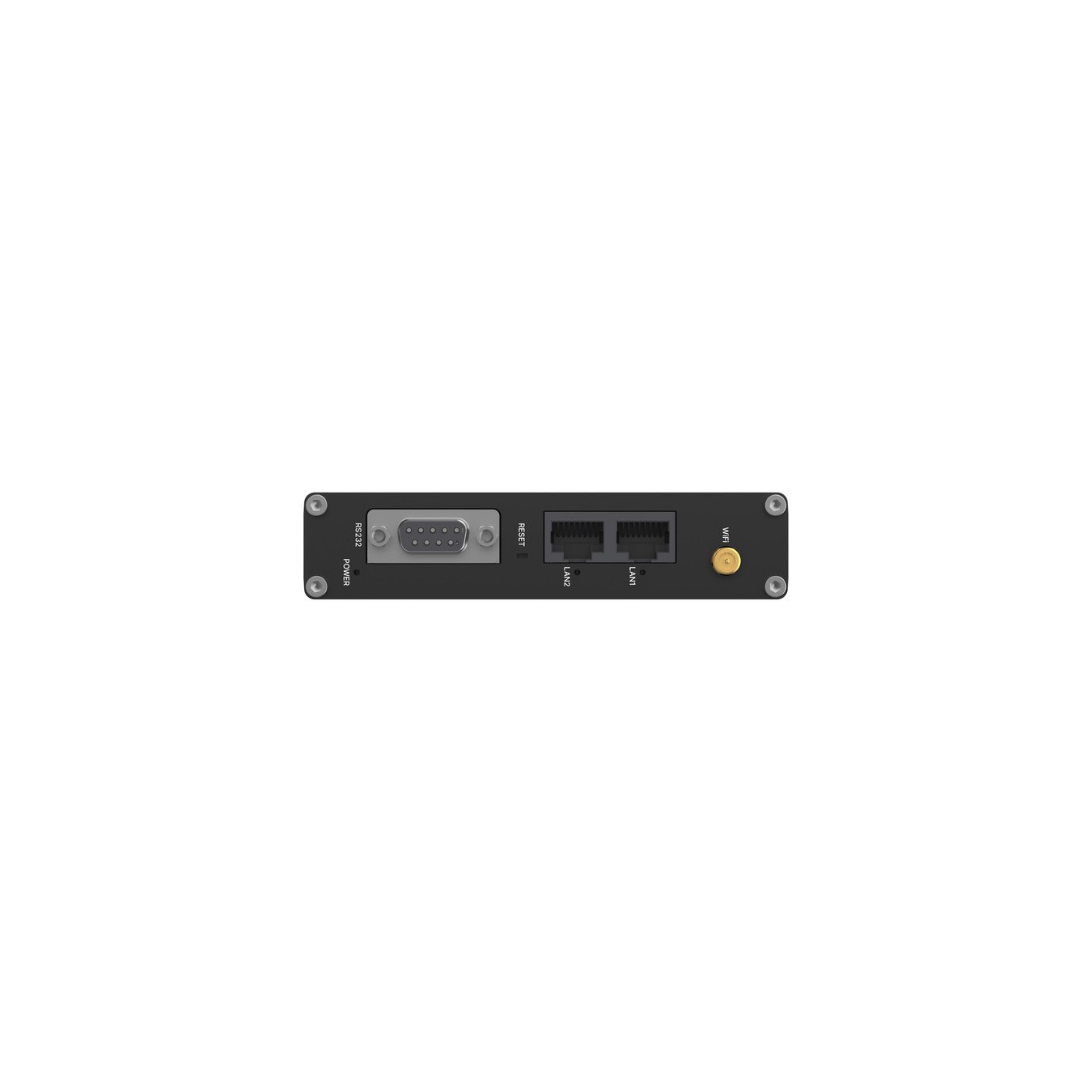

The Teltonika DAP142 is an industrial wireless access point with passive PoE designed to provide improved and reliable Wi-Fi coverage and performance in industrial environments. This access point is equipped with an RS232 port and two RJ45 ports and is powered via a 3-pin connector, making it ideal for specific industrial applications. In addition to Wi-Fi 4 features, the DAP142 supports Wi-Fi Mesh, fast roaming, and up to 50 simultaneous connections. With an integrated DIN rail mount, durable aluminum housing and plug-and-play functionality, this wireless access point offers easy installation and configuration with minimal effort.

Typ	Access Point
Color	schwarz
EAN	4779051843268
Manufacturer no.	DAP142000000
Design	DIN-Rails
Connections - Network	RJ-45 2x (of which: 2x 10/100)
WLAN - Standards	Wi-Fi 3 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n) - (2.4 GHz)
Hardware - CPU	Mediatek, 580 MHz, MIPS 24KEc
LEDs	Power
Control buttons	Factory reset
Power supply	Power consumption operation: 2 W

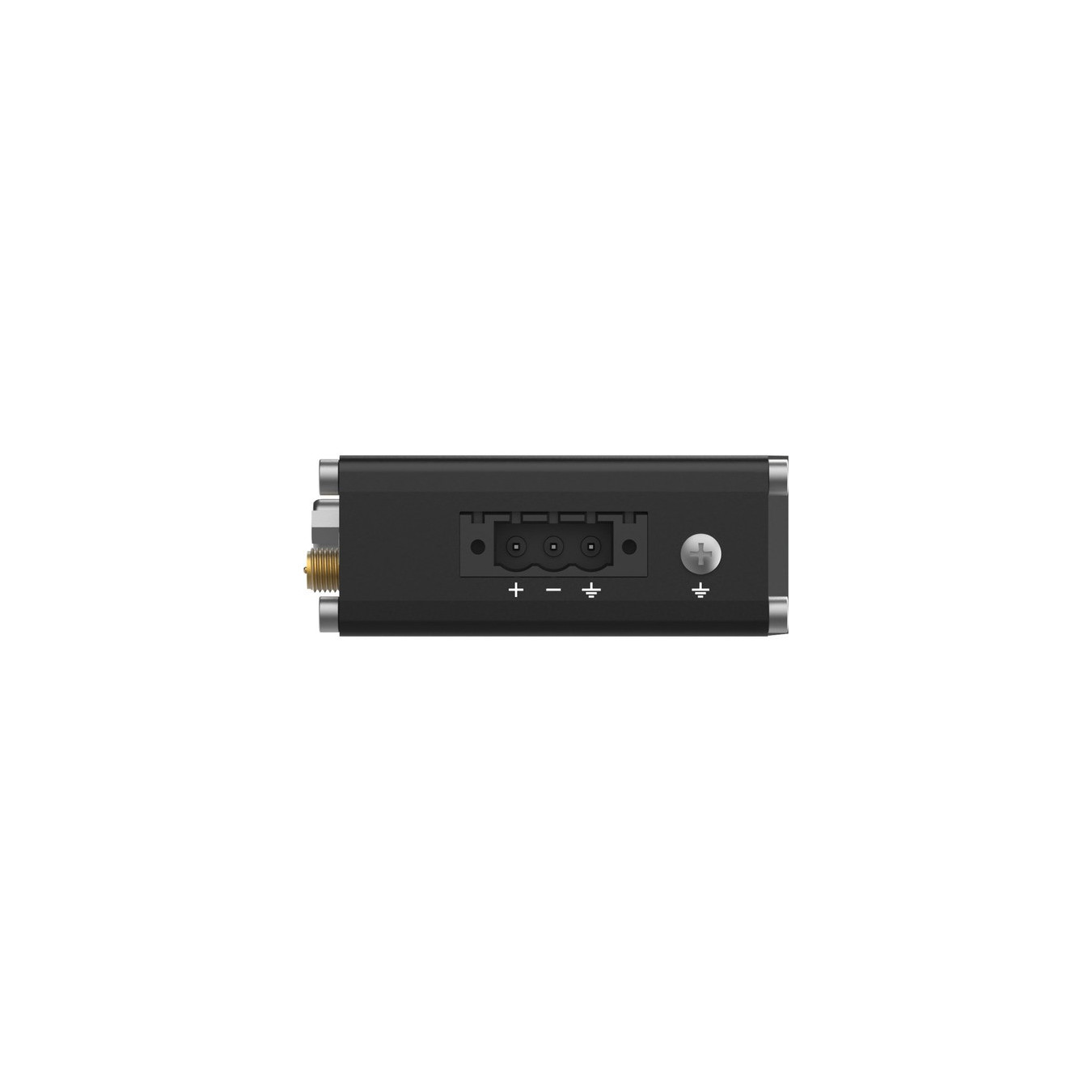

Feature	Fast Roaming (802.11r), 3-pin power connector for industrial use, Integrated DIN rail mount, Hotspot 2.0, Traffic Management, Teltonika Remote Management System (RMS), ground screw, IP30
More information	Voltage range: 9-30VDC
Dimensions	Width: 113.1mm x Height: 25mm x Depth/Length: 68.6mm
Weight	149 Gramm
Warnings and safety information	Safety Information:Product Safety and Use Operating conditions Operating temperature: -40° to +75° Celsius Humidity should be between 10% and 90% (non-condensing). Only use the device in dry environments. Protect from direct sunlight Keep away from heat sources, corrosive substances, salts and flammable gases Attention: Operation outside the permissible range can significantly shorten the lifespan of the device. Faulty and damaged products Do not attempt to disassemble the device or its accessories. The device and its accessories may only be maintained or repaired by qualified personnel. If your device or its accessories have been submerged in water, punctured, or subjected to a severe fall, do not use it until it has been checked at an authorized service center. Electrical safety Only use approved accessories. Do not connect with incompatible products or accessories. It is recommended that devices be grounded using ground terminals before connecting to power. Otherwise there is a risk of electric shock. The cross section of the protective conductor should be at least 1 mm². Product handling You are solely responsible for the manner in which you use your device and the consequences resulting from such use. The use of your device is subject to security measures designed to protect users and those around them. Always treat your device and its accessories with care and store them in a clean and dust-free place. Do not expose your device or its accessories to open flames, burning tobacco products, liquids, moisture or high humidity. Do not drop, throw, or attempt to bend your device or its accessories. Do not use harsh chemicals, cleaning solutions or aerosols to clean the device or its accessories. Do not paint your device or its accessories. Do not attempt to disassemble the device or its accessories. It contains no user-serviceable parts. For safety reasons, the device should only be opened by qualified personnel. Be sure to wear personal ESD protective equipment while servicing the device. Do not use your device in closed environments with poor heat dissipation. Prolonged use in such spaces may result in excessive heat and increased ambient temperature, which will result in your device automatically shutting off for your safety. To use your device again after such a shutdown, allow it to cool in a well-ventilated area before turning it on. Please check all national laws and local regulations regarding disposal of electronic products. Do not operate the device in places with limited ventilation. To reduce the risk of fire or electric shock, do not use or install this product near water. Avoid exposing the device to rain or moisture. Route power and Ethernet cables so that no one can step on them or place objects on them. Make sure the voltage and current rating of the power source meet the requirements of the device. Do not connect the device to an unsuitable power source. During a thunderstorm, no intervention should be made on the device or the cables. The device must be switched off during explosions and near life-sustaining medical devices. Do not leave your device and accessories within the reach of small children or allow them to play with them. You could injure yourself or others and accidentally damage the device. Your device contains small parts with sharp edges that can pose a choking hazard. Like any wireless device, this device uses radio signals, so connection cannot be guaranteed under all conditions. Therefore, never rely solely on a wireless device to make emergency calls or use the device in situations where a loss of data connection could result in death, injury, property damage, loss of data or other harm. During normal use, the device may become warm.
