Converter M.2 Key A+E connector to Mini PCIe slot
This converter from Delock converts the M.2 Key A or Key E interface into a Mini PCIe interface. Various Mini PCIe modules with USB and PCIe support can be used on this converter. ...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

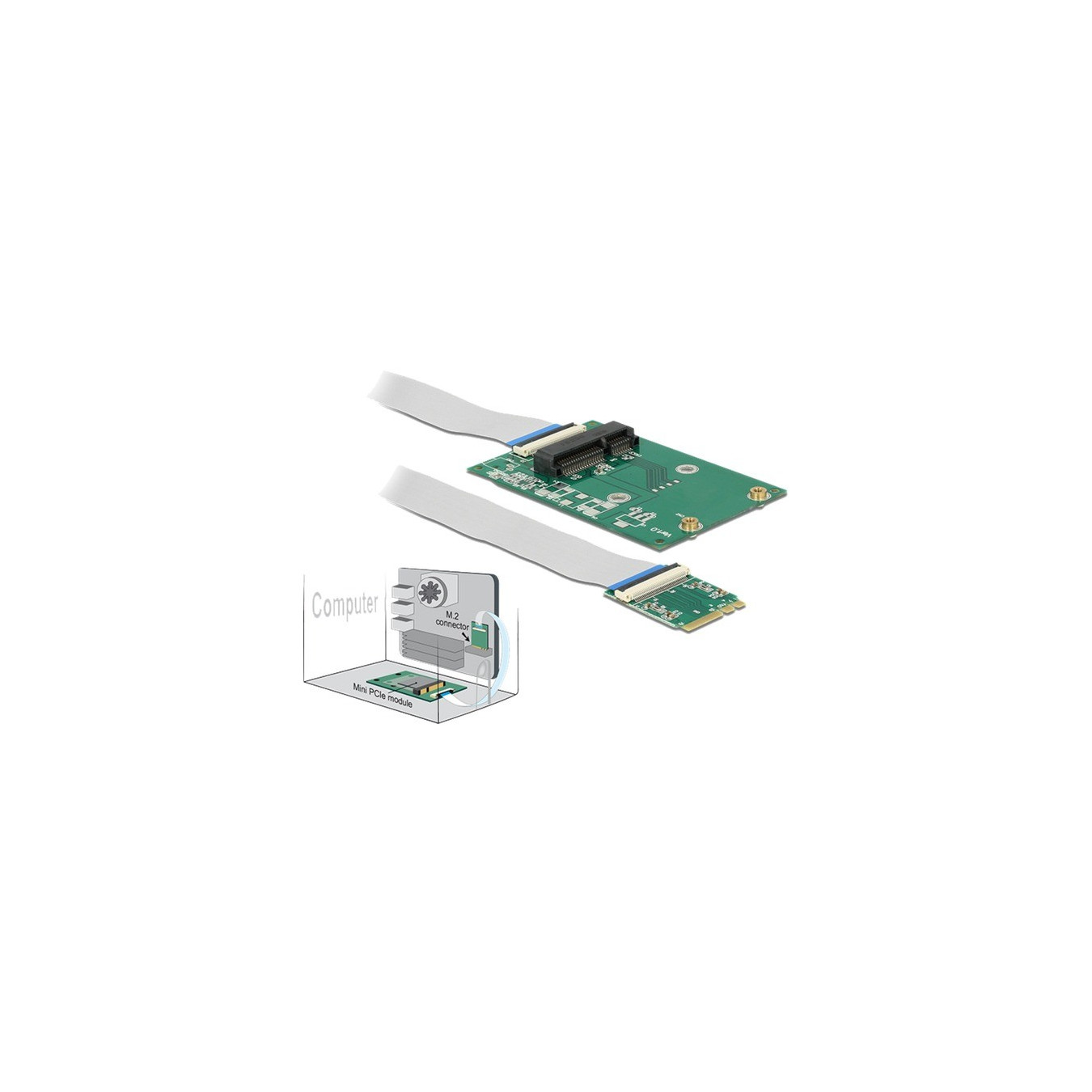

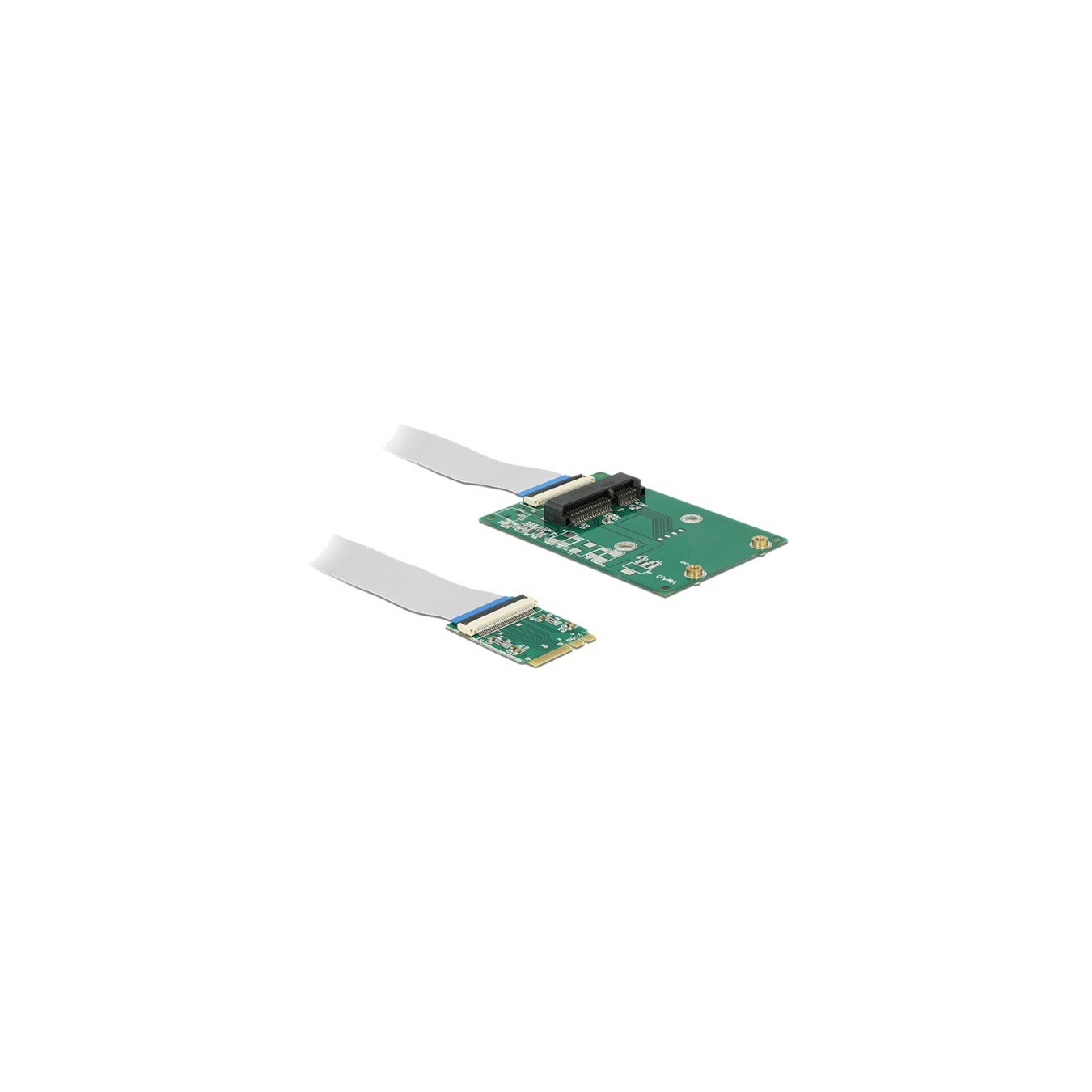

This converter from Delock converts the M.2 Key A or Key E interface into a Mini PCIe interface. Various Mini PCIe modules with USB and PCIe support can be used on this converter. The M.2 Key A or Key E interface can be used, for example: B. WLAN, Bluetooth, GNSS, 3G, HSPA and NFC modules can be used. Furthermore, it is possible with a module that z. B. Has WLAN and Bluetooth to use both functions at the same time.
| Typ | Converter |
| EAN | 4043619628483 |
| Manufacturer no. | 62848 |
| Controller Art | M.2 |
| slot | Mini-PCIe |
| Connections - internal | 1x M.2 |
| Feature | Suitable for M.2 slot with Key A or Key E on PCIe and USB basis |
| More information | Connections: 1 x 59 pin M.2 Key A+E connector > 1 x Mini PCIe slot, PCI Express Rev. 1.1, interface: PCIe + USB, form factor M.2: 2230, form factor Mini PCIe: half size and full size, operating temperature: 0 °C ~ 80 °C, dimensions (LxWxH): M.2 card: approx. 30 x 22 x 3 mm, Mini PCIe card: approx. 69x45x6mm |
| Notice | OS independent, no driver installation required, system requirements: a free M.2 Key A or Key E slot |

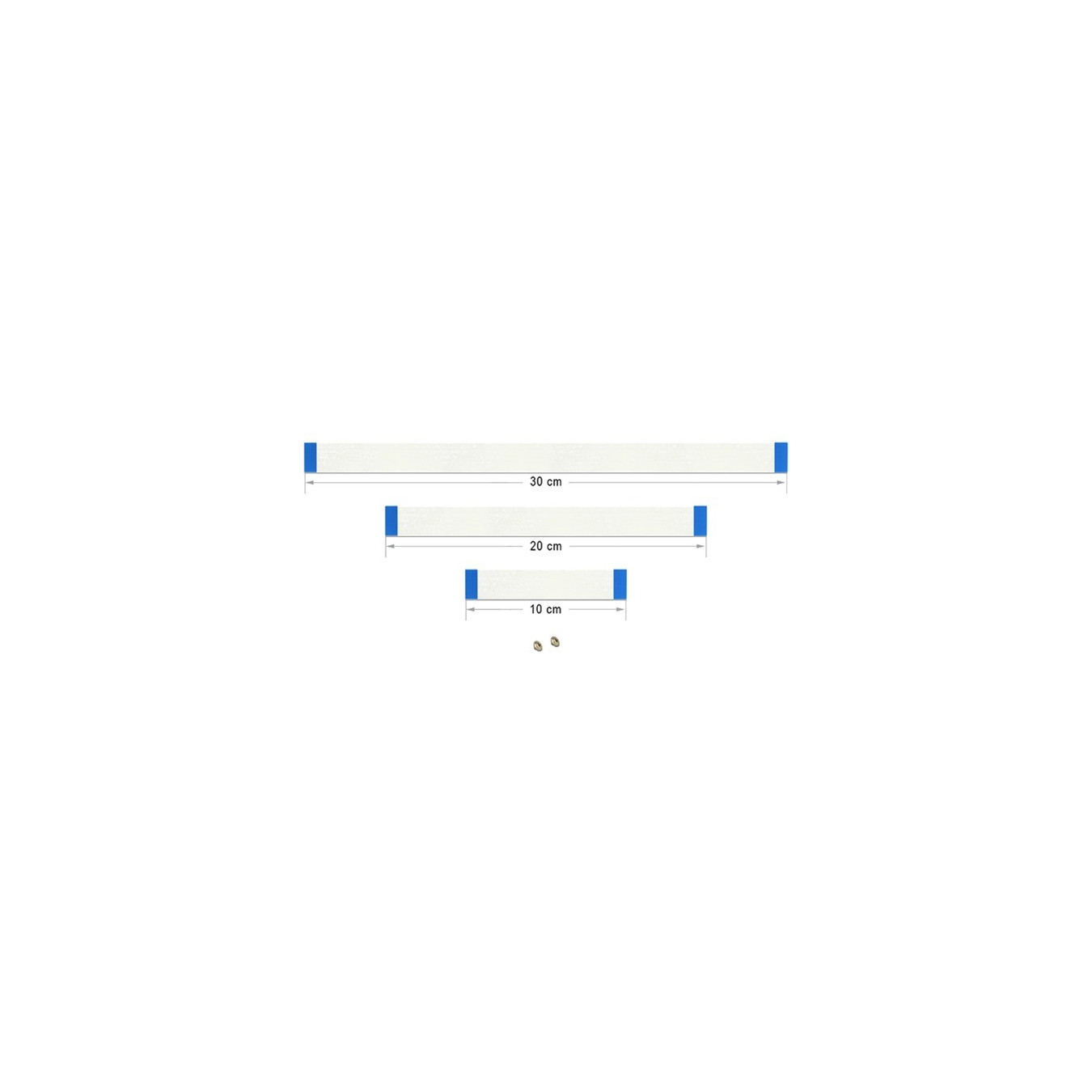

| Accessories - available | Instructions, screws, 3x flat ribbon cables, length approx.: 1x 10 cm, 1x 20 cm, 1x 30 cm |
