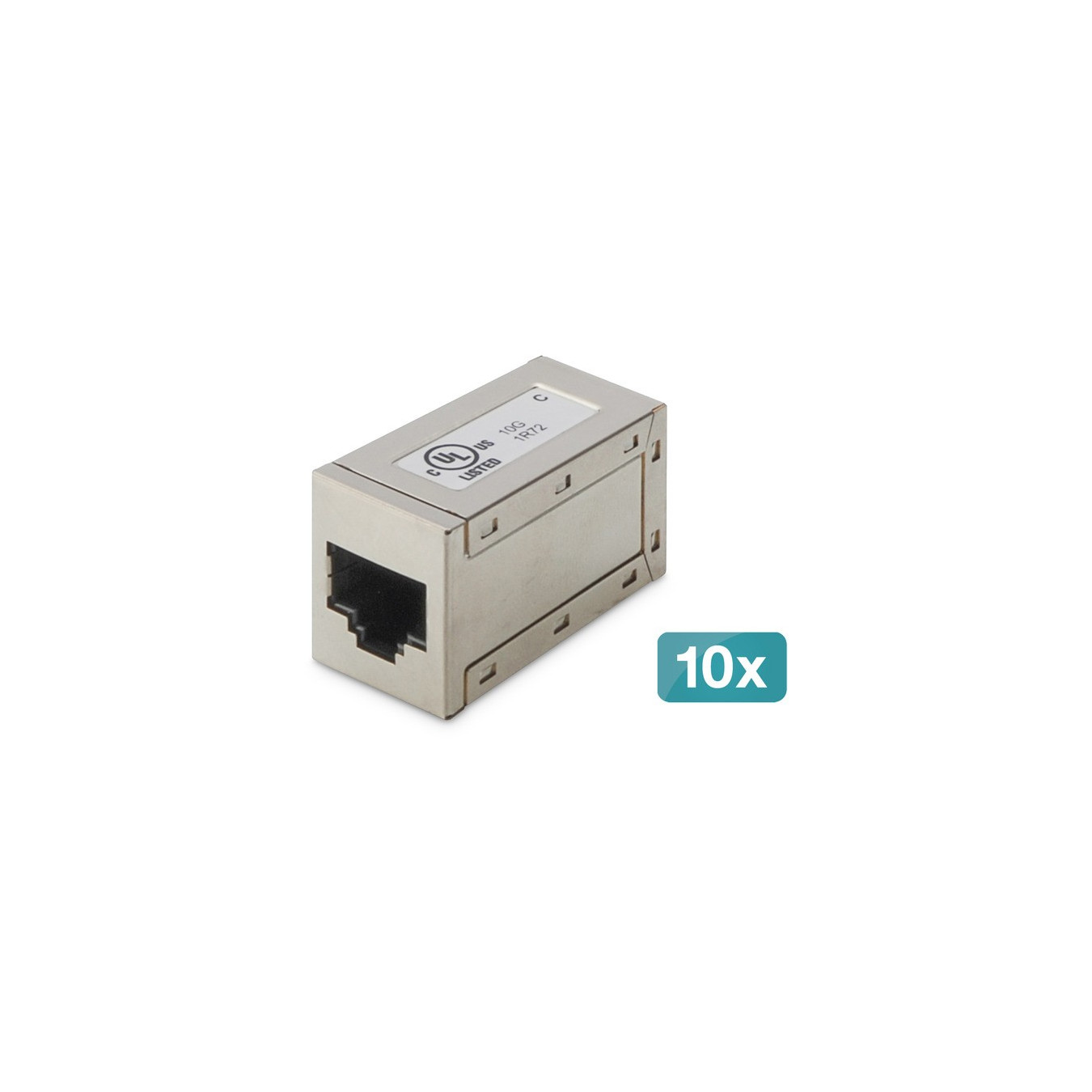

Cat.6 modular coupling, shielded
The modular Cat.6 coupling AT-AG-8-8-C6S-10 from DIGITUS consists of two shielded RJ-45 sockets. Occupancy is 1:1. It is used to quickly and easily extend patch cables. The RJ-45 s...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The modular Cat.6 coupling AT-AG-8-8-C6S-10 from DIGITUS consists of two shielded RJ-45 sockets. Occupancy is 1:1. It is used to quickly and easily extend patch cables. The RJ-45 sockets are shielded and offer optimal security. The coupling offers a long service life (mating cycles).
| Typ | coupling |
| EAN | 4016032495024 |
| Manufacturer no. | AT-AG-8-8-C6S-10 |
| Manufactured in | China |

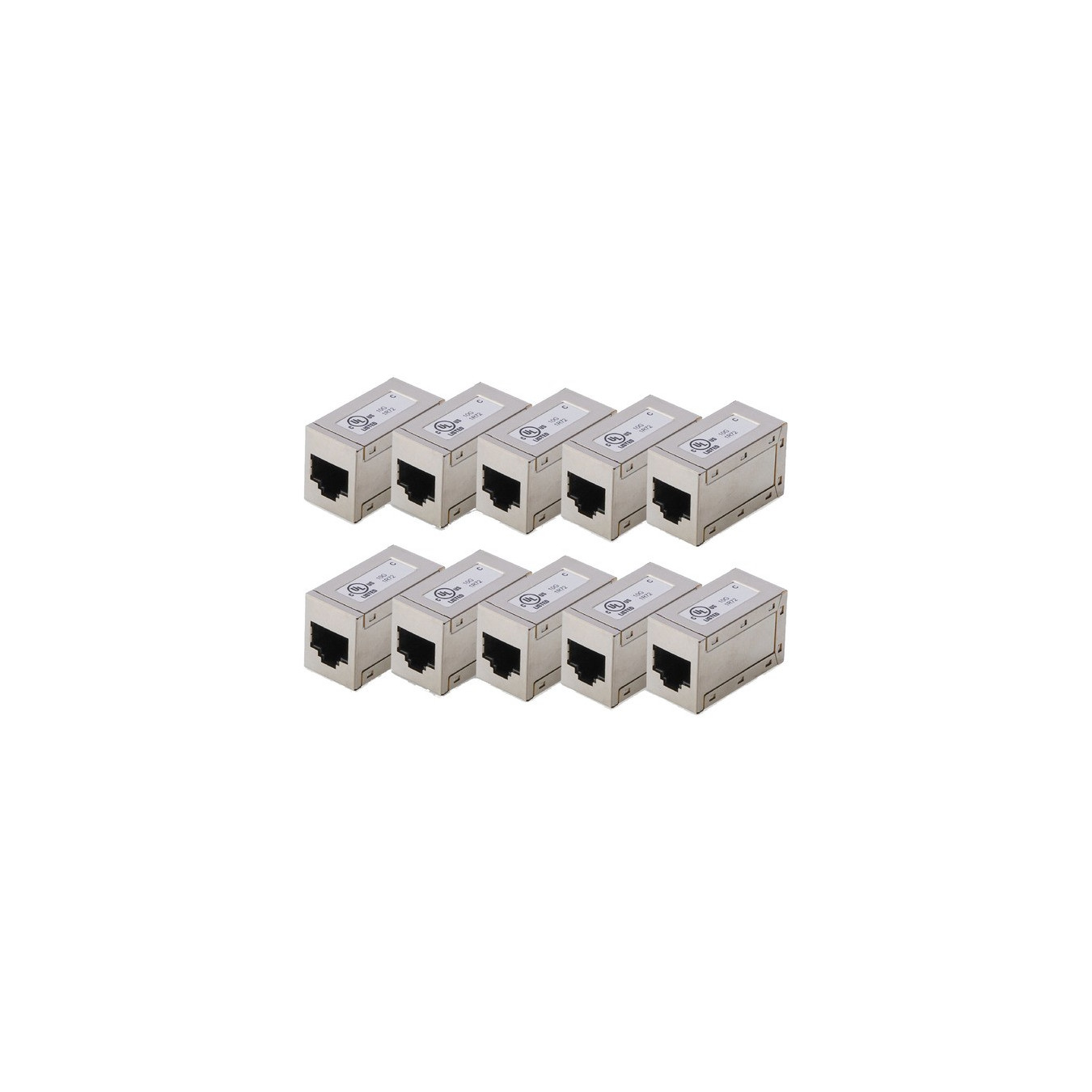

| Number | 10 pieces |
| Area | network |
| Connection - from | 1x RJ-45 (socket) |
| taps | 2 |
| Category - Plugs | Cat.6 |
| Characteristics | Adapter, extern |
| Feature | Metal housing ABS UL-94V-0, contacts made of nickel, gold-plated 0.5µ, shielding nickel-plated bronze |
| More information | 8P8C, 1:1, mating cycles ≥ 750 (ISO/IEC 11801, IEC 60603-7-5), insertion force 30N max. (IEC 60603-7-5), tensile load 7.7kg between socket and plug |
