HDMI KVM IP Extender Set, KVM-Switch
The HDMI KVM IP Extender Set enables high-resolution transmission of HDMI AV signals in brilliant 4K UHD quality (4096x2160p at 60Hz) over a distance of up to 200 meters using CAT6...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

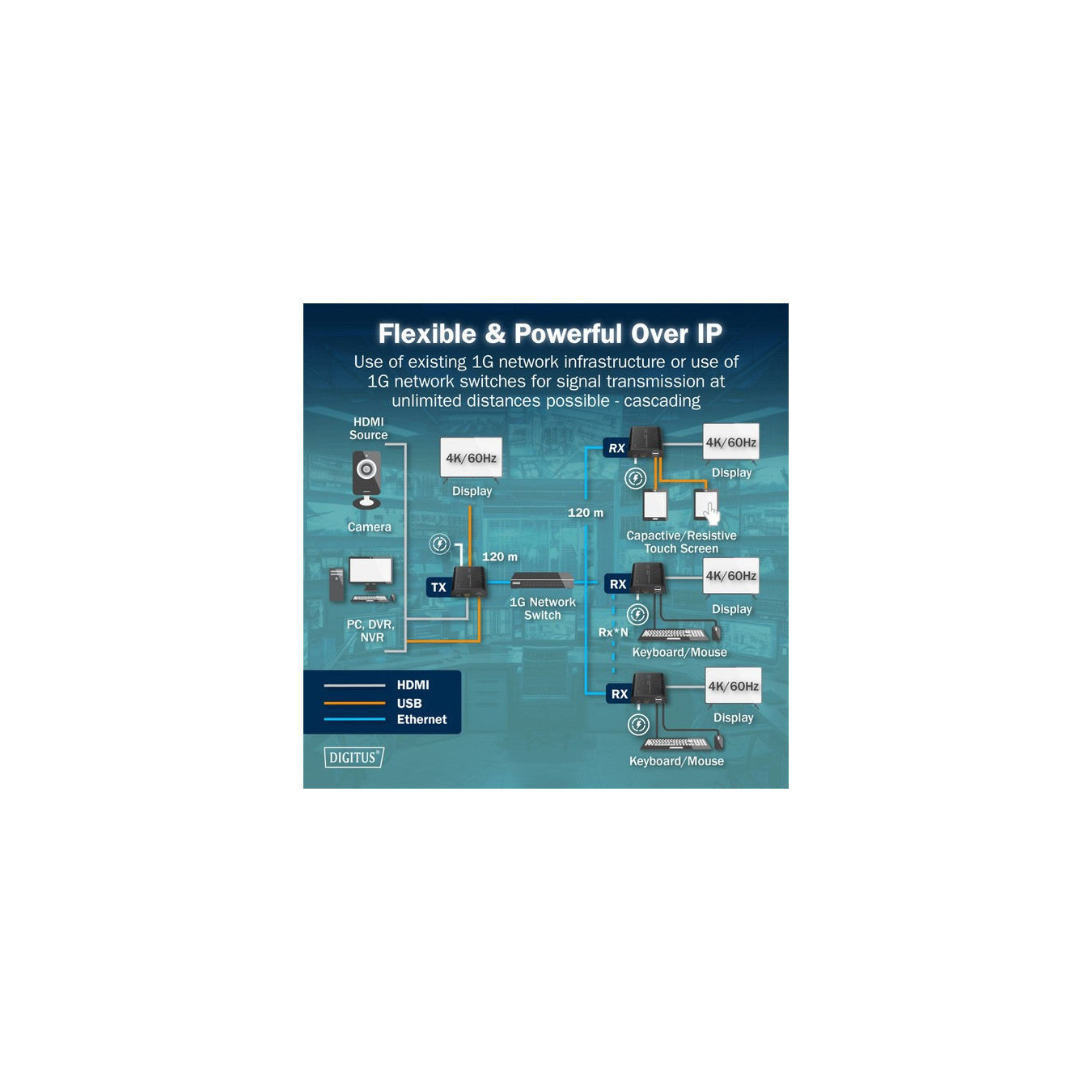

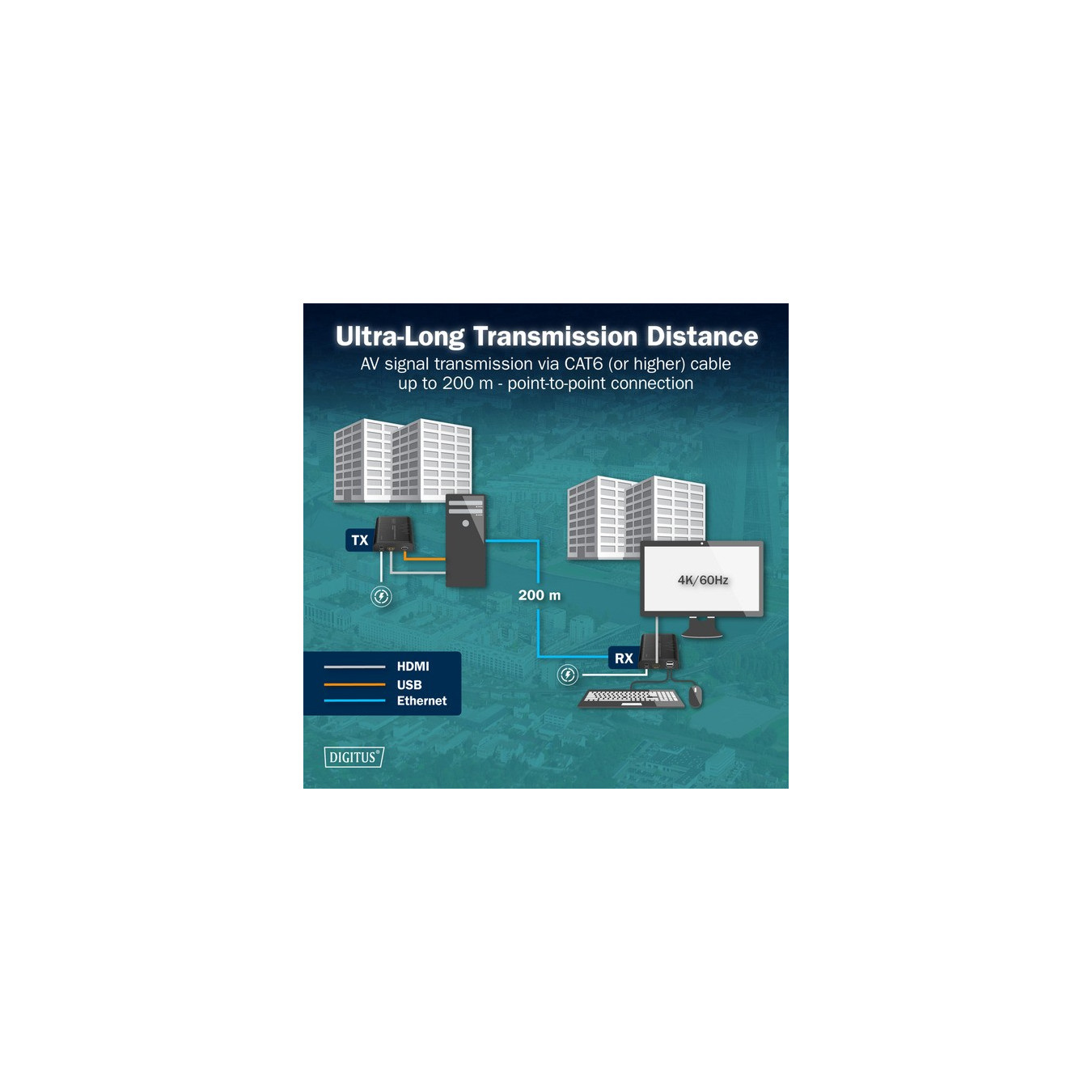

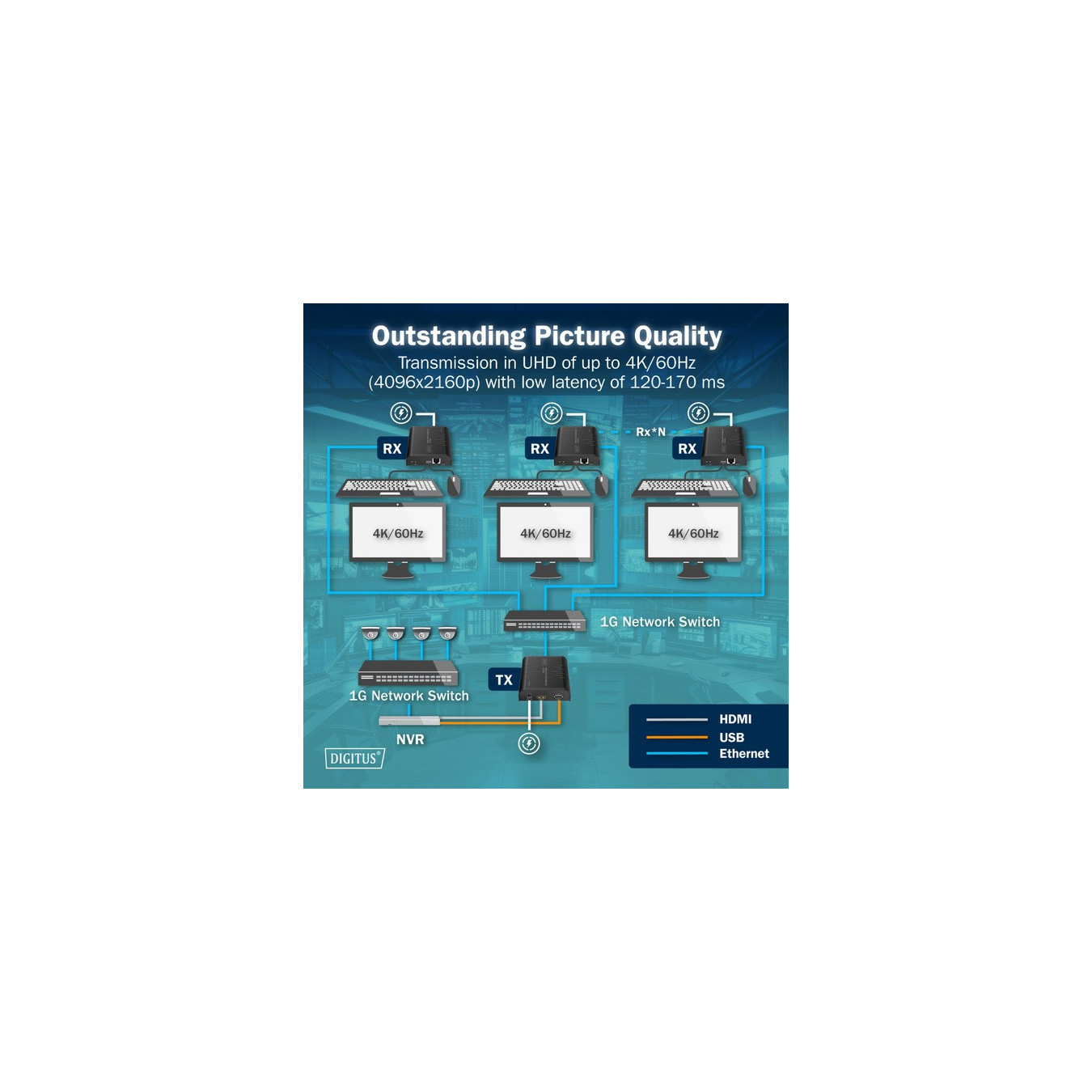

The HDMI KVM IP Extender Set enables high-resolution transmission of HDMI AV signals in brilliant 4K UHD quality (4096x2160p at 60Hz) over a distance of up to 200 meters using CAT6 or higher quality network cables. Thanks to the integrated KVM function, mouse, keyboard and touchscreen devices can be used directly on the receiver side. The system can be flexibly expanded and supports point-to-point connections as well as point-to-multipoint transmissions with up to 253 receivers. By using an existing 1G network infrastructure or using additional network switches, signal transmission can be extended to unlimited distances.
| Typ | KVM-Switch |
| Color | schwarz |
| EAN | 4016032501930 |
| Manufacturer no. | DS-55355 |
| max. supported resolution | 4096 x 2160 Pixel |
| Terminal device connections - USB | 1 |
| Connections per computer - USB | 2 |

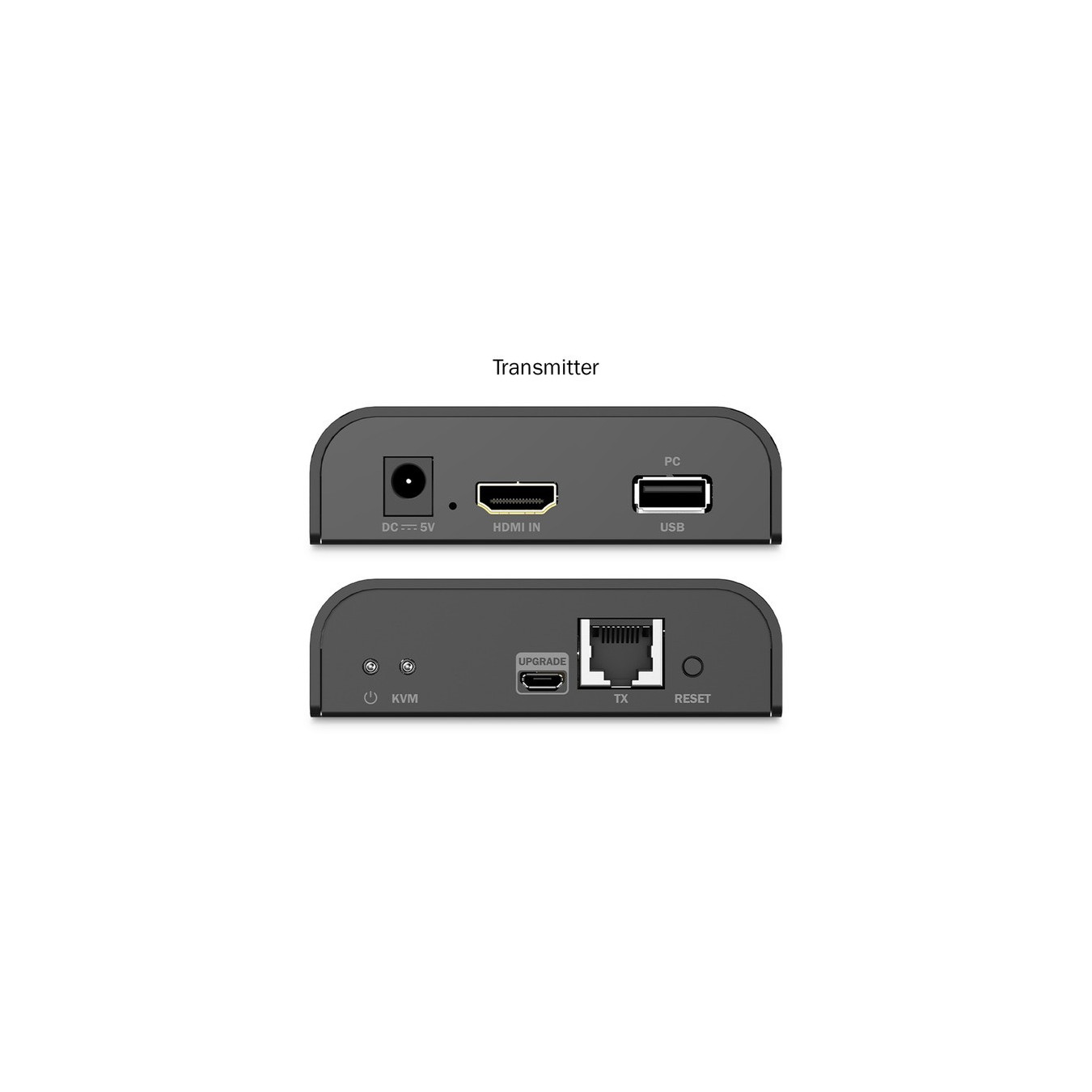

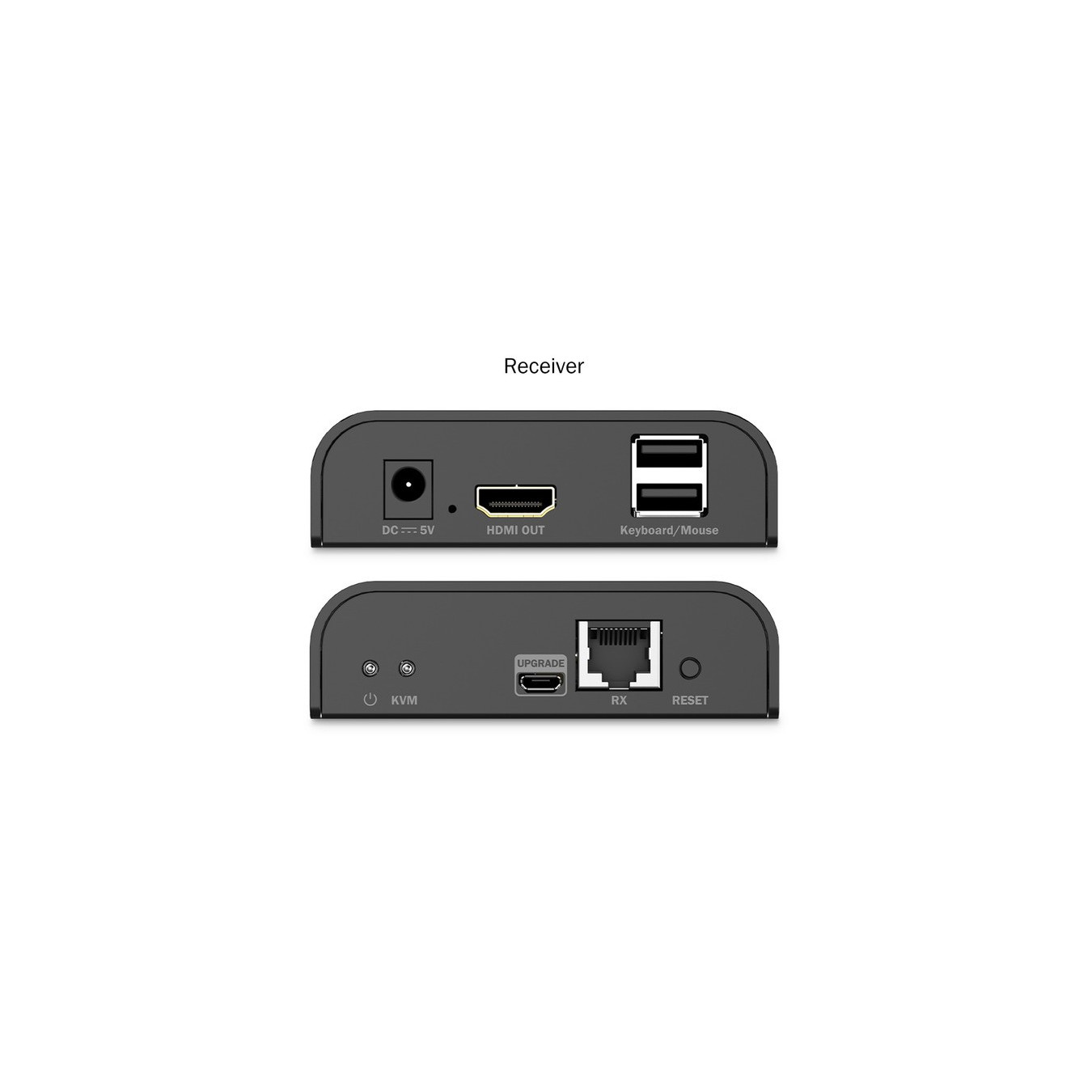

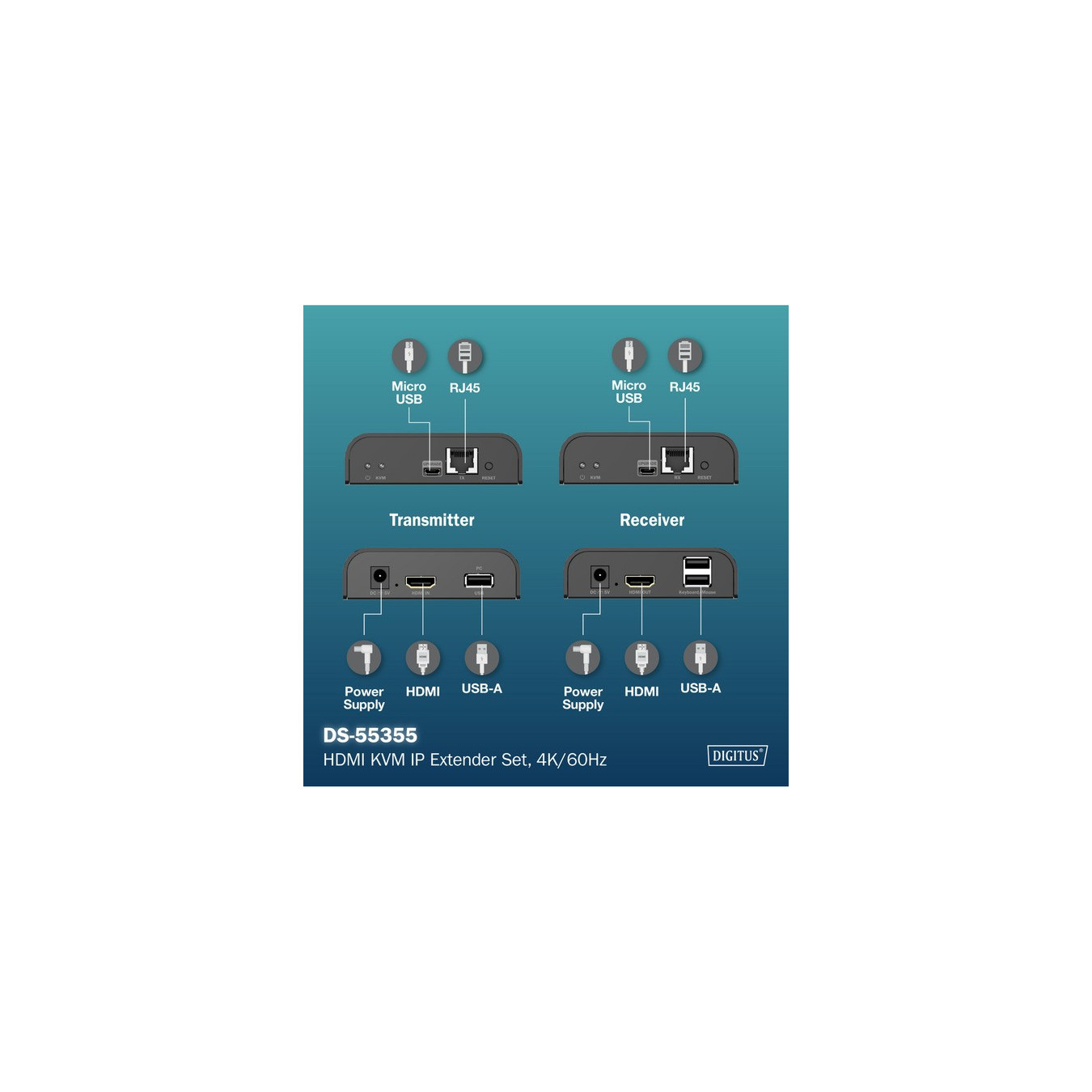

| More information | Connections for transmitter unit (TX): 1x HDMI input (4K/60Hz) - signal source connection, 1x RJ45 output (Gigabit Ethernet) - CAT transmission cable connection, 1x USB-A (2.0) - signal source connection (PC), 1x power supply connection (DC 5V/1A) - external power supply connection, 1x Micro USB - FW update port, 1x reset button, 2x status LED; Receiver unit connections (RX): 1x HDMI output (4K/60Hz) - display connection, 1x RJ45 input (Gigabit Ethernet) - CAT transmission cable connection, 2x USB-A (2.0) - mouse, keyboard, touch display connection, 1x power supply connection (DC 5V/1A) - external power supply connection, 1x Micro USB - FW update port, 1x reset button, 2x status LED |
| Notice | Dimensions (1 unit): L 10.9 x W 8.95 x H 2.63 cm; Weight: TX 240g, RX 243g |
| Accessories - optional | Receiver DS-55356 |
| Warnings and safety information | Safety instructions: If the device is powered by a plug-in power supply, make sure that the power adapter is connected correctly and meets the specified requirements (e.g. voltage and current). Only use certified CAT5e or CAT6 cables to ensure stable signal transmission. For particularly long cable routes or in environments prone to interference, it is recommended to use shielded network cables. Please note that all connections are tight and secure to avoid loose connections that could affect signal quality. Make sure the HDMI and Ethernet ports are connected properly. To avoid signal interference, ensure that the CAT cable is not installed near high-voltage power lines or other sources of strong electromagnetic interference. Only operate the device within the specified temperature range. Do not use the device outdoors or in damp or wet environments Regularly check all connections and cables for wear or damage. Especially with frequent use or long installations, cables and connectors can wear out, resulting in poor performance signal quality or system failure. |
