CAT 8.1 field connector, shielded, tool-free
The CAT 8.1 RJ-45 connector DN-93838 for field assembly with a tool-free assembly connection impresses with its future-oriented standards and high-end quality for the network. The ...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

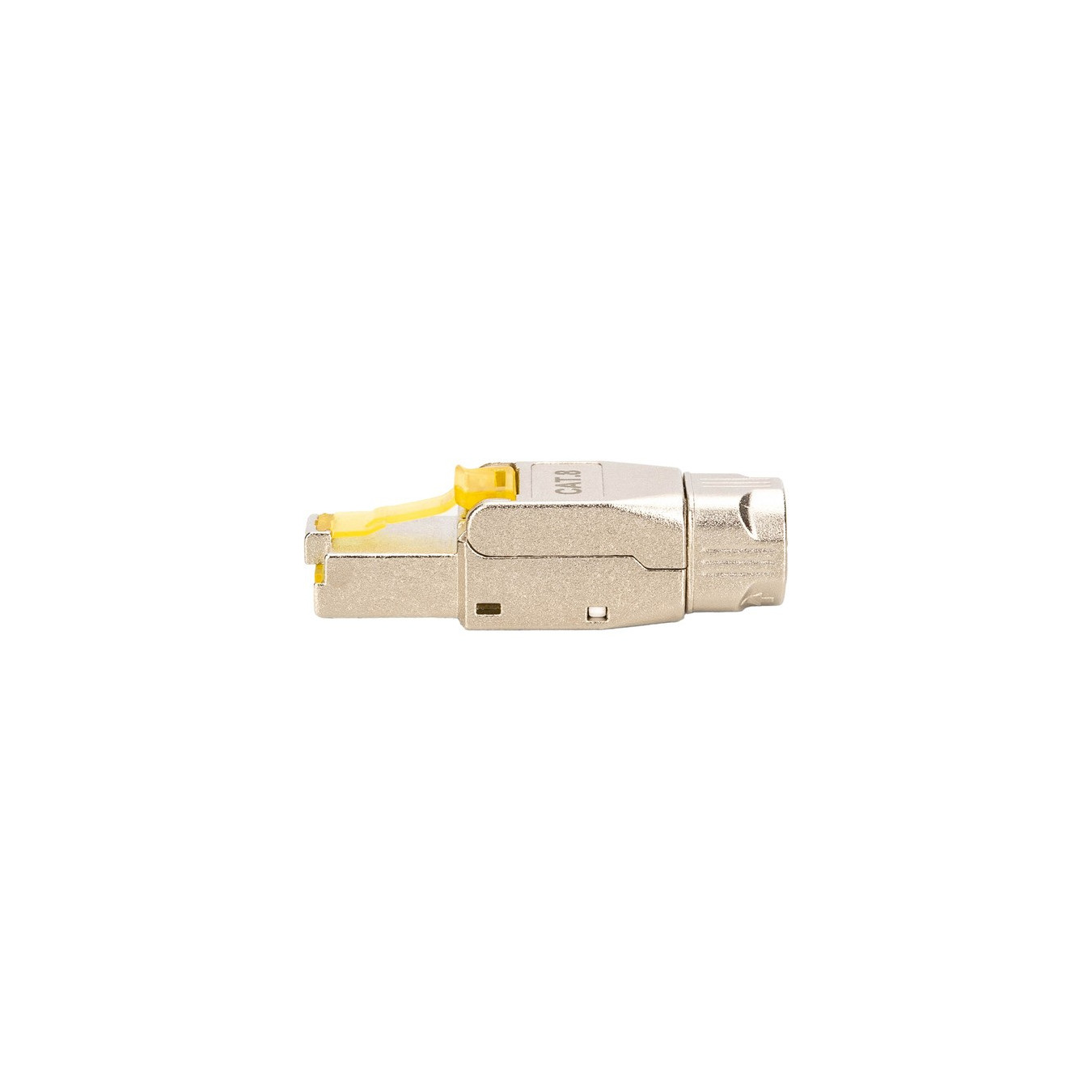

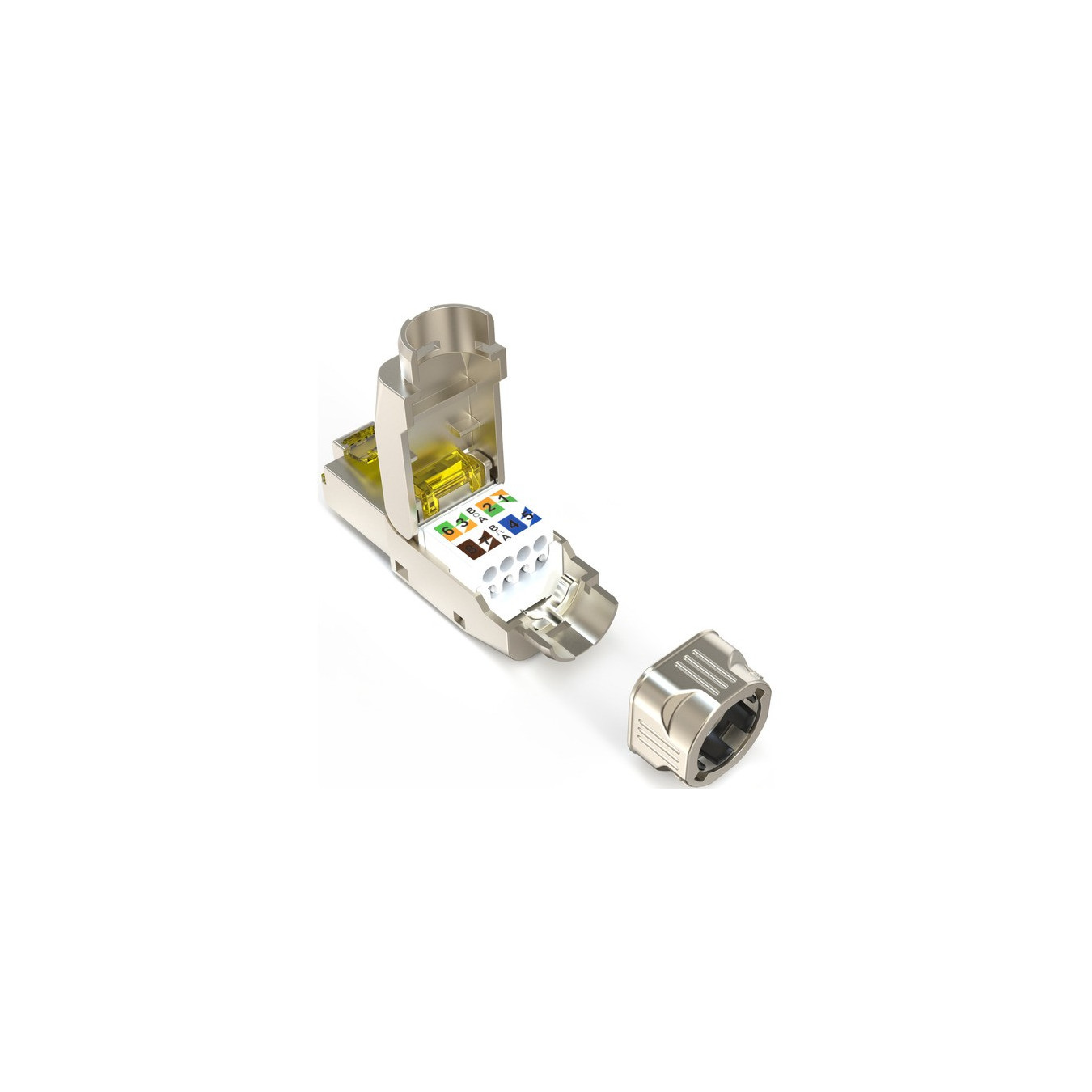

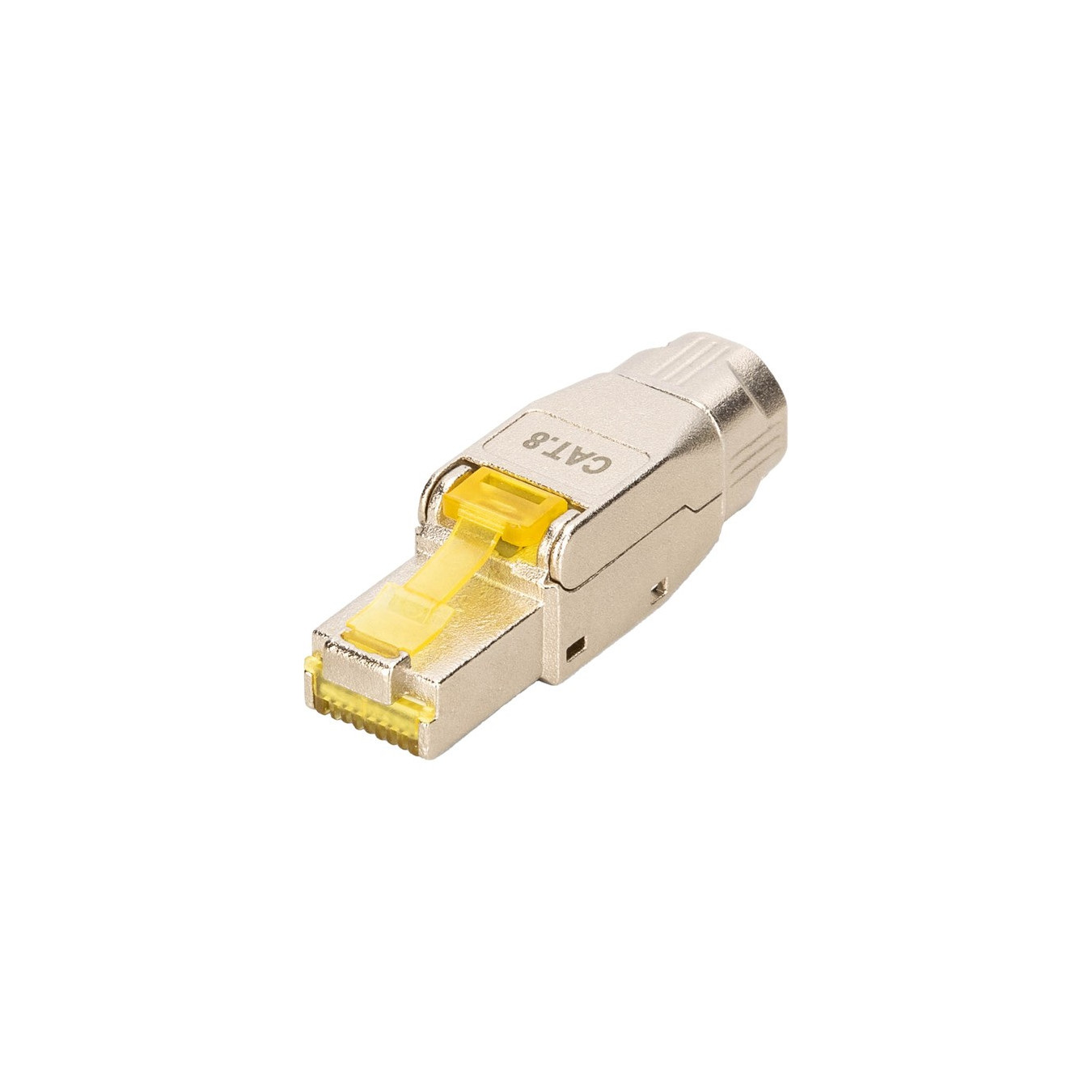

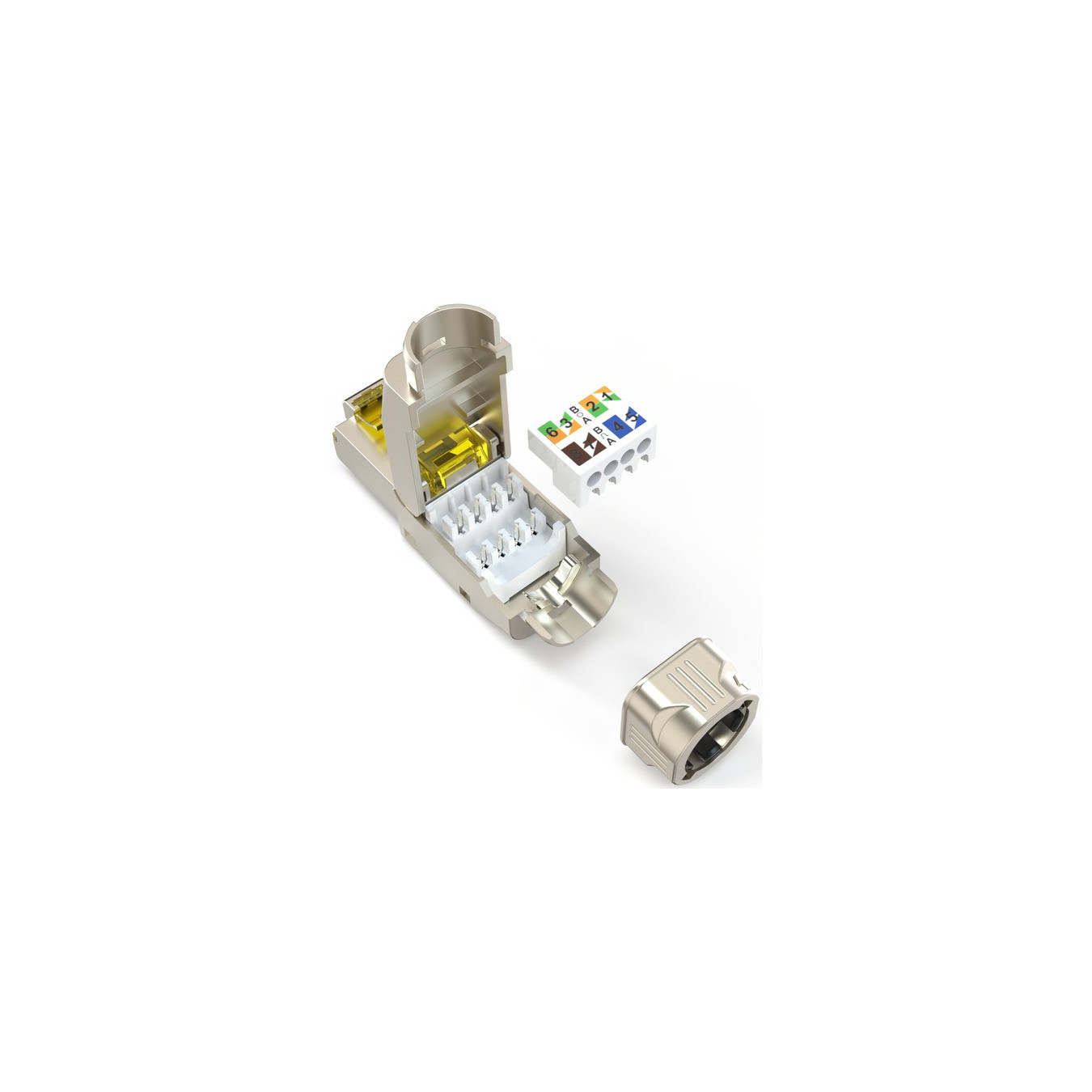

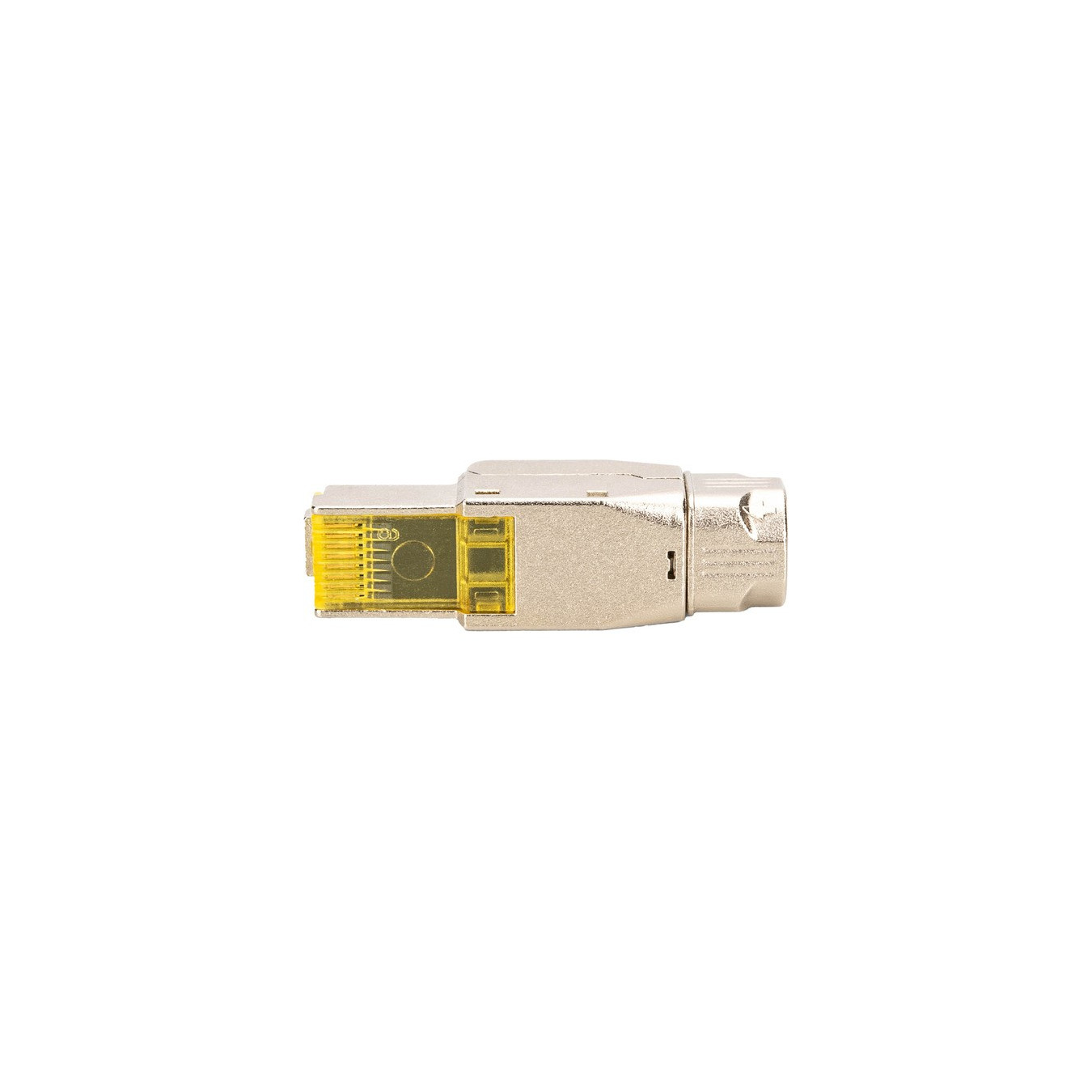

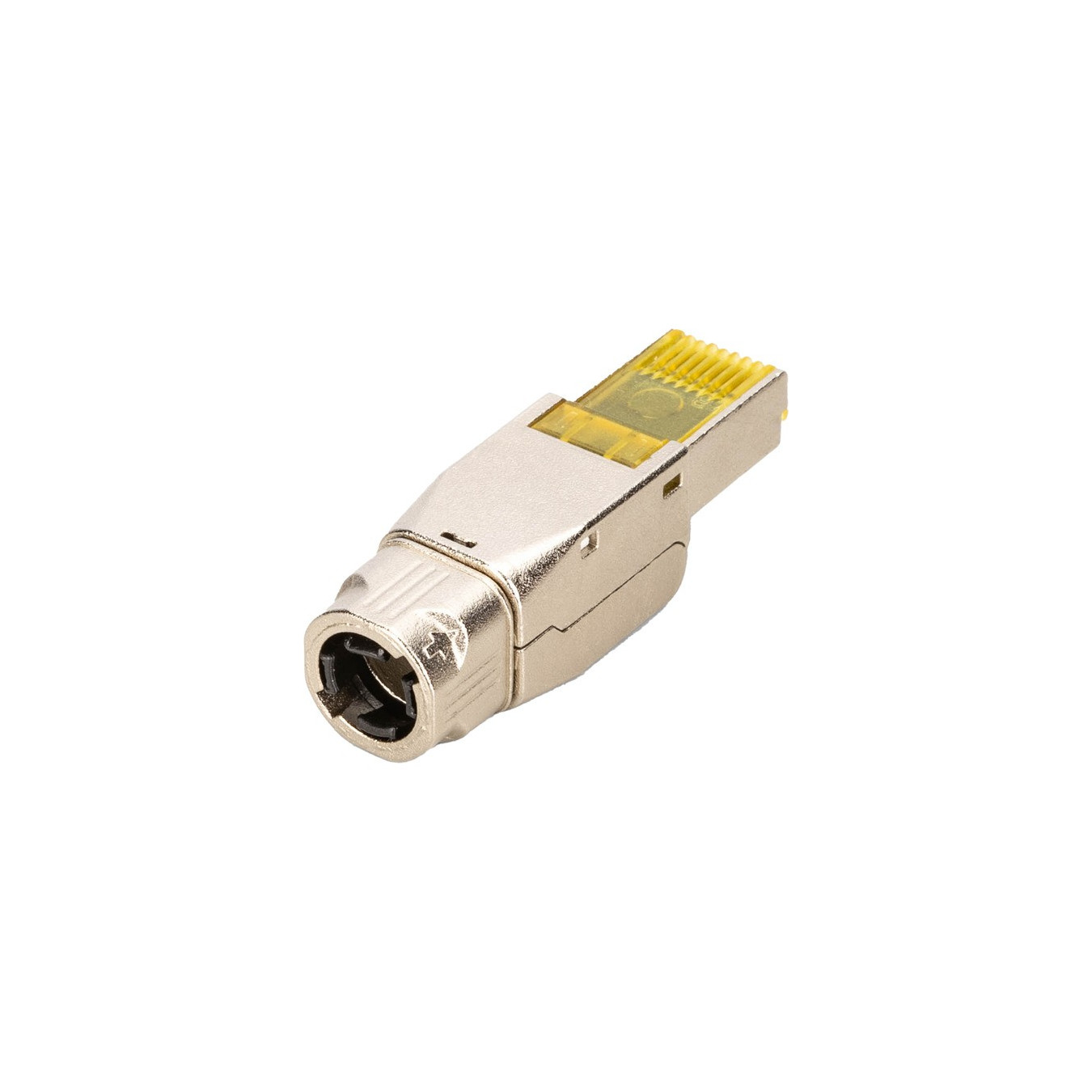

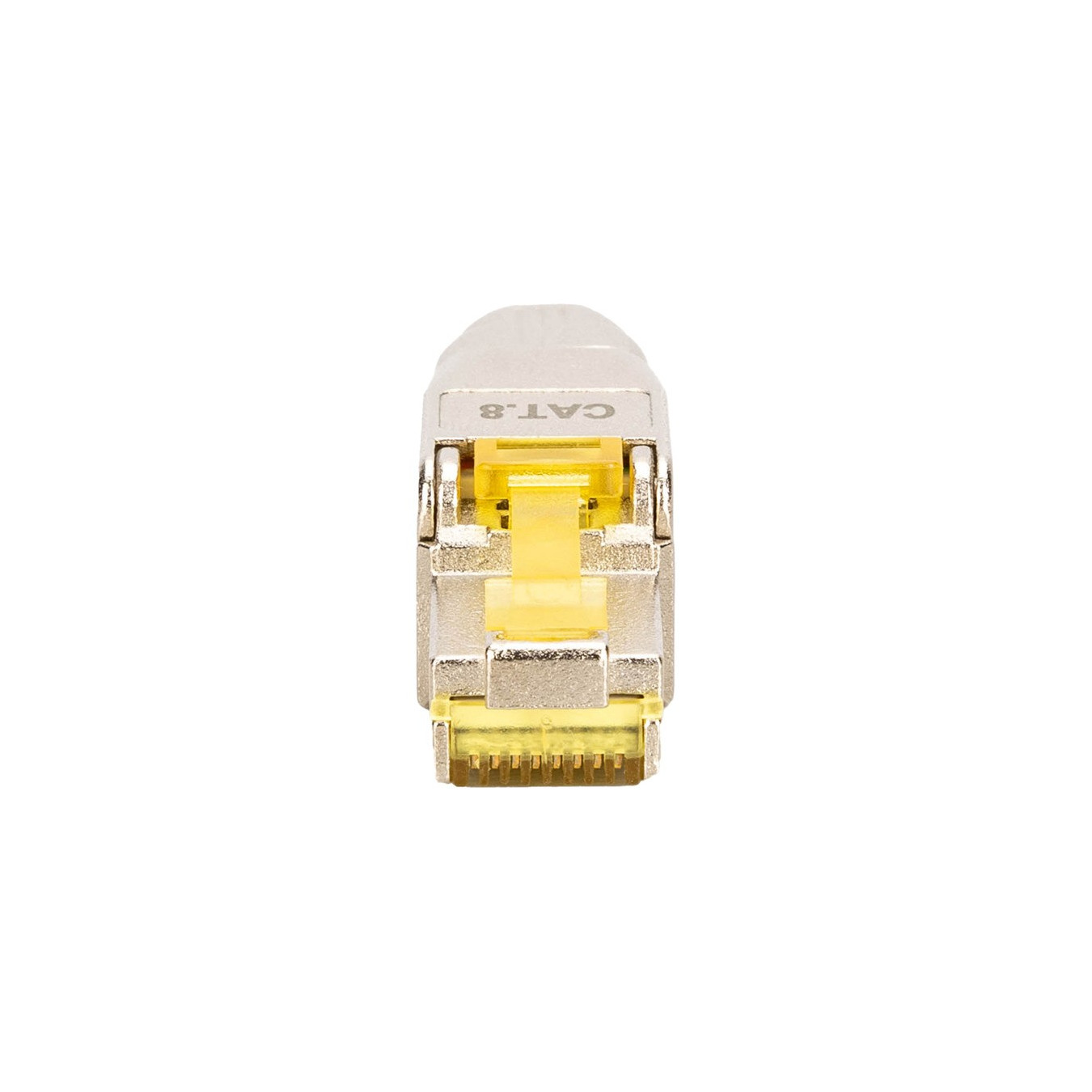

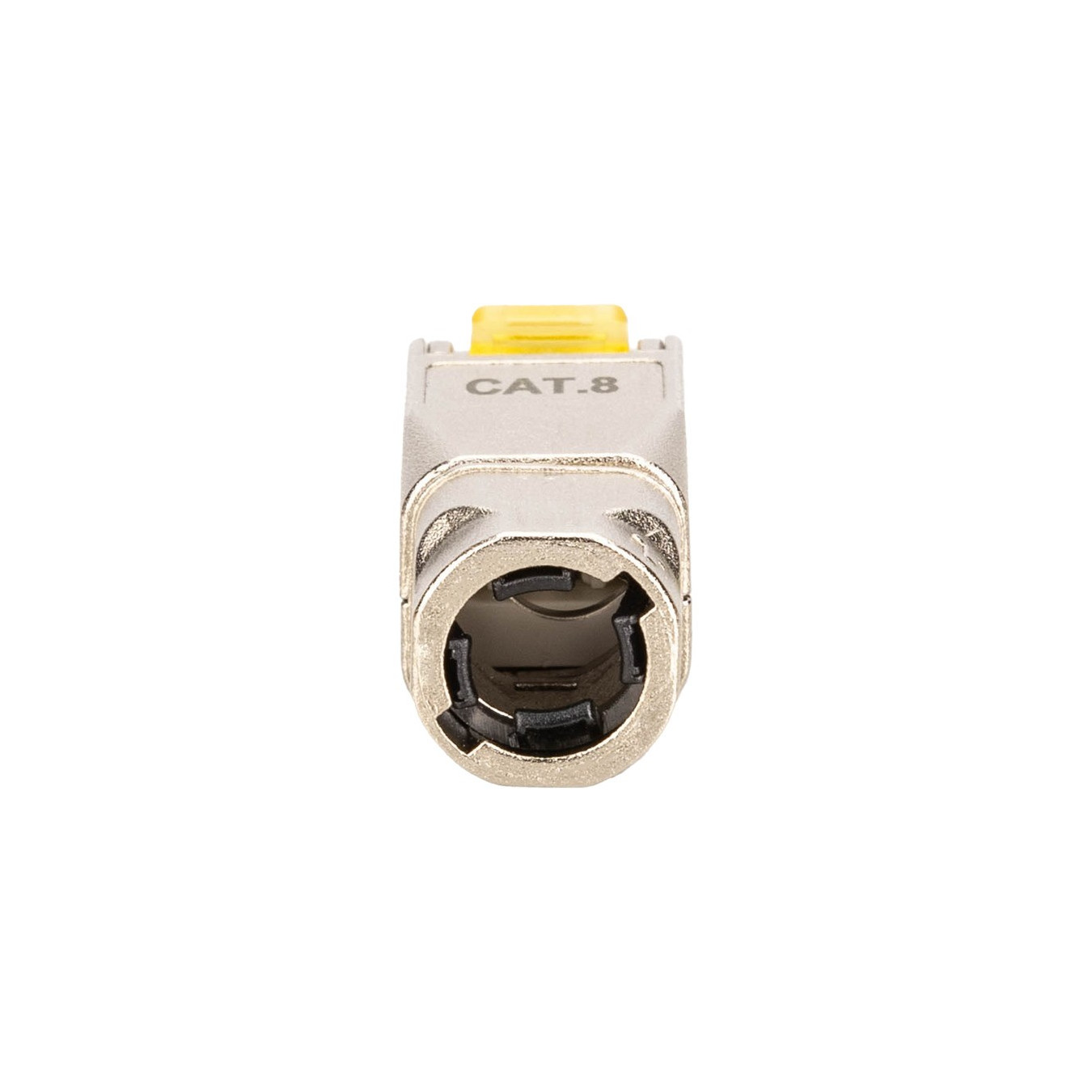

The CAT 8.1 RJ-45 connector DN-93838 for field assembly with a tool-free assembly connection impresses with its future-oriented standards and high-end quality for the network. The field connector is suitable for patch cable assembly with solid and stranded conductor cables. It is compliant with Category 8.1 / 25/40GBase-T ISO/IEC 11801, IEC 60603-7-81. The robust metal housing ensures long-lasting, stable connections. The quick assembly without special tools makes this field connector the optimal choice for installation, repair and maintenance.
| Typ | Plug |
| EAN | 4016032499381 |
| Manufacturer no. | DN-93838 |
| Manufactured in | China |
| Connection | RJ-45 (plug), Cat.8.1 |
| use | For patch cable AWG (26/7 - 22/1) |
| Number | 1 piece |
| Area | network |
| Characteristics | extern |
| Feature | Robust die-cast zinc housing, 360° shield contact, gold-plated contacts, strain relief and cable fixation using a screw cap, suitable for PoE/ PoE+/ 4PPoE (IEEE 802.3af, 3at, 3bt) |
| More information | For conductor cross-sections AWG 26/7 - 22/1, stranded and solid wire, 25/40 GBase-T, 2,000 MHz, operating temperature -20°C to +70°C, cable installation via LSA insulation displacement terminal, color-coded according to EIA/TIA 568 A&B, mating cycles > 1,500 (ISO/IEC 11801, IEC 60603-7-81) |
