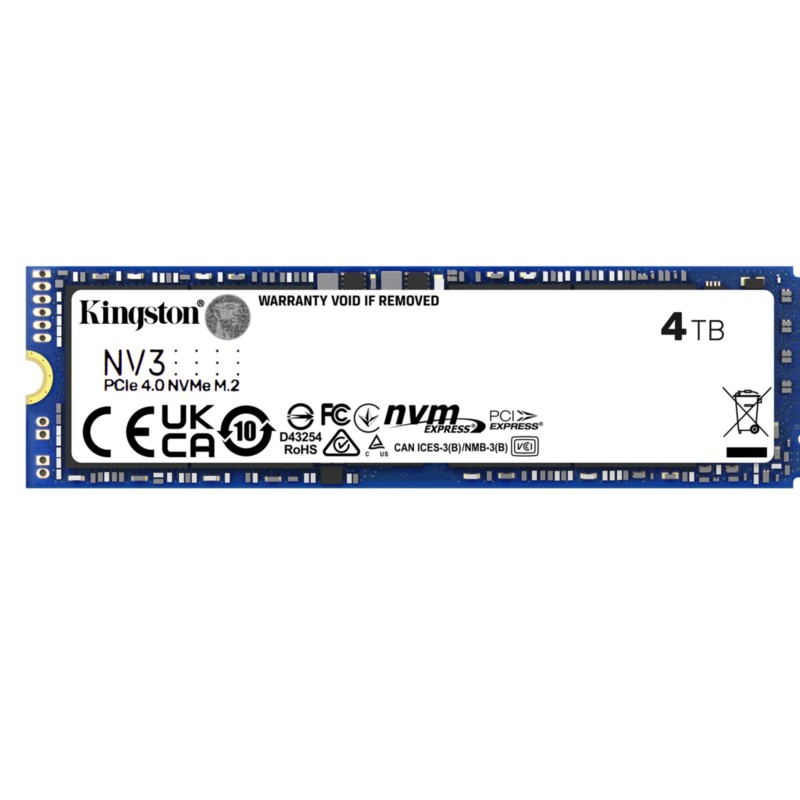

Kingston NV3 SSD - SNV3S/4000G - 4TB M.2 NVMe PCIe Gen4 x4 (High-Speed, Low-Power)

SKU 5090 Brand Kingston EAN13 0740617346602
Kingston NV3 4TB M.2 NVMe SSD (SNV3S/4000G) — PCIe Gen4 x4, up to 6,000/5,000 MB/s read/write, single-sided M.2 for laptops, ultrabooks and small-form-factor PCs.
Storage (SSD & HDD) - Type SSD
Storage (SSD & HDD) - Capacity 4TB
Storage (SSD & HDD) - Interface NVMe PCIe Gen4 x4
Storage (SSD & HDD) - PCIe Version (SSD) Gen4
Storage (SSD & HDD) - PCIe Lanes (SSD) x4
Storage (SSD & HDD) - Intended Use Laptop

For high-speed, low-power storage needs
Kingston’s NV3 PCIe 4.0 NVMe SSDs are next-gen storage solutions powered by a Gen 4x4 NVMe controller, delivering read/write speeds of up to 6,000/5,000MB/s*. They come in both compact, single-sided M.2 2280 (22x80mm) and 2230 (22x30mm) sizes to expand storage in small-form-factor systems like laptops and handheld gaming consoles*****. They offer lower power consumption and reduced heat, optimising your system's performance without compromising value. Available in capacities from 500GB– 4TB** to give you all the space you need for applications, documents, photos, videos, games and more.


Gen 4x4 NVMe PCIe performance
Upgrade your system with read/write speeds up to 6,000/5,000MB/s*.

Small size, big performance

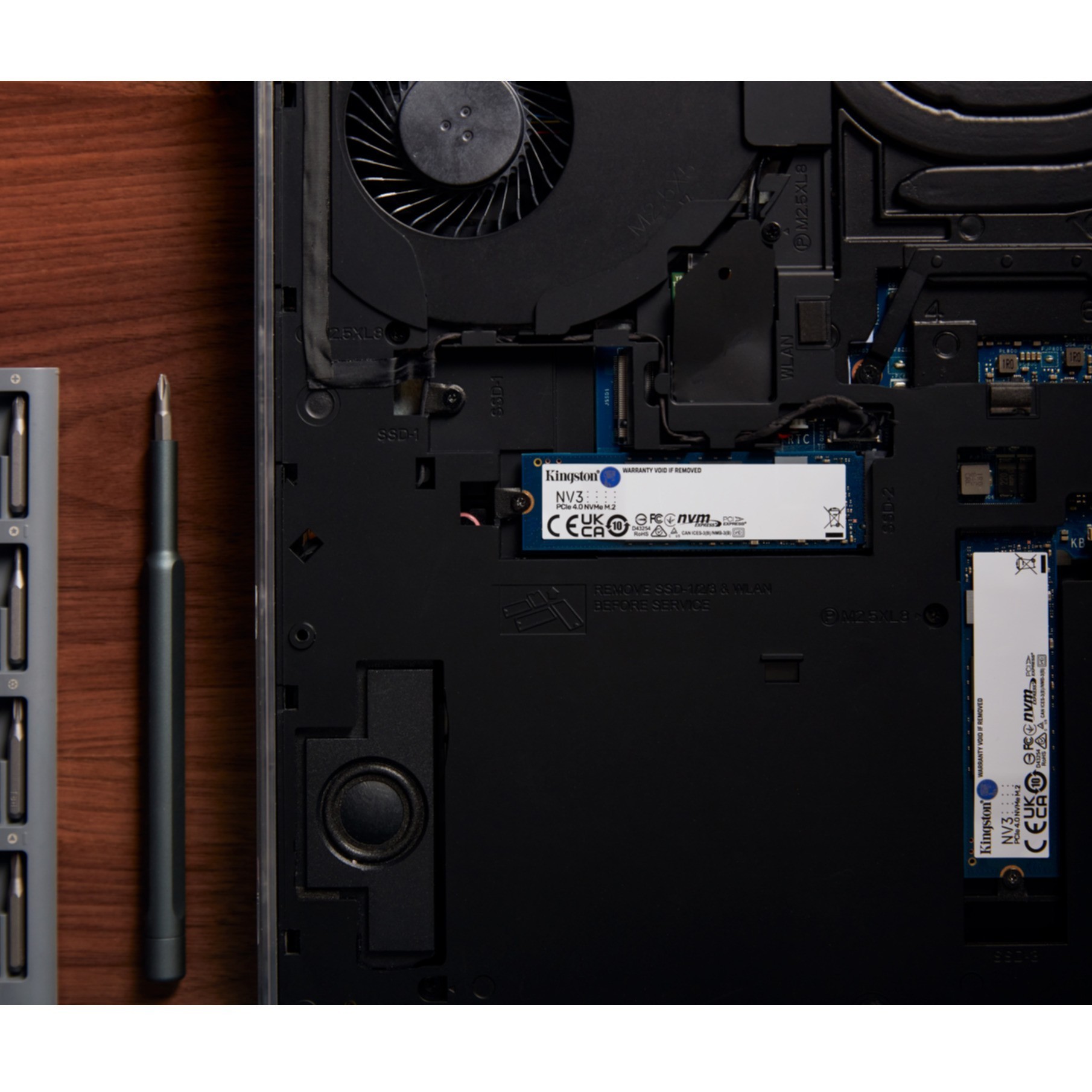

NV3 2280 and 2230 easily integrate into thin laptops and ultra-small PCs with M.2 connectors and limited space.

Increased storage space
Available in a variety of high capacities up to 4TB**, providing ample space to store files, videos, documents, and games with room to spare.

Store more, play more
With NV3 2230 upgrade compatible handheld gaming systems to get in the game faster*****.


SSD capacity4 TB
SSD form factorM.2
InterfacePCI Express 4.0
NVMeYes
Memory type3D NAND
Component forPC/Laptop
M.2 SSD size2280 (22 x 80 mm)
Read speed6000 MB/s
Write speed5000 MB/s
Mean time between failures (MTBF)2000000 h
TBW rating1280
Width22 mm
Depth80 mm
Height2.3 mm
Weight6.9 g
Package width129.5 mm
Package depth8.38 mm
Package height184.2 mm
Package weight30.41 g
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating vibration10 G
Country of originChina, Taiwan
Master (outer) case width135.9 mm
Master (outer) case length203.2 mm
Master (outer) case height69.8 mm
Master (outer) case gross weight382.13 g
Products per master (outer) case10 pc(s)
