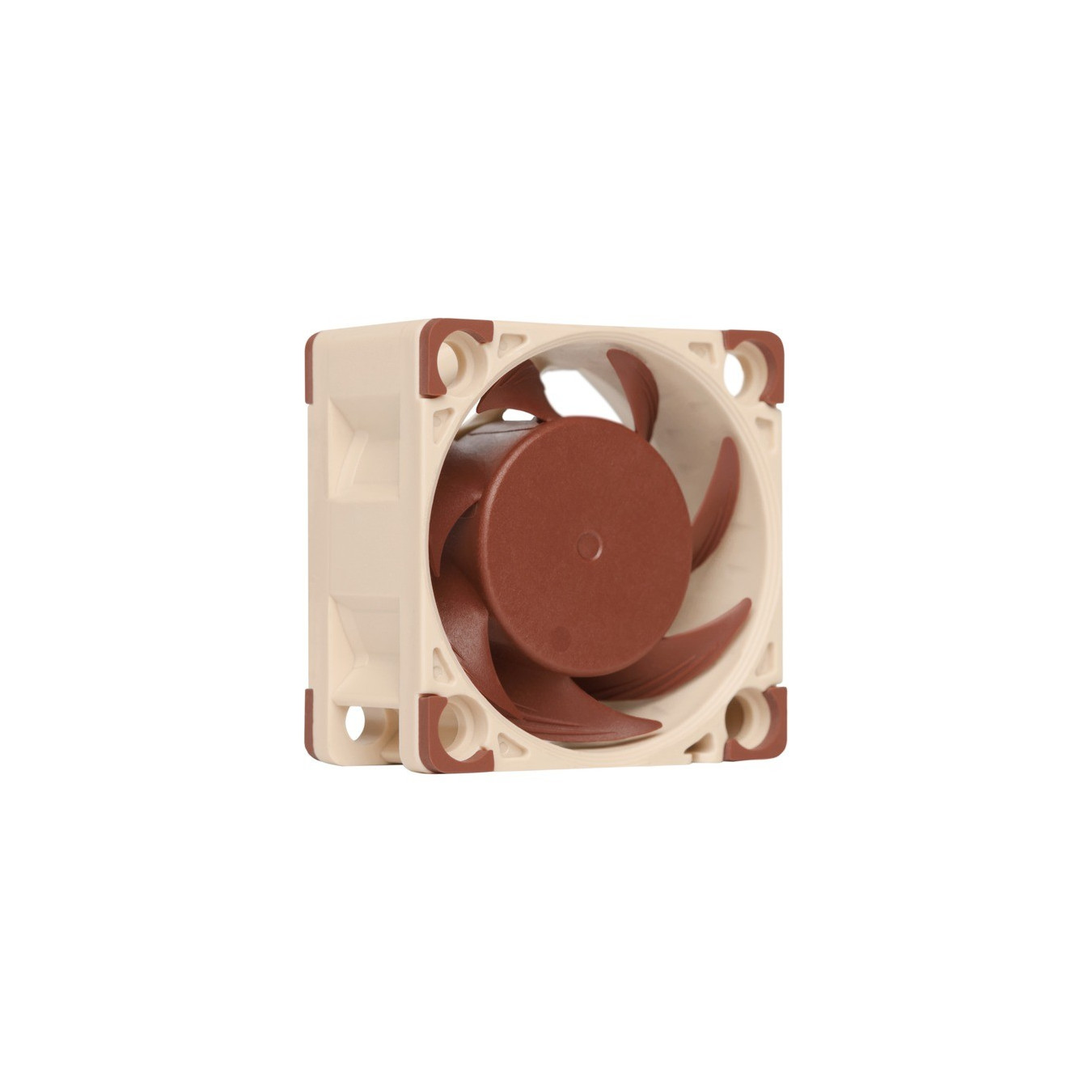

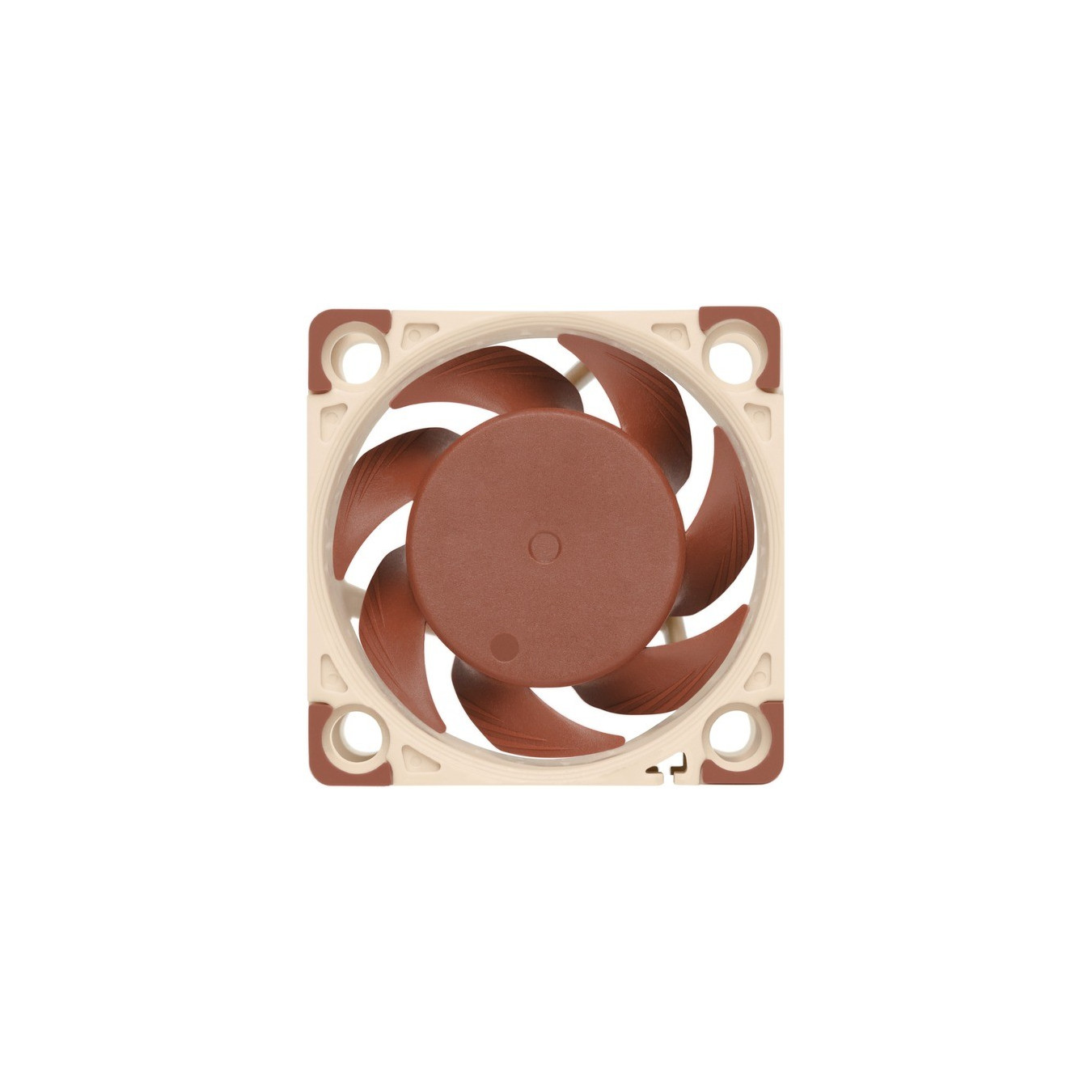

NF-A4x20 5V PWM, case fan
The NF-A4x20 5V PWM is a special PWM controllable 5V version of Noctua's highly optimized silent 40x20mm premium fan that uses the AAO frame system and advanced aerodynamic design ...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

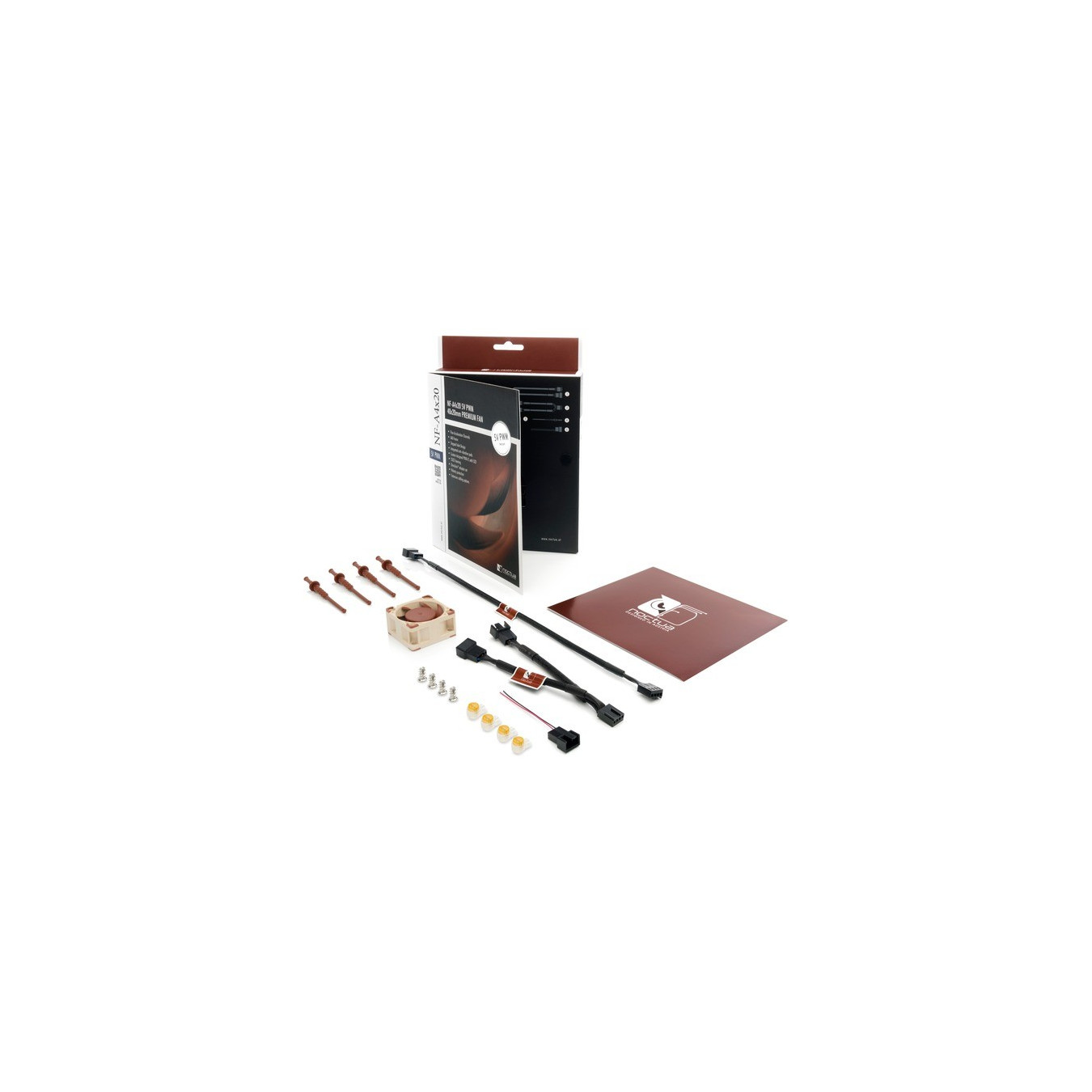

The NF-A4x20 5V PWM is a special PWM controllable 5V version of Noctua's highly optimized silent 40x20mm premium fan that uses the AAO frame system and advanced aerodynamic design measures such as Flow Acceleration Channels. The specially designed NE-FD3 PWM IC with integrated Smooth Commutation Drive technology as well as the reference class bearing SSO2 offer excellent smooth running and excellent long-term stability. Modular cabling and the OmniJoin adapter set make the NF-A4x20 5V PWM a premium solution for demanding 5V applications with PWM control.
| Typ | Case fan |
| EAN | 9010018100136 |
| Manufacturer no. | NF-A4x20 5V PWM |
| Art | Case fan |
| volume | 14,9 dB |
| speed | 1,100 to 5,000 U/min |
| Fan storage | SSO 2 |
| Volume flow | 9,4 m³/h (5,5 cfm) |
| Air pressure | Up to 2.26 mm/H2O |
| Power connection | 4-Pin-PWM |
| Voltage range | 5 Volt |
| Power consumption | 0,5 Watt |
| More information | As a 5V fan, the NF-A4x20 5V cannot be operated with 12V! Operation on common 12V power sources such as fan connectors on PC motherboards will damage the fan. |
| Notice | AAO (Advanced Acoustic Optimisation), A-Serie mit Flow Acceleration Channels, Betriebsspannung: 5 Volt |
| Dimensions - Fan1 | Quantity: 1 piece, width: 40 mm, height: 40 mm, depth: 20 mm |
| Weight - Total | 186 Gramm |
