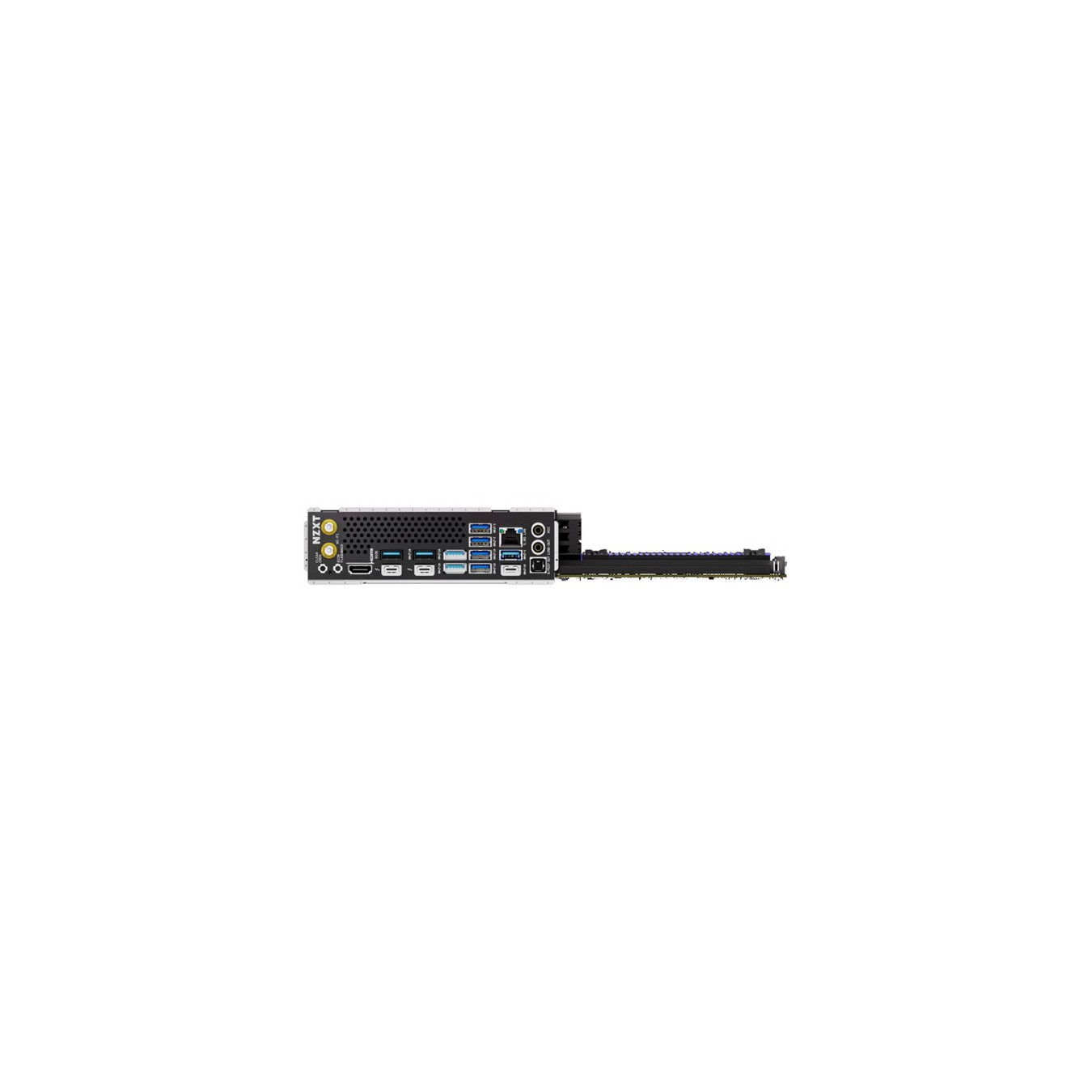

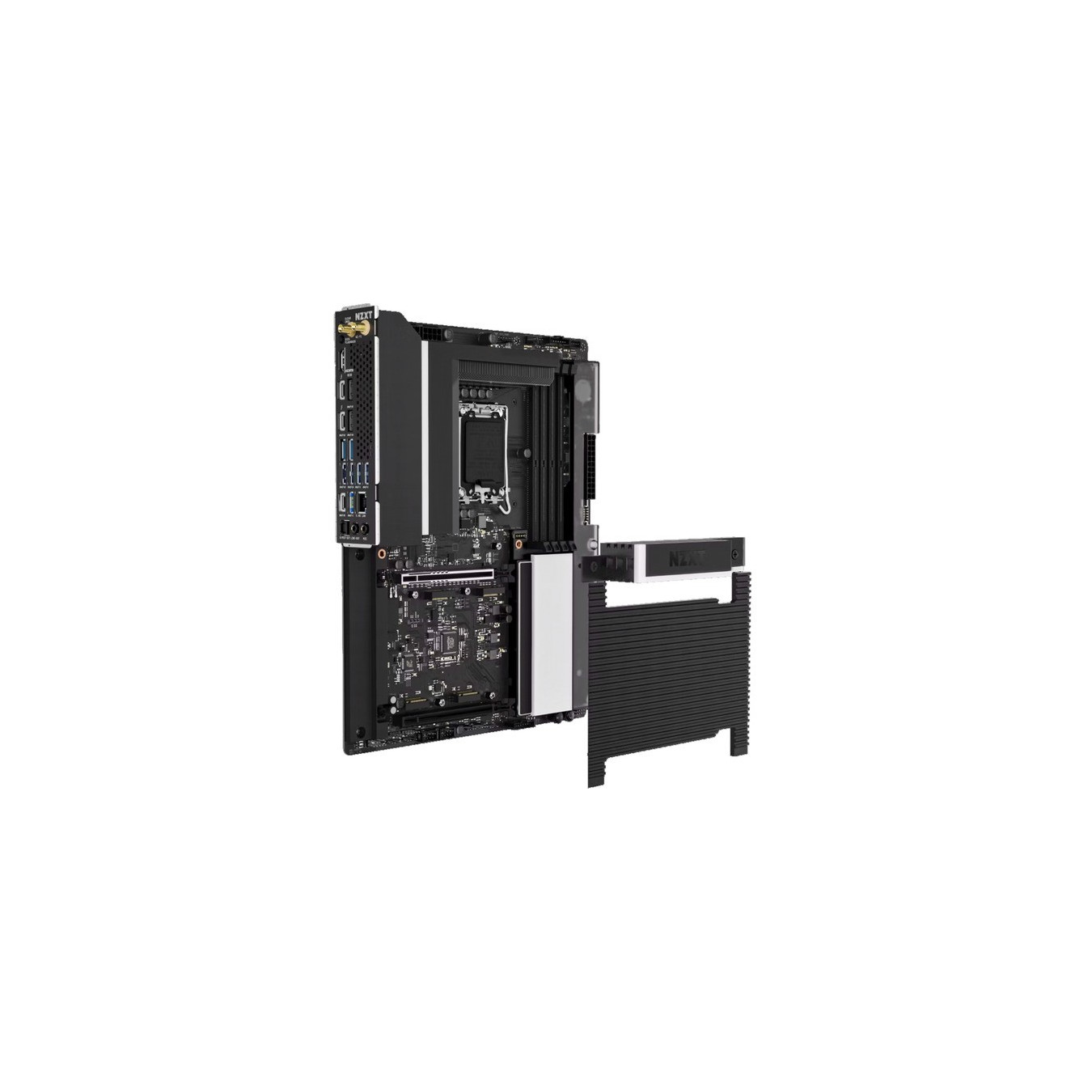

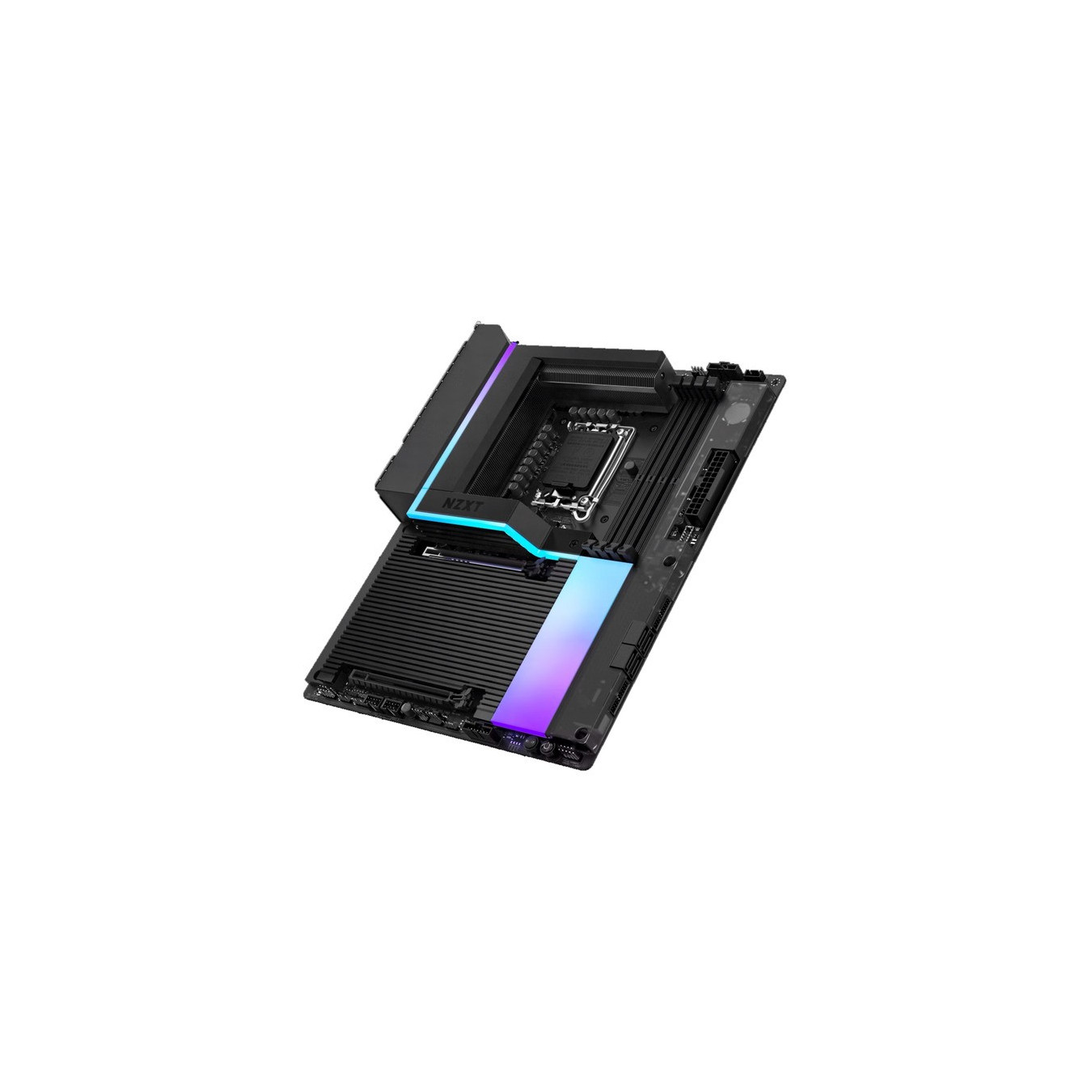

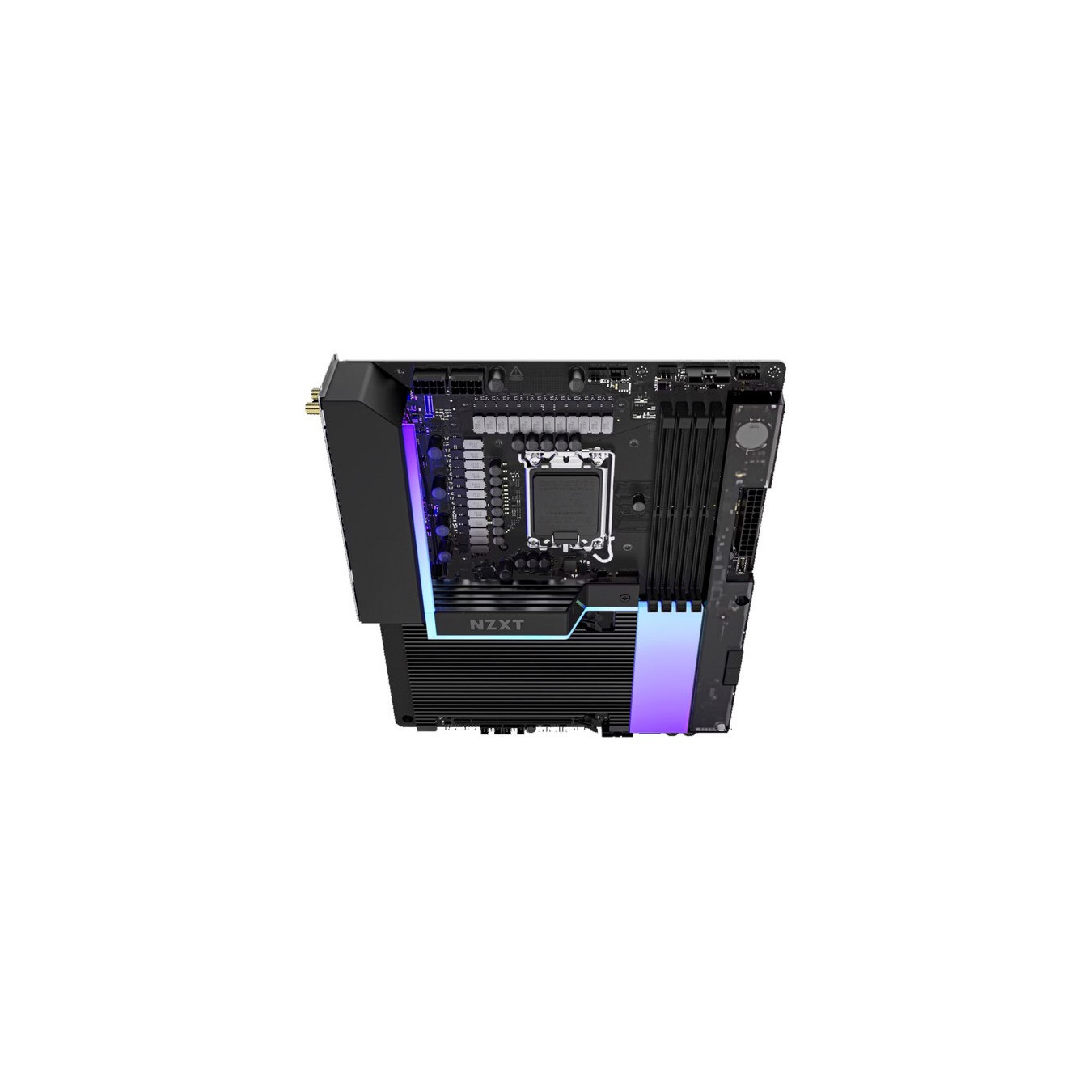

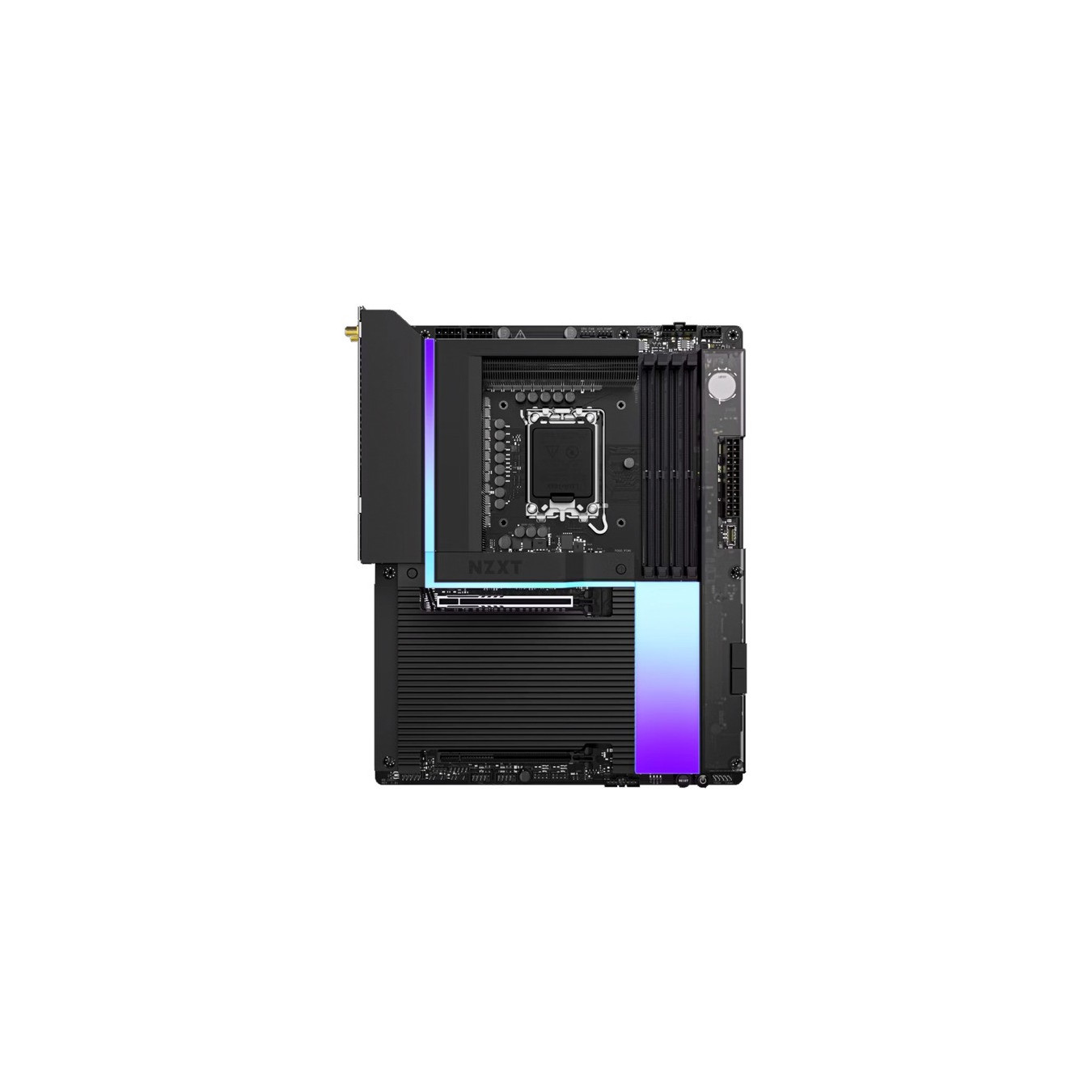

N9 Z890 Black, Mainboard
The NZXT N9 Z890 Black is based on the Intel® Z890 chipset and supports Intel® processors for Socket 1851. It has four DDR5 slots for up to 256 GB of memory. The NZXT N9 Z890 Black...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The NZXT N9 Z890 Black is based on the Intel® Z890 chipset and supports Intel® processors for Socket 1851. It has four DDR5 slots for up to 256 GB of memory. The NZXT N9 Z890 Black's additional features include a PCIe 5.0 x16 slot and a PCIe 4.0 x16 slot (x2 lanes). The NZXT N9 Z890 Black also has 8-channel sound, a 5 Gigabit LAN interface, WiFi 7, Bluetooth 5.4, four SATA3 ports, five M.2 ports and a number of USB interfaces.
| Typ | Mainboard |
| Color | schwarz |
| EAN | 5056547206196 |
| Manufacturer no. | N9-Z89XT-B1 |
| base | 1851 |
| Max. supported CPUs | 1 |
| Operating system support | Windows 10 ready, Windows 11 ready |
| Processor - Supported Models | Core Ultra 5 2xx (Arrow Lake), Core Ultra 5 2xxF (Arrow Lake), Core Ultra 5 2xxK (Arrow Lake), Core Ultra 5 2xxKF (Arrow Lake), Core Ultra 5 2xxT (Arrow Lake), Core Ultra 7 2xx (Arrow Lake), Core Ultra 7 2xxF (Arrow Lake), Core Ultra 7 2xxK (Arrow Lake), Core Ultra 7 2xxKF (Arrow Lake), Core Ultra 7 2xxT (Arrow Lake), Core Ultra 9 2xx (Arrow Lake), Core Ultra 9 2xxK (Arrow Lake), Core Ultra 9 2xxKF (Arrow Lake), Core Ultra 9 2xxT (Arrow Lake) |
| Chipset | Intel® Z890 |
| Slots - PCIe x16 | 2x (davon: 1x PCIe x16, 1x PCIe x2) |
| Form factor | ATX |
| use | PC |
| Power supply | ATX12V (24-Pin + 2x 8-Pin) |
| Memory - maximum | 256 GB |
| Ports (external) - USB-C 3.2 Gen 2x2 (20 Gbit/s) | 1 |
| Connectors (internal) - SATA | 4 |
| Ports (optional) - USB 3.2 Gen 1 (5Gbps) | 4 |
| SATA Controller | Intel® Z890 |
| directly usable RAID levels | 0, 1, 10, 5 |
| USB-Controller | Intel® Z890 |
| Onboard Graphics | The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. |
| Sound | Realtek® ALC4082 |
| LAN | Realtek® 5G LAN |
| Features | 2x Thunderbolt 4 USB-C DisplayPort video outputs | Support for DisplayPort 1.4 with HBR3 |
| More information | In order to support the latest processor cores, a BIOS update may be required. |
| Accessories - available | SATA cable, M.2 screws, WiFi antenna, user manual, NZXT 8-pin splitter |
| Dimensions | Width: 244mm x Height: 305mm |
