Revolution D.F.X 1650W, PC power supply

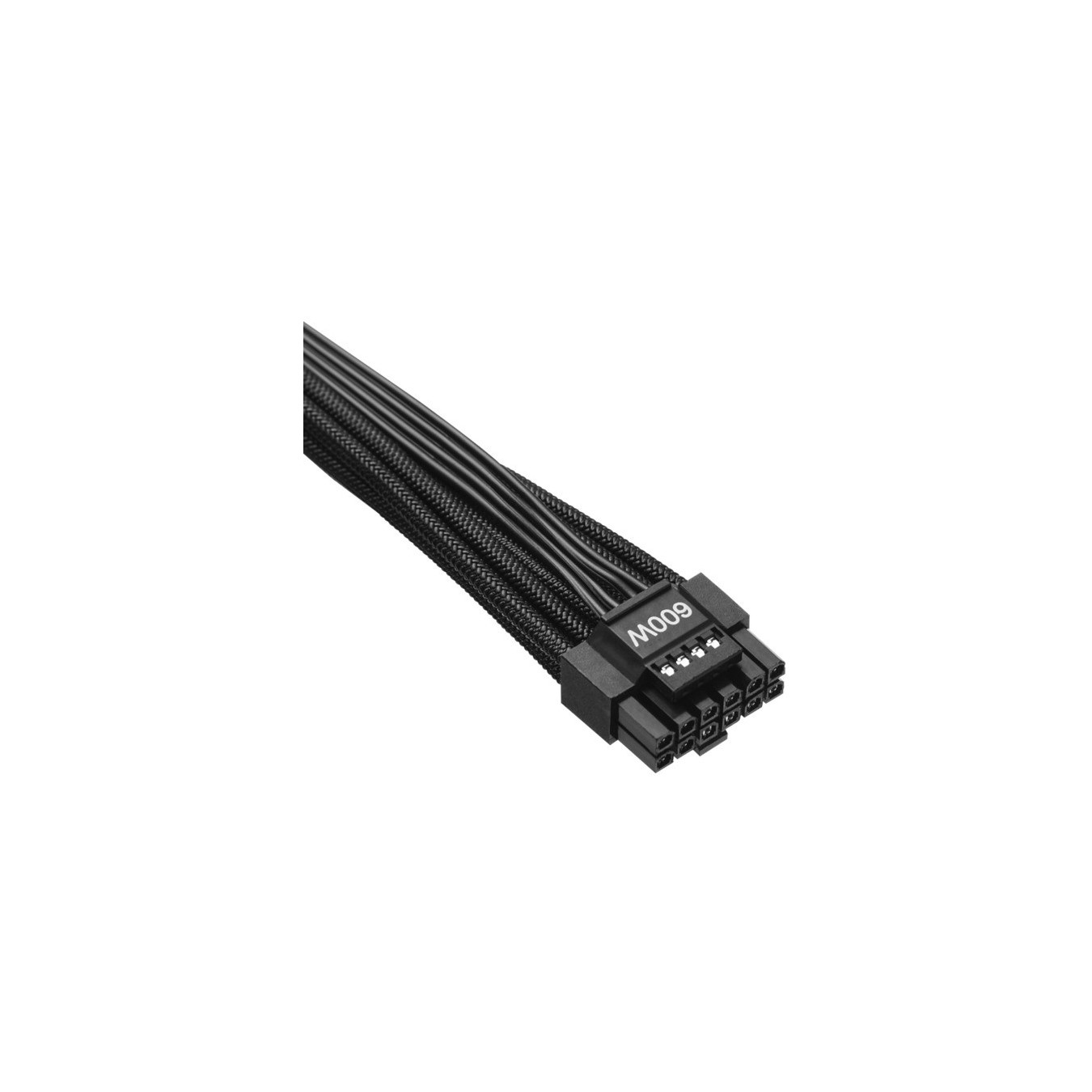

The Enermax Revolution D.F.X power supply sets standards in performance and reliability for modern systems. With ATX 3.0 compatibility and a native 12VHPWR connector for up to 600W...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

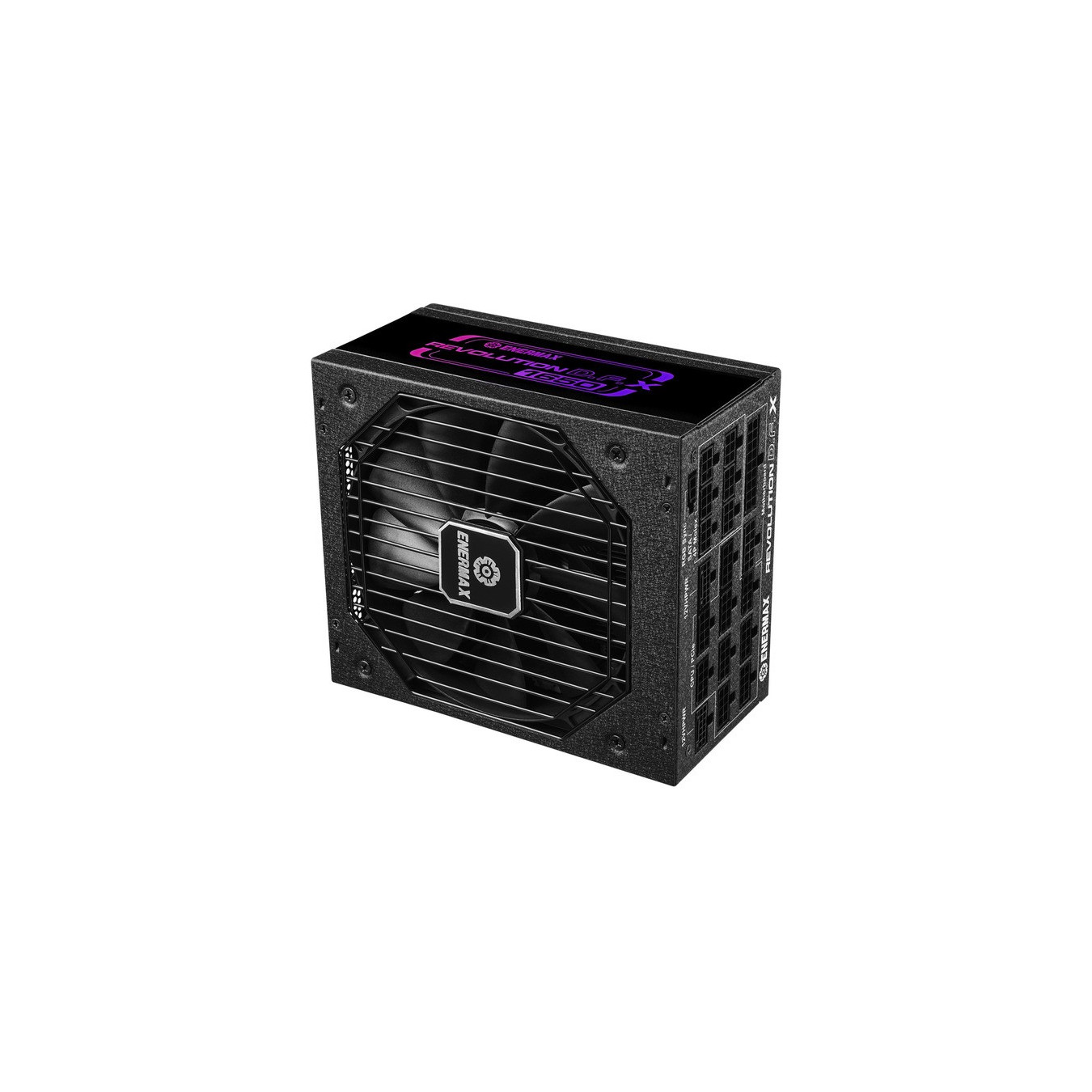

The Enermax Revolution D.F.X power supply sets standards in performance and reliability for modern systems. With ATX 3.0 compatibility and a native 12VHPWR connector for up to 600W of power for PCIe 5.0 graphics cards, it ensures first-class performance. 80 PLUS® GOLD certification with 92% efficiency at 50% load saves energy and reduces heat. The exclusive D.F.R. Function automatically cleans at startup and extends the life of the system. With semi-fanless control and high quality Japanese capacitors, it offers quiet and long-lasting operation.
| Typ | PC power supply |
| Color | white |
| EAN | 4713157727633 |
| Manufacturer no. | ERT1650EWT |
| Performance - Overall | 1650 W |
| Standard | ATX12V 3.1 |
| Design | ATX |
| Certification | 80 PLUS gold |
| Current strengths - +3.3 V | 25 A |
| Power factor correction | Active PFC |

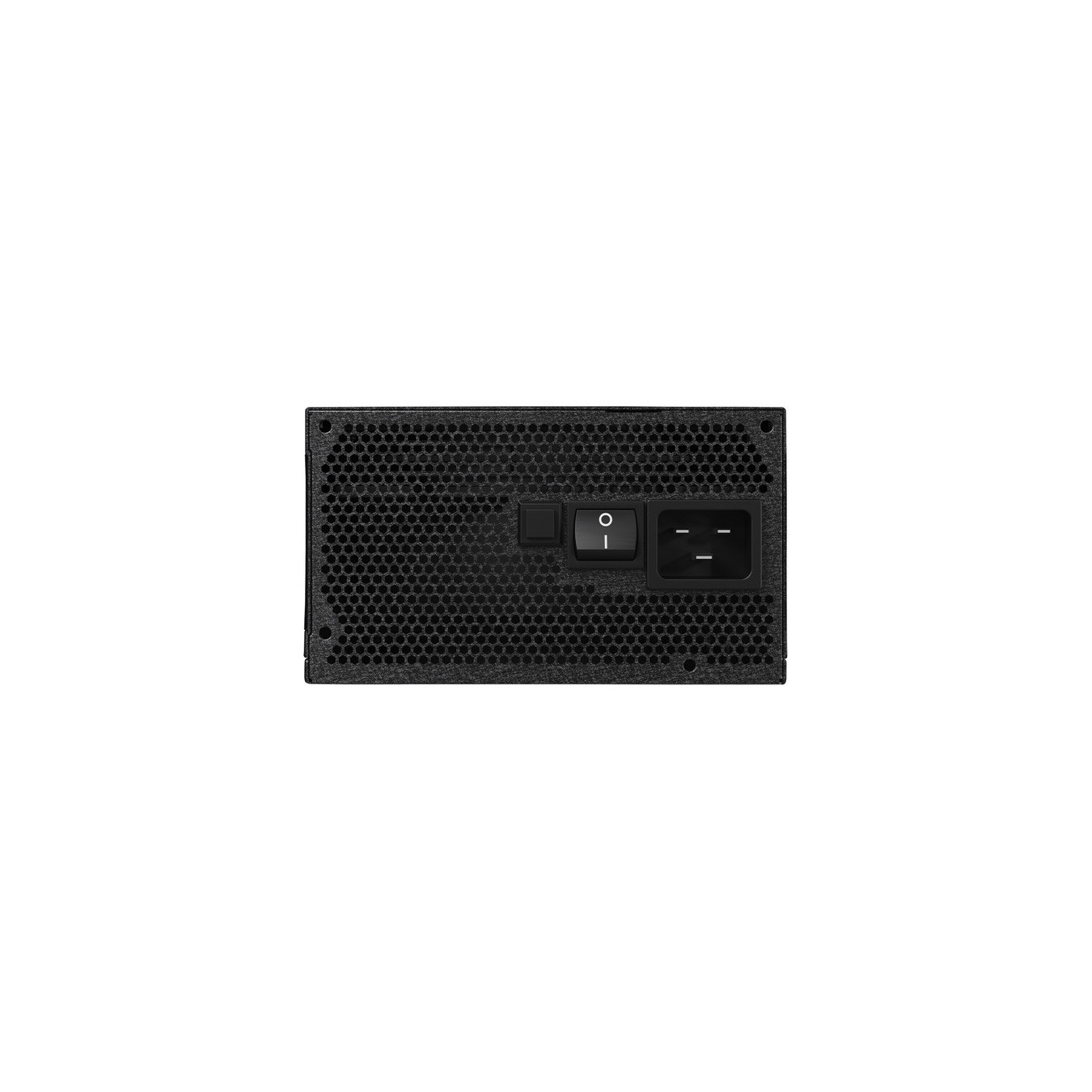

| Switch | 1x power switch |

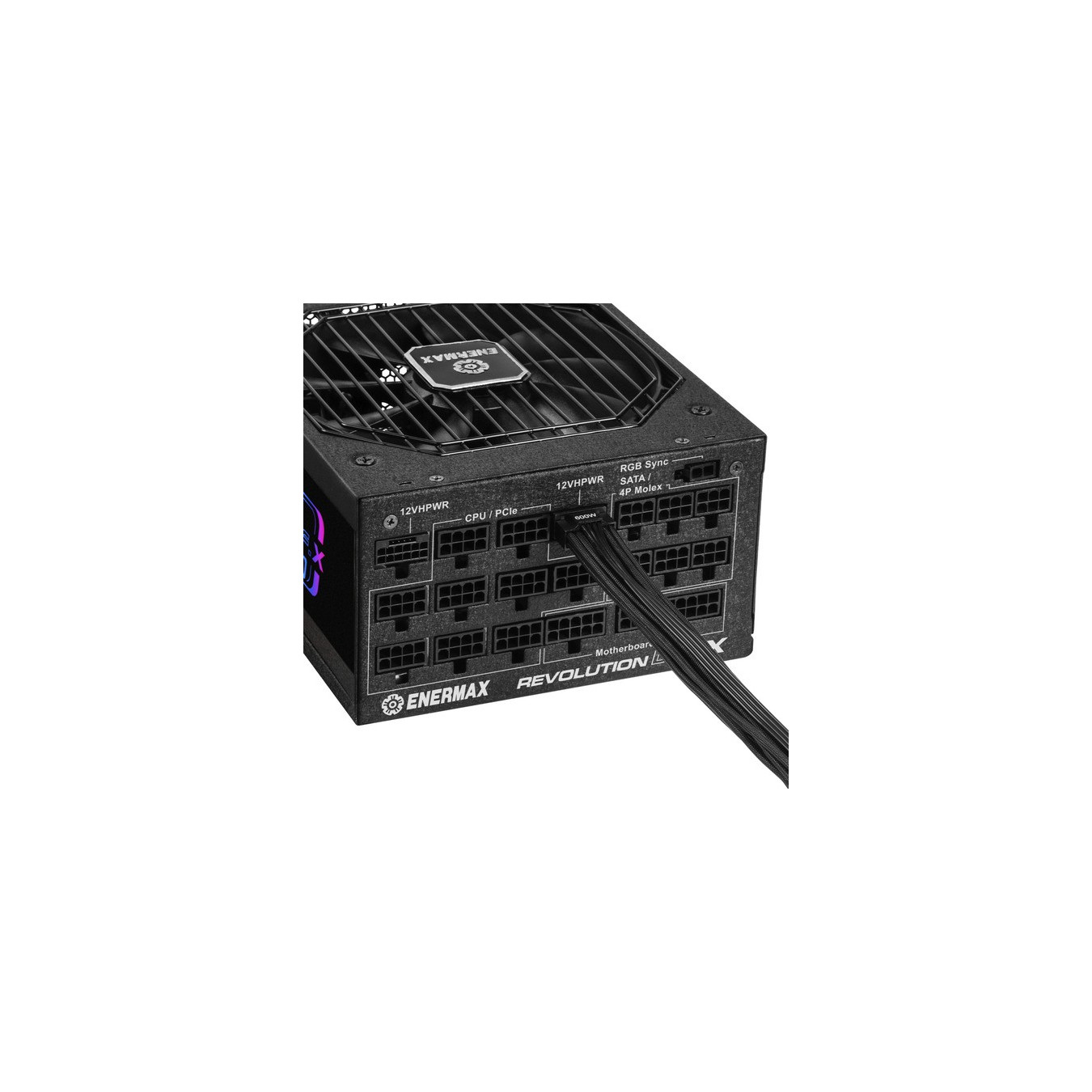

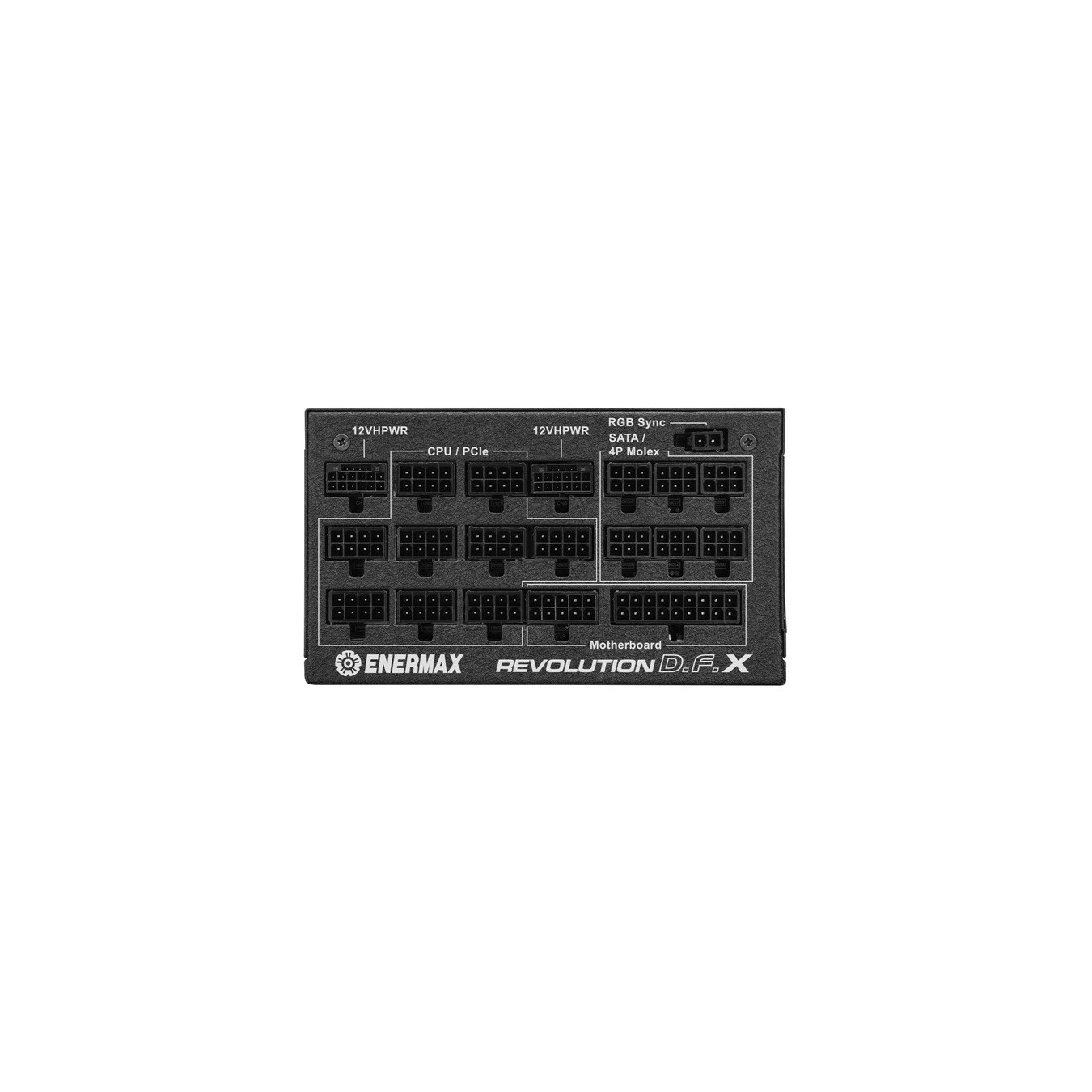

| Connections | 1x 24-Pin-ATX12V-2.x, 2x 4+4-Pin-12V, 7x 4-Pin-5,25 |

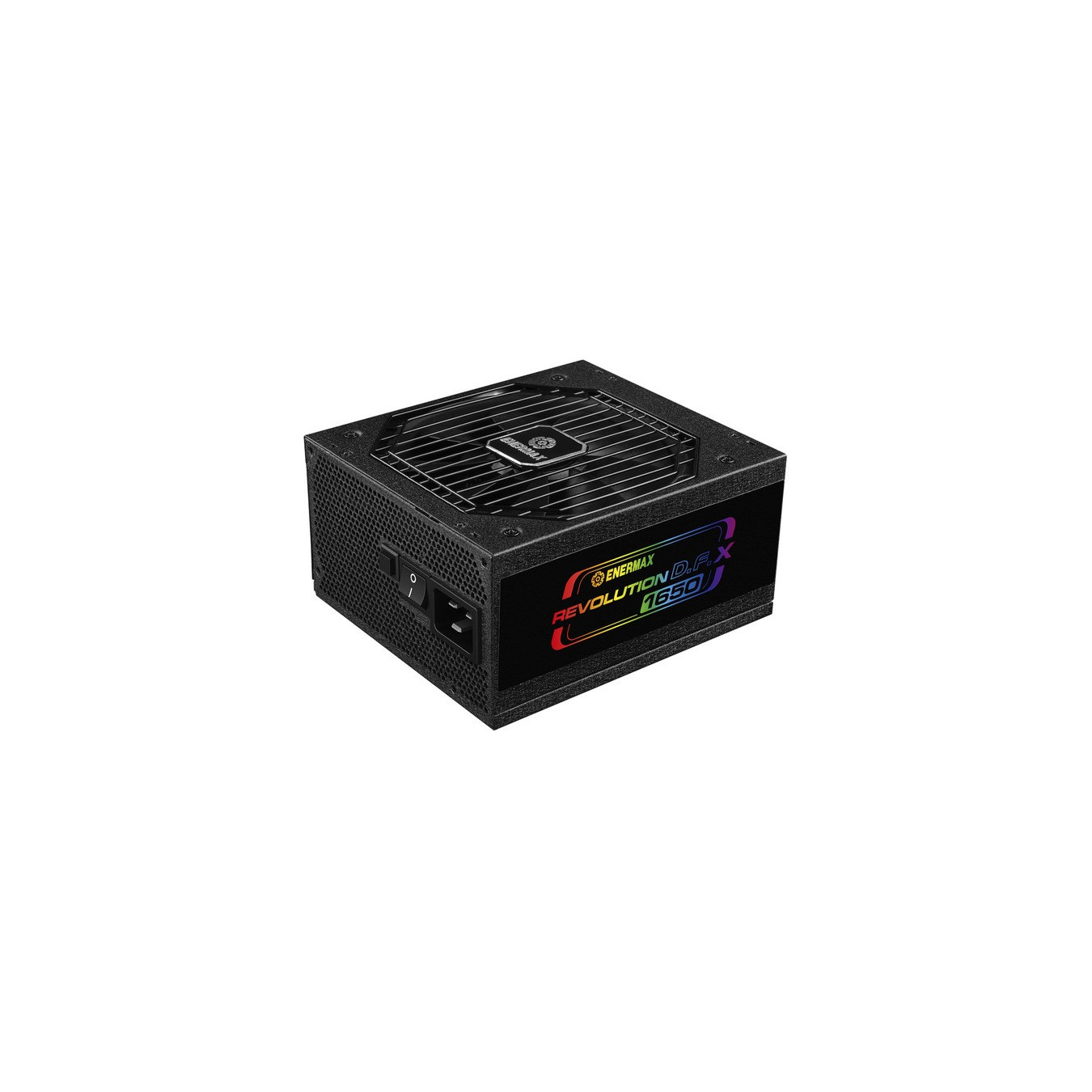

| lighting | Yes, RGB |
| Cable - Cable-Management | And |

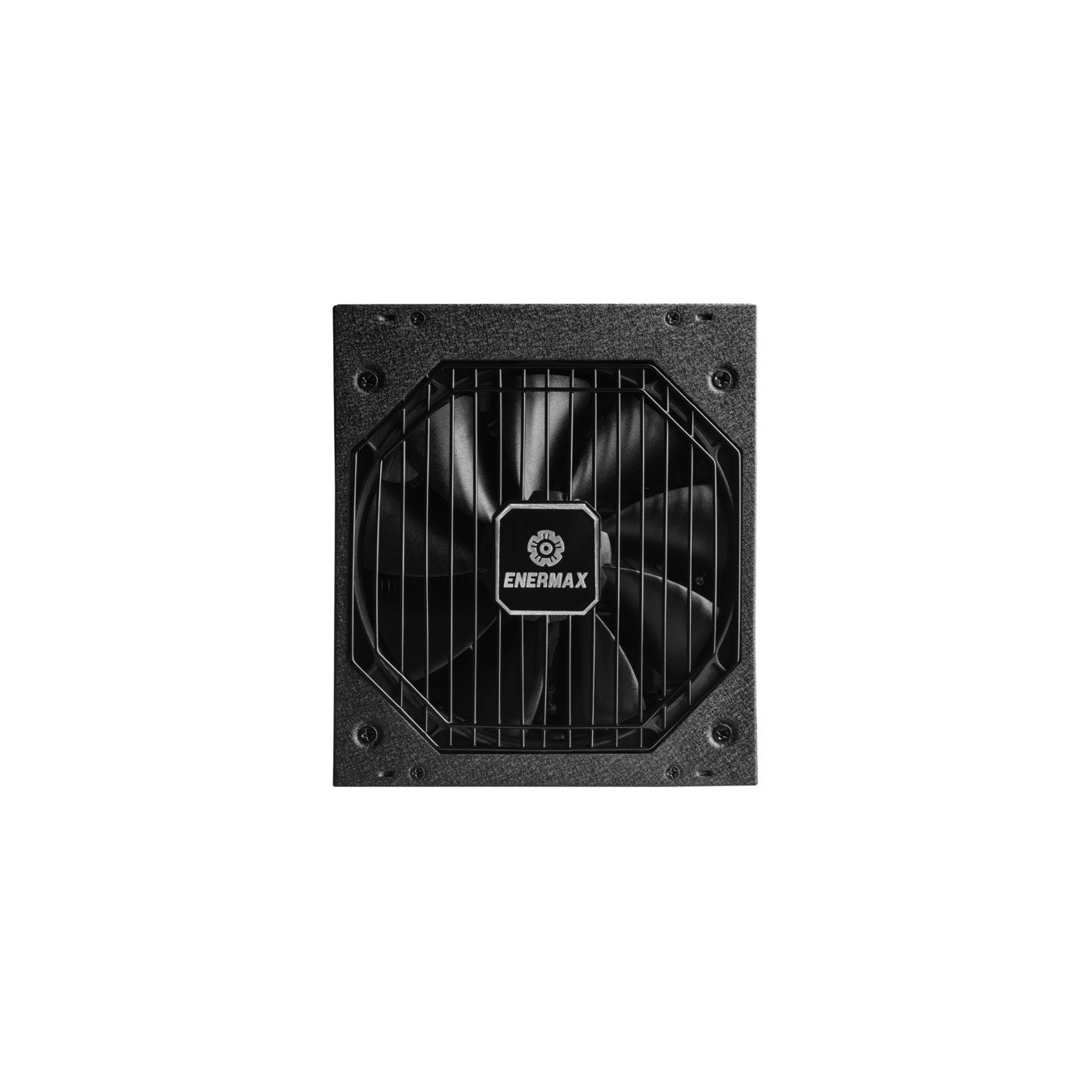

| Cooling - number of fans | 1x 120mm fan |
| Protective functions | Current surge protection (OCP), over voltage protection (OVP), under voltage protection (UVP), overload protection (OLP/OPP), short circuit protection (SCP), overheating protection (OTP) |
| Notice | One of the 12-pin high power GPU connectors is connected via 2x PCIe -> 12 pin and can only be used if a maximum of 5 of the 6+2 pin PCIe connectors are used. |
| Dimensions | Width: 150mm x Height: 86mm x Depth/Length: 170mm |
