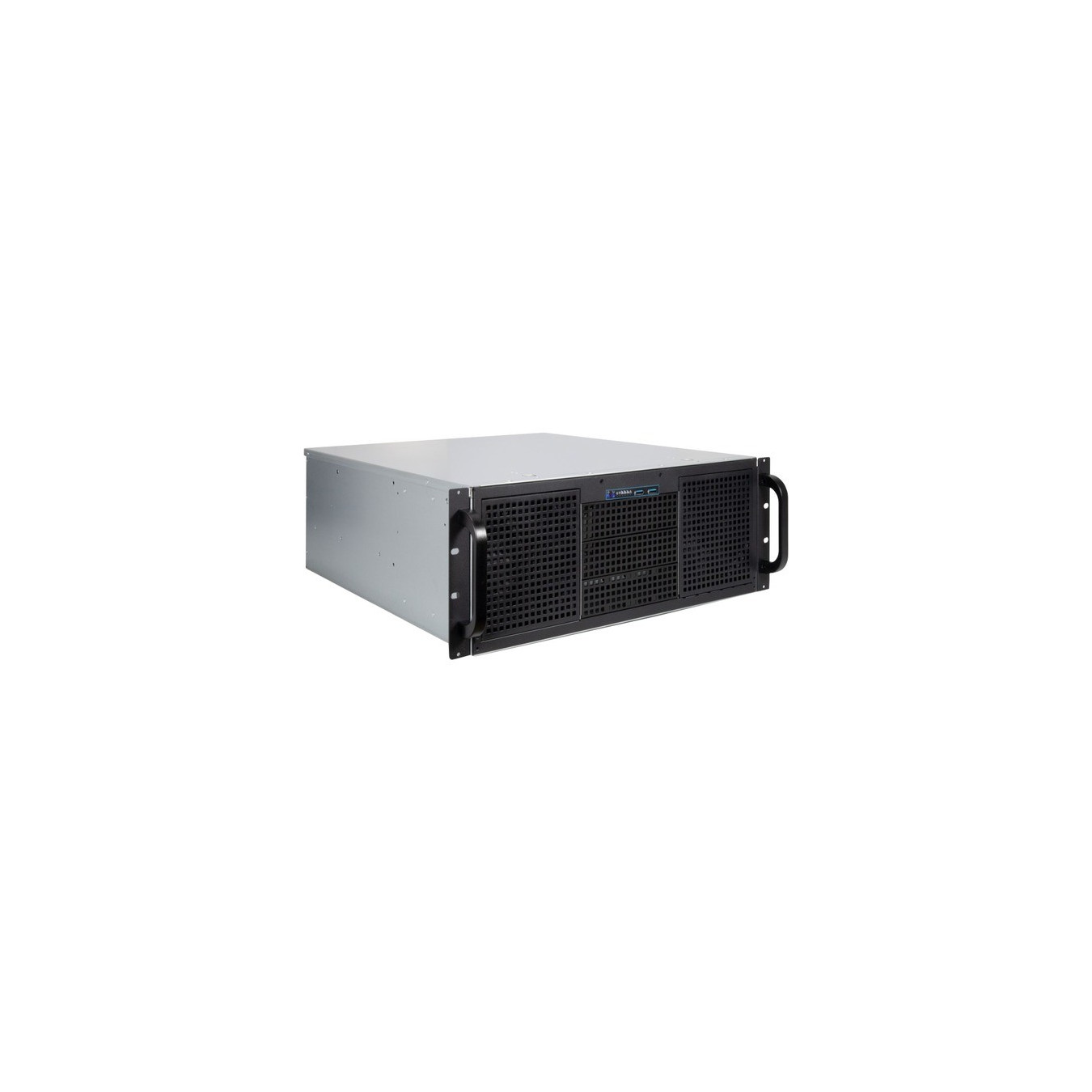

4U-40248, server chassis
The IPC 4U-40248 is the perfect rack for a cost-effective server system. Through the excellent material quality combined with the excellent workmanship, Inter-Tech has created the ...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The IPC 4U-40248 is the perfect rack for a cost-effective server system. Through the excellent material quality combined with the excellent workmanship, Inter-Tech has created the basis for an extremely variable housing. The IPC 4U-40248 offers the option of removing the mounting frames on both sides and installing up to six additional 5.25" external drives; up to 3x 5.25" external drives are available as standard. A total of a maximum of 11x 3.5" or 4x 2.5" hard drives can be installed internally, depending on the configuration. In addition, two 120 mm and two 80 mm fans reliably ensure optimal cooling.
| Typ | Server enclosure |
| Color | schwarz |
| EAN | 4260455645928 |
| Manufacturer no. | 88887303 |
| Design | Rack |
| Mainboard Formfaktor | ATX |
| Internal dimensions - plug-in card length | maximal 267 mm |
| Drive bays - 5.25 inches | external 3 pieces |
| Slots - Full-Size | 7 pieces |
| Front connections | 2x USB-A 3.2 Gen 1 (5 Gbit/s) |
| front | 2x 120 mm fans available |

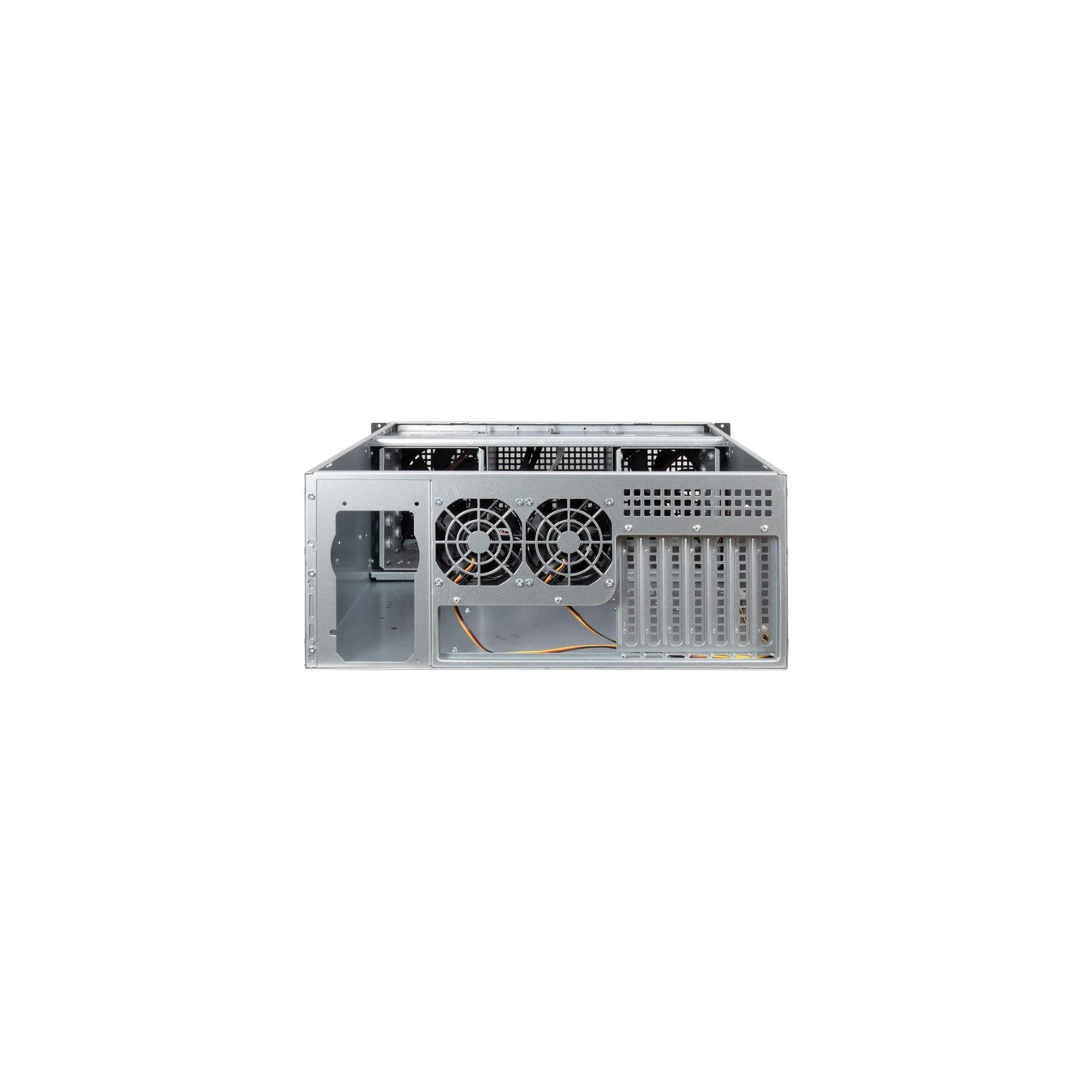

| back | 2x 80 mm fans available |
| Notes | 6x 40 mm fans can be installed in the 5.25" drive panels |
| Rear connection of the mainboard | No |
| More information | Lid with snap-in closure |
| Notice | max. Mainboardgröße: 305 mm x 267 mm (12" x 10,5") |

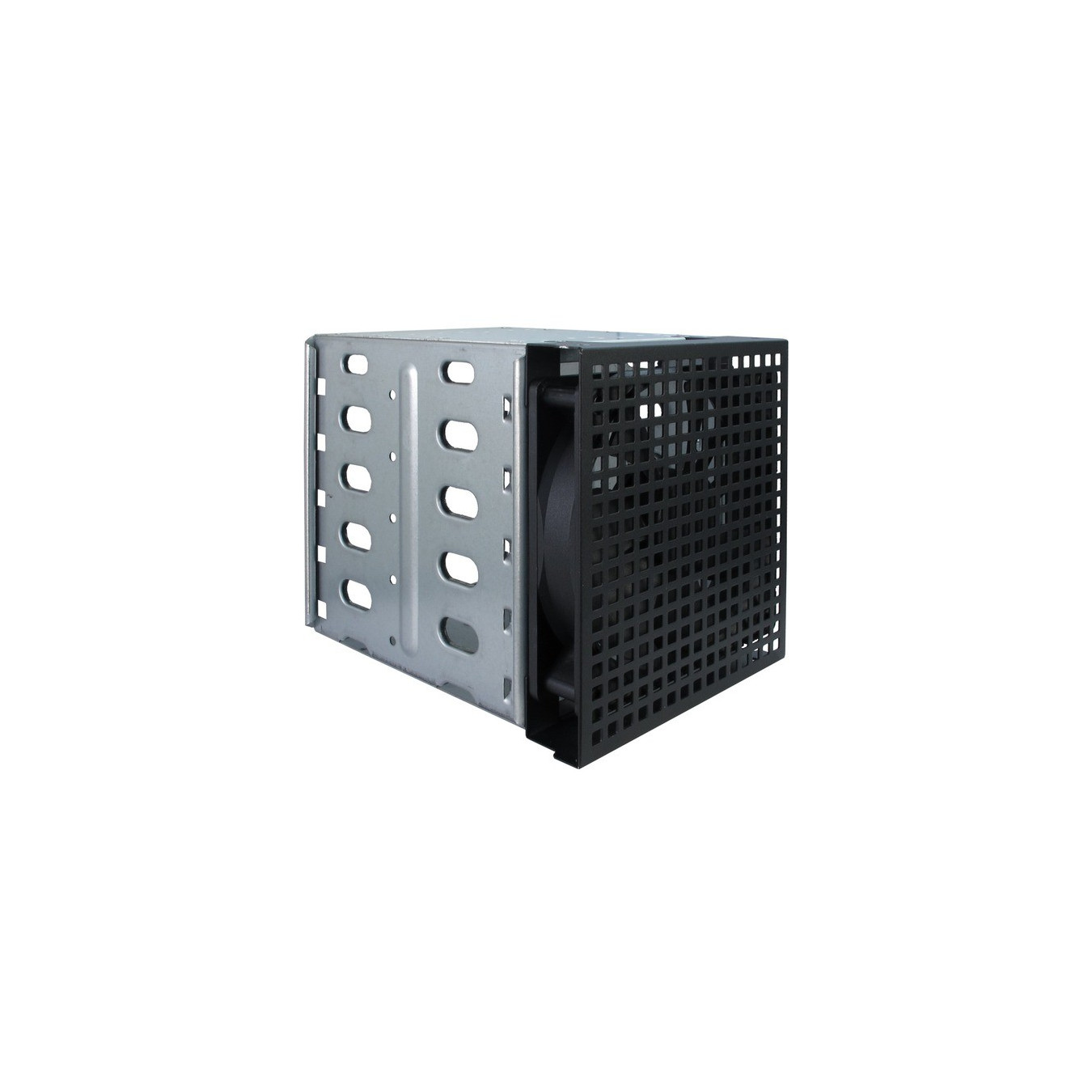

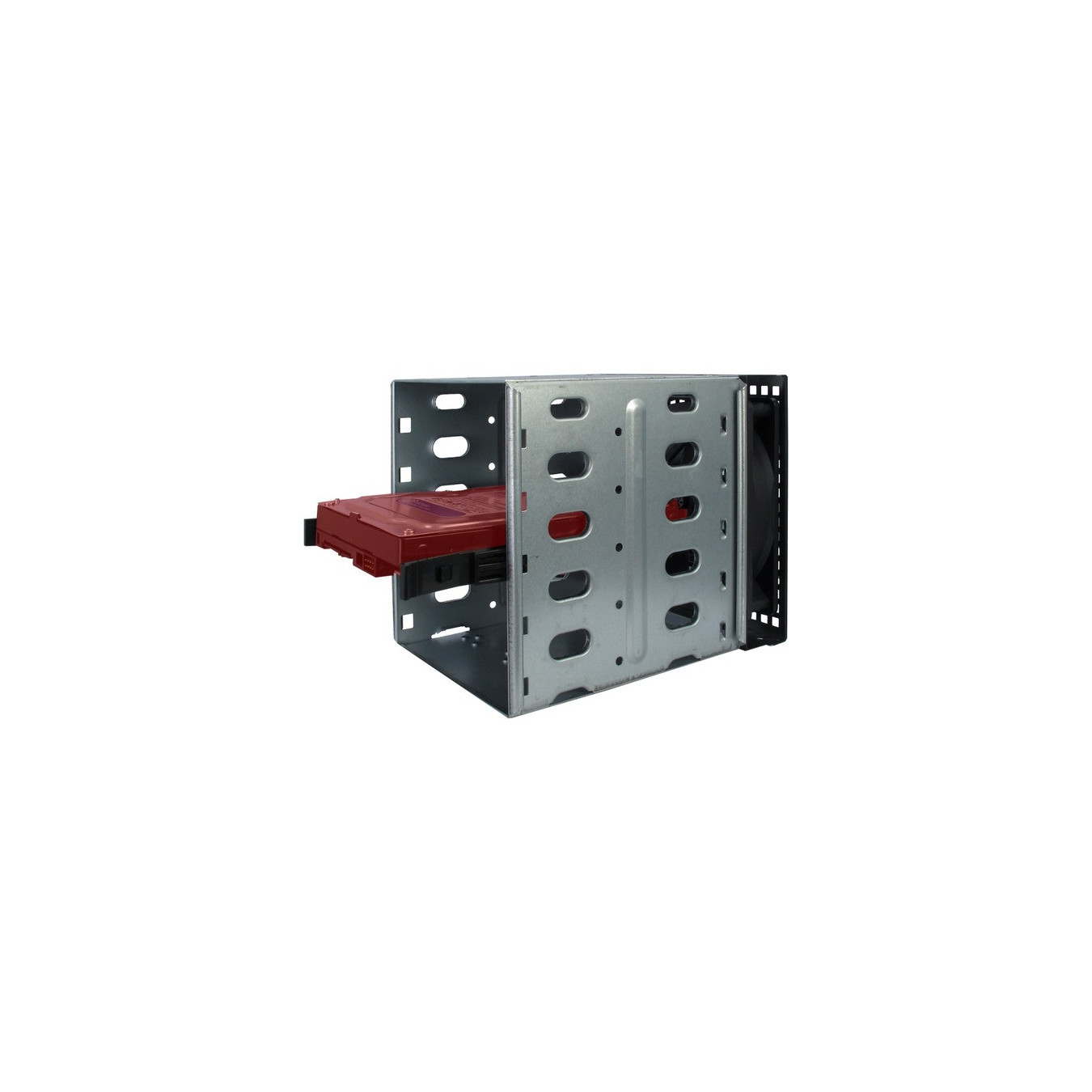

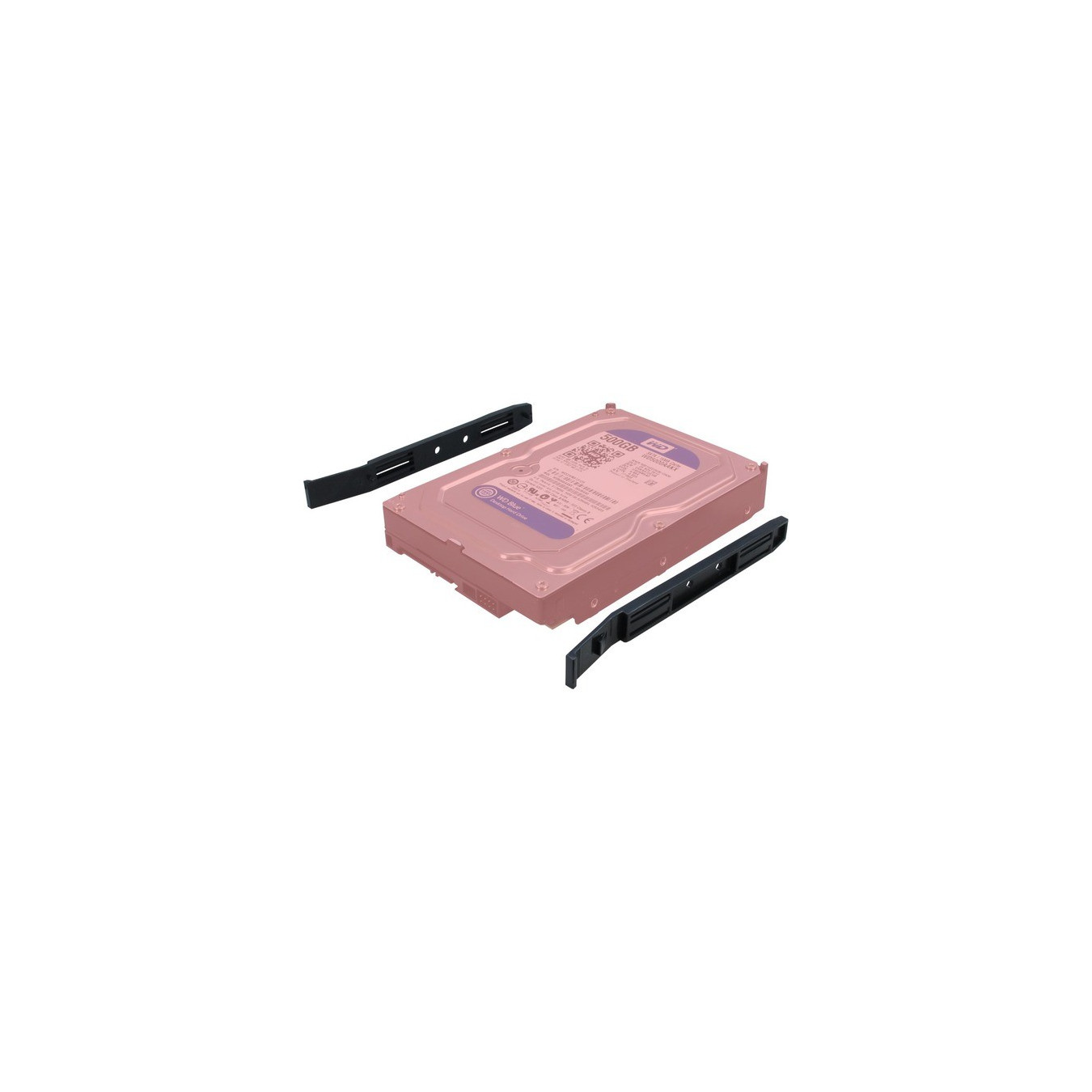

| Accessories - available | Assortment of screws, 3.5" drive mounting rails, mounting frame for redundant power supplies |
| Volume | 45 l |
| Dimensions | Width: 48.5 cm x Height: 17.78 cm x Depth/Length: 52.5 cm |
| Weight | 10,7 kg |
