DN-170106 OnLine 6 kVA 6 kW, UPS
The DIGITUS OnLine UPS is a double conversion UPS solution that offers premium power outage protection and continuous power generation in a compact and flexible system. The single-...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The DIGITUS OnLine UPS is a double conversion UPS solution that offers premium power outage protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when extended uninterrupted power is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and consistent power factor, the UPS meets your critical application needs.
| Typ | UPS |
| Color | schwarz |
| EAN | 4016032473541 |
| Manufacturer no. | DN-170106 |
| Manufactured in | China |
| UPS type | Online-Einphasig |
| Height units | 2 HE |

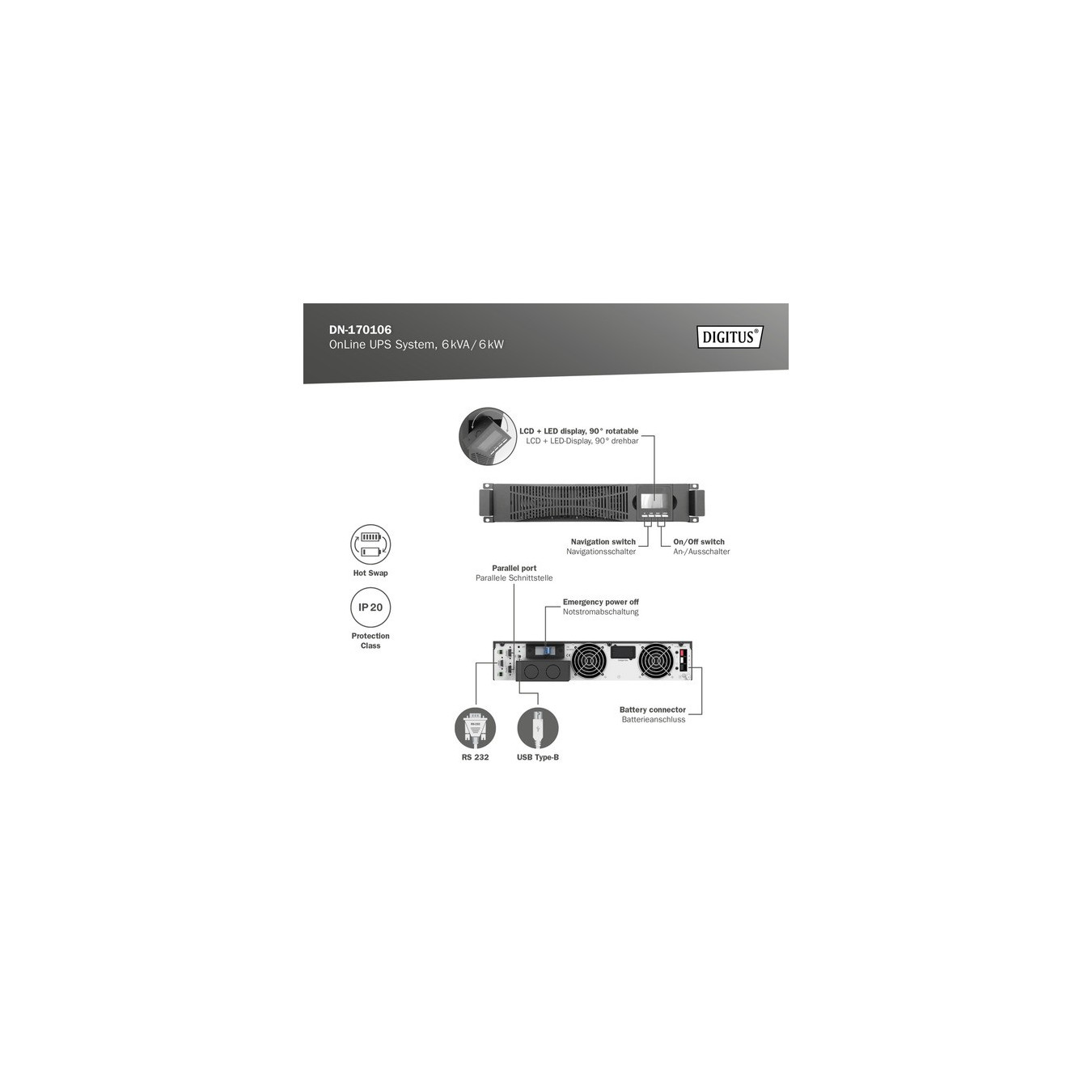

| Connections | 1x RS232, 1x USB |

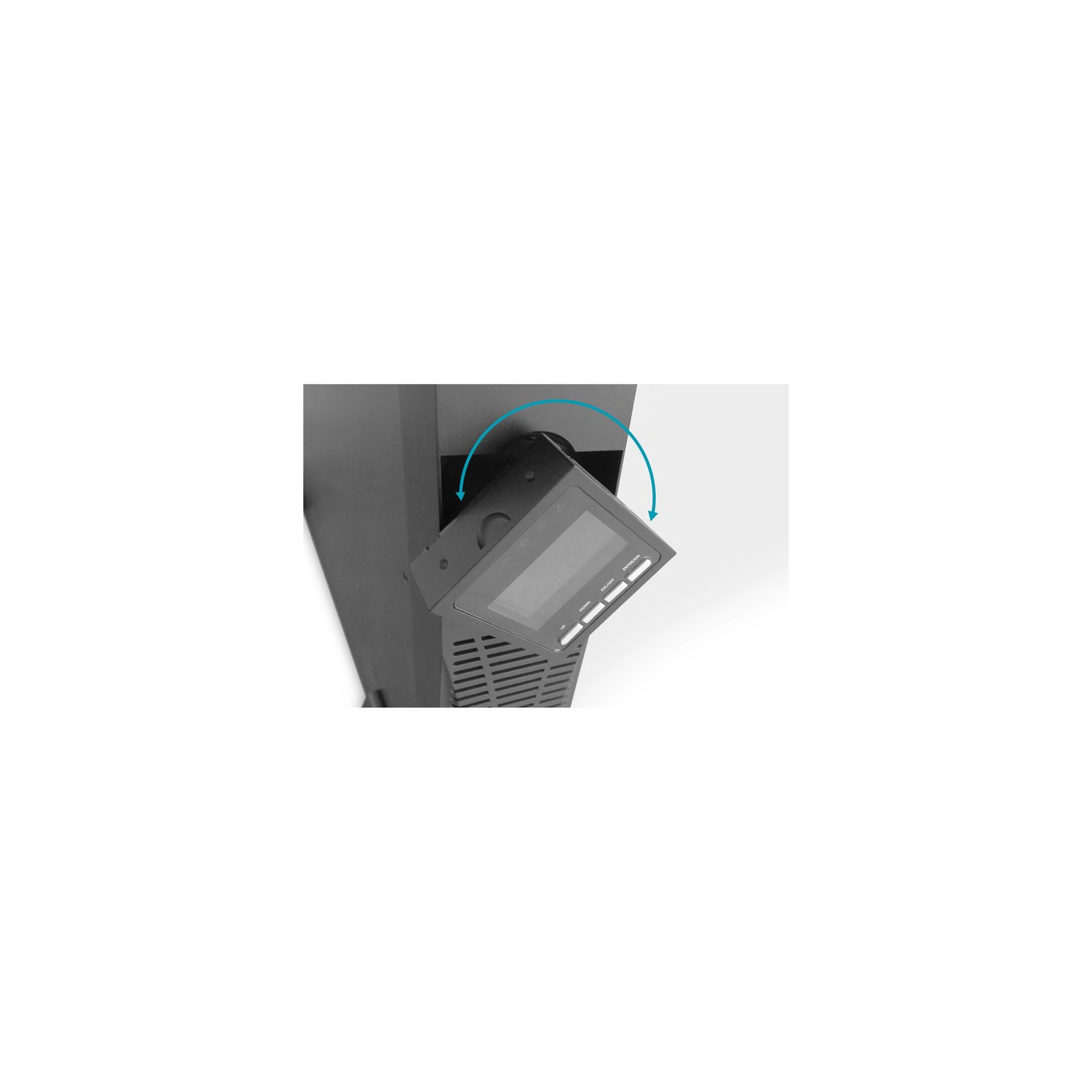

| Display | LCD |
| Communication | USB-B, RS-232 |
| Environment - operating temperature | from 0°C to 40°C |
| note | Network Connection: Optional SNMP/Webcard (part number DN-170100) allows the UPS to be monitored remotely. |
| Feature | Online double conversion system (VFI-SS-111), nominal system power: 6 kVA / 6 kW, power factor 1.0 |
| More information | Safety standards: IEC/EN62040-1,IEC/EN60950-1, EMV standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| Notice | The UPS does not have internal batteries; these must be ordered separately as external battery modules (item number: DN-170108). |
| Accessories - available | 1 x user manual, 1 x USB connection cable, 1.5 m, 1 x RS232 cable, 1.5 m, 1 x parallel cable, 1.5 m, UPS software license |
| Dimensions | Width: 440mm x Height: 86.5mm x Depth/Length: 620mm |
| Weight | 13,8 kg |
