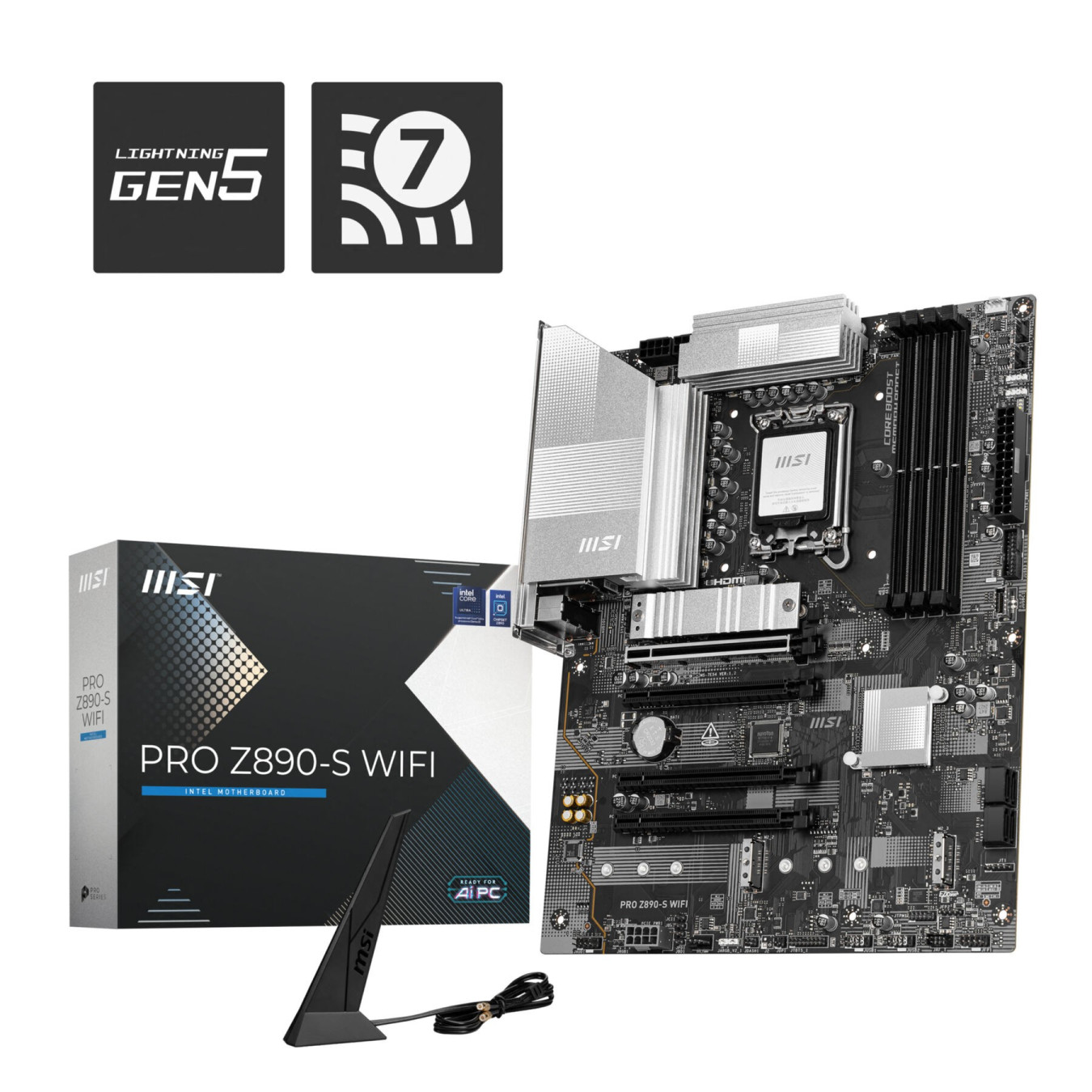

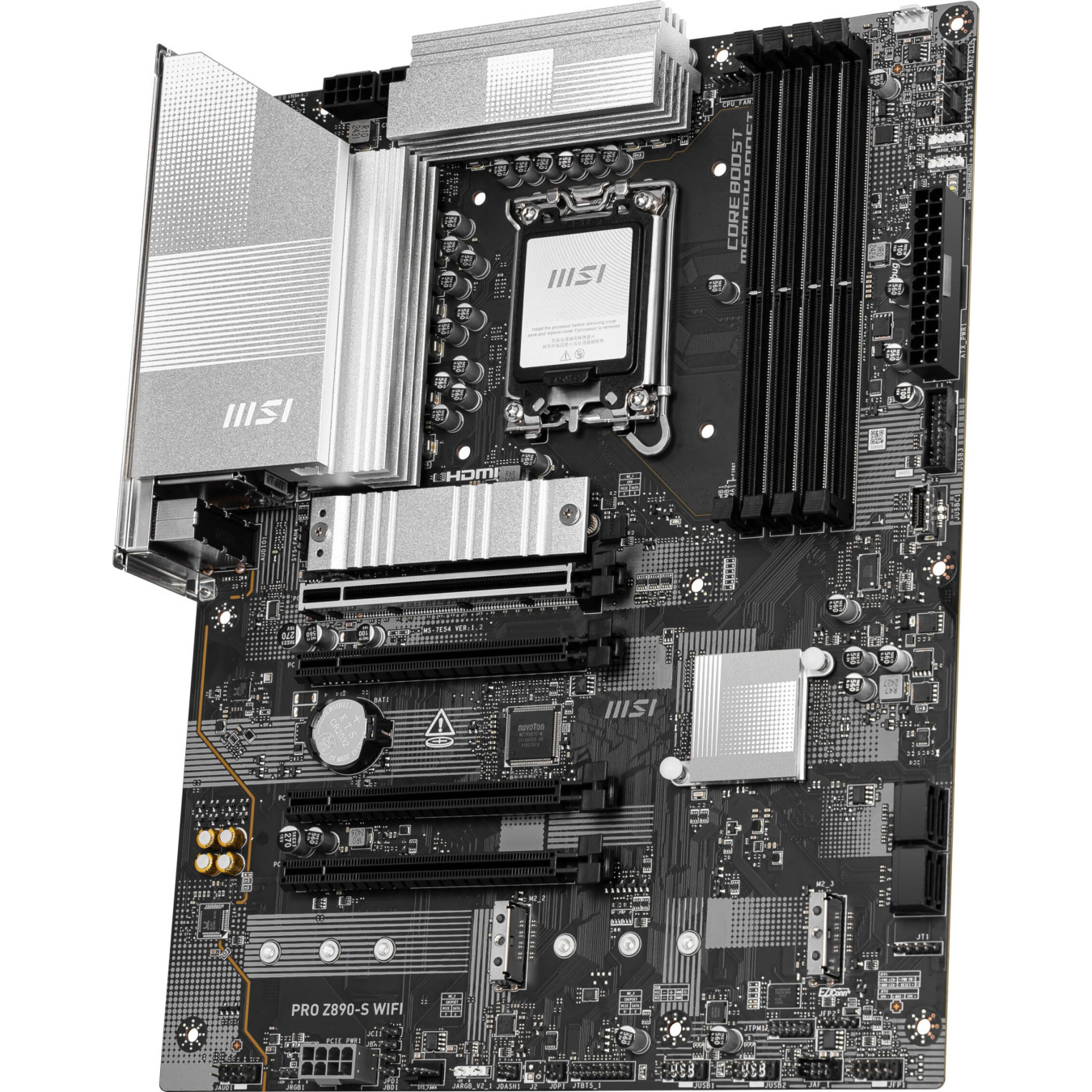

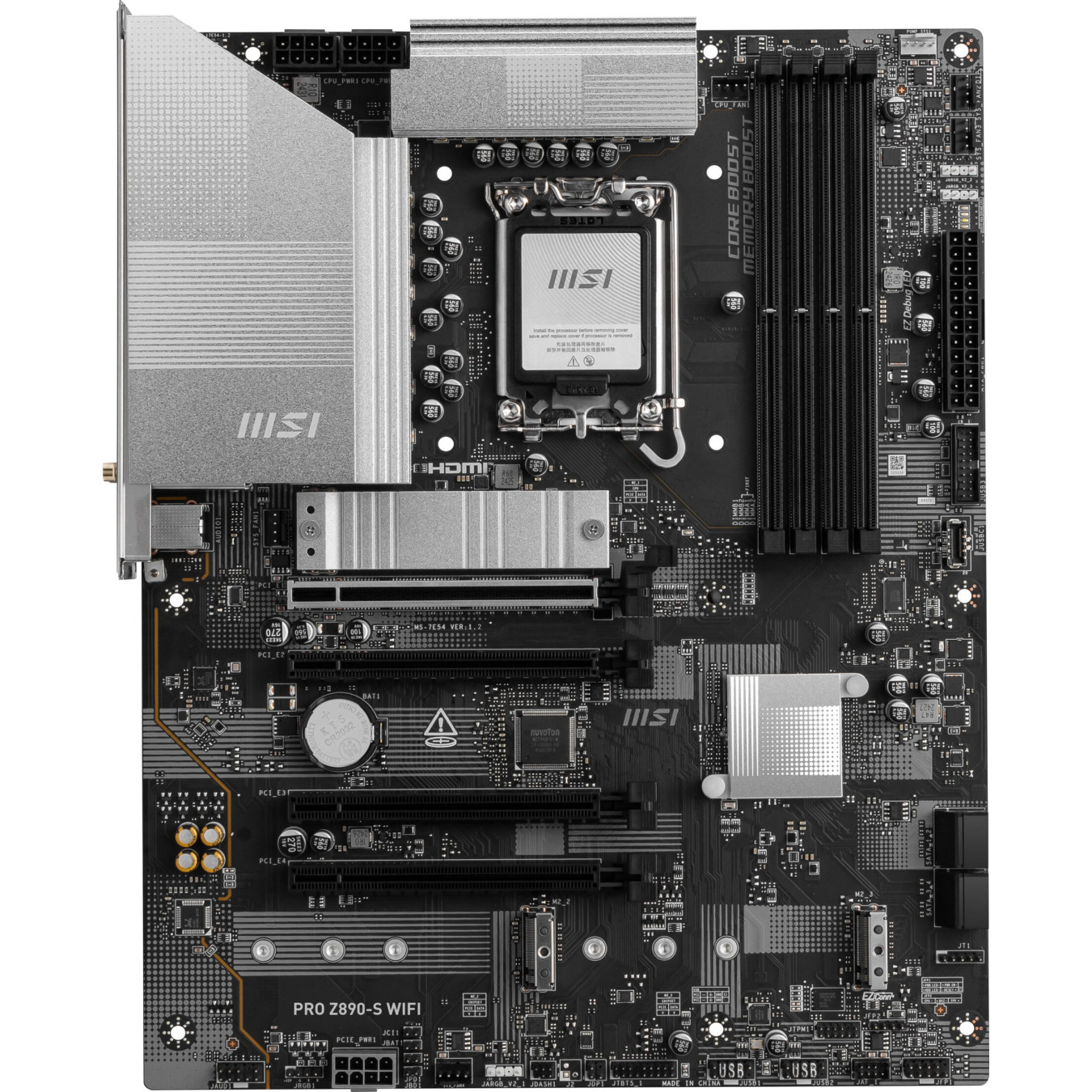

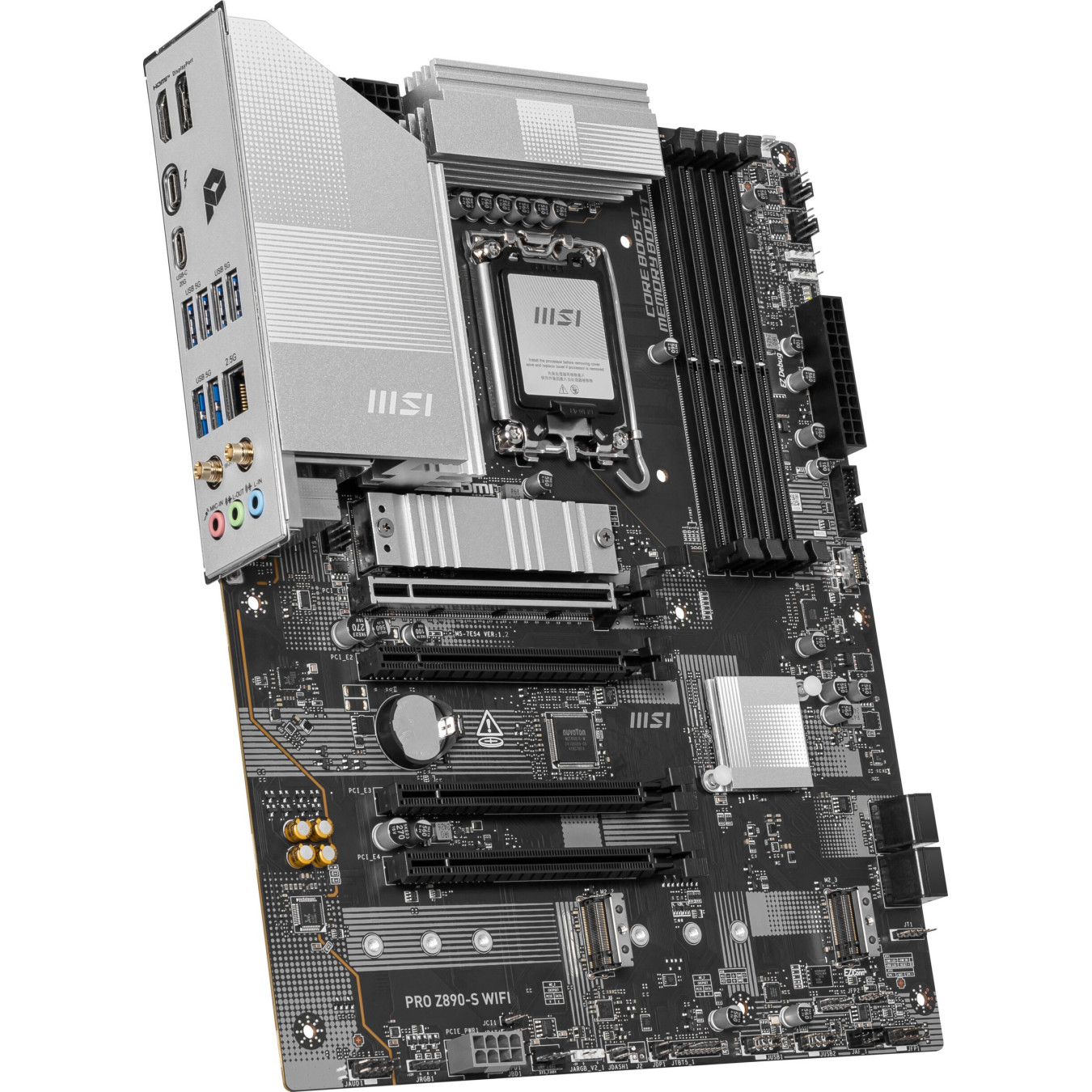

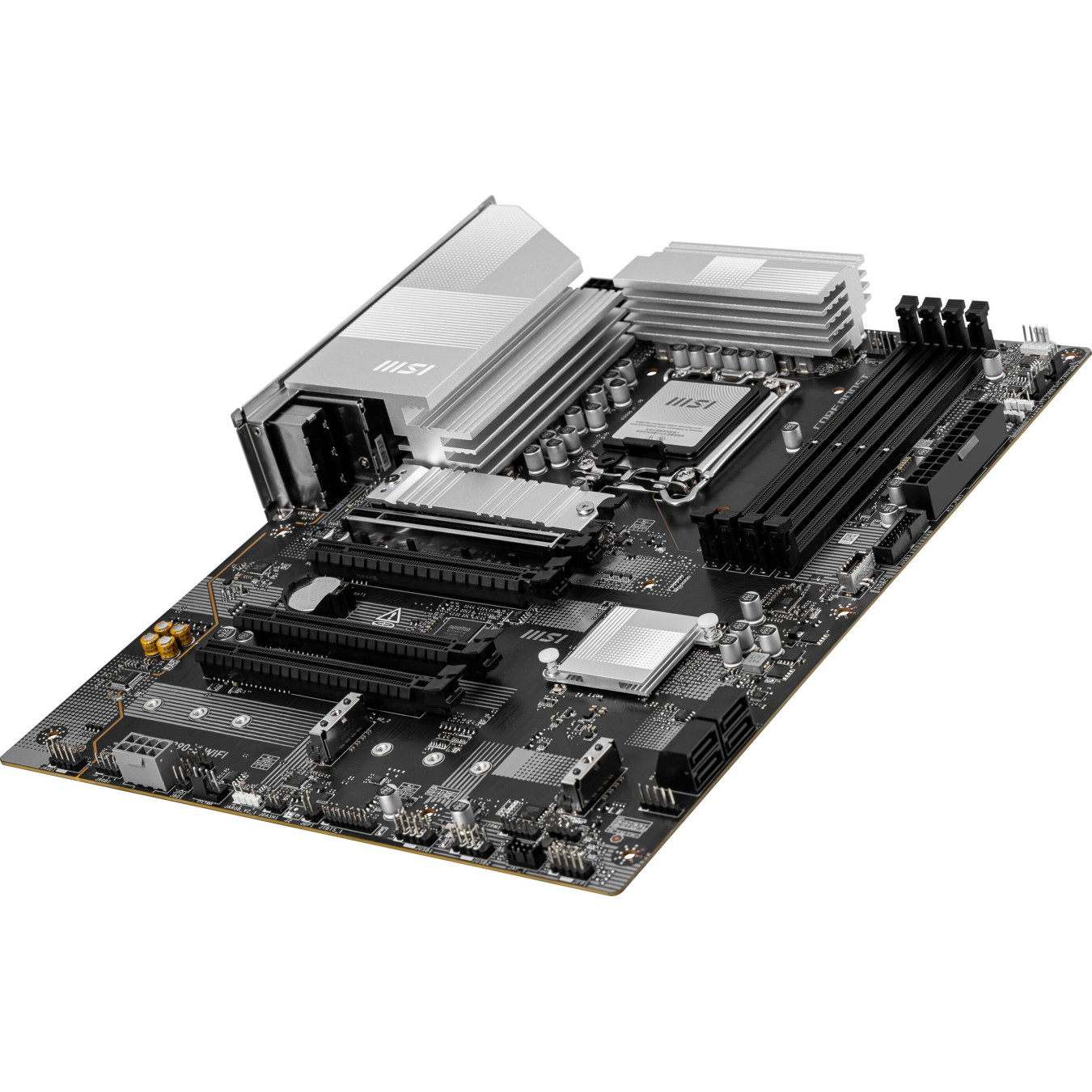

MSI PRO Z890-S WIFI ATX LGA1851 DDR5 Motherboard Silver (Boxed)
ATX motherboard for Intel Core Ultra (Series 2) LGA1851 CPUs. Features Z890 chipset, DDR5 support up to 256GB, Wi-Fi 7, Thunderbolt 4, 2.5G LAN, PCIe 5.0, silver design.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1851 |
|---|---|
| Motherboards - Chipset | Intel Z890 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Silver |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
The MSI PRO Z890-S WIFI is a premium ATX motherboard engineered for Intel Core Ultra Processors (Series 2) with LGA1851 socket. Featuring the Intel Z890 chipset, this motherboard delivers exceptional performance with support for DDR5 memory up to 8800+ MT/s (OC) across 4 DIMM slots, accommodating up to 256GB total capacity. The board showcases a clean silver design that complements both white and black PC builds.
Connectivity and expansion are comprehensive, with PCIe 5.0 x16 primary slot for graphics cards, three M.2 slots for NVMe SSDs, and four SATA 6Gb/s ports for traditional storage. Advanced networking includes Wi-Fi 7 (802.11be) with support for 2.4GHz/5GHz/6GHz bands, Bluetooth 5.4, and a 2.5Gbps LAN port. Thunderbolt 4 connectivity provides 40 Gbps speeds with support for 8K displays and daisy-chaining. The motherboard features a robust 12+1+1+1 digital power phase design with dual 8-pin CPU power connectors, optimized 6-layer server-grade PCB, and comprehensive thermal management for stable high-performance operation.
Additional features include Realtek ALC897 7.1-channel audio codec, RAID support, and MSI's exclusive Performance Preset utility for intuitive performance tuning with four power limitation settings (Intel Default, MSI Performance, MSI Extreme, and MSI Unlimited).
- Socket: LGA1851 for Intel Core Ultra Series 2 processors
- Memory: DDR5 UDIMM, 4 slots, up to 256GB, speeds 4800-8800+ MT/s (OC)
- Storage: 3x M.2 slots (PCIe 5.0 x4 primary), 4x SATA 6Gb/s ports

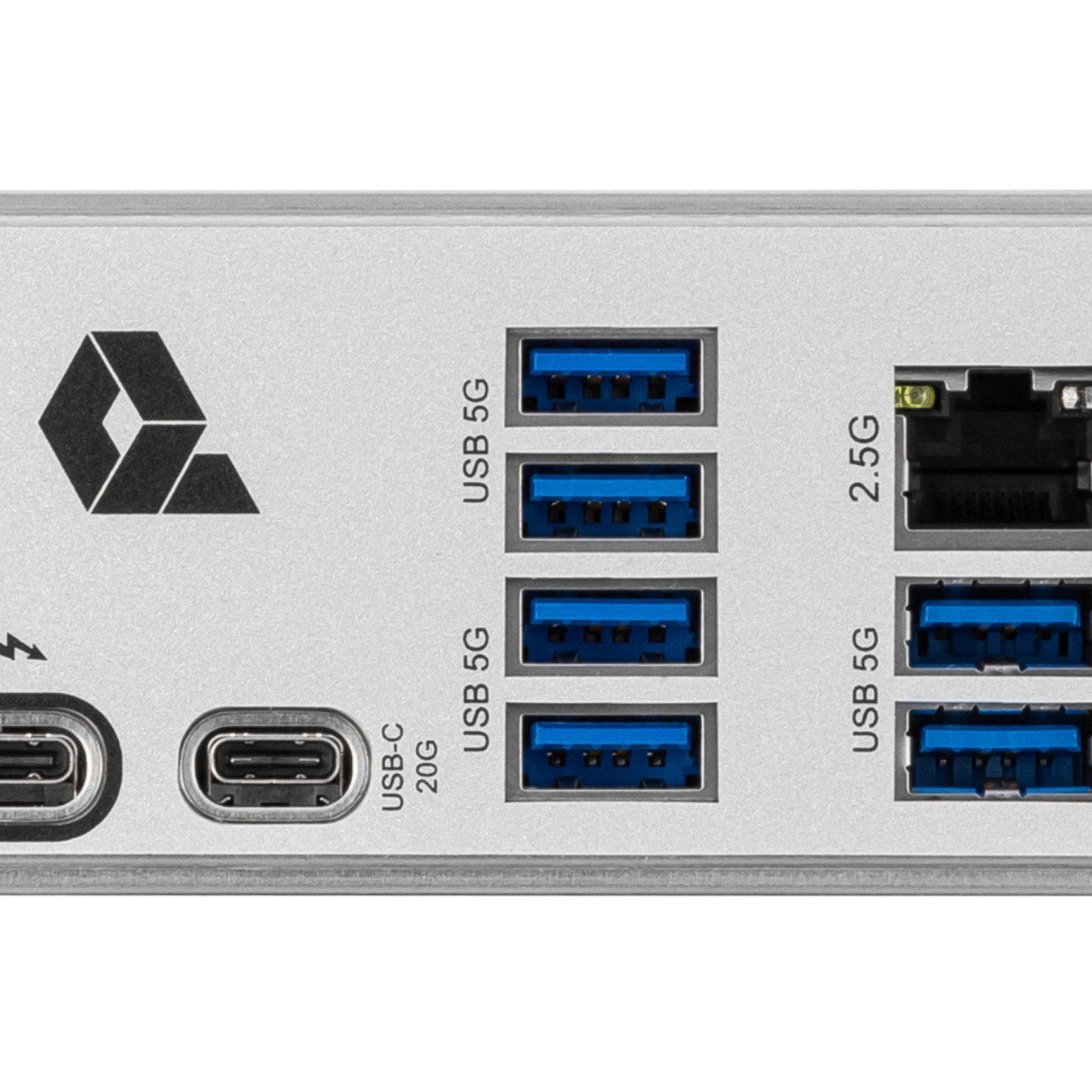

- Connectivity: Wi-Fi 7, Bluetooth 5.4, 2.5G LAN, Thunderbolt 4
- Expansion: 4x PCI-E x16 slots (1x PCIe 5.0, 1x PCIe 3.0, 2x PCIe 4.0)
- Power: 12+1+1+1 Duet Rail Power System, dual 8-pin CPU connectors
| Chipset | Intel Z890 |
| CPU Socket | LGA1851 |
| Supported Processors | Intel Core Ultra Processors (Series 2) |
| Form Factor | ATX |
| Memory Type | DDR5 UDIMM |
| Memory Slots | 4x DIMM |
| Maximum Memory Capacity | 256GB |
| Memory Speed Support | DDR5 4800-8800+ MT/s (OC), 6400-4800 MT/s (JEDEC) |
| Memory Overclocking | Intel XMP 3.0, Memory Overclocking supported |
| Memory Configuration Support | 1DPC 1R up to 8800+ MT/s, 1DPC 2R up to 7200+ MT/s, 2DPC 1R up to 6400+ MT/s, 2DPC 2R up to 5600+ MT/s |
| PCIe Slots | 4x PCI-E x16 (1x PCIe 5.0 x16 from CPU, 1x PCIe 3.0 x1 from Chipset, 2x PCIe 4.0 x4 from CPU) |
| M.2 Slots | 3x M.2 (PCIe 5.0 x4 primary slot) |
| SATA Ports | 4x SATA 6Gb/s |
| Audio | Realtek ALC897 Codec, 7.1-Channel High Definition Audio |
| Wireless Connectivity | Wi-Fi 7 (802.11be), 2.4GHz/5GHz/6GHz (320MHz), up to 5.8Gbps, Bluetooth 5.4 |
| Network | 2.5Gbps LAN |
| Thunderbolt | Thunderbolt 4, 40 Gbps, 8K display support, Daisy-Chain, USB 4.0 compliant |
| USB Type-C | Thunderbolt 4 (USB-C) |
| Power Design | 12+1+1+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors |
| PCB Layers | 6 layers, server-grade PCB material |
| Color | Silver |
| RAID Support | Yes |
| ECC Memory Support | No |
| SLI Support | No |
| CrossFire Support | No |
