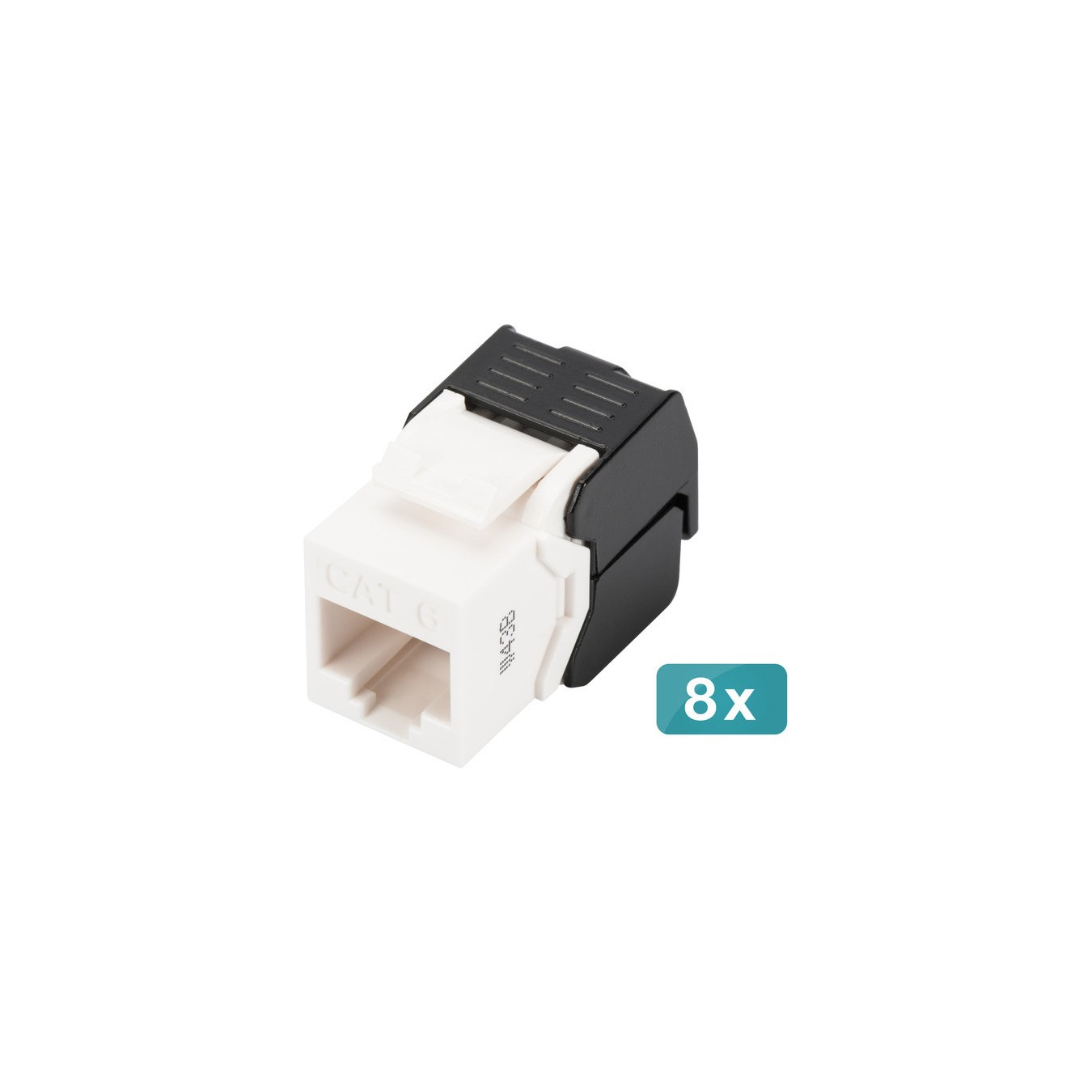

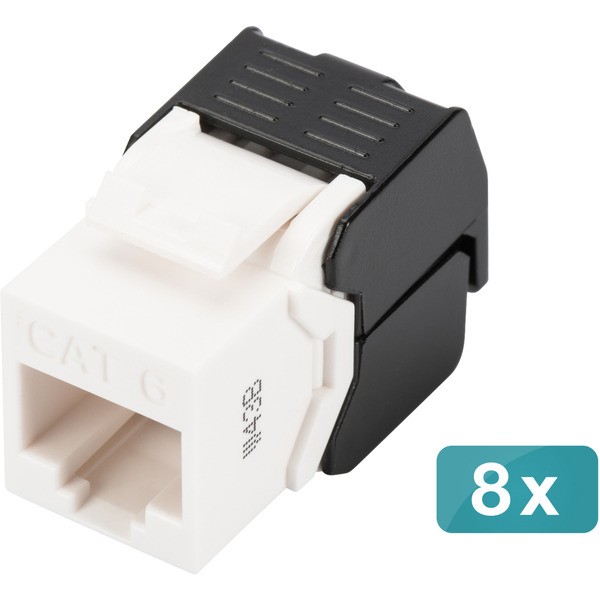

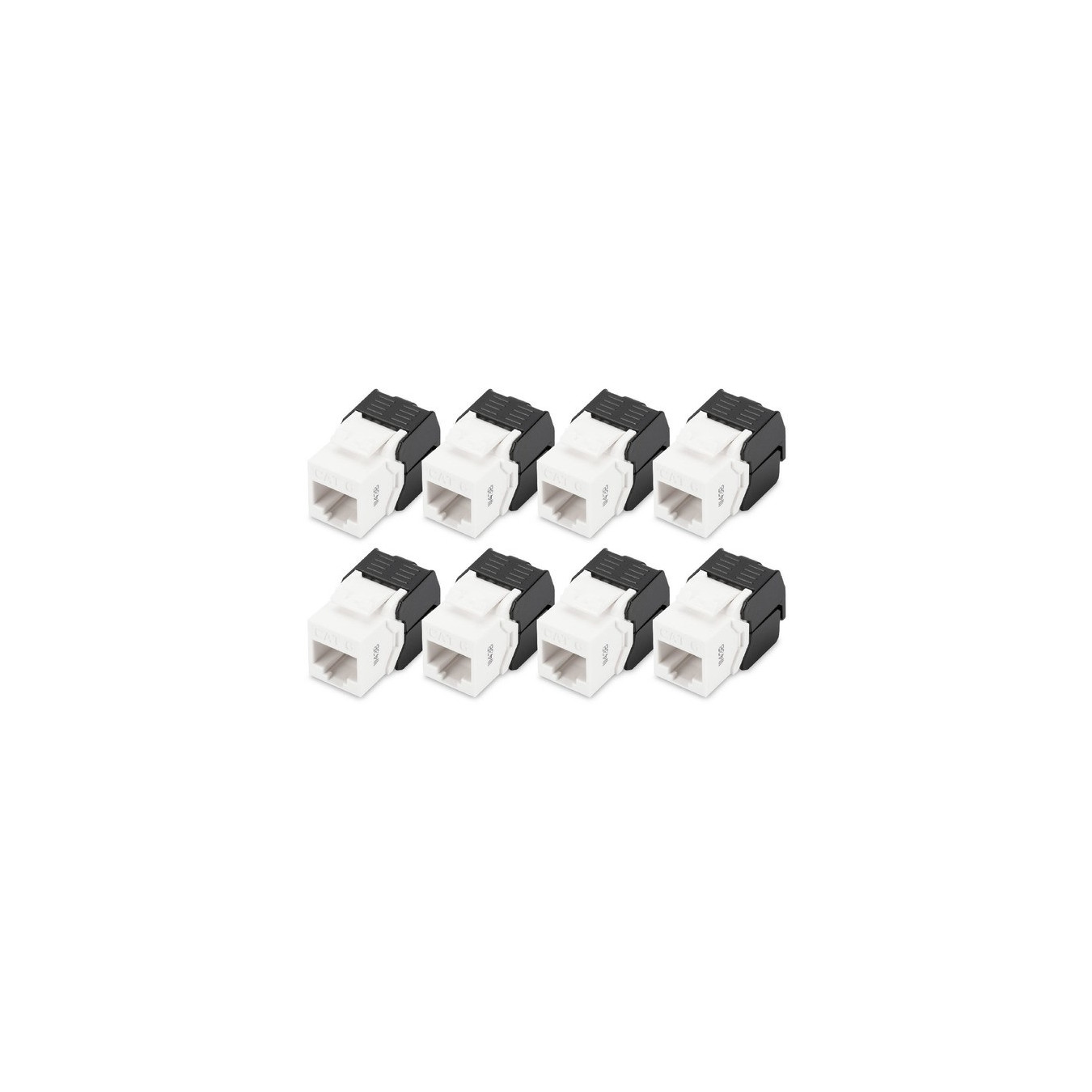

CAT 6 Keystone module, unshielded - 8 pieces, keystone module
The item "DN-93603-8" from DIGITUS® is an unshielded keystone module with a tool-free assembly connection, which offers you excellent performance and connection quality for your ne...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The item "DN-93603-8" from DIGITUS® is an unshielded keystone module with a tool-free assembly connection, which offers you excellent performance and connection quality for your network. Its compact design allows 24 units to be installed in series in 483 mm (19") 1U panels.
| Typ | Keystone-Modul |
| EAN | 4016032495178 |
| Manufacturer no. | DN-93603-8 |
| Area | network |
| Connection - from | 1x RJ-45 (socket) |
| Category - Plugs | Cat.6 |
| Feature | Areas of application: Up to 250 MHz, 1GBase-T | Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C | Suitable for 483 mm (19") cabinet mounting | RJ45 sockets, 8P8C | Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B | Cable fixation using quick snaps | Tool-free assembly connection | RJ45 socket material: ABS UL 94V-0 | LSA insulation displacement terminal: Krone LSA+, UL 94V-2, galvanized phosphor bronze |
| More information | PCB: FR4, UL 94V-0 | Physical properties: Insertion force: 30N max. (IEC 60603-7-5) | Tensile load: 7.7 kg between socket and plug | Operating temperature: -20°C to +70°C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) | Socket mating cycle: > 750 according to ISO/IEC 11801, IEC 60603-7-5 | Terminal: > 200 according to ISO/IEC 11801, IEC 60603-7-5 | Core intake: 22-26 AWG solid and stranded conductors | Insulation resistance: > 500 MOhm | Contact resistance: < 20 MilliOhm | Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground) |
