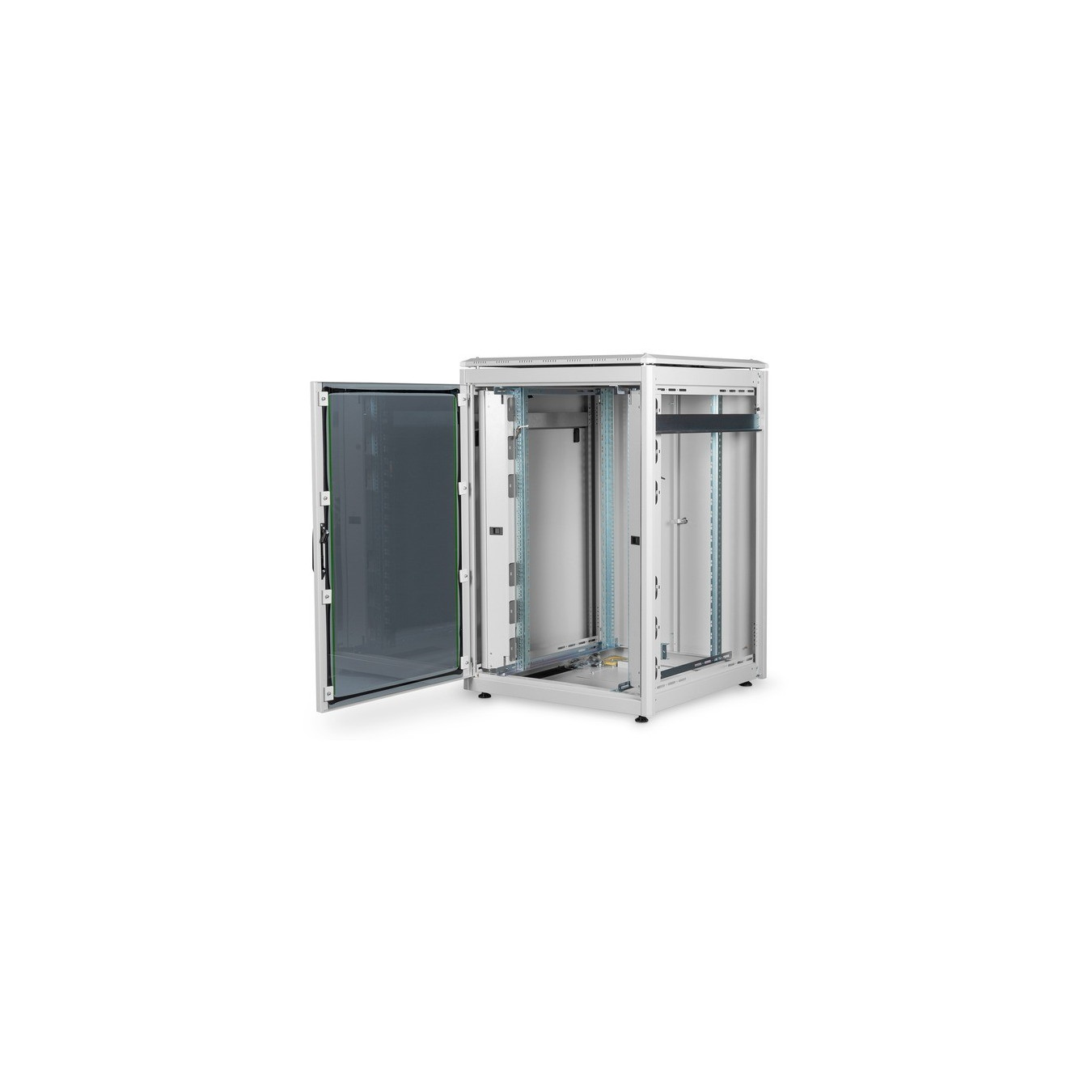

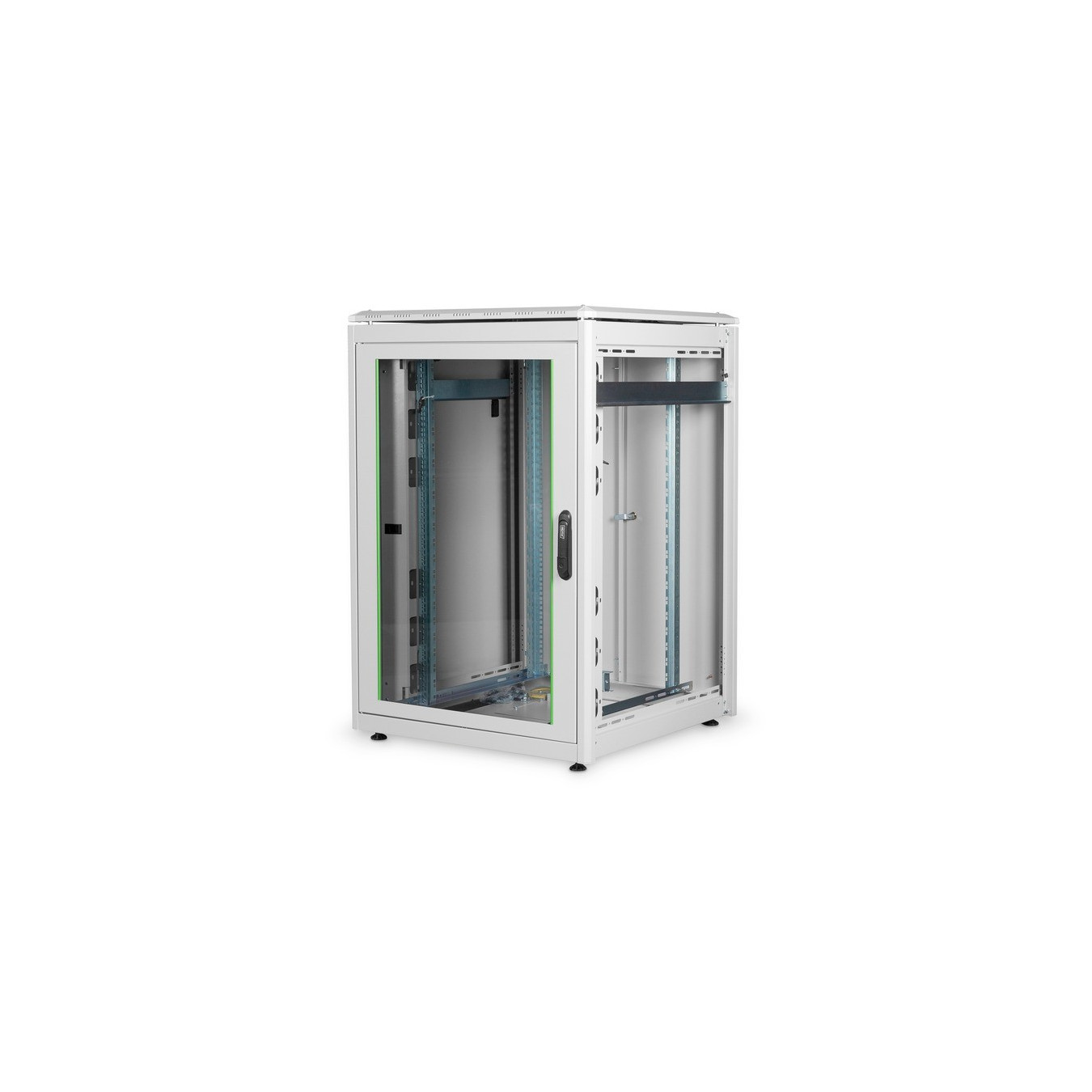

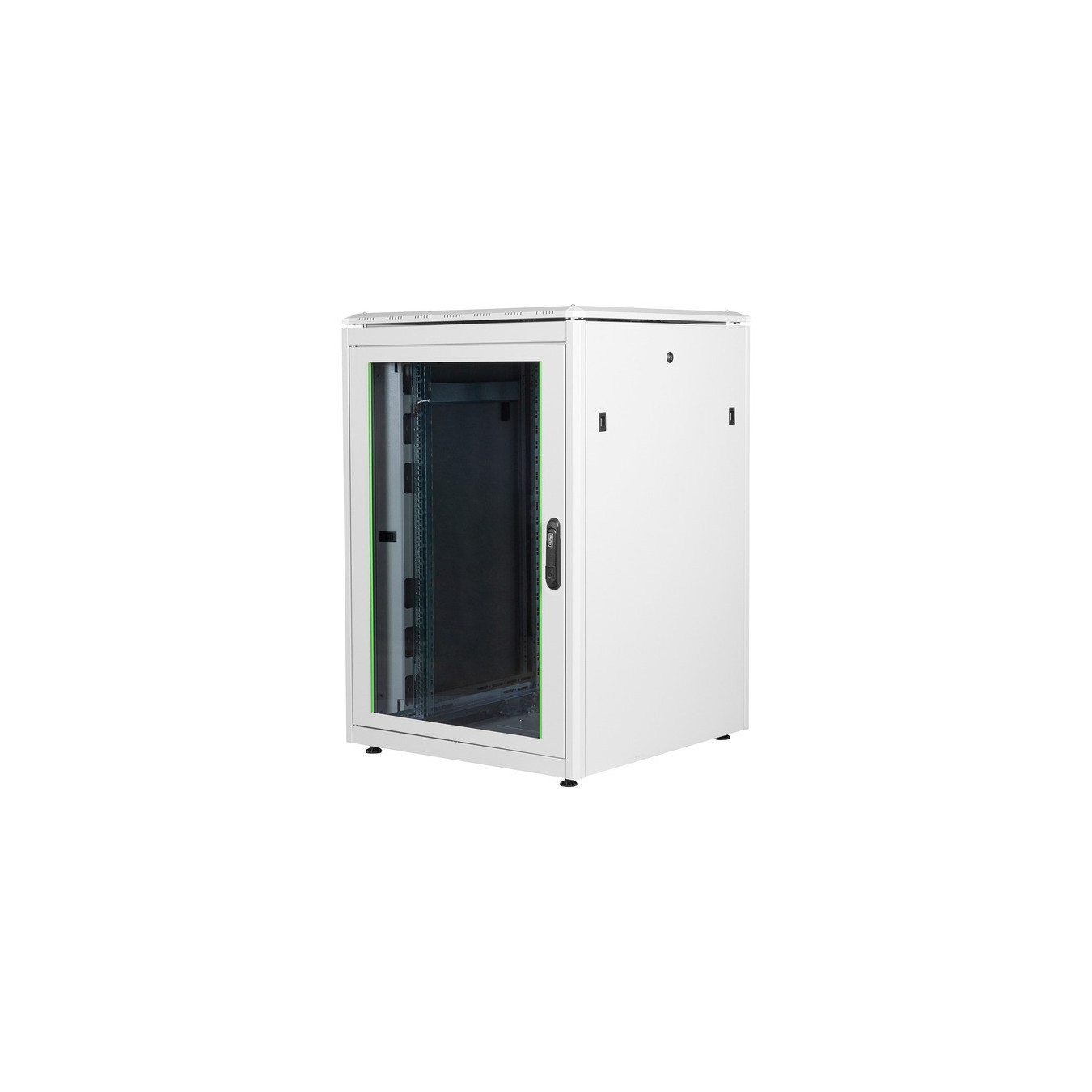

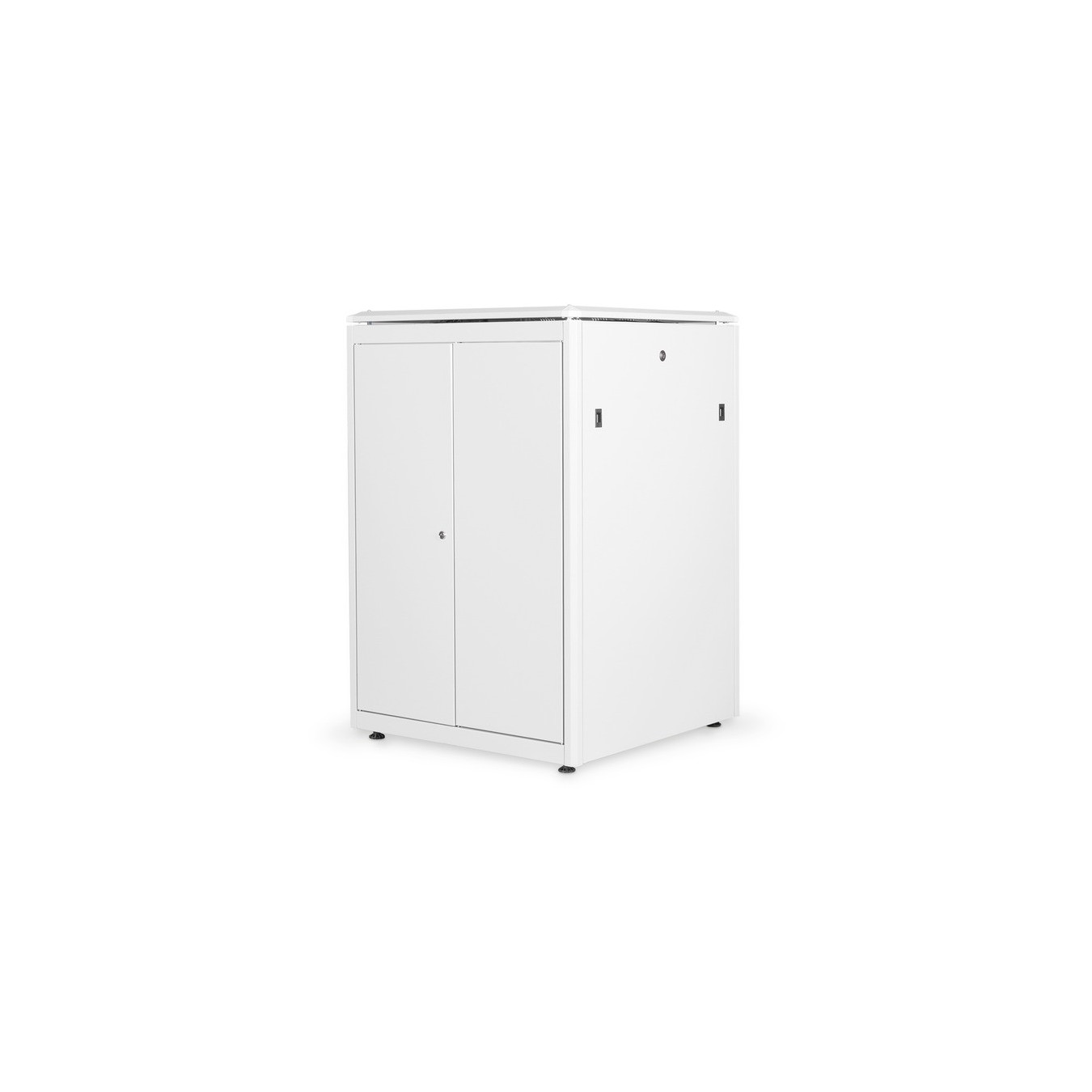

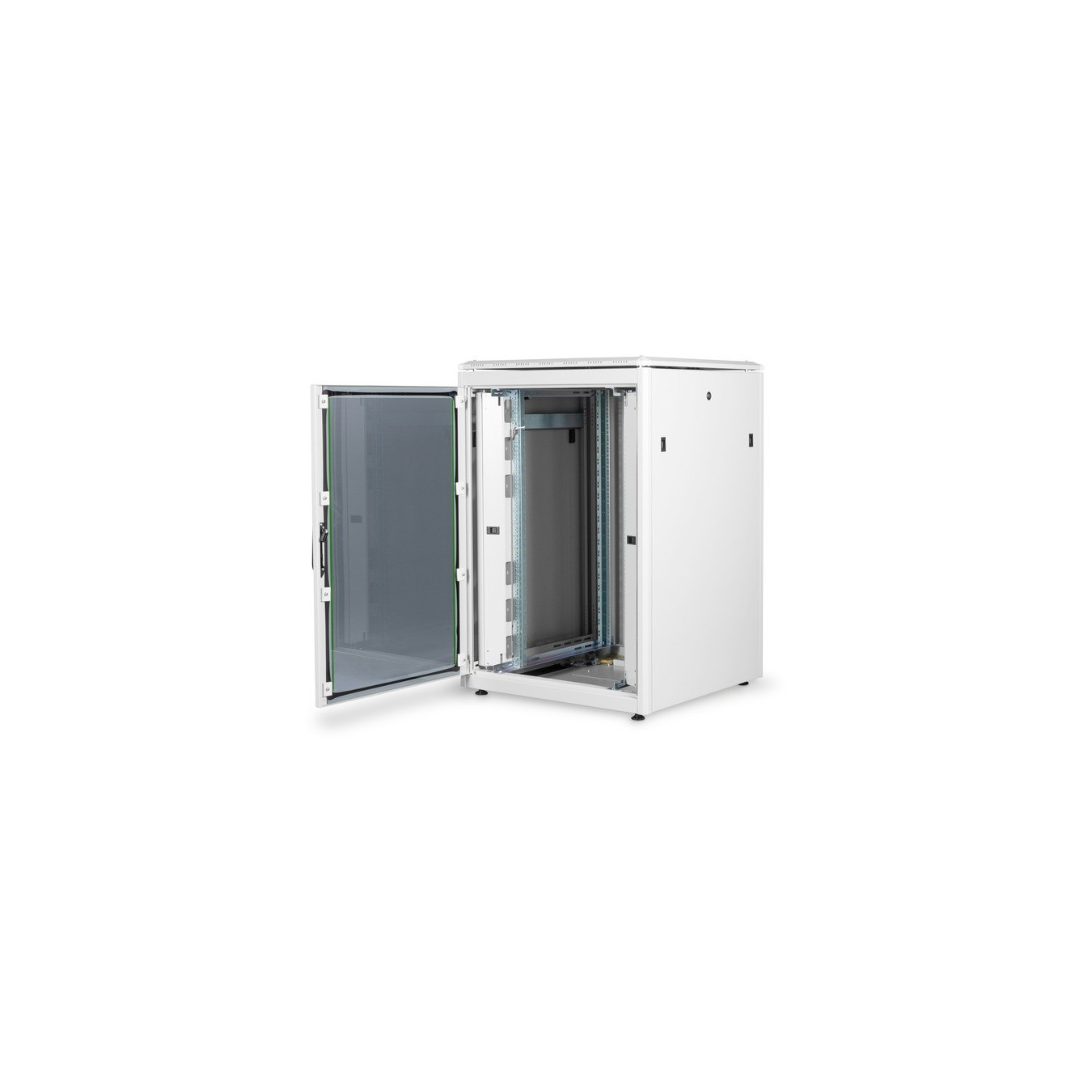

Network cabinet Unique 800x800 22U, IT cabinet
The DIGITUS® network cabinet Unique series was developed and produced for cabling and network components. The cabinet series is optimized, which leads to optimal performance, quali...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The DIGITUS® network cabinet Unique series was developed and produced for cabling and network components. The cabinet series is optimized, which leads to optimal performance, quality and added value. Each cabinet is perfectly designed and user-friendly in terms of application and aesthetic in appearance. Features such as the marking of the height units on the profile rails, the simple and quick assembly of the doors and side panels, as well as variable installation of the front and rear profile rails in depth, make the product attractive for installers. The vertical cable routing channels are installed next to the front profile rails. They offer easy routing of patch and installation cables. The incredible design of the Unique series is rounded off with the front door made of safety glass and steel frame and swivel handle. The door stop can be changed from left to right. The Unique series is available in 5 different sizes, from 22 height units to 47 height units. There are also different depths of 600 mm, 800 mm, 1000 mm and 1200 mm in the Unique series portfolio. Each cabinet includes a lockable front door with safety glass insert, a lockable steel rear door and lockable side panels. The scope of delivery also includes 2 sets of depth-adjustable profile rails, cable entry and brush strip. In addition, the roof is prepared for a fan element. A wide range of DIGITUS® accessories are available to customize the cabinet to the needs of end users.
| Typ | IT cabinet |
| Color | light gray |
| EAN | 4016032331124 |
| Manufacturer no. | DN-19 22U-8/8-1 |
| Serie | Unique |
| use | Network cabinet |
| Server size | 19 inches |
| Cable routing | Cable management channels next to the front 483 mm (19") profile rails, large cable inlet with foam rubber seal in the base, cable entry with brush strip on the upper and lower back of the cabinet |
| Material | Sheet steel (powder-coated) |
| Montage | Delivered fully assembled |
| Doors | Left stop, right stop, removable, lockable, viewing door |
| cooling | Roof module for ventilation unit |
| Installation - width | maximal 483 mm |
| Protection class (IP) | 20 |
| Feature | EMKA closure; high frame rigidity thanks to special sheet metal bending technology; 483 mm (19") profile rails installed at the front and back of the cabinet; 483 mm (19") profile rails are variable in depth; 483 mm (19") profile rails with HE labeling; leveling feet for safe assembly and positioning; multiple grounding points in the cabinet for built-in components |
| Dimensions | Width: 80cm x Height: 116.4cm x Depth/Length: 80cm |
| Weight | 68 kg |
