5G COMBO MIMO Mobile GNSS Wi-Fi Dach SMA, Antennas
Combined, powerful and reliable outdoor antenna for MIMO Wi-Fi, GNSS (GPS) and cellular communications. The cellular antenna has four SMA connectors (male), the Wi-Fi antenna has t...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

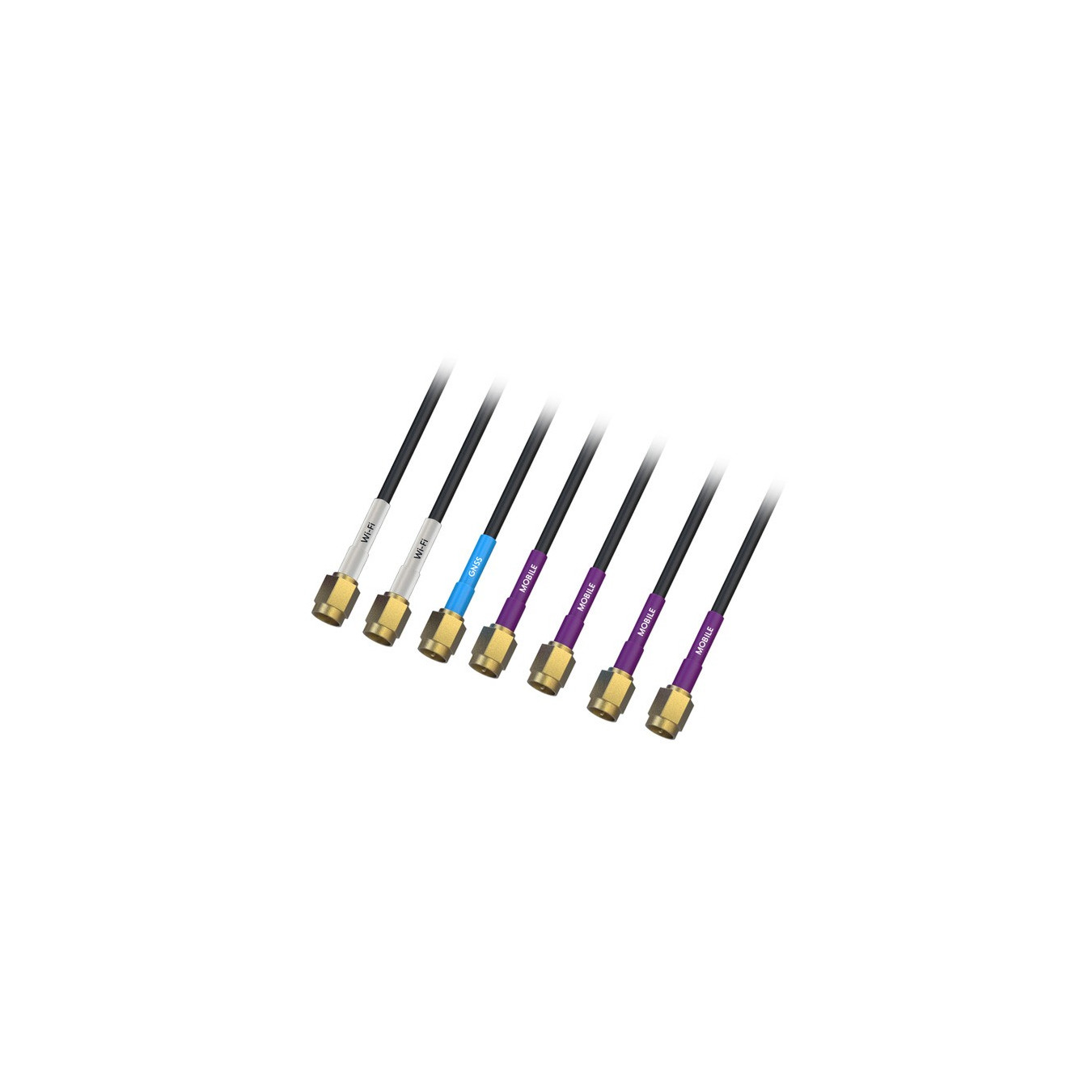

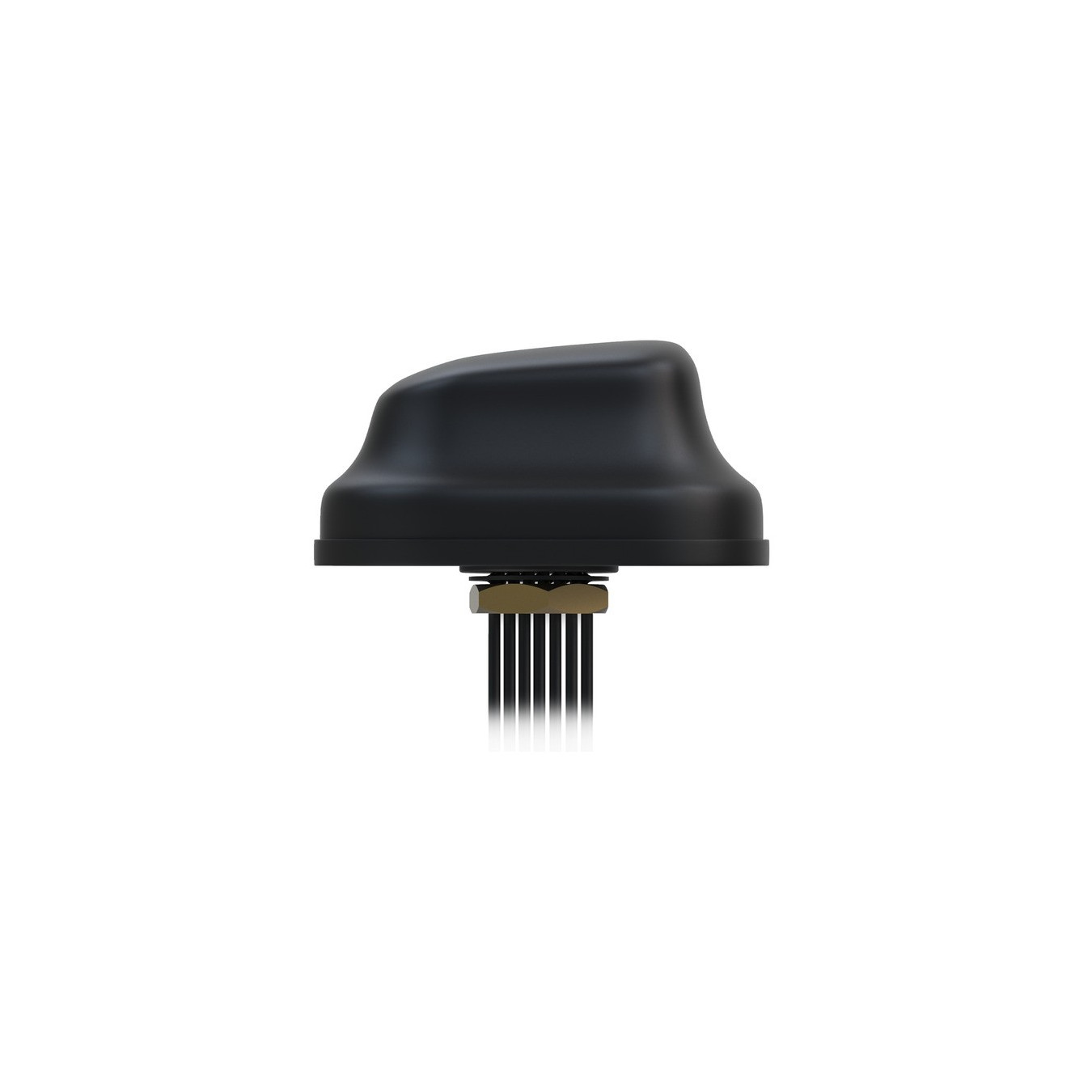

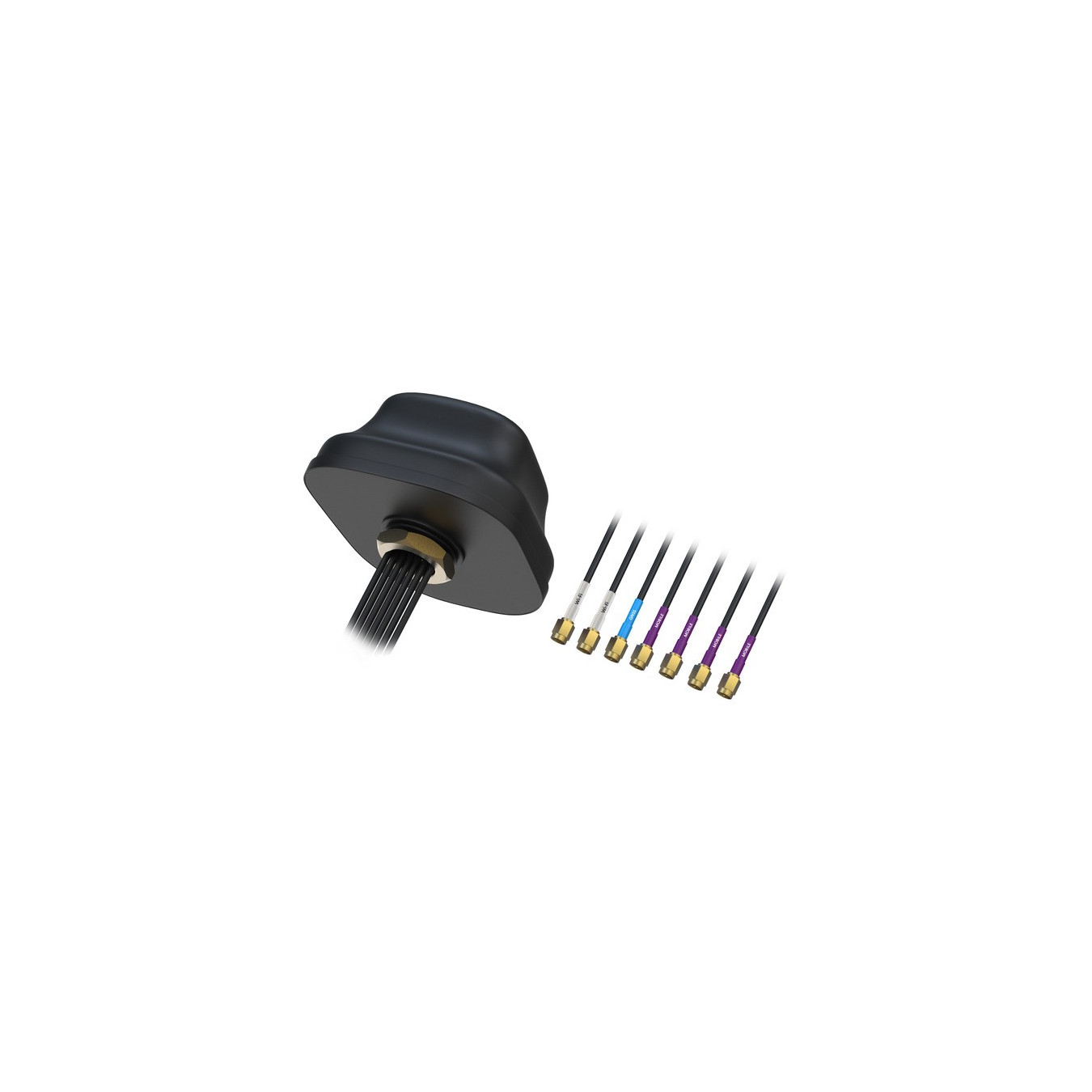

Combined, powerful and reliable outdoor antenna for MIMO Wi-Fi, GNSS (GPS) and cellular communications. The cellular antenna has four SMA connectors (male), the Wi-Fi antenna has two RP-SMA connectors (male) and the GNSS (GPS) antenna has one SMA connector (male). It is waterproof to IP67 and can be attached using a screw thread.
| Typ | Antenna |
| Color | schwarz |
| EAN | 4779051841394 |
| Manufacturer no. | PR1KC640 |
| Area of application | Outside |
| Antenna - impedance | 50 Ω |
| Feature | IP67, Gain Mobile: 4,0 dBi, Gain Wi-Fi 4 dBi, LNA Gain GNSS: 40 dB, VSWR Wi-Fi: 2.5, VSWR Mobile: 3.0, WSWR GNSS: 2.0 |
| More information | Frequency ranges GNSS (GPS): 1164-1300/ 1559-1610 MHz, frequency ranges mobile: 617 - 960/ 1710 - 2690/ 2900 - 4200 MHz, frequency ranges Wi-Fi: 2400 - 2483.5/ 4900 - 5925 MHz, fastening: screw thread ø28 mm (max. 8mm depth) |
| dimension | Width: 182mm x Height: 85mm x Depth/Length: 189mm |
| Weight | 960 Gramm |
| RoHS konform | And |
