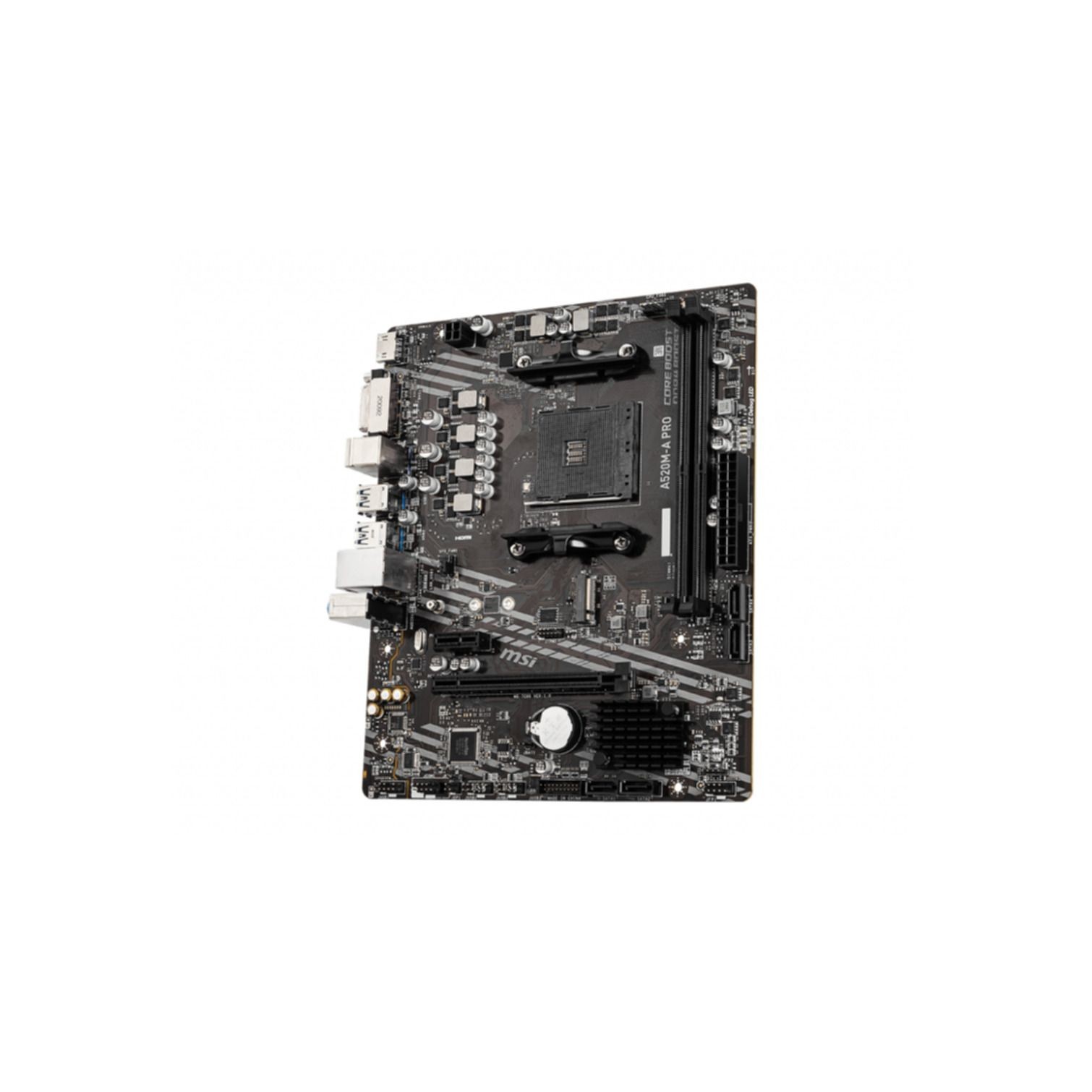

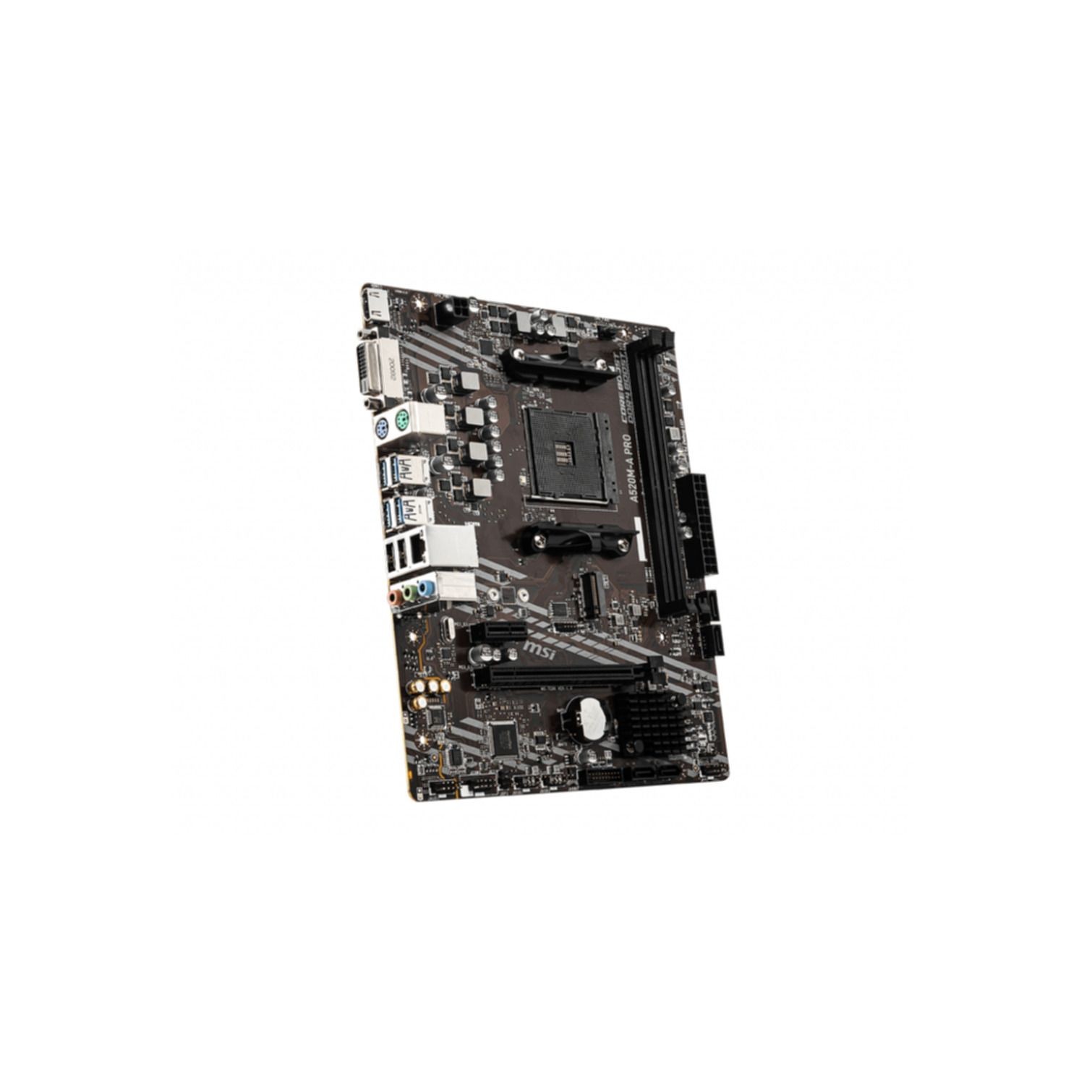

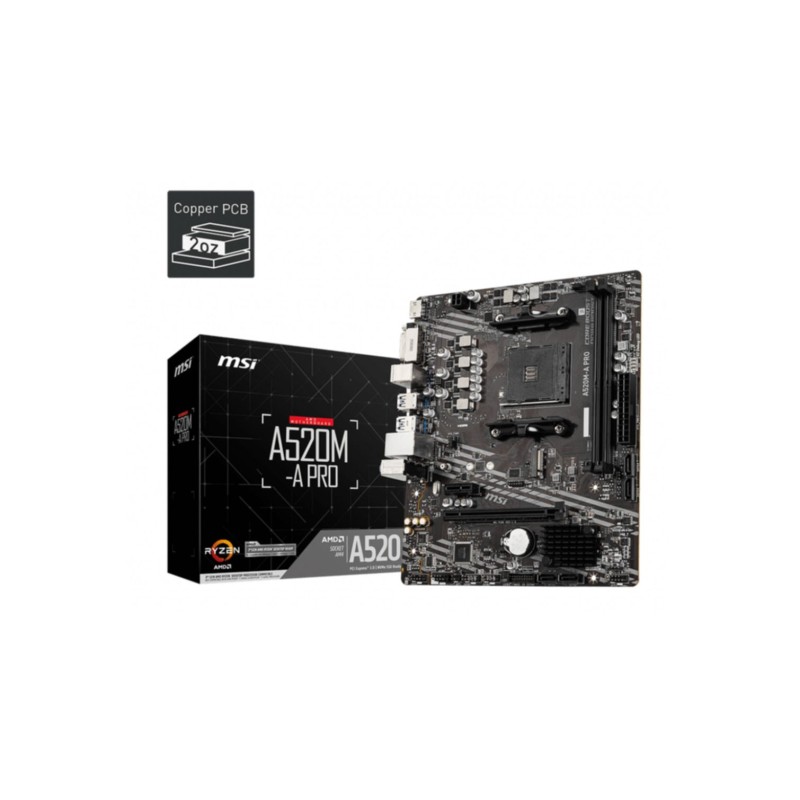

MSI A520M-A Pro - A520M-A Pro - AM4 Micro-ATX Motherboard, DDR4 up to 64GB, PCIe 3.0, HDMI & DVI, Black
AMD A520 micro-ATX motherboard (Socket AM4). Supports DDR4 up to 64GB (2 DIMMs, dual-channel, ECC/non-ECC), PCIe 3.0, 1×M.2, 4×SATA III, 4×USB3, HDMI/DVI, Gigabit LAN.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Socket | AM4 |
|---|---|
| Motherboards - Chipset | AMD A520 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 3.0 |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C | None |
MSI A520M-A PRO. Processor manufacturer: AMD. Processor socket: Socket AM4. Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM. Maximum internal memory: 64 GB. Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 3.0. SATA. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet. LAN controller: Realtek RTL8111H
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 1866.2133.2400.2667.2800.2933.3000.3066.3200.3466.3600.3733.3866.4000.4133.4266.4400.4600 MHz |
| Maximum internal memory | 64 GB |
| Feature | Ethernet LAN |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express 3.0. SATA |
| Number of HDDs supported | 5 |
| RAID levels | 0. 1. 10 |
| Maximum resolution | 4096 x 2160 pixels |
| Number of displays supported | 2 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Motherboard chipset | AMD A520 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Number of mounting holes | 8 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| Harmonized System (HS) code | 84733020 |
| Width | 236 mm |
| Depth | 200 mm |
| Height | 60 mm |
| Weight | 698 g |
