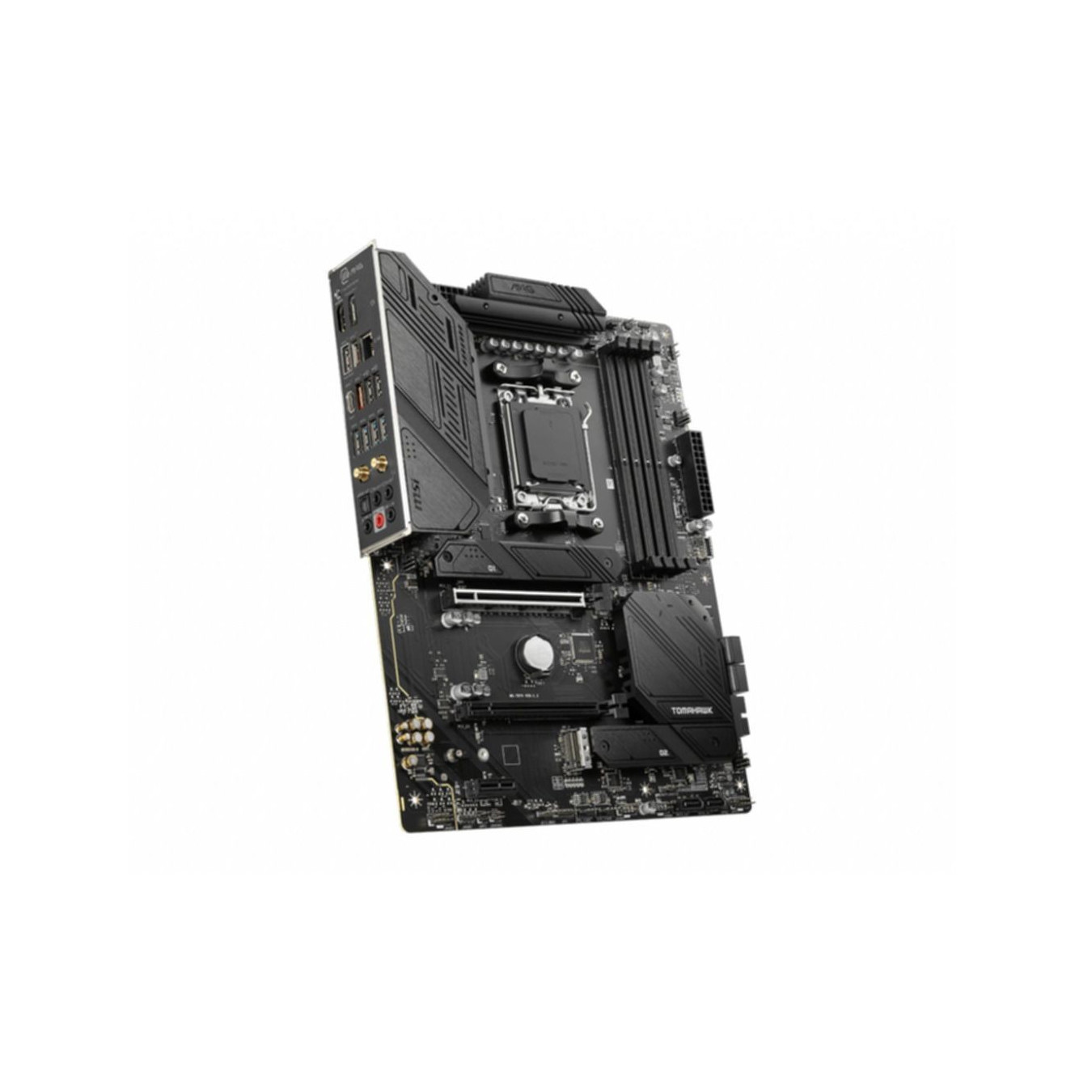

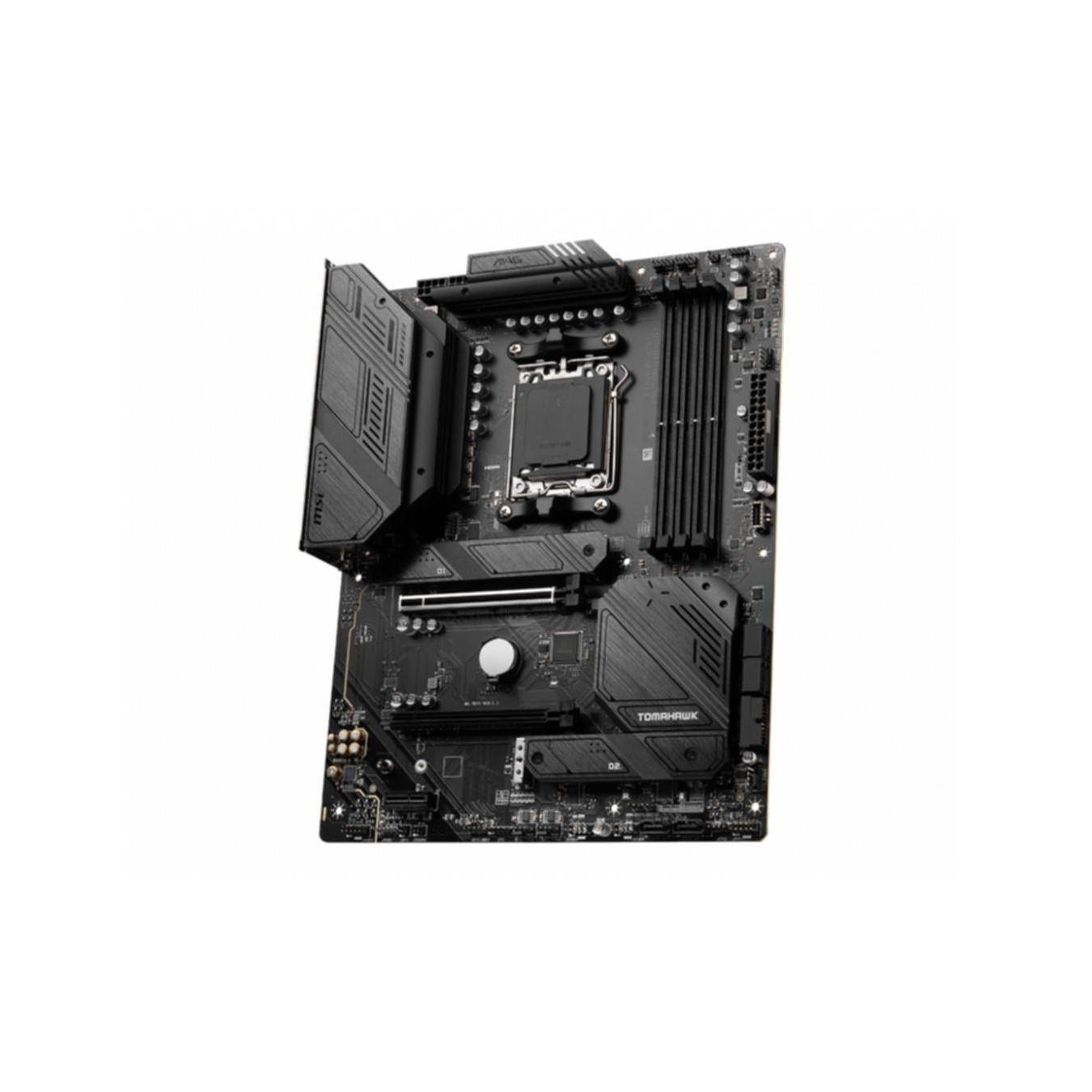

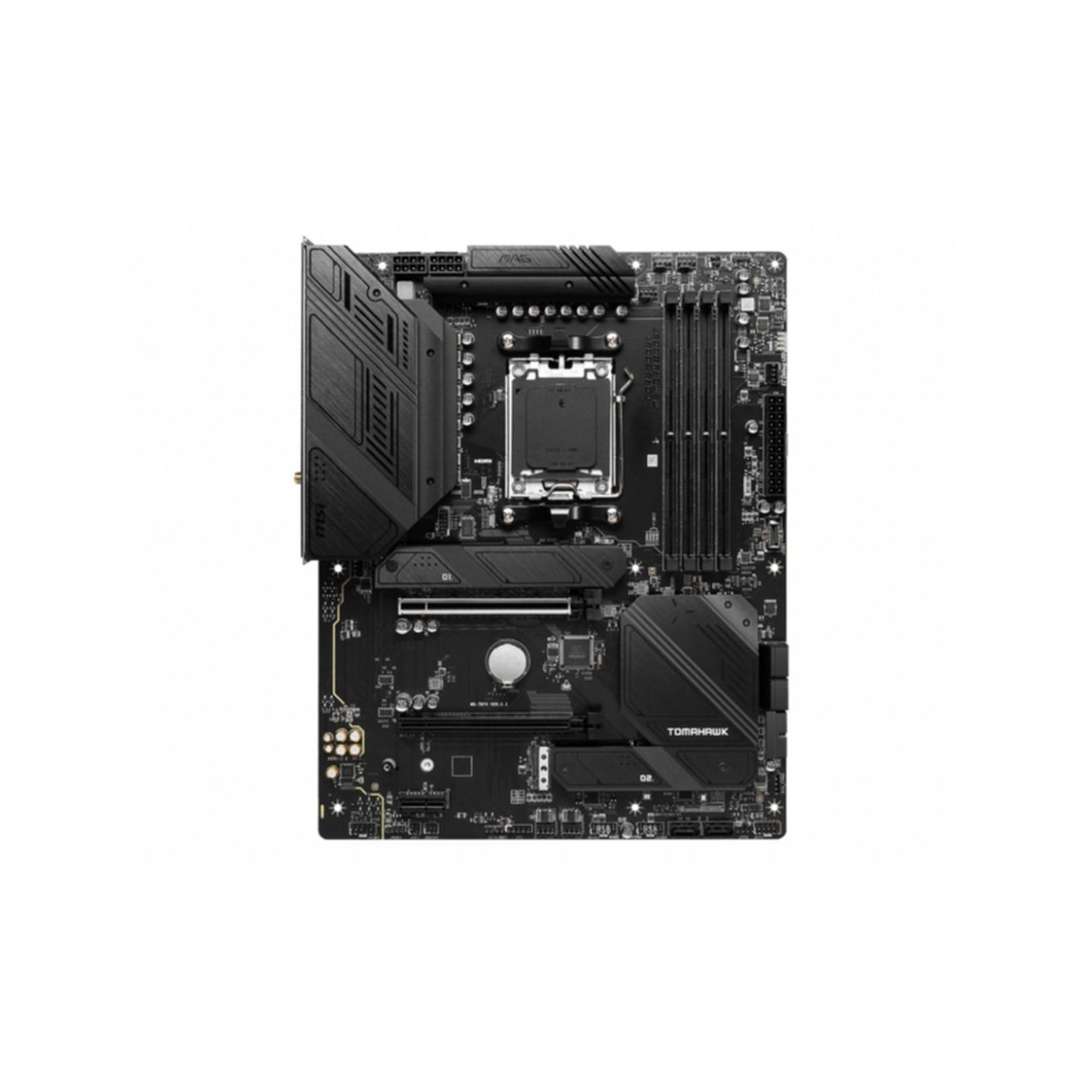

MSI MAG B650 TOMAHAWK WIFI AM5 DDR5 ATX MB Wi-Fi 6E 2.5G LAN HDMI 2.1 (Boxed)
AM5 ATX motherboard for Ryzen 9000/8000/7000 Series. Supports DDR5 to 7600+(OC) max 128GB (4 slots), 3x M.2 PCIe 4.0, 6x SATA, Wi-Fi 6E, BT 5.2, 2.5Gb LAN, HDMI 2.1/DP 1.4, USB 20G.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD B650 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 3.0 PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 6 |
| Motherboards - USB-C Support | Front Panel Type-C header Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
The MSI MAG B650 TOMAHAWK WIFI is a robust ATX motherboard designed for AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket. Featuring the AMD B650 chipset, it delivers excellent performance for gaming and productivity builds with support for high-speed DDR5 memory up to 128GB across 4 DIMM slots and overclocking potential to 7600+ MHz with EXPO profiles.

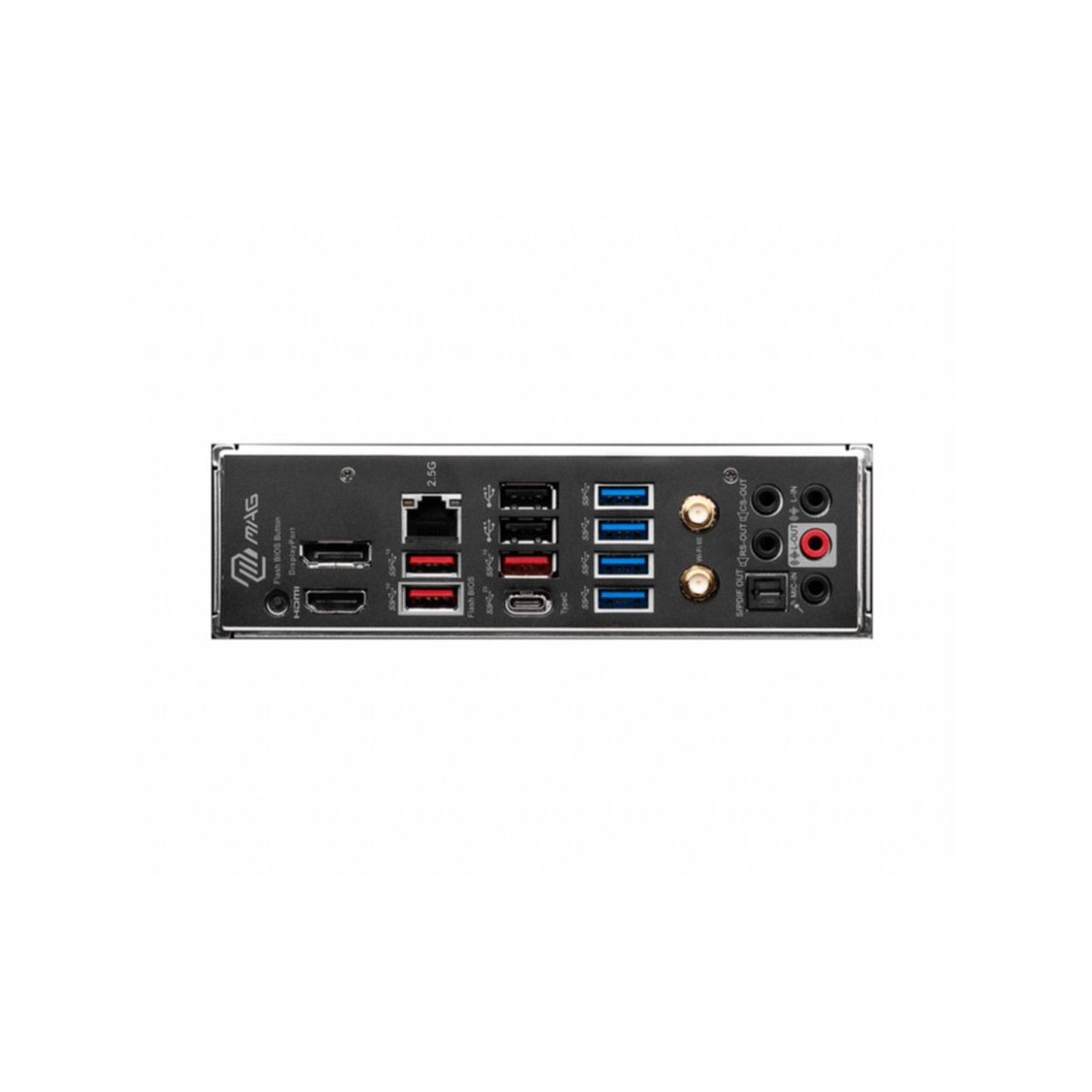

Connectivity is top-tier with Wi-Fi 6E and Bluetooth 5.2 for wireless needs, a 2.5GbE LAN port using Realtek RTL8125B, and an extensive rear I/O including HDMI 2.1, DisplayPort 1.4, multiple USB 3.2 Gen2/Gen2x2 ports (including 20G Type-C), and 7.1-channel Realtek ALC4080 audio. Storage options include 3x M.2 slots (PCIe 4.0), 6x SATA III ports with RAID 0/1/10 support, plus PCIe 4.0 x16 for GPUs.
- Power Delivery: 14+2+1 Duet Rail VRM with 80A stages for stable overclocking
- Expansion: PCIe 4.0 x16, x1 slots; Lightning USB 20G
- Cooling: Extended heatsinks, M.2 Shield Frozr
- RGB: Multiple 4-pin 12V RGB and 3-pin 5V ARGB headers
- BIOS: User-friendly with flash button
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 9000 / 8000 / 7000 Series |
| Motherboard chipset | AMD B650 |
| Motherboard form factor | ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | up to 7600+(OC) MHz |
| Memory Profile Support | EXPO |
| Number of M.2 (M) slots | 3 (PCIe 4.0) |
| Number of SATA III connectors | 6 |
| RAID levels | 0, 1, 10 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 (20Gbps) |
| USB 3.2 Gen 2 Type-A ports quantity | 3 |
| USB 3.2 Gen 1 Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125B |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPort | 1.4 |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 channels |
| Power Design | 14+2+1 Duet Rail VRM (80A stages) |
| RGB Headers | 4-pin 12V RGB, 3-pin 5V ARGB (multiple) |
| Width | 30.48 cm |
| Depth | 24.38 cm |
| Product colour | Black |
