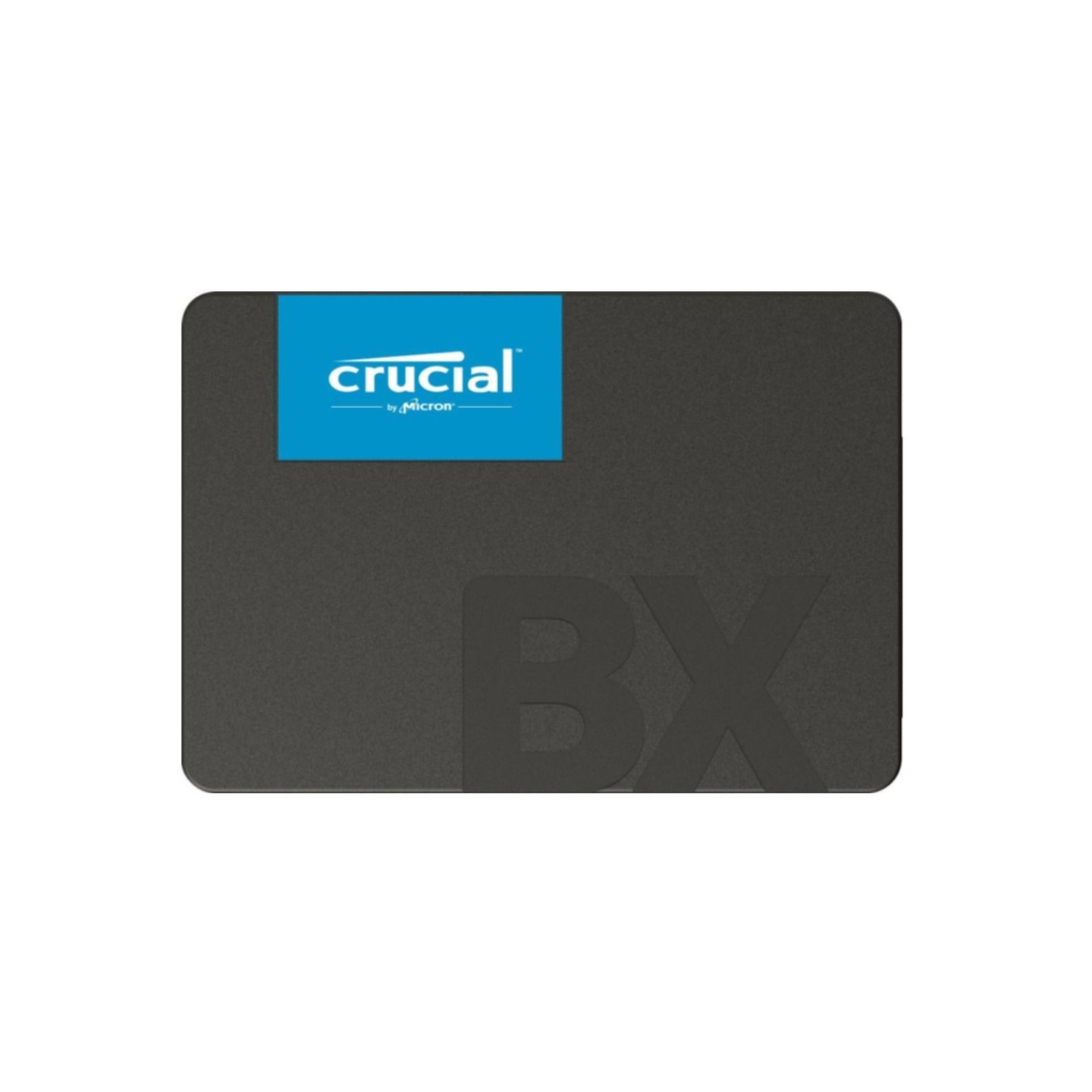

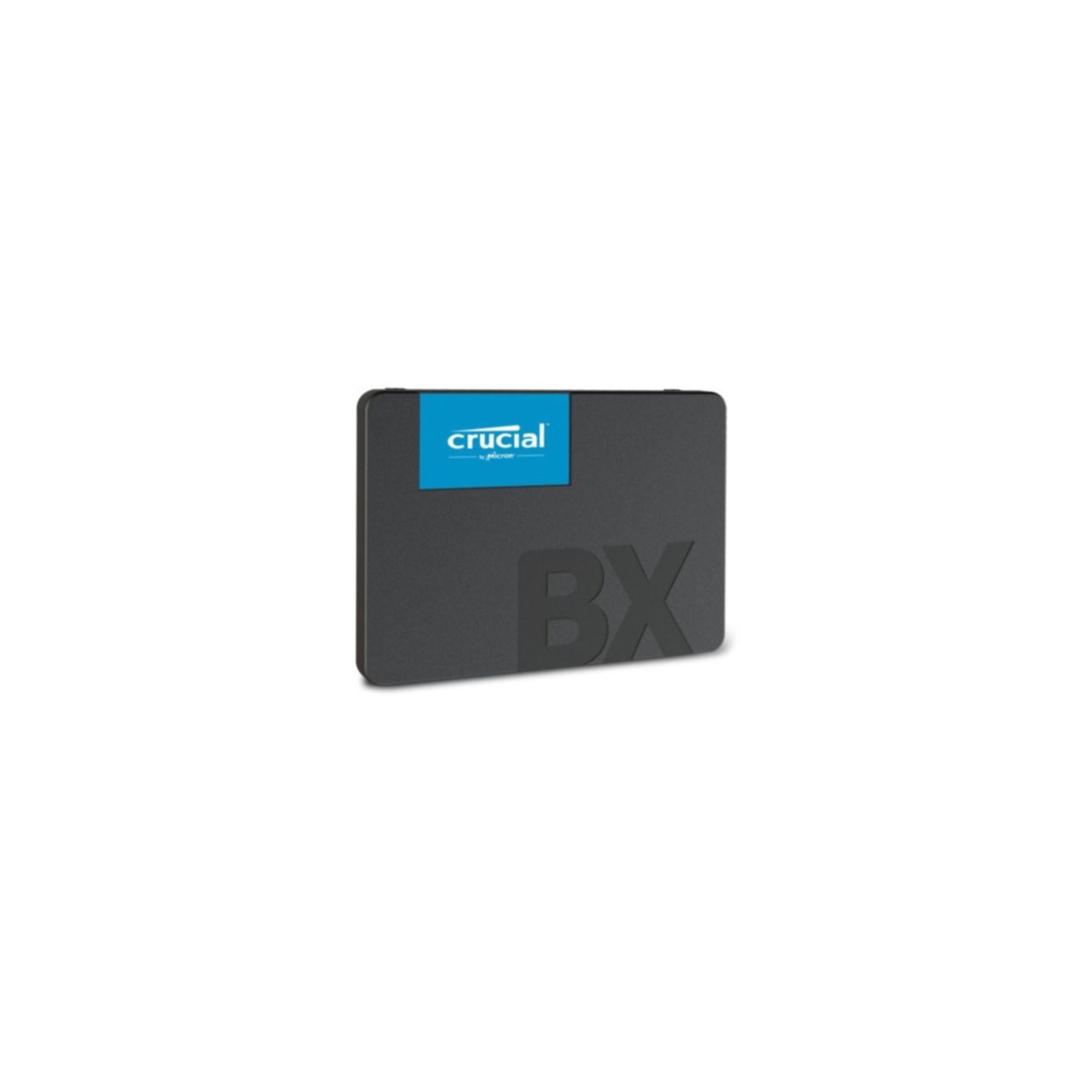

Crucial BX500 CT240BX500SSD1 240GB 2.5" SATA III SSD - 540/500 MB/s 3D NAND (Boxed)
240GB 2.5-inch SATA III SSD with 3D NAND. Up to 540 MB/s read, 500 MB/s write speeds. DRAM-less design, 80TB endurance, 7mm slim profile. Supports TRIM, S.M.A.R.T., AES 256-bit encryption. Ideal for PC/laptop upgrades.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Device Type | Internal SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | Up to 256GB |
| Storage (SSD & HDD) - Sequential Read Speed (SSD) | Up to 550 MB s |
| Storage (SSD & HDD) - DRAM Cache (SSD) | None (DRAM-less) |
| Storage (SSD & HDD) - Interface | SATA III |
| Storage (SSD & HDD) - Heatsink (SSD) | Not Included |
| Storage (SSD & HDD) - Form Factor | 2.5 inch |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | Not Specified |
Essential performance at budget price
The Crucial BX500 240GB SSD brings flash memory speed to your laptop or desktop, making it respond like a new computer without the high cost. Using Micron 3D NAND and Silicon Motion SM2258XT controller, it delivers up to 540 MB/s sequential reads and 500 MB/s writes over SATA III (6Gb/s). This DRAM-less SSD uses a dynamic SLC cache for reliable performance in everyday tasks like booting, file loading, and app responsiveness.
Perfect for upgrading older systems, the slim 7mm 2.5-inch form factor fits most laptops and desktops. It includes 256-bit AES hardware encryption, TRIM, and S.M.A.R.T. support for long-term reliability with 80TB TBW endurance (43GB/day for 5 years). Crucial provides easy cloning software (Acronis True Image), installation guides, and award-winning support.
- SATA III 6Gb/s interface, backward compatible
- Micron 3D NAND TLC flash
- No DRAM cache, uses HMB/SLC buffer
- Low power: ~1.55W average under load
- MTBF 1.5 million hours
- 3-year limited warranty
| SSD capacity | 240 GB |
| SSD form factor | 2.5-inch (7mm) |
| Interface | Serial ATA III (6 Gbit/s) |
| Memory type | 3D NAND (Micron TLC) |
| Component for | PC/Laptop |
| Read speed | 540 MB/s |
| Write speed | 500 MB/s |
| SSD Endurance (TBW) | 80 TB |
| Endurance rating (5 years) | 43 GB/day |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Security algorithms | 256-bit AES |
| Mean time between failures (MTBF) | 1500000 h |
| Width | 100.3 mm |
| Depth | 63.5 mm |
| Height | 7 mm |
| Product colour | Black |
| Operating temperature (T-T) | 0 - 70 °C |
| Certification | FCC, UL, TUV, KCC, BSMI, VCCI, CE, WEE, EPEAT, Halogen Free, SATA-IO, ICES |
| Compliance certificates | RoHS |
| Warranty | 3 years limited |
