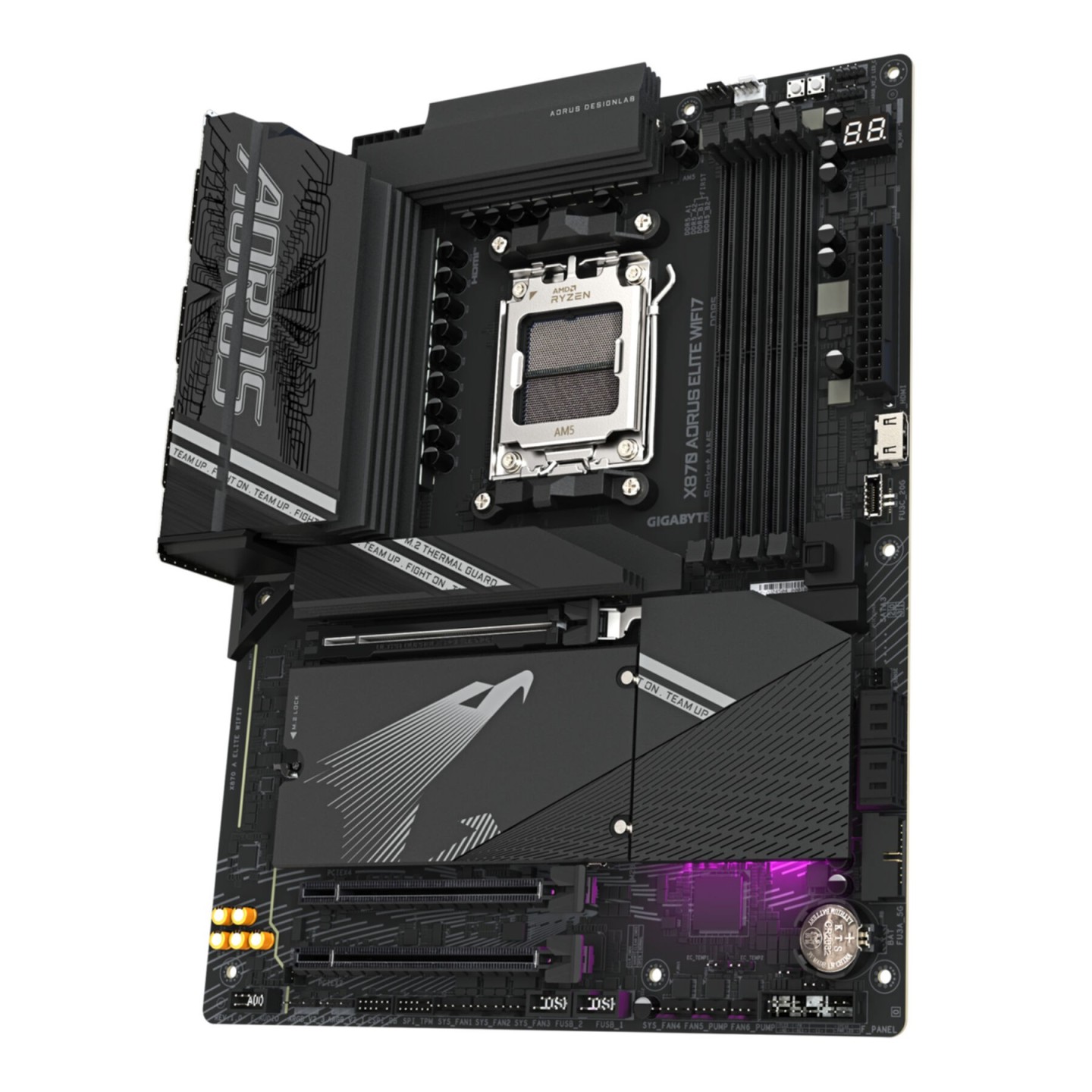

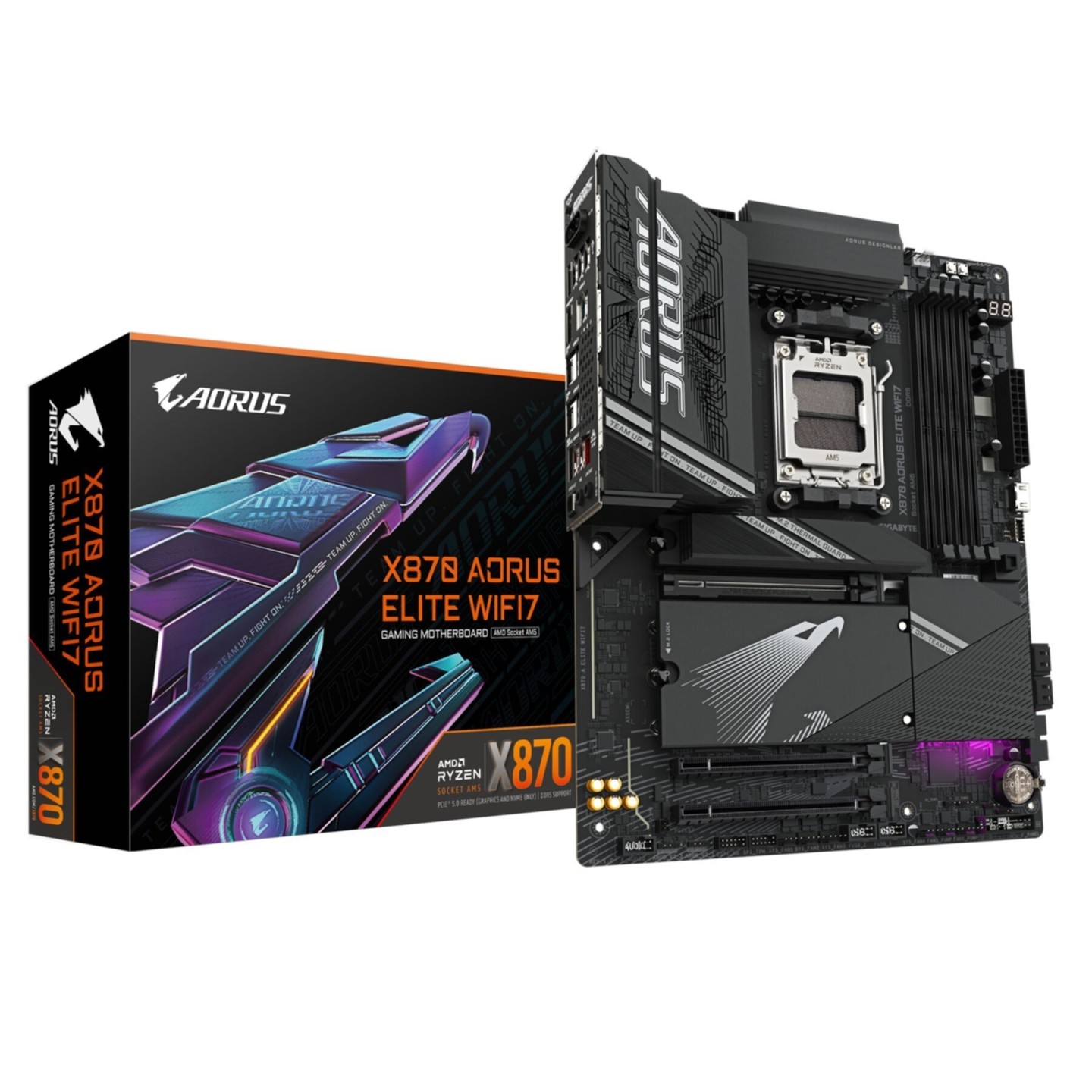

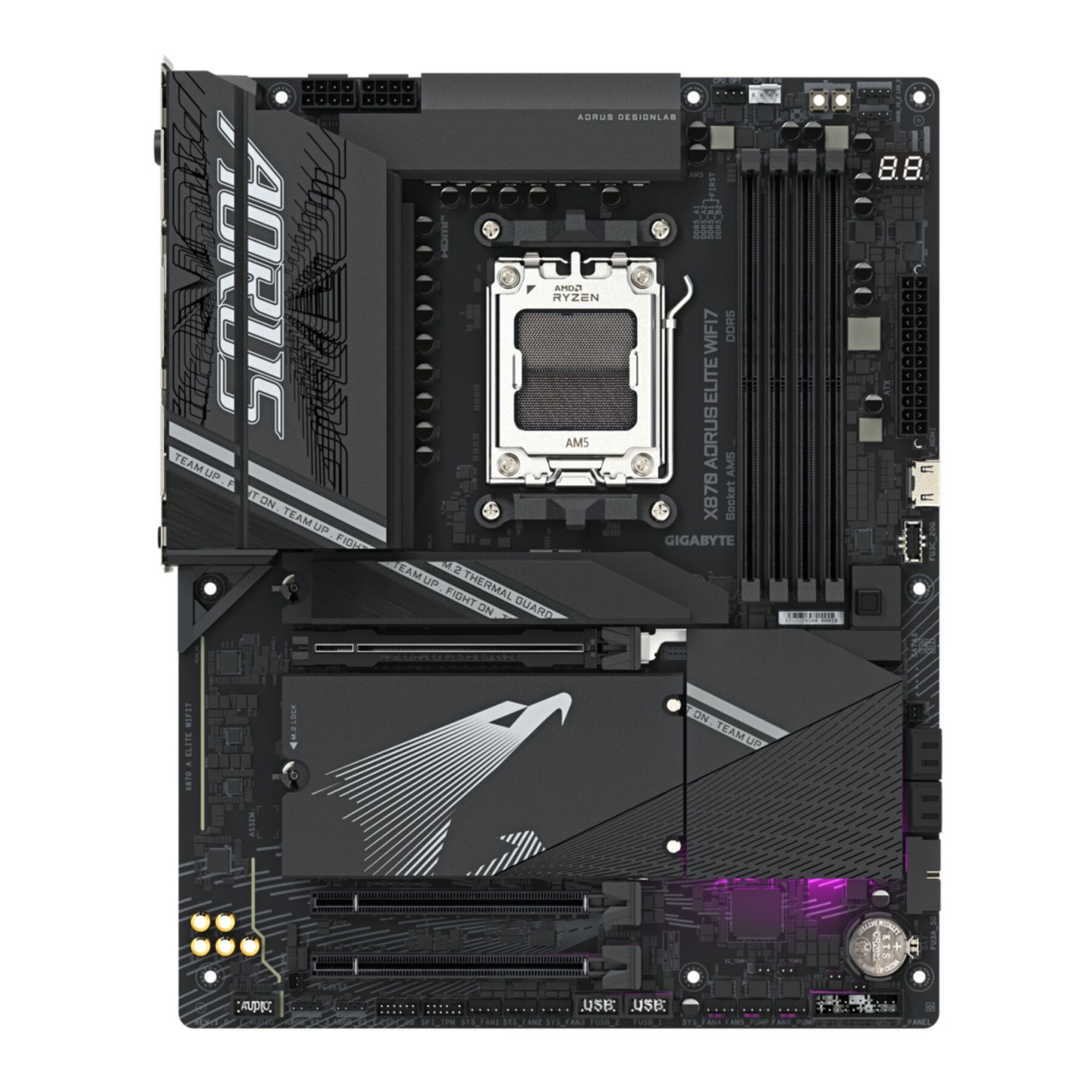

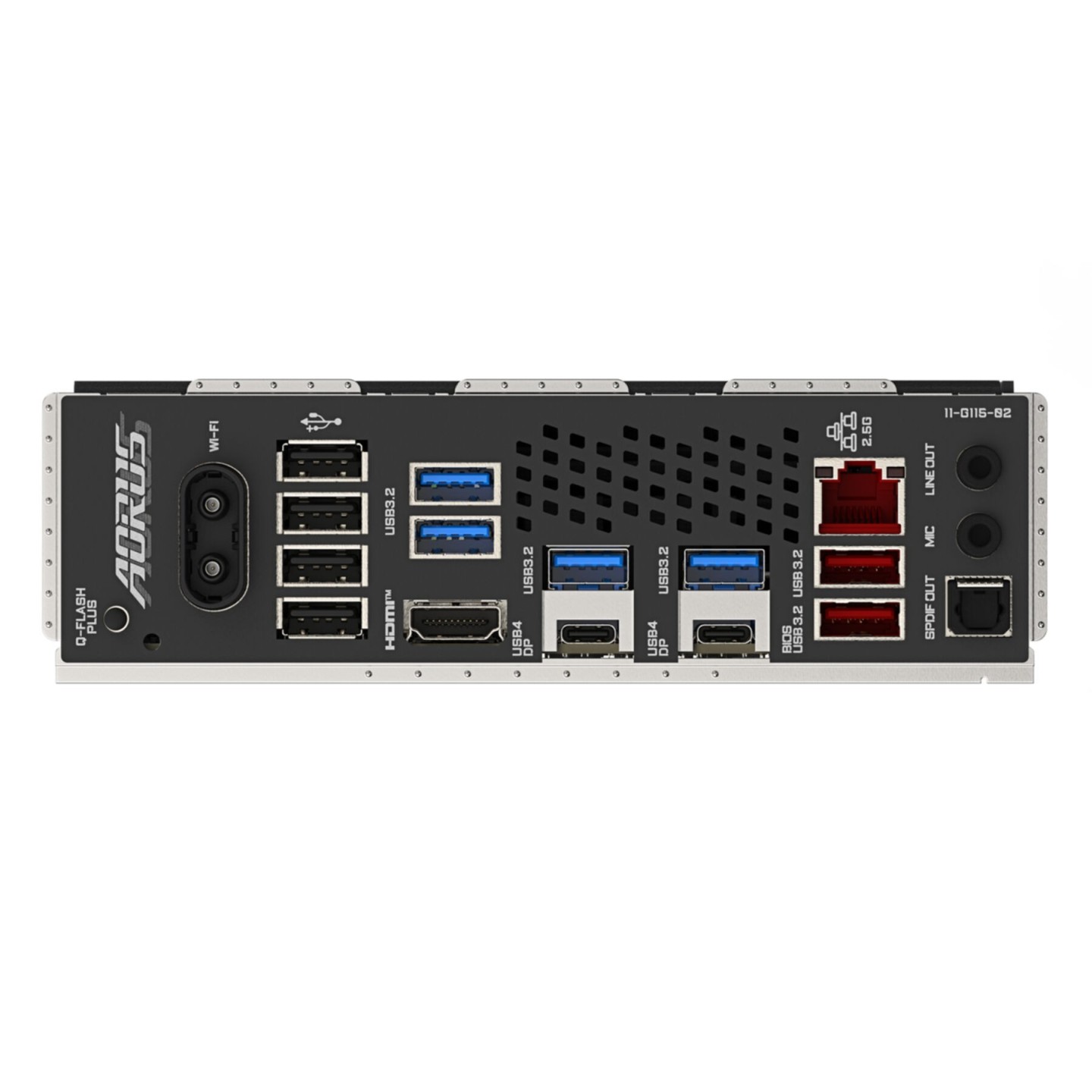

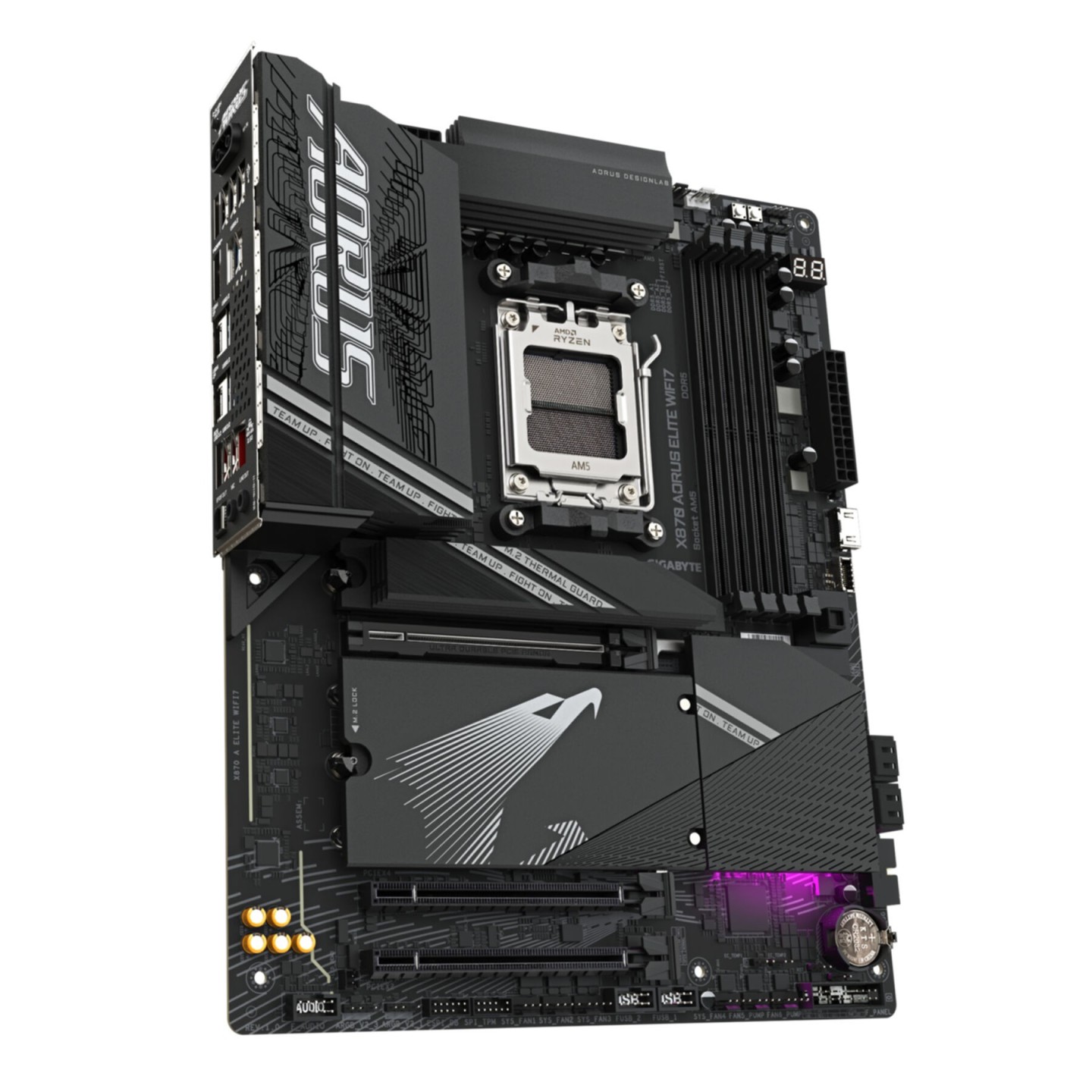

Gigabyte GA-X870 AORUS Elite WiFi7 AM5 ATX MB DDR5 256GB PCIe5 WiFi7 (Boxed)
Gigabyte GA-X870 AORUS Elite WiFi7: AM5 ATX MB, AMD X870, DDR5 256GB (4xDIMM), 16+2+2 VRM, 3x PCIe5 M.2 + PCIe5 GPU, WiFi7/BT5.4, 2.5GbE, USB4, black.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD X870 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 4 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
The Gigabyte GA-X870 AORUS Elite WiFi7 is a premium AM5 ATX motherboard based on the AMD X870 chipset, designed for Ryzen 7000/8000/9000 series processors. It features a robust 16+2+2 phase VRM with 60A stages for stable overclocking, supporting up to 256GB DDR5 RAM at 8000MHz+ (OC) across 4 DIMM slots with EXPO profiles.
Storage and expansion are top-tier with 4x M.2 slots (3x PCIe 5.0 x4, 1x PCIe 4.0), 4x SATA III, and PCIe slots including 1x PCIe 5.0 x16 for GPUs, plus PCIe 4.0/3.0 slots. Connectivity shines with Wi-Fi 7 (MediaTek MT7925), Bluetooth 5.4, 2.5GbE LAN (Realtek), dual USB4 (40Gbps), multiple USB 3.2 ports, HDMI 2.1, and 2x DisplayPort 1.4. Audio is handled by Realtek ALC1220 7.1-channel.
- Key Features: PCIe 5.0 GPU/M.2 support, USB4, Wi-Fi 7, EZ-Latch for easy builds, Q-Code debug LED, Sensor Panel Link.
- Ideal for: Gaming, content creation, high-end workstations.
- VRM Cooling: Effective heatsinks keep temps low under load.
- BIOS: User-friendly UEFI with multi-theme UI and Q-Flash.
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Motherboard chipset | AMD X870 |
| Motherboard form factor | ATX |
| Maximum internal memory | 256 GB |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| VRM Phases | 16+2+2 (60A stages) |
| Number of M.2 slots | 4 (3x PCIe 5.0, 1x PCIe 4.0) |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | MediaTek MT7925 |
| Bluetooth version | 5.4 |
| USB4 Gen 2x2 ports quantity | 2 |
| Audio chip | Realtek ALC1220 |
| Product colour | Black |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 35 mm |
| Weight | 2.4 kg |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.74 kg |
| Warranty period | 3 year(s) |
