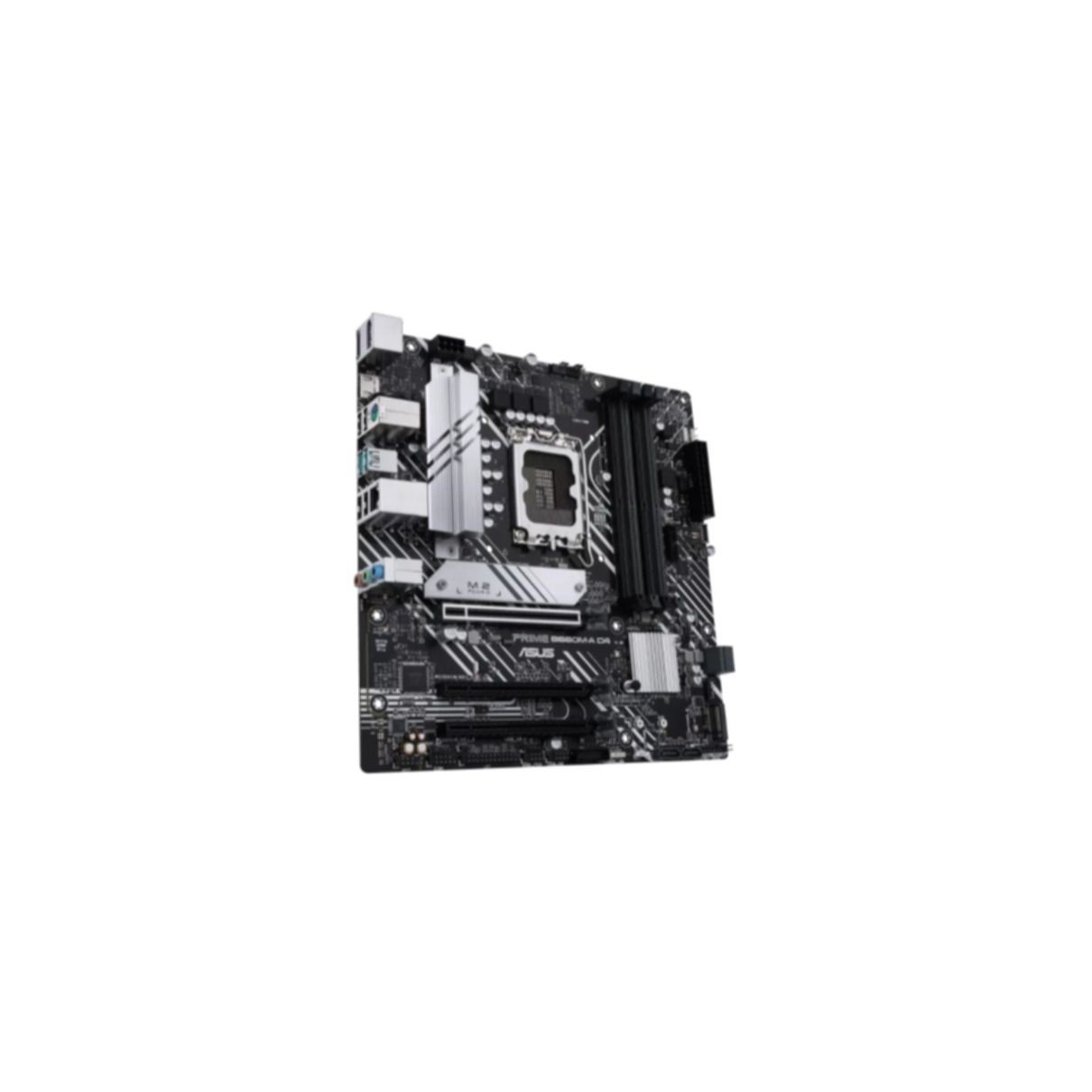

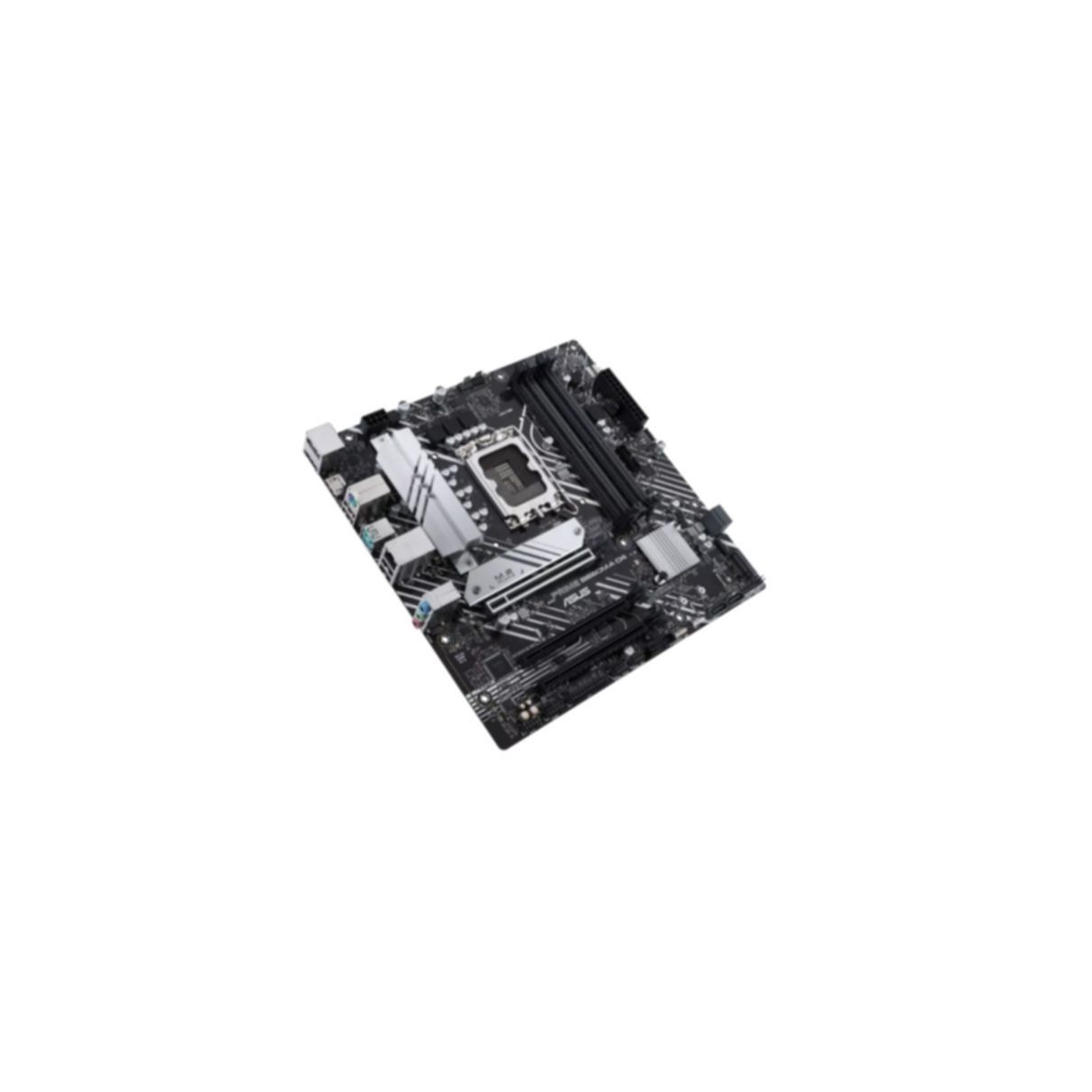

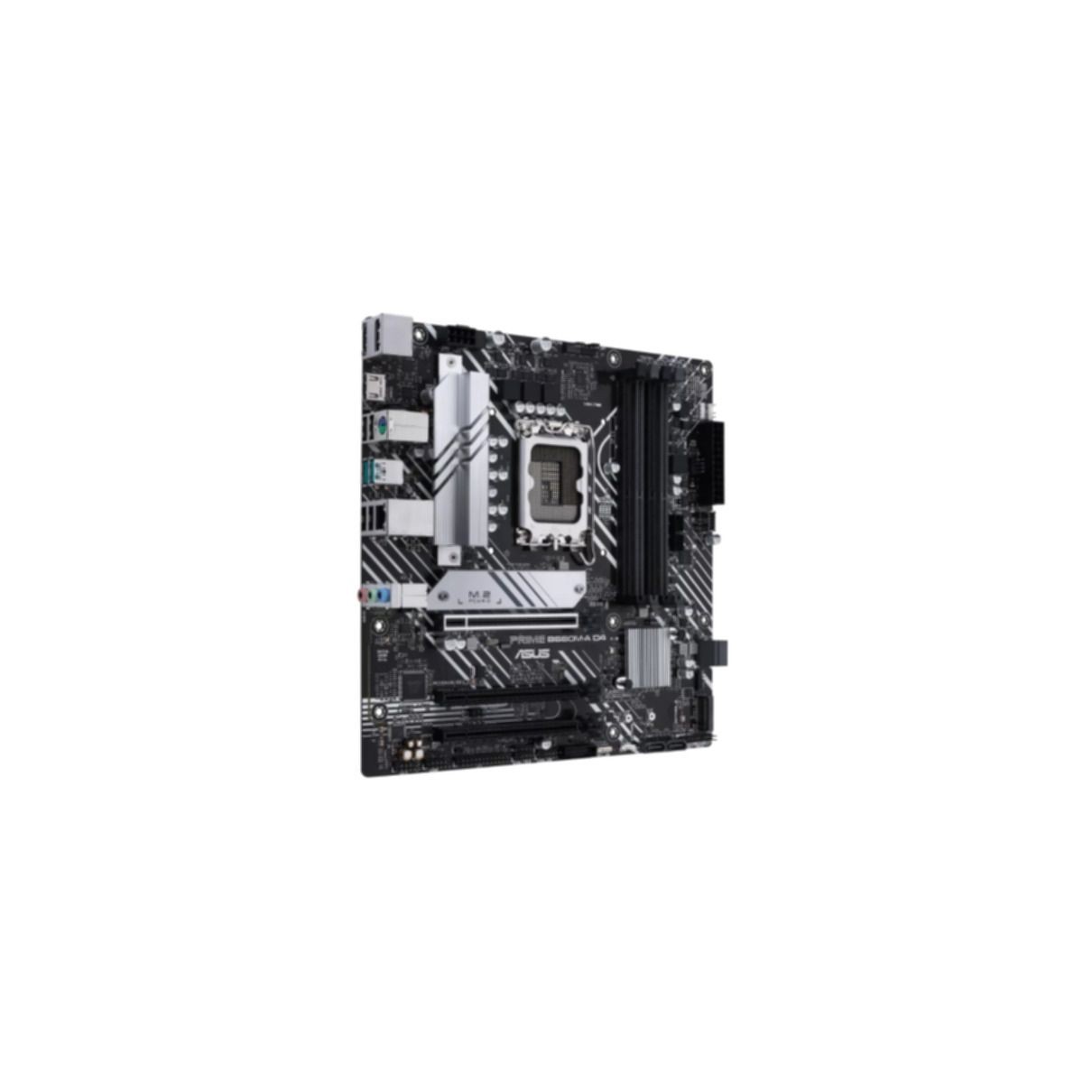

ASUS PRIME B660M-A D4 CSM - LGA1700 micro-ATX, Intel B660, DDR4 (128GB max), 2x M.2, USB-C
ASUS PRIME B660M-A D4 CSM micro-ATX motherboard. LGA1700, Intel B660, 4x DDR4 DIMM (up to 5333MHz, 128GB), 2x M.2, 4x SATA III, 2x USB-C, Realtek 7.1, Gigabit LAN
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Socket | LGA1700 |
|---|---|
| Motherboards - Chipset | Intel B660 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 4.0 |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C | Rear Type-C |
ASUS PRIME B660M-A D4-CSM. Processor manufacturer: Intel. Processor socket: LGA 1700. Compatible processor series: Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9..... Supported memory types: DDR4-SDRAM. Maximum internal memory: 128 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA III. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 5. 10. Ethernet interface type: Gigabit Ethernet. Component for: PC. Motherboard form factor: micro ATX. Motherboard chipset family: Intel
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133.2400.2666.2800.2933.3000.3200.3333.3400.3466.3600.3733.4000.4266.4400.4600.4800.5000.5333 MHz |
| Supported memory clock speed (max) | 5333 MHz |
| Maximum internal memory | 128 GB |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| Feature | Ethernet LAN |
| RAID levels | 0. 1. 5. 10 |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |

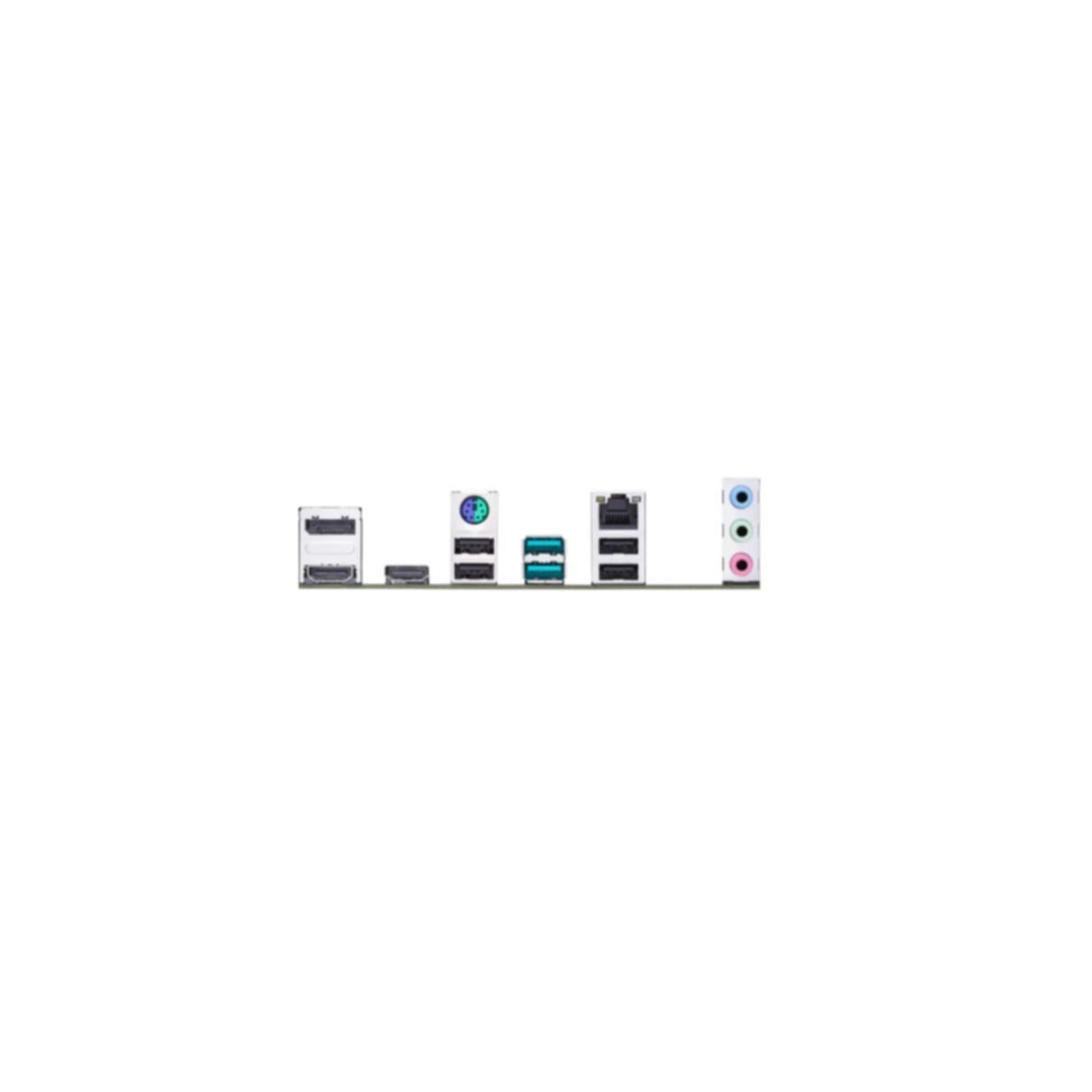

| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Motherboard chipset | Intel B660 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10. Windows 11 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Width | 244 mm |
| Depth | 244 mm |
| Cables included | SATA |
