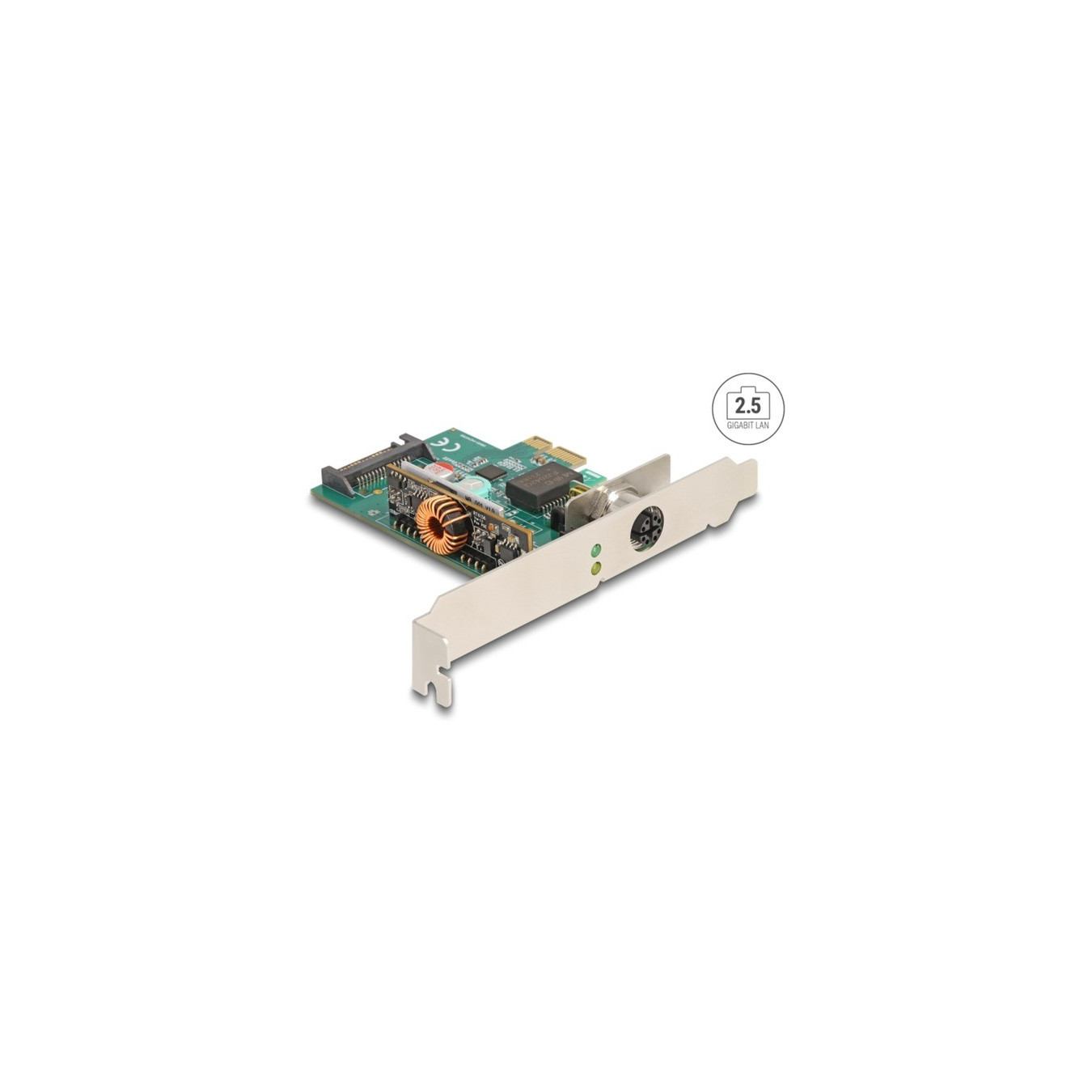

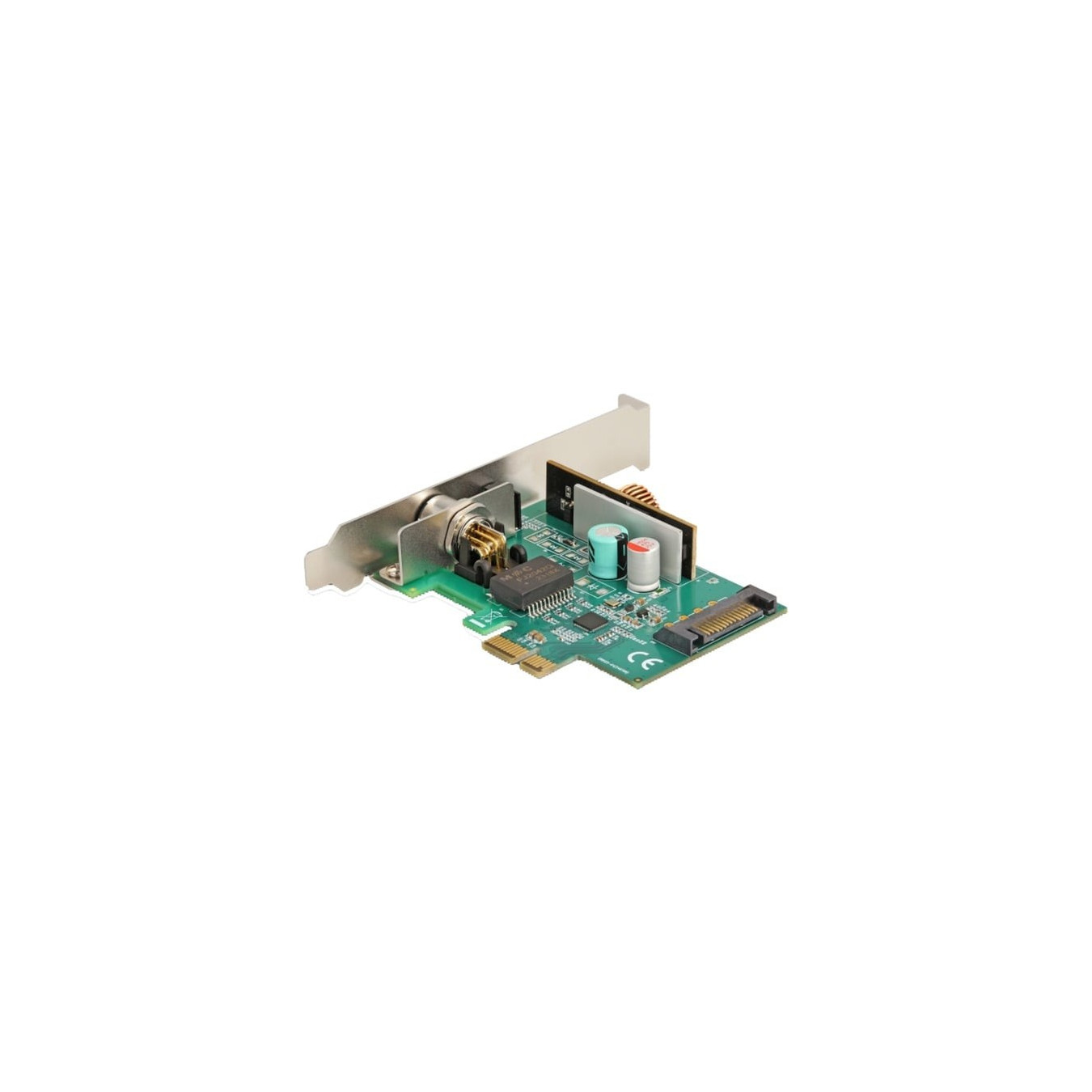

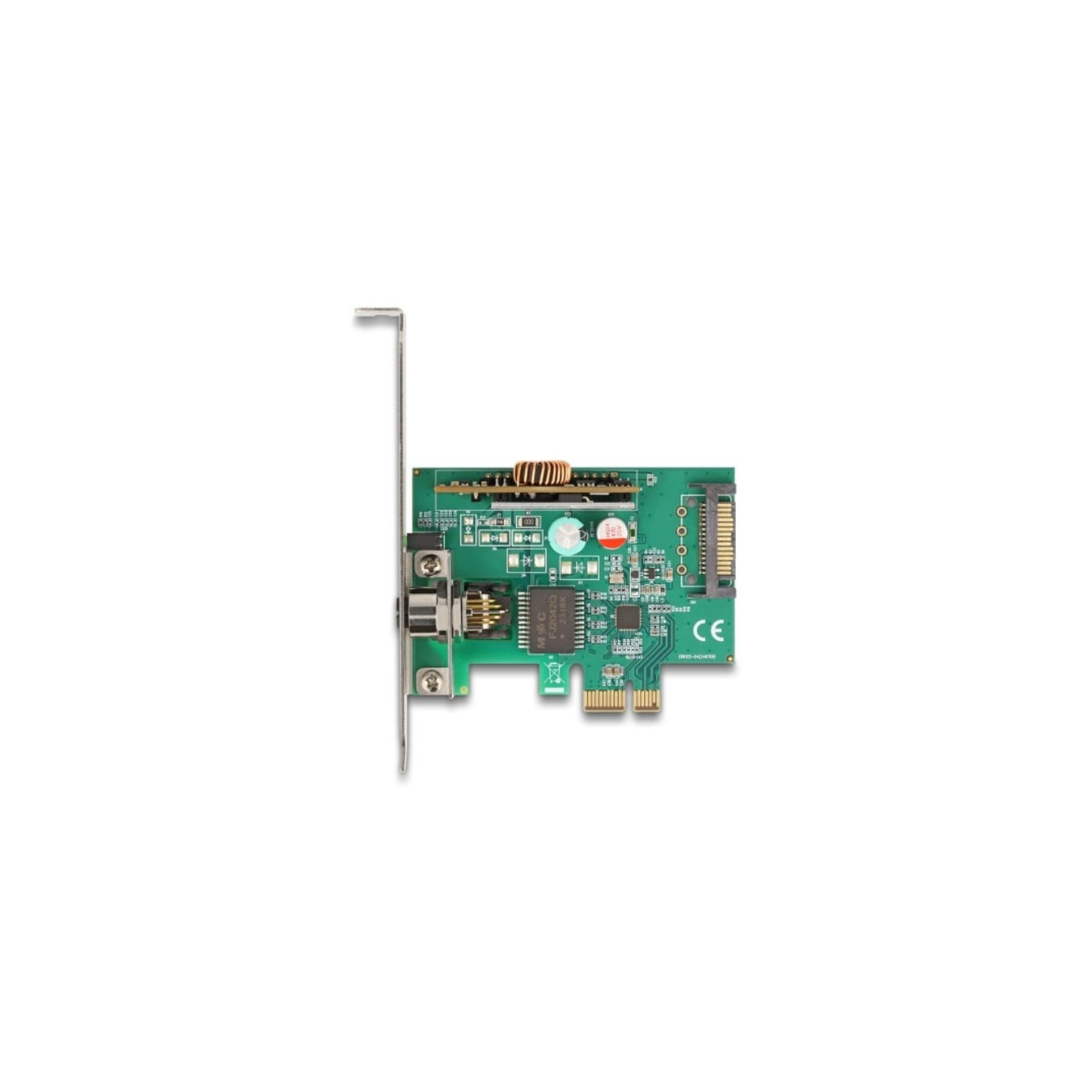

PCI Express x1 network card 2.5 Gigabit LAN 1x M12, LAN adapter
The Delock PCI Express card offers a network connection with a transfer rate of up to 2500 Mbps. This industrial Ethernet adapter from Delock can be used to connect various compone...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The Delock PCI Express card offers a network connection with a transfer rate of up to 2500 Mbps. This industrial Ethernet adapter from Delock can be used to connect various components with M12 connectors, e.g. B. for machine control or automation.
| Typ | LAN-Adapter |
| EAN | 4043619907601 |
| Manufacturer no. | 90760 |
| slot | PCIe x1 Version 2.1 |
| Chipset | Realtek RTL8125B |
| Operating System - Supported | Windows 11, Windows 10 |
| Feature | The M12 port supports Power over Ethernet according to IEEE 802.3af / 802.3at; This allows PoE-capable devices, such as: B. IP cameras or PoE splitters, via the network cable, are supplied with power | Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,Wake On LAN (WOL), IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x Full Duplex flow control, IEEE 802.1Q Virtual LAN (VLAN), 16k Jumbo Frames, PXE, IEEE 802.3af PoE, IEEE 802.3at PoE+, output power: max. 30 W total |
| More information | 1x M12 port | 1x 15 pin SATA power connector |
| Accessories - available | Low profile bezel, instruction manual |
