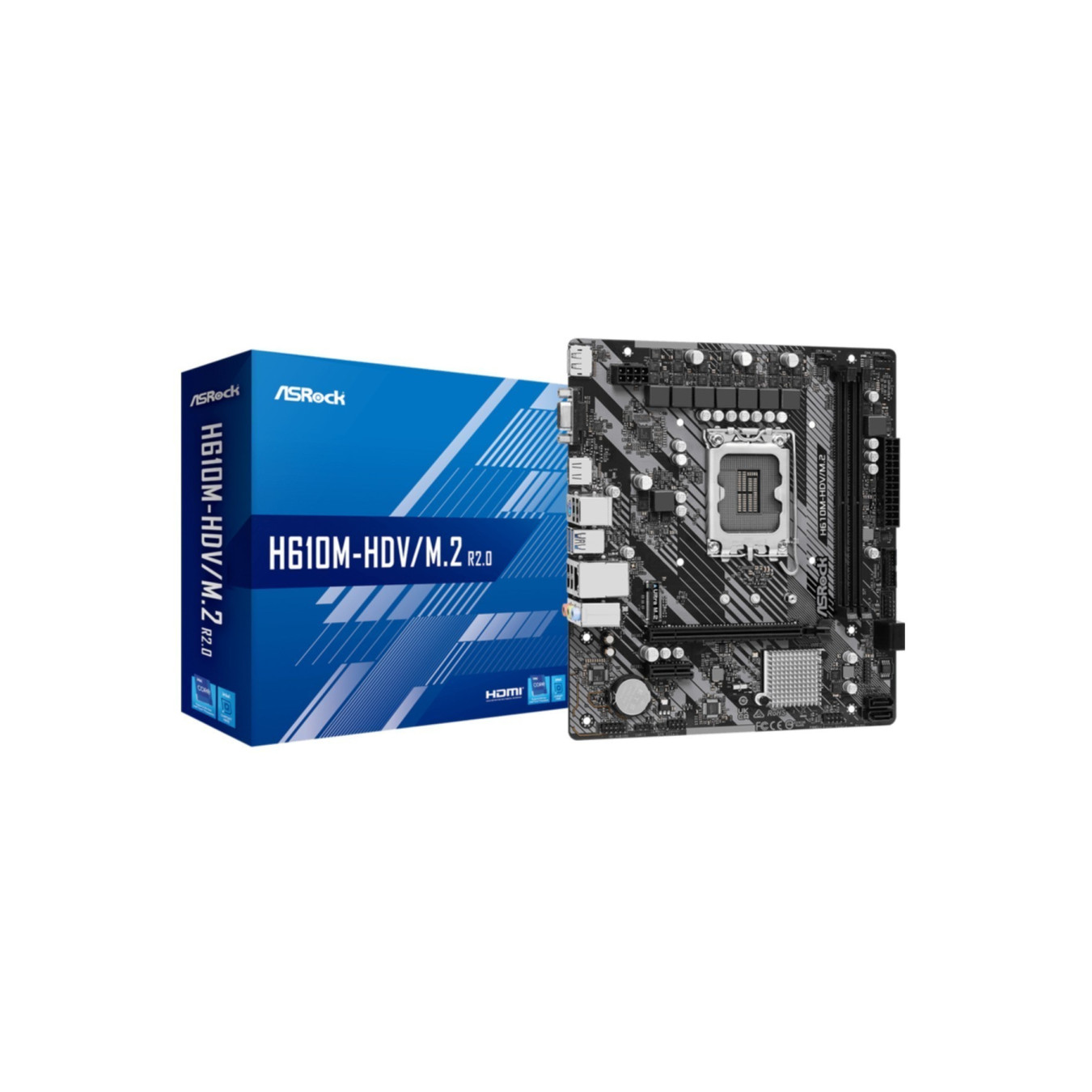

ASRock H610M-HDV/M.2 R2.0 LGA1700 micro-ATX Motherboard Intel H610 DDR4 64GB HDMI 2.1 (Boxed)
LGA1700 micro-ATX motherboard with Intel H610 chipset. Supports 14th/13th/12th Gen Intel CPUs, DDR4 dual-channel up to 64GB, 1x PCIe4.0 x16, 1x M.2 PCIe Gen3x4, 4x SATA3, HDMI2.1/DP1.4/VGA, Realtek 7.1 audio, Gigabit LAN.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel H610 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |

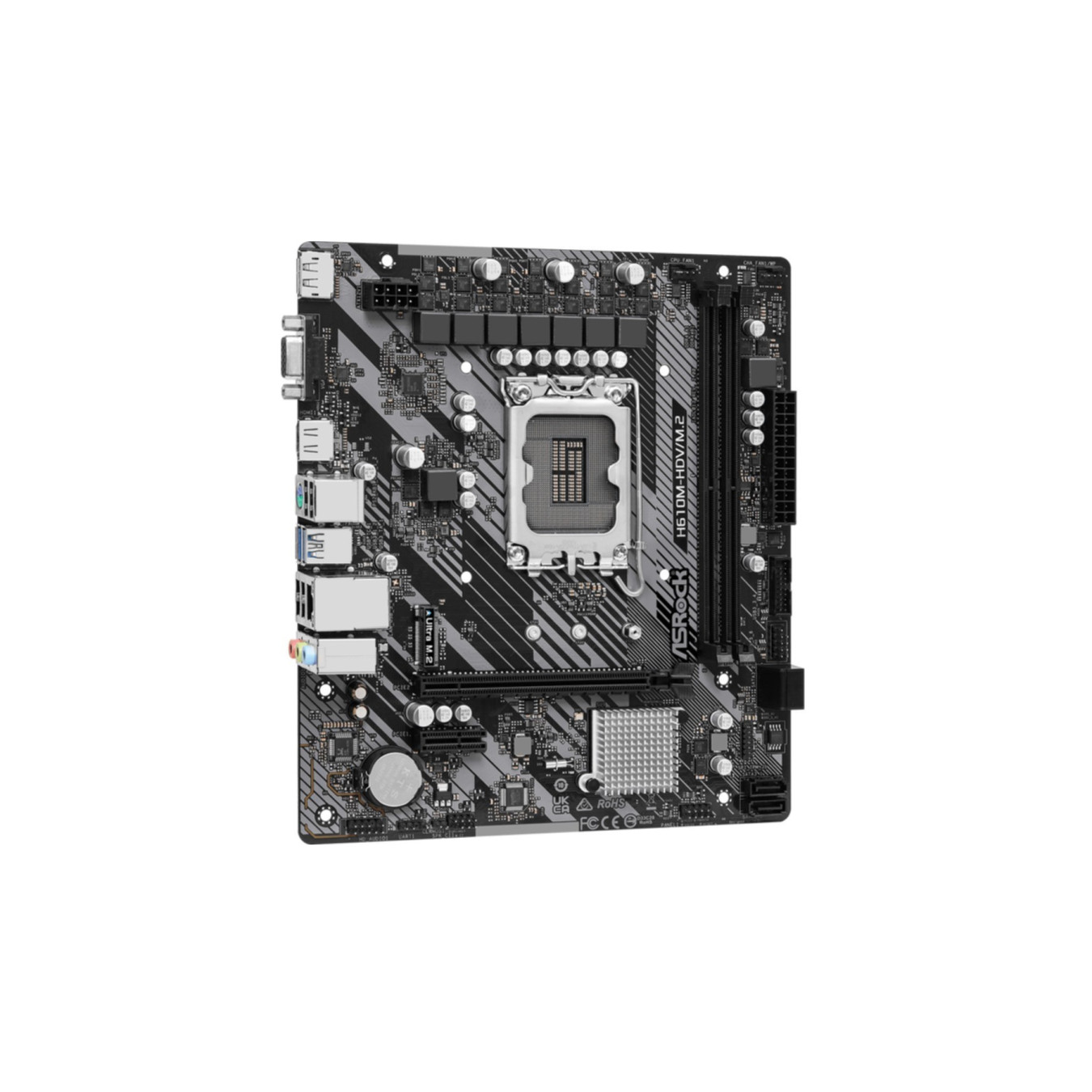

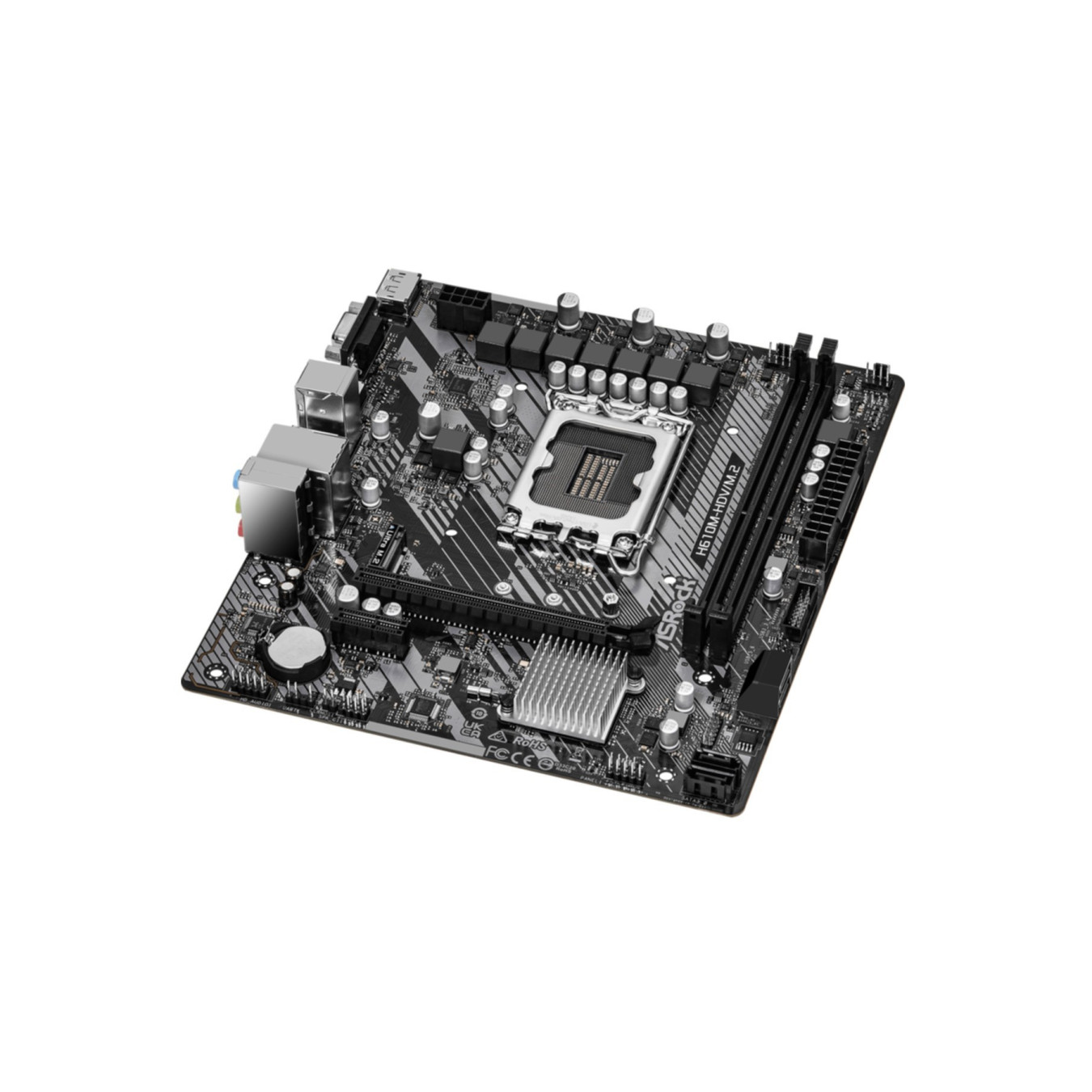

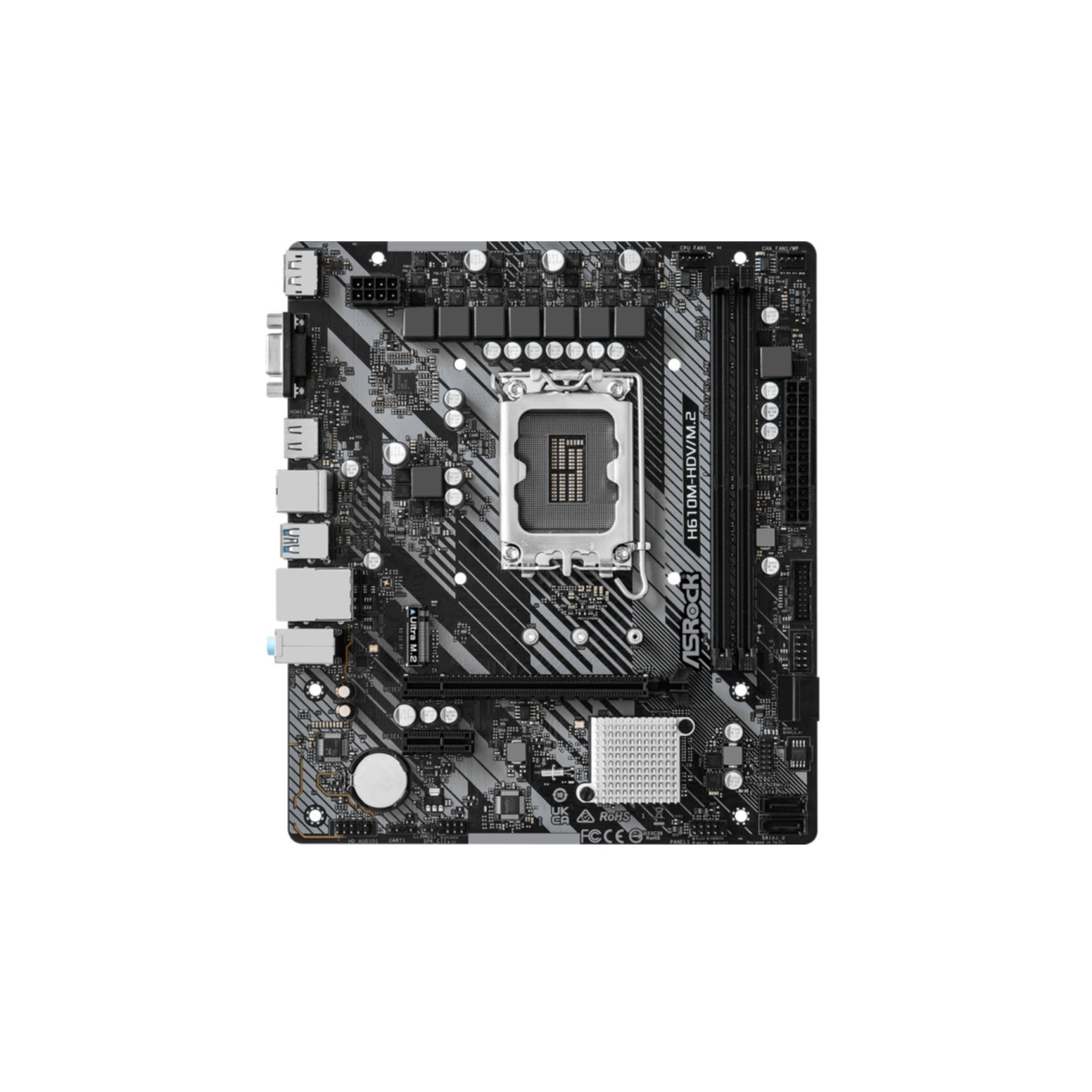

The ASRock H610M-HDV/M.2 R2.0 is an entry-level micro-ATX motherboard designed for 12th, 13th, and 14th Gen Intel Core processors using the LGA1700 socket. Featuring the Intel H610 chipset, it provides reliable performance for budget builds, office PCs, and light gaming systems. It supports dual-channel DDR4 memory up to 64GB at 3200MHz across 2 DIMM slots.

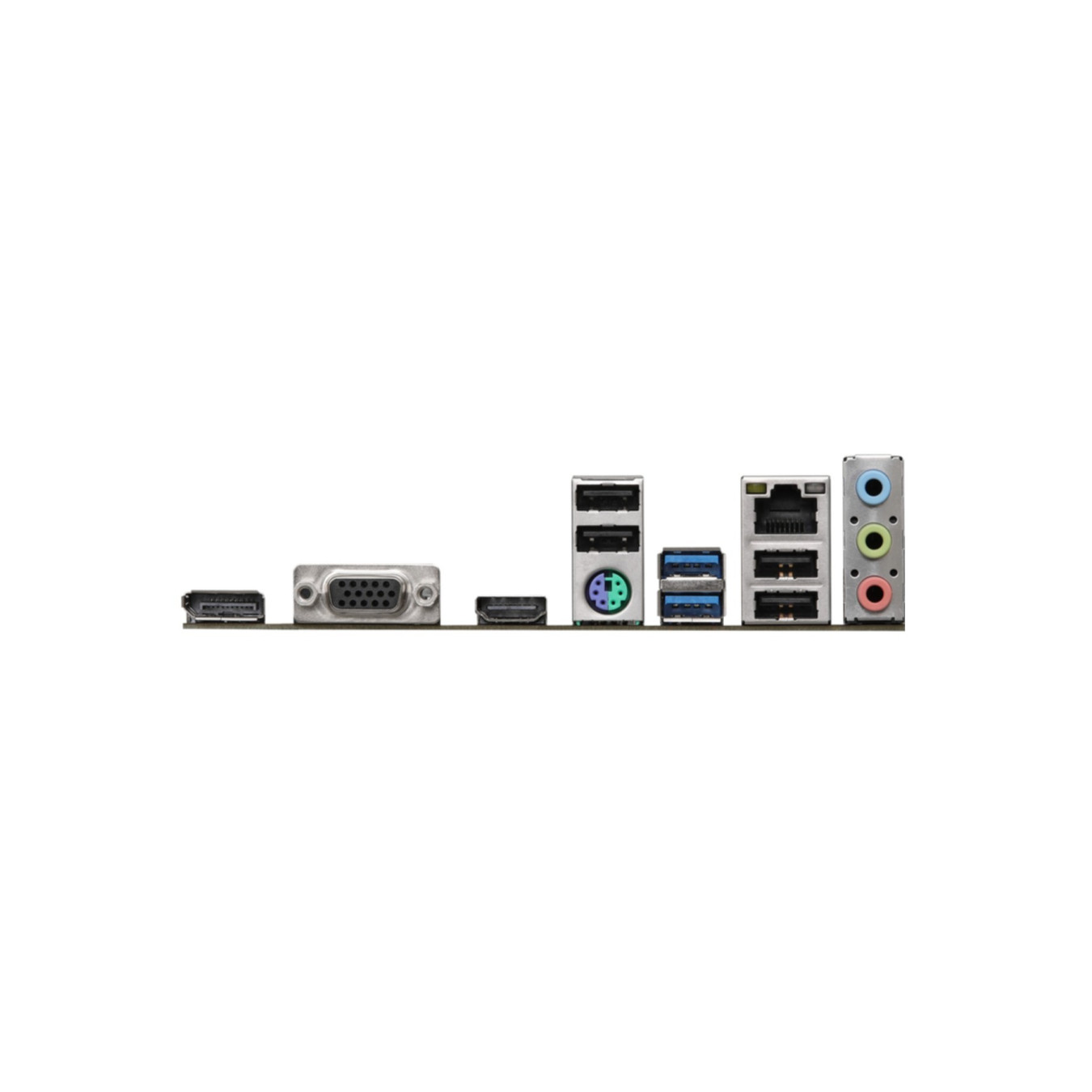

Storage options include 1x Ultra M.2 slot (PCIe Gen3 x4) for NVMe SSDs and 4x SATA3 ports. Expansion features a PCIe 4.0 x16 slot for GPUs and 1x PCIe 3.0 x1 slot. Rear I/O offers HDMI 2.1, DisplayPort 1.4, VGA, 2x USB 3.2 Gen1 Type-A, 4x USB 2.0, PS/2, Gigabit Ethernet, and audio jacks. A 6+1+1 phase power design ensures stable operation.
- ✅ Supports Intel 14th/13th/12th Gen Core i9/i7/i5/i3, Pentium, Celeron
- ✅ 7.1 CH HD Audio with Realtek ALC897 codec
- ✅ Realtek RTL8111H Gigabit LAN
- ✅ UEFI BIOS with 128Mbit size
- ✅ Windows 10/11 x64 compatible
- ✅ Micro-ATX form factor (220 x 193 mm)
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Core i9, i7, i5, i3, Pentium Gold, Celeron G-Series (12th/13th/14th Gen) |
| Motherboard chipset | Intel H610 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speed (max) | 3200 MHz |
| Memory channels | Dual-channel |
| Number of M.2 (M) slots | 1 (PCIe Gen3 x4) |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 (rear) + 2 (front) |
| USB 2.0 ports quantity | 4 (rear) + 2 (front) |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Power design | 6+1+1 Phase |
| Width | 220 mm |
| Depth | 193 mm |
| BIOS type | UEFI AMI |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
