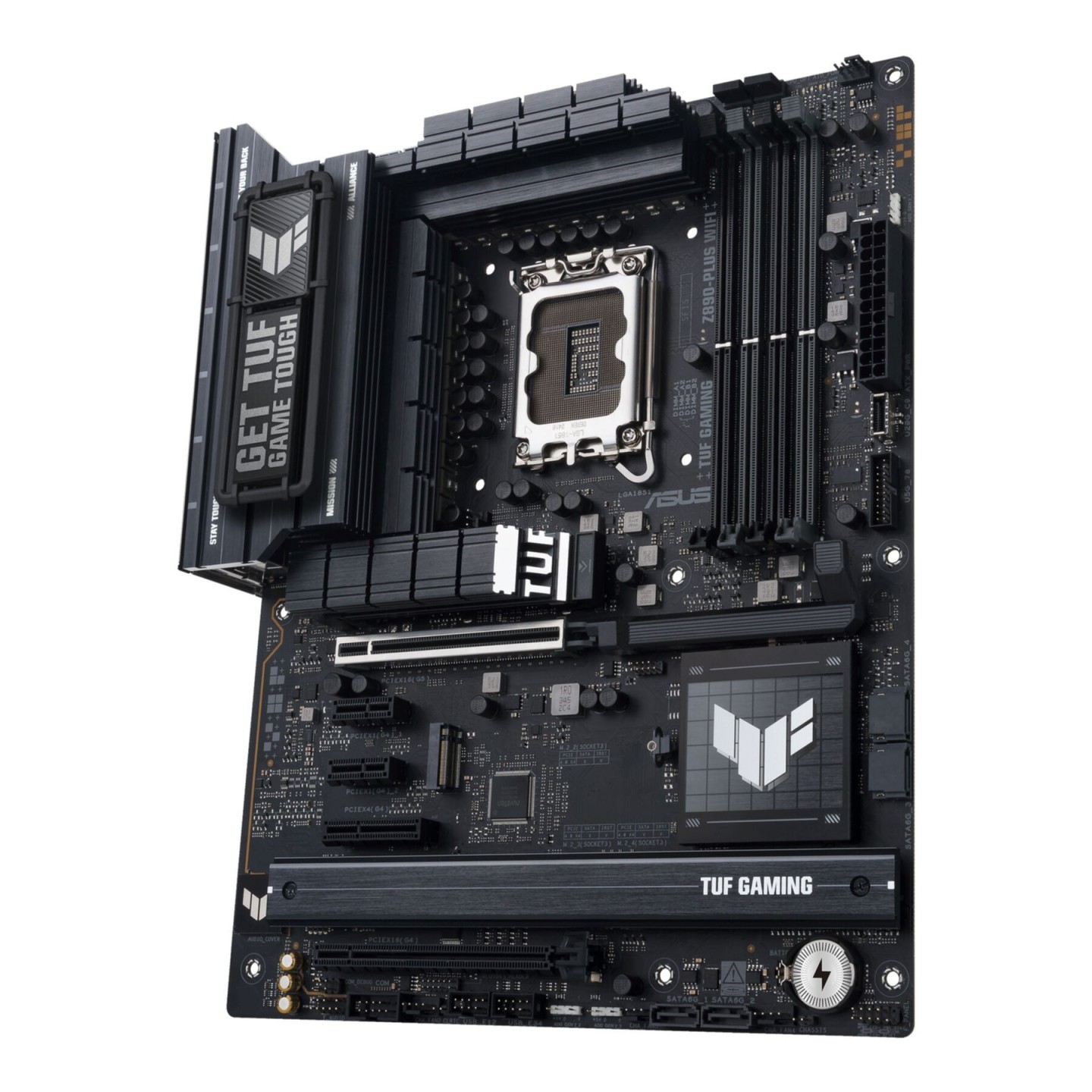

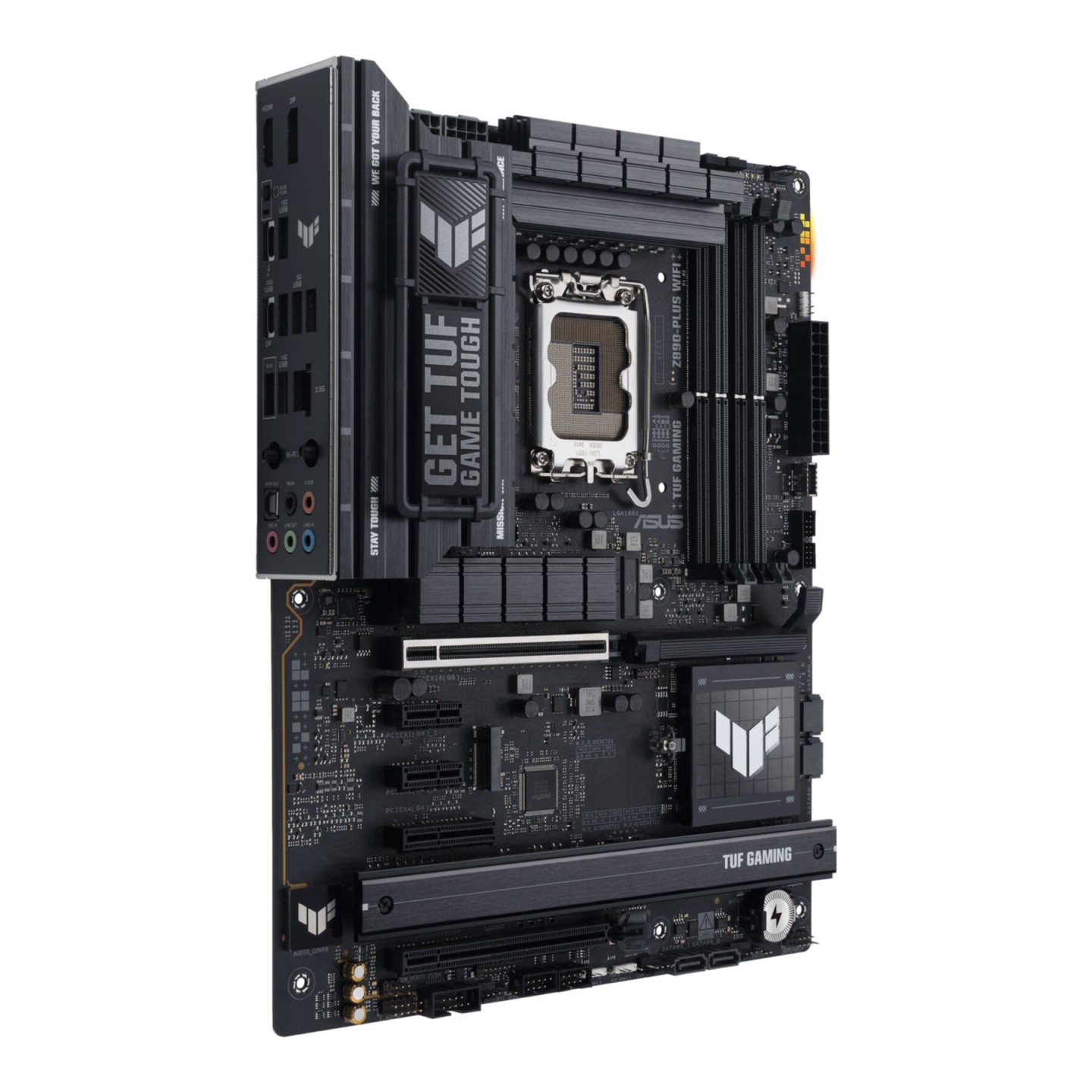

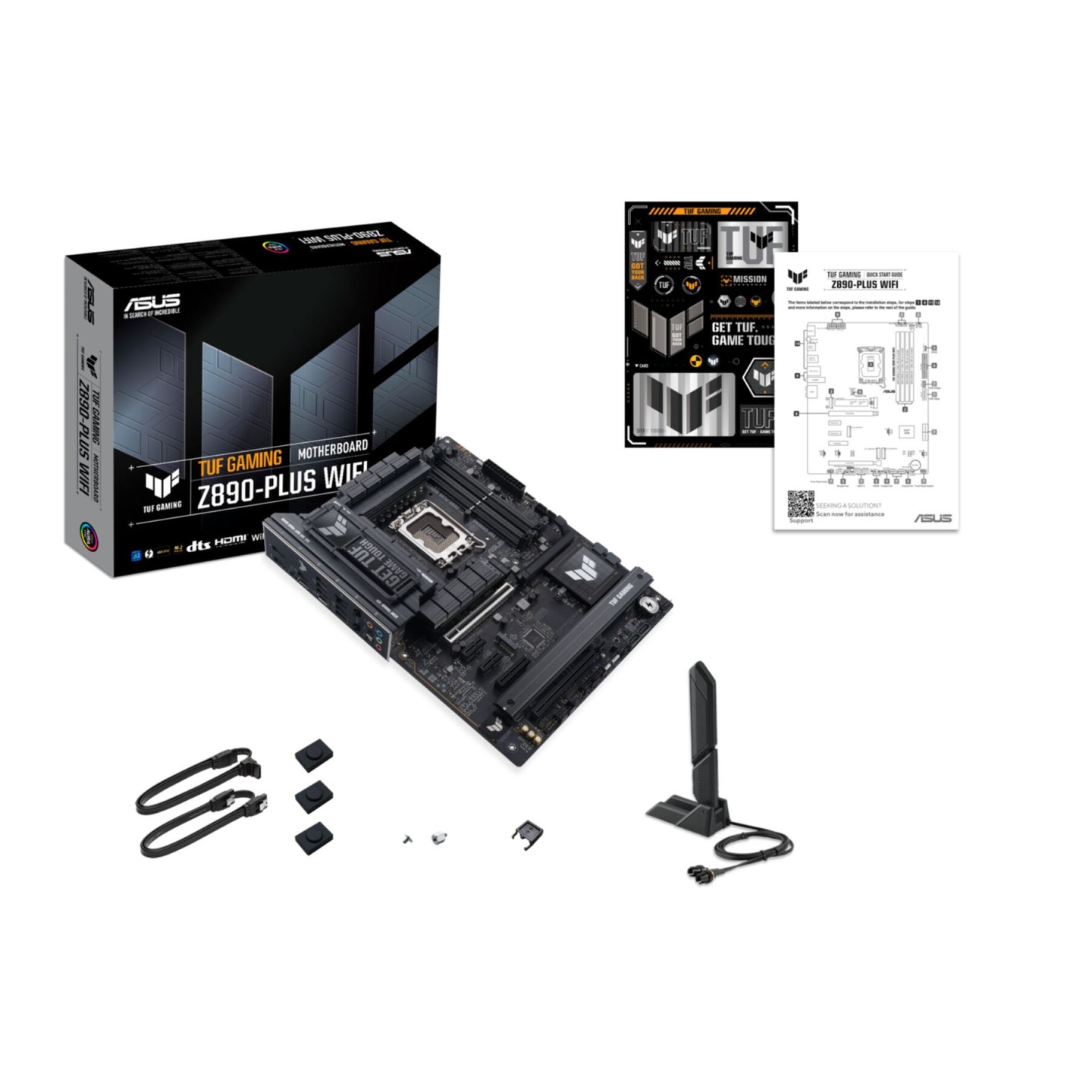

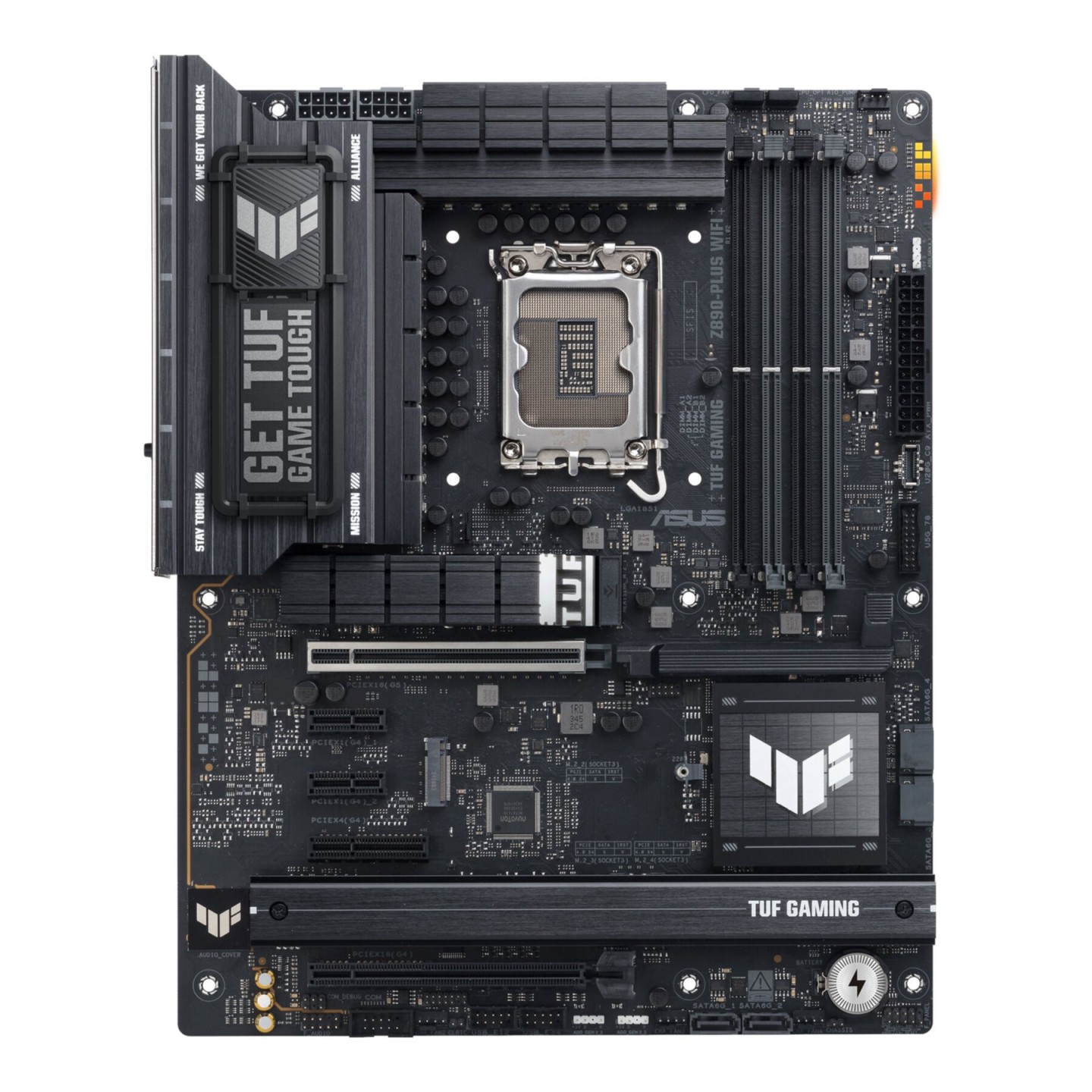

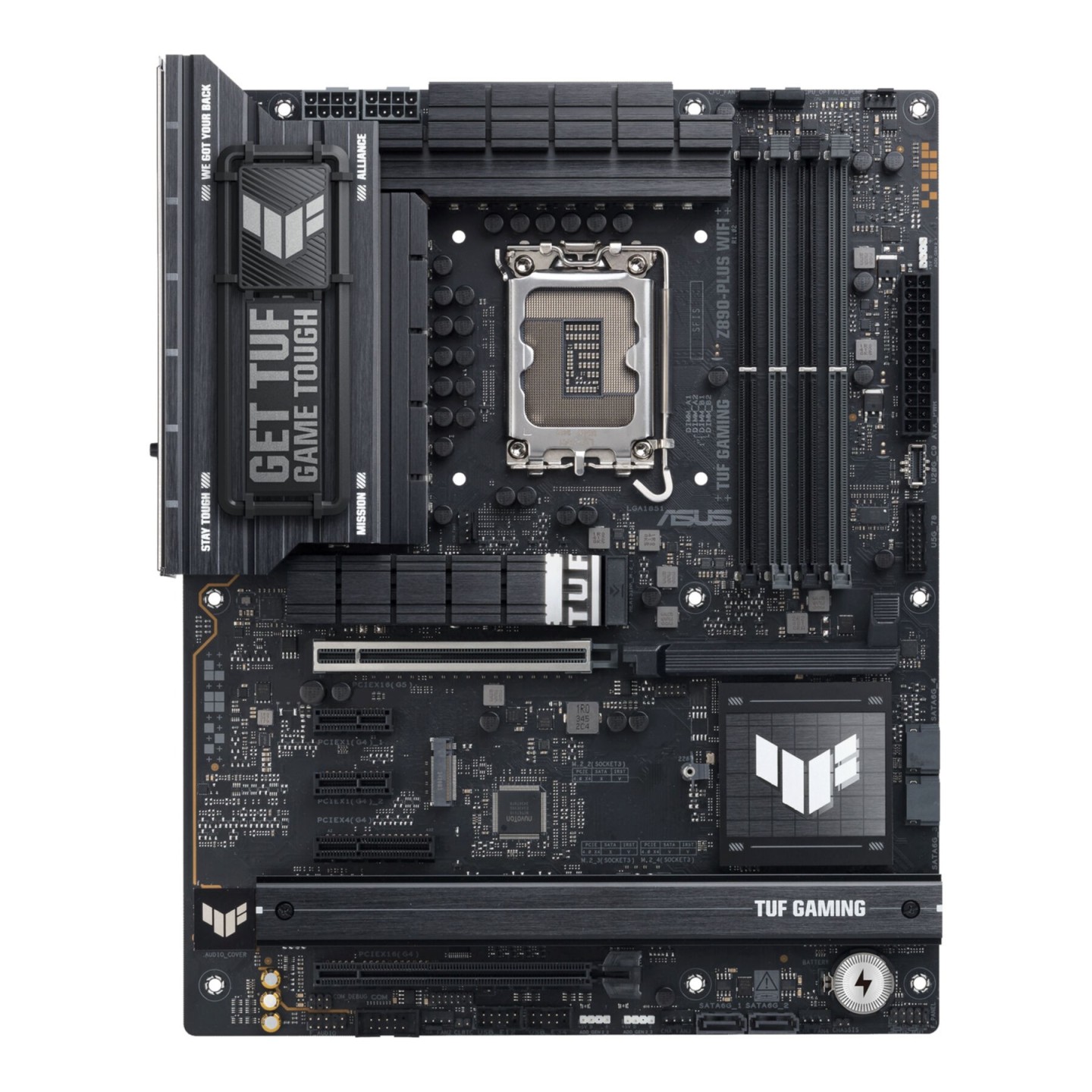

ASUS TUF Gaming Z890-PLUS WIFI - LGA1851 ATX Motherboard - Intel Z890, Max 256GB DDR5, WiFi 7 (90MB1PB0-M0EAY0)
ATX motherboard with LGA1851 socket for Intel Core Ultra (Series 2) CPUs, Z890 chipset. Supports 256GB DDR5, PCIe 5.0 GPU/M.2, 4x M.2 slots, WiFi 7, 2.5Gb LAN, Thunderbolt 4, military-grade durability.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1851 |
|---|---|
| Motherboards - Chipset | Intel Z890 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 192 GB 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 4 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Front Panel Type-C header Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
The ASUS TUF Gaming Z890-PLUS WIFI is a robust ATX motherboard built for Intel Core Ultra Series 2 processors using the LGA1851 socket and Z890 chipset. It delivers rock-solid performance for gaming and AI workloads with military-grade components, 16+1+2+1 80A DrMOS power stages, and advanced cooling including large VRM heatsinks and M.2 thermal solutions.
Key features include four DDR5 DIMM slots supporting up to 256GB at 9066+ MT/s (OC), PCIe 5.0 x16 SafeSlot for next-gen GPUs, one PCIe 5.0 M.2 slot plus three PCIe 4.0 M.2 slots with Q-Release/Slide/Latch for easy NVMe SSD installation. Connectivity shines with Wi-Fi 7 (802.11be), Bluetooth 5.4, Intel 2.5Gb Ethernet with TUF LANGuard, Thunderbolt 4 USB-C (40Gbps), front USB 20Gbps Type-C header, and multiple USB ports.
- ✅ PCIe 5.0 GPU slot & M.2 support for ultimate storage/GPU speeds
- ✅ WiFi 7 + 2.5Gb LAN for lag-free online gaming
- ✅ DIY-friendly: BIOS FlashBack, Q-Release slots, AI Cooling II
- ✅ Thunderbolt 4 & USB4 for 40Gbps transfers + 4K display support
- ✅ 8-channel HD audio with comprehensive rear I/O
| CPU Socket | LGA1851 (Intel Core Ultra Series 2) |
| Chipset | Intel Z890 |
| Form Factor | ATX |
| Memory Type | DDR5, 4x DIMM, max 256GB, up to 9066+ MT/s (OC) |
| Power Stages | 16+1+2+1 80A DrMOS |
| PCIe Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 4.0 x4, 2x PCIe 4.0 x1 |
| M.2 Slots | 1x PCIe 5.0 x4, 3x PCIe 4.0 x4 |
| SATA Ports | 4x SATA 6Gb/s |
| Networking | Intel 2.5Gb Ethernet (TUF LANGuard), Wi-Fi 7 (802.11be), Bluetooth 5.4 |
| USB Rear | Thunderbolt 4 USB-C (40Gbps), USB 20Gbps Type-C, multiple USB 3.2/2.0 |
| USB Internal | Front USB 20Gbps Type-C header, USB4 header |
| Audio | 8-channel HD Audio |
| Video Outputs | 1x DisplayPort, 1x HDMI |
| RGB Headers | 3-pin 5V ARGB, 4-pin 12V RGB |
| Cooling | VRM heatsinks, M.2 heatsinks, PCH heatsink, hybrid fan headers, AI Cooling II |
