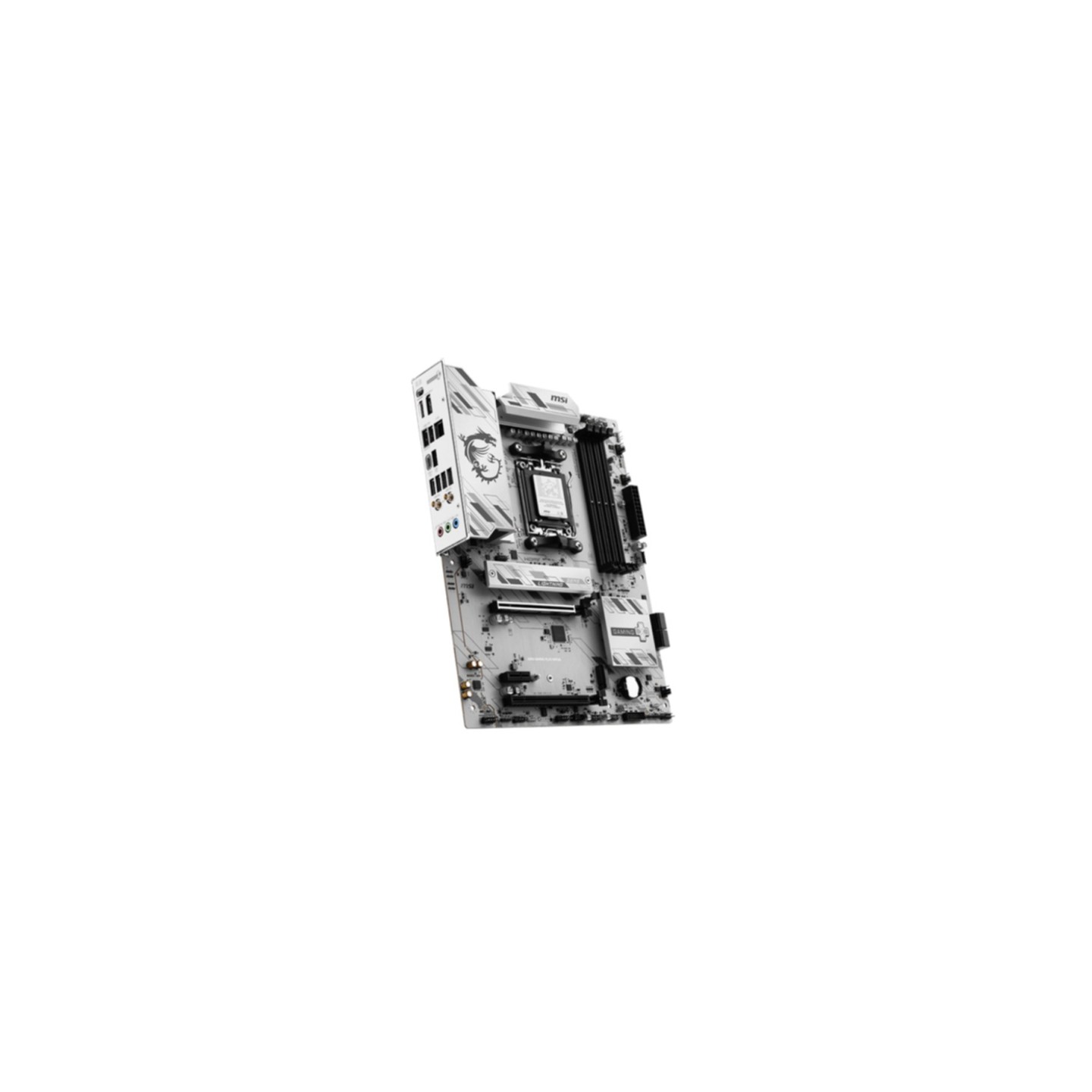

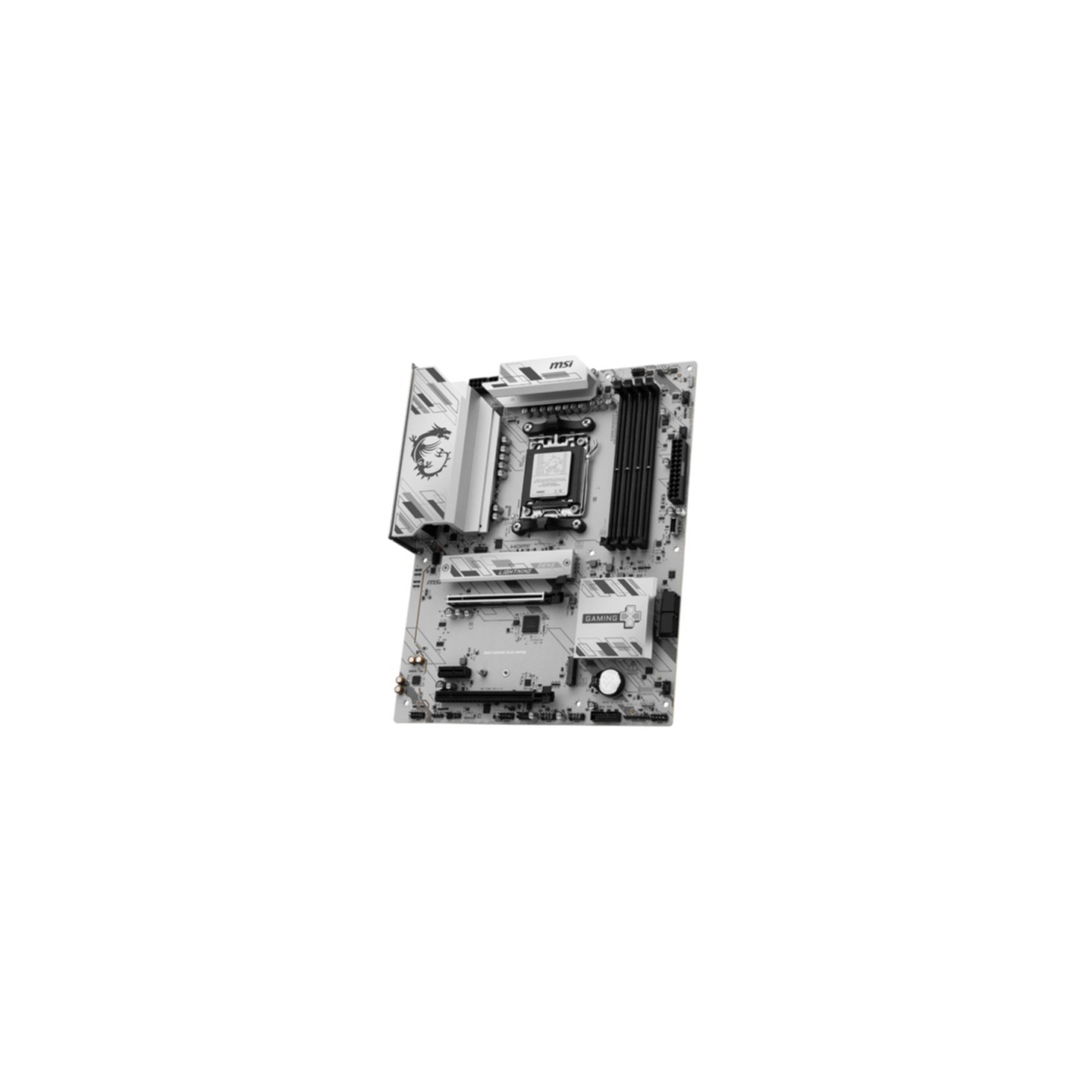

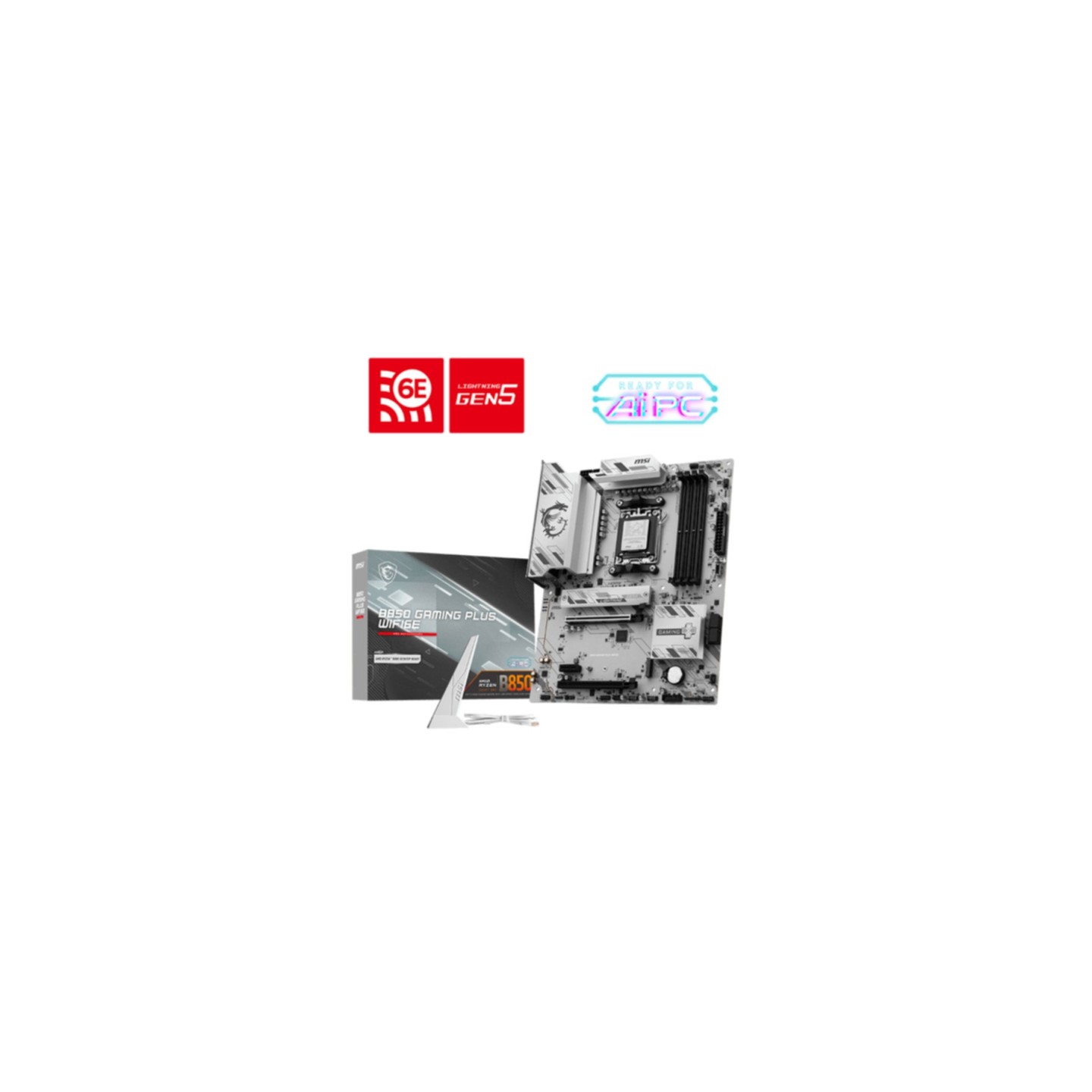

MSI B850 GAMING PLUS WIFI6E AM5 ATX MB DDR5 WiFi6E 2.5GbE (Boxed)
AM5 ATX motherboard w/ AMD B850 chipset, DDR5 up to 256GB/8200+MT/s OC, PCIe 4.0 x16 GPU, PCIe 5.0 M.2, Wi-Fi 6E, BT 5.3, 2.5GbE LAN, 12+2+1 power, RGB headers.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD B850 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
The MSI B850 GAMING PLUS WIFI6E is a gaming-focused ATX motherboard based on the AMD B850 chipset, supporting Ryzen 9000/8000/7000 series processors on AM5 socket. It features 4x DDR5 DIMM slots up to 256GB at 8200+MT/s (OC) with EXPO support, a robust 12+2+1 Duet Rail Power System with dual 8-pin CPU connectors, and Core Boost technology for stable high-performance operation.
Storage options include 2x M.2 slots (one PCIe 5.0 x4 from CPU, one PCIe 4.0 x4), 4x SATA 6Gb/s with RAID 0/1/10 support. Connectivity shines with Wi-Fi 6E (up to 2.4Gbps), Bluetooth 5.3, Realtek 2.5GbE LAN, rear USB 3.2 Gen2x2 Type-C (20Gbps capable but listed 10Gbps), multiple USB ports, and Realtek ALC897 7.1 audio. PCIe slots: 1x PCIe 4.0 x16, 1x PCIe 4.0 x16 (x4 mode), 1x PCIe 3.0 x1. Onboard RGB lighting and headers included.
- Supports AMD Ryzen 9000/8000/7000 Series (BIOS update may be required)
- DDR5 Dual Channel, up to 256GB, 8200+MT/s OC
- 2x M.2 (PCIe 5.0/4.0), 4x SATA 6Gb/s
- Wi-Fi 6E, Bluetooth 5.3, 2.5G LAN
- 12+2+1 Power Design, ATX Form Factor
- Includes EZ WiFi Antenna, M.2 Clip, SATA cables
| Type | Mainboard |
| EAN | 4711377365321 |
| Manufacturer Part Number | 7E80-001R |
| Socket | AM5 |
| Max supported CPUs | 1 |
| OS Support | Windows 10 ready, Windows 11 ready |
| Supported Processors | Ryzen 9000/8000/7000 Series (Raphael/Phoenix/Granite Ridge) |
| Chipset | AMD B850 |
| PCIe x16 Slots | 2x (1x PCIe 4.0 x16, 1x PCIe 4.0 x16 @x4) |
| BIOS | EFI-BIOS: Yes |
| Form Factor | ATX |
| Usage | PC |
| Power Supply | ATX12V (24-Pin + 2x 8-Pin) |
| Max Memory | 256 GB |
| Memory Type | DDR5, up to 8200+ MT/s (OC) |
| SATA Ports | 4 |
| SATA Controller | AMD B850 |
| RAID Levels | 0, 1, 10 |
| USB Controller | AMD B850 |
| Onboard Graphics | Only with CPU integrated graphics |
| Sound | Realtek ALC897 7.1-Channel |
| LAN | Realtek 8125D 2.5G |
| Wireless | Wi-Fi 6E, Bluetooth 5.3 |
| M.2 Slots | 2 (1x PCIe 5.0 x4, 1x PCIe 4.0 x4) |
| Power Design | 12+2+1 Duet Rail Power System |
| Accessories | EZ WiFi Antenna, EZ M.2 Clip Remover, SATA Cable, 1-to-2 EZ Conn Cable |
| Warning | Contains button cell battery |
