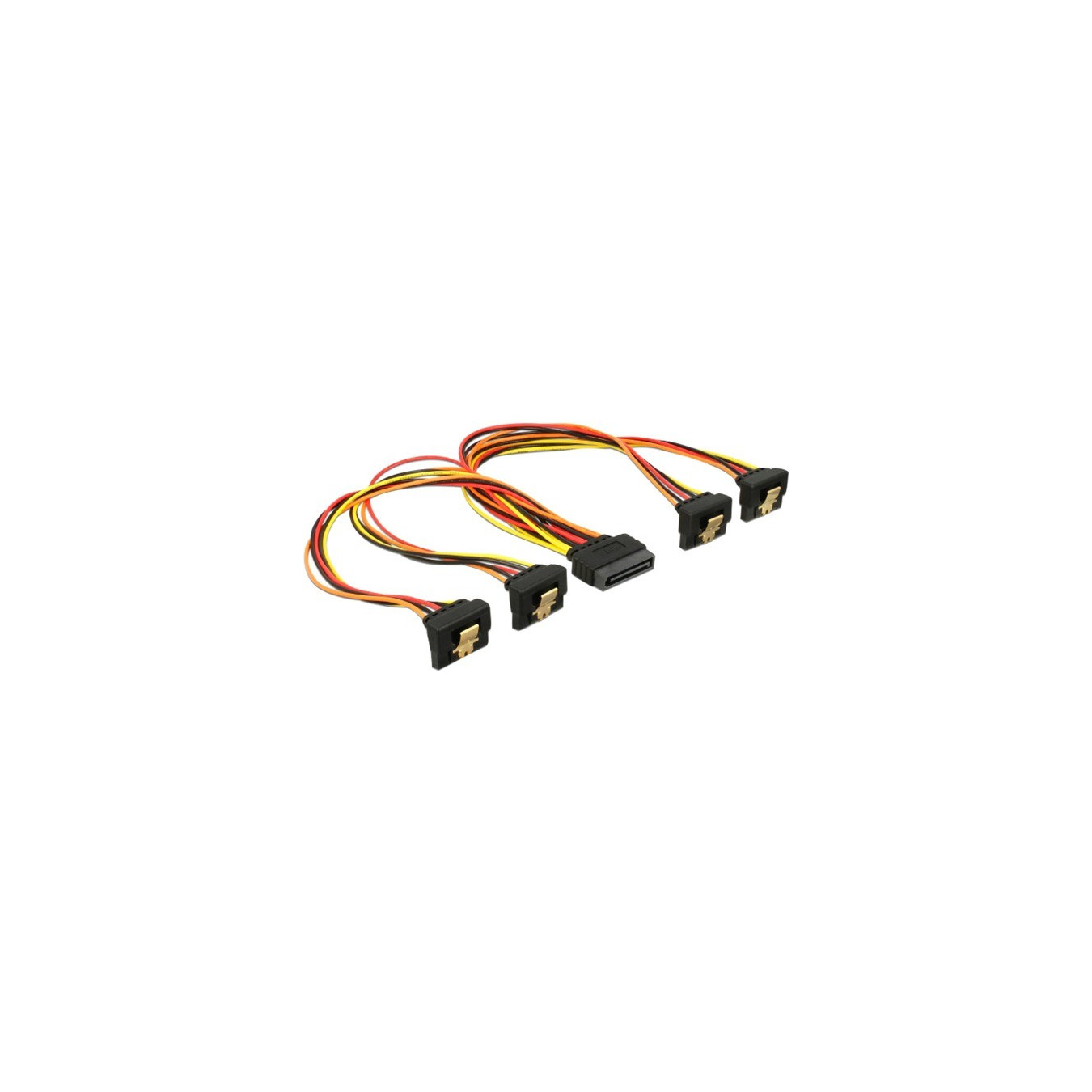

SATA 15Pin male to 4x female, angled (bottom), cable
The SATA cable 60167 from Delock is used to power four SATA devices via a free SATA 15-pin power connector on the power supply. The metal clips on the sockets and the metal clip re...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The SATA cable 60167 from Delock is used to power four SATA devices via a free SATA 15-pin power connector on the power supply. The metal clips on the sockets and the metal clip receptacle on the plug enable secure locking when connecting the cable.
| Typ | Cable |
| EAN | 4043619601677 |
| Manufacturer no. | 60167 |
| Area | Power supply |
| Connection - from | 1x 15-pin SATA (male) |
| Cable cross section | 22 AWG |
| taps | 5 |
| Characteristics | intern |
| Feature | With gold-colored metal clips |
| More information | 4x SATA 15 pin power socket with metal clip (4x angled downwards), variant with 5 power lines (yellow = 12 V, black = GND, red = 5 V, orange = 3.3 V) |
| Cable length | 30 cm |
| Weight | 56 Gramm |
